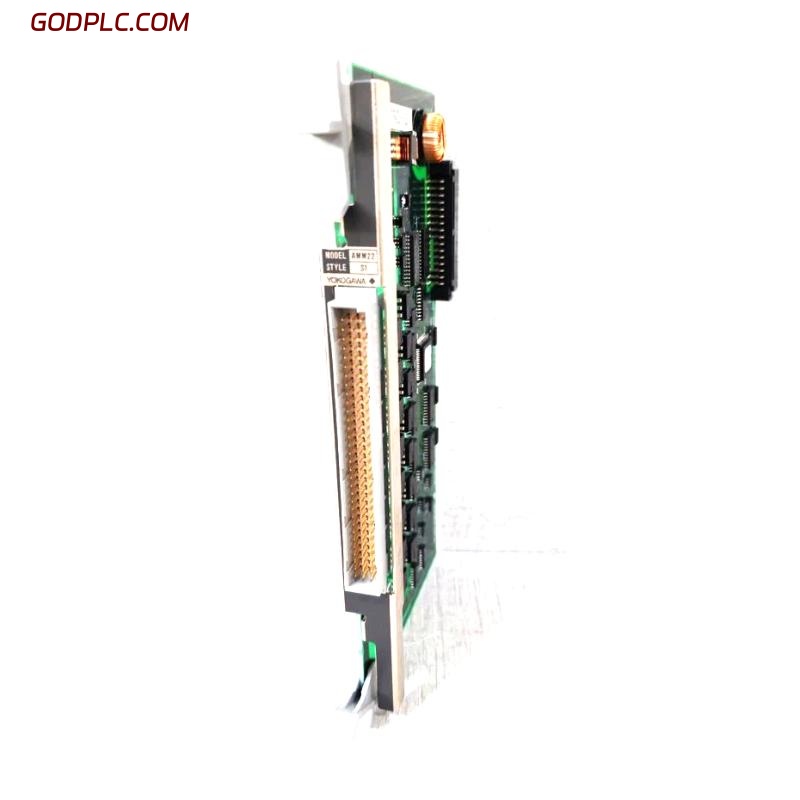

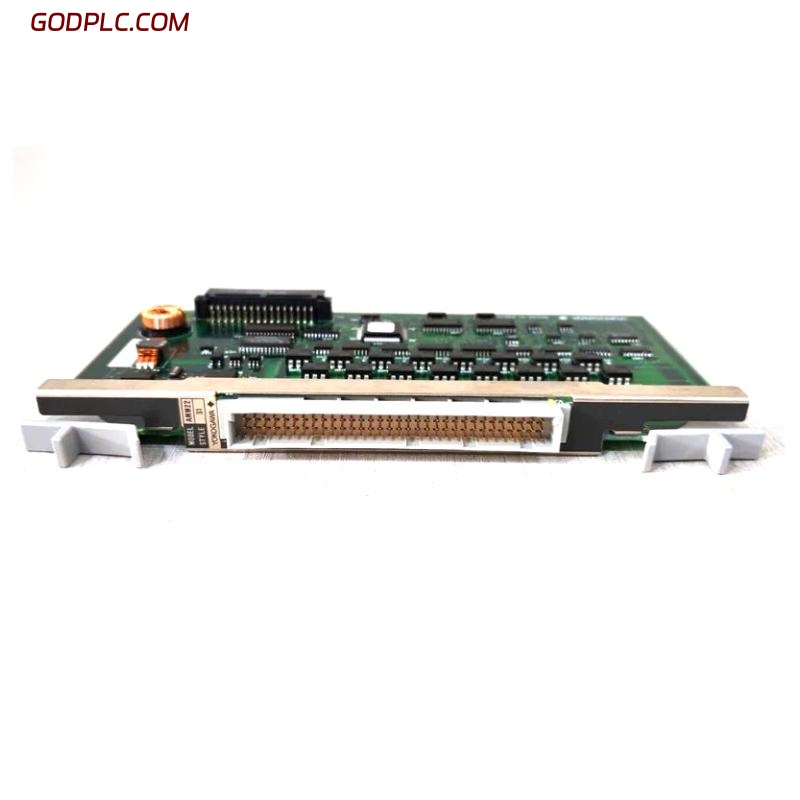

Yokogawa AMM22C Multiplexer Module
Product Overview
The Yokogawa AMM22C is a high-performance multiplexer module designed for use within Yokogawa’s CENTUM CS 3000 and CENTUM VP distributed control systems. It enables efficient signal routing by combining multiple analog signals into a single processing channel, reducing wiring complexity and improving channel density in large-scale process control environments. The AMM22C is widely used in applications requiring multi-point analog data acquisition, such as temperature, pressure, and flow monitoring.
Key Features
-
32-channel analog input multiplexer with shared A/D conversion
-
Supports a wide range of sensor types: thermocouples, RTDs, and DC voltage
-
High channel density reduces panel space and wiring costs
-
Built-in cold junction compensation (CJC) for temperature accuracy
-
Comprehensive diagnostic features for fault detection
-
Seamless integration with Yokogawa’s I/O racks and control network
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 45 × 97 × 103 mm |
| Weight | 0.3 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Channels | 32 analog inputs |
| Input Types | DC voltage, thermocouple, RTD |
| A/D Conversion | Time-multiplexed using single converter |
| Resolution | 16-bit |
| Input Voltage Range | ±10 V DC (typical for voltage inputs) |
| Input Accuracy | ±0.1% of span (typical) |
| Cold Junction Comp. | Built-in for thermocouple inputs |
| Isolation | Channel-to-system optical isolation |
Environmental Ratings
| Item | Specification |
|---|---|
| Operating Temp. | 0°C to +55°C |
| Storage Temp. | -20°C to +70°C |
| Humidity | 5%–95% RH, non-condensing |
| Vibration | IEC 60068-2 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Yokogawa CENTUM CS 3000, CENTUM VP |
| Mounting Type | Installed on Yokogawa I/O baseplate or rack |
| Communication | Via Vnet/IP or FIO (Fieldbus I/O) |
Industry Applications
-
Power Generation – Multi-point temperature and pressure measurement in turbines and boilers
-
Oil & Gas – Large-scale signal acquisition from field transmitters and temperature sensors
-
Chemical and Petrochemical – Centralized input management for reactor and separator control
-
Water and Wastewater – High-density analog input monitoring for treatment processes
-
Pharmaceutical – Scalable, accurate analog measurement in cleanroom and batch systems
The Yokogawa AMM22C Multiplexer Module is an efficient and compact solution for analog signal acquisition in distributed control systems. Its high channel density, broad sensor compatibility, and seamless system integration make it an essential module for advanced process automation.
Yokogawa AMM22C Multiplexer Module is in stock. Please contact us for a quick quote and competitive pricing.
