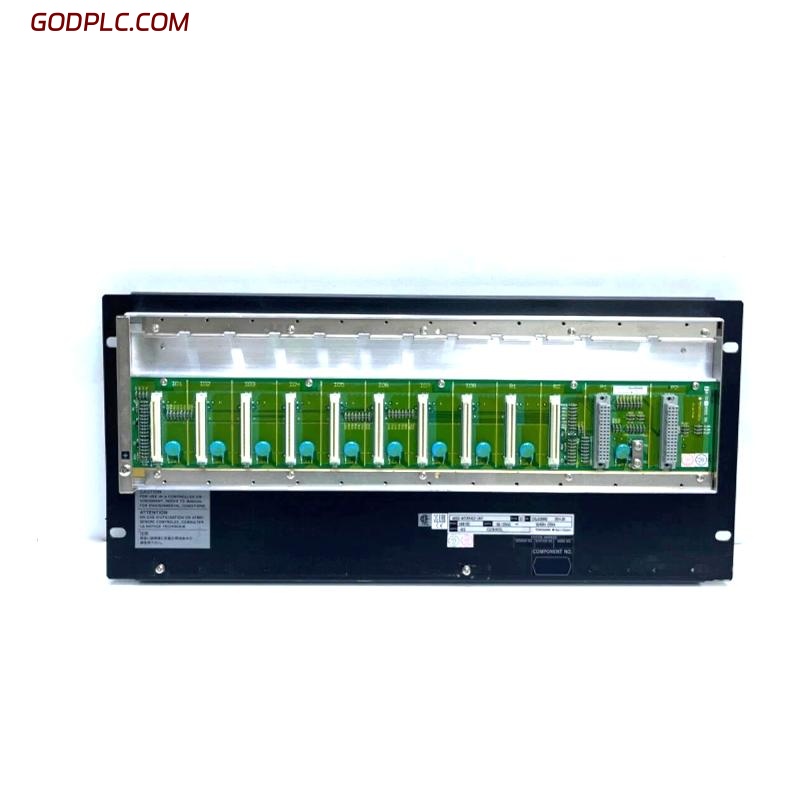

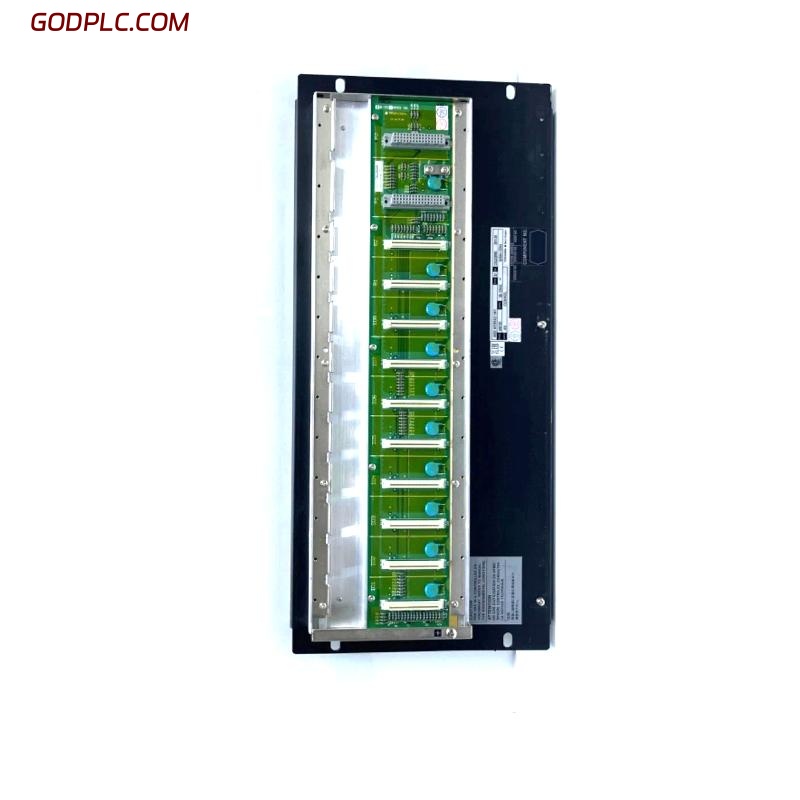

Yokogawa ANB10D-223 S2 ESB Bus Node Unit
Product Overview
The Yokogawa ANB10D-223 S2 is a dual-redundant ESB (Enhanced Serial Bus) bus node unit designed for use in Yokogawa CENTUM CS 3000 distributed control systems. It acts as the communication interface between field control stations (FCS) and remote I/O units over the ESB bus. With its redundant architecture and high-speed data transfer capabilities, the ANB10D-223 S2 ensures reliable and deterministic communication for process automation systems that demand high availability and robustness.
Key Features
-
Redundant ESB Bus Support – Dual-channel ESB bus communication for enhanced system reliability
-
High-Speed Data Transfer – Supports fast and deterministic I/O communication with minimal latency
-
Hot-Swappable Design – Enables maintenance or replacement without system shutdown
-
Modular Architecture – Integrates seamlessly into remote I/O racks with minimal configuration
-
Status Monitoring – Equipped with diagnostic LEDs for real-time status indication
-
Robust Design – Engineered for operation in harsh industrial conditions
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 482.6 × 221.5 × 205 mm |
| Weight | 10 kg |
Electrical & Communication Characteristics
| Item | Specification |
|---|---|
| Communication Interface | ESB bus (dual channel) |
| Transmission Speed | 10 Mbps |
| Redundancy | Fully redundant ESB bus interface |
| Power Supply | Supplied via I/O base unit |
| Status Indicators | Power, communication, and fault LEDs |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | Compliant with IEC 60068-2-6 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Yokogawa CENTUM CS 3000 and CENTUM VP systems |
| Mounting Type | Slot-in module for remote I/O rack (e.g., ER Bus) |
Industry Applications
-
Oil & Gas – Enables reliable distributed I/O communication in upstream and downstream control
-
Power Generation – Supports secure and redundant data transfer for turbine and plant control
-
Chemical & Petrochemical – Facilitates real-time monitoring and control in hazardous environments
-
Pharmaceutical Manufacturing – Ensures high availability for regulated production systems
-
Water & Wastewater – Connects remote stations with centralized process logic seamlessly
The Yokogawa ANB10D-223 S2 ESB Bus Node Unit delivers highly reliable, redundant communication between control stations and I/O modules. It is a critical component for distributed control systems requiring high-speed, fault-tolerant operation in mission-critical industrial environments.
Yokogawa ANB10D-223 S2 ESB Bus Node Unit is in stock. Please contact us for a quick quote and competitive pricing.
