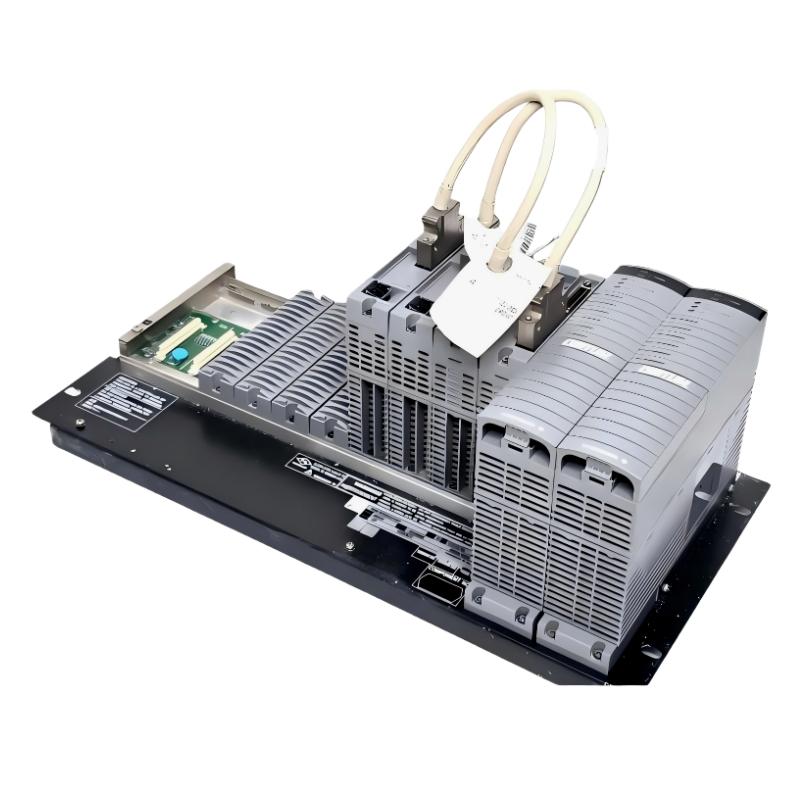

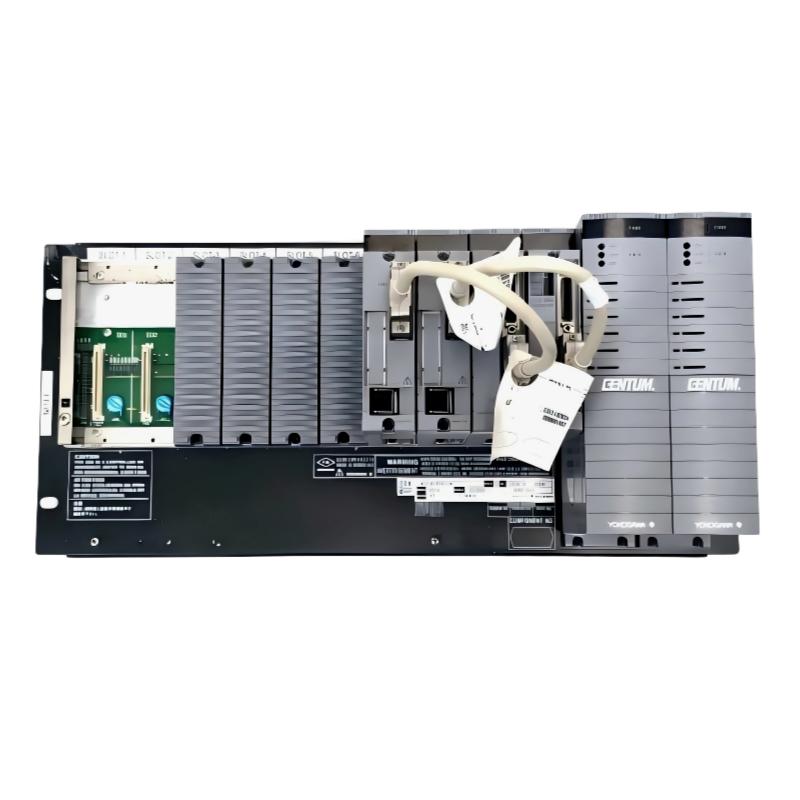

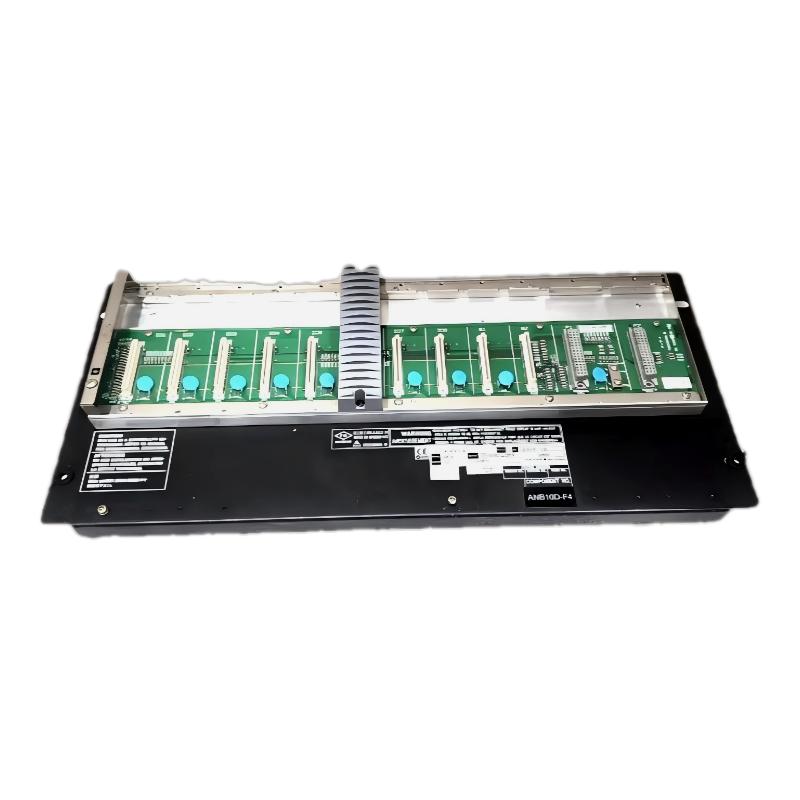

1. What is the primary function of the ANB10D-420/CU2T ESB Bus Node Unit?
This unit acts as a distributed I/O interface within Yokogawa control systems, allowing remote field signals to be integrated into the central control architecture via the ESB bus. It plays a key role in expanding system capacity while maintaining centralized control and monitoring.

2. What does the CU2T configuration indicate?
CU2T represents a redundant control unit configuration with enhanced fault tolerance. It allows two control units to operate in parallel, ensuring that if one unit fails, the backup unit can immediately take over without interrupting system operation.

3. How does the ESB Bus enhance system communication?
The ESB Bus provides high-speed, deterministic communication between node units and the central controller. It ensures real-time data exchange with minimal latency, which is essential for precise process control and monitoring.

4. What types of I/O modules are supported?
The unit supports a wide range of Yokogawa ESB I/O modules, including digital inputs/outputs, analog inputs/outputs, and specialized modules such as temperature or pulse input modules, enabling flexible system design.

5. How does redundancy improve reliability in this system?
Redundancy is implemented through dual communication paths and redundant control units. If one path or unit experiences a fault, the system automatically switches to the standby path, ensuring uninterrupted operation and reducing the risk of process downtime.

6. Can maintenance be performed while the system is running?
Yes, the unit supports online maintenance and hot-swapping of certain modules. This allows maintenance personnel to replace or service components without shutting down the system, which is critical in continuous industrial operations.

7. In which industries is this node unit commonly applied?
It is widely used in industries such as oil and gas, petrochemical, power generation, chemical processing, and large-scale manufacturing, where high system reliability and distributed control are essential.

8. How is communication stability and data integrity ensured?
Communication stability is ensured through redundant ESB architecture, shielded communication lines, and built-in diagnostic functions. The system continuously monitors communication status and can quickly detect and isolate faults, maintaining reliable and accurate data transmission even in harsh industrial environments.
