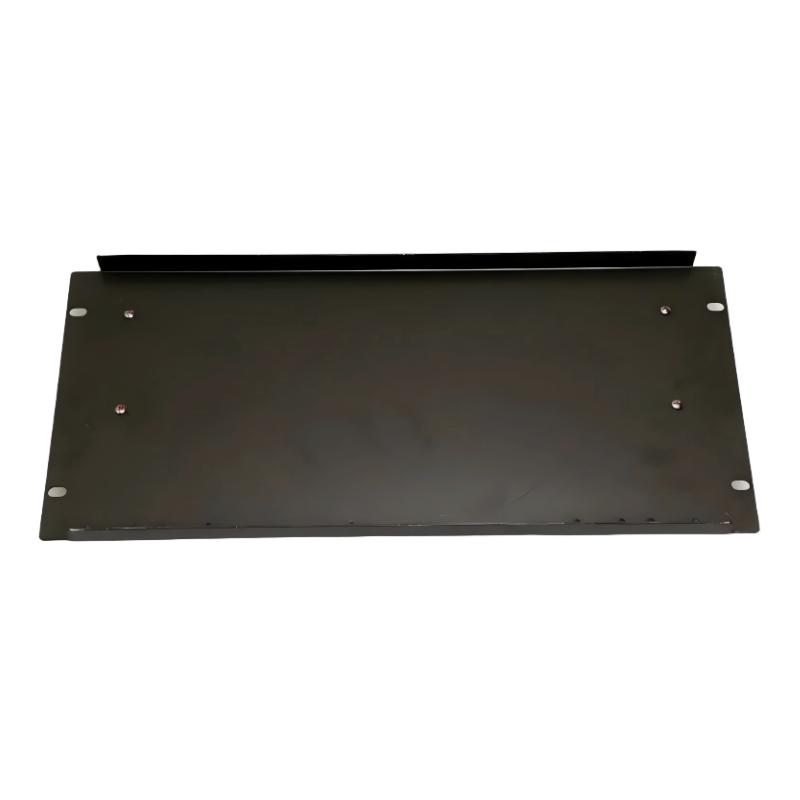

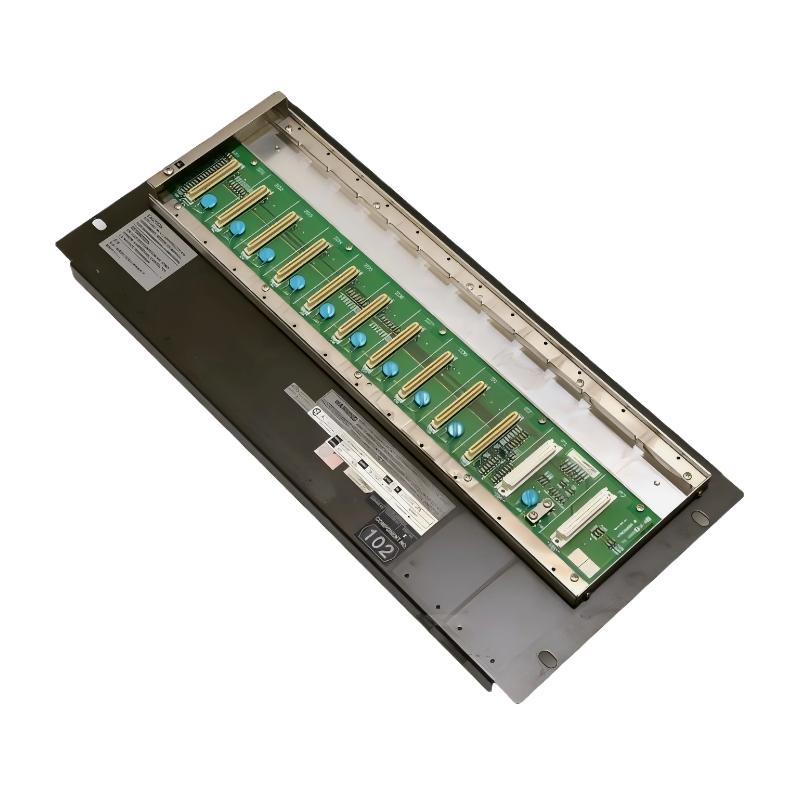

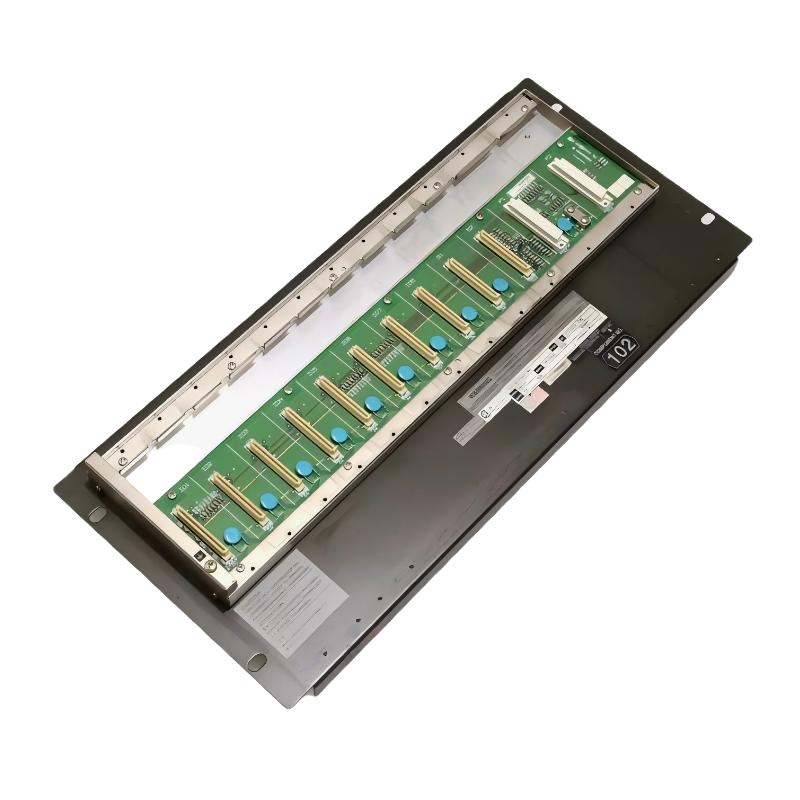

Yokogawa ANR10D-420 S1 ER Bus Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Model | ANR10D-420 S1 |
| Product Type | ER Bus Unit |
| Manufacturer | Yokogawa |
| Application Area | Industrial automation control systems and fieldbus communication |
| Core Function | Provides ER Bus communication interface for system expansion |
| Communication Method | ER Bus (Extension Remote Bus) |
| System Role | Enables data exchange between controller and remote I/O or expansion modules |
| Installation Method | Rack/cabinet-mounted modular installation |
| Interface Type | ER Bus communication interface |
| Main Function | Supports communication between control system and distributed devices |
| System Compatibility | Yokogawa control system architecture |
| Application Feature | High-reliability industrial communication and modular expansion |
| Operating Environment | Industrial control rooms and automation systems |
| Maintenance Feature | Supports modular replacement and system expansion |
| Dimensions | 482.6 × 221.5 × 205 mm |
| Weight | 10 kg |
FAQ
1. What is the main function of the Yokogawa ANR10D-420 S1 ER Bus Unit?
The ANR10D-420 S1 ER Bus Unit is designed to provide communication expansion in industrial control systems. Its main function is to enable reliable data exchange between the main controller and remote I/O modules or other expansion units through the ER Bus network, ensuring coordinated system operation across distributed architectures.
2. What role does this ER Bus Unit play in a control system?
It acts as a communication bridge within the automation system. By connecting the central controller with remote devices, it allows data acquisition and control signals to be transmitted across extended distances, supporting distributed control system designs.
3. How does the ER Bus communication architecture work?
The ER Bus Unit transmits control commands from the main controller to remote I/O modules while simultaneously returning field data back to the controller. This bidirectional communication ensures real-time monitoring and control across the entire system network.
4. In which industries is this module typically used?
It is widely used in industries such as oil and gas, petrochemicals, power generation, metallurgy, and large-scale process automation systems where distributed control and reliable long-distance communication are required.
5. What happens if the ER Bus Unit fails?
If the unit fails, communication between the main controller and remote I/O modules may be interrupted. This can result in loss of data acquisition, control signal delays, or partial system shutdown depending on the system configuration and redundancy design.
6. Does this module support system expansion?
Yes, the ER Bus Unit is specifically designed for system scalability. It allows multiple remote I/O or expansion modules to be connected, enabling the control system to expand its input/output capacity and operational coverage.
7. What should be considered during installation and configuration?
Proper installation requires secure mounting in the control cabinet and correct configuration of communication parameters such as addressing and network topology. Proper wiring and shielding are also important to ensure stable communication performance.
8. How is long-term communication stability ensured?
Long-term stability is achieved through industrial-grade design, strong anti-interference capability, and reliable bus communication structure. Combined with proper installation and routine maintenance, it ensures consistent and stable system operation in demanding industrial environments.
Yokogawa ANR10D-420 S1 ER Bus Unit is in stock. Please contact us for a quick quote and competitive pricing.
