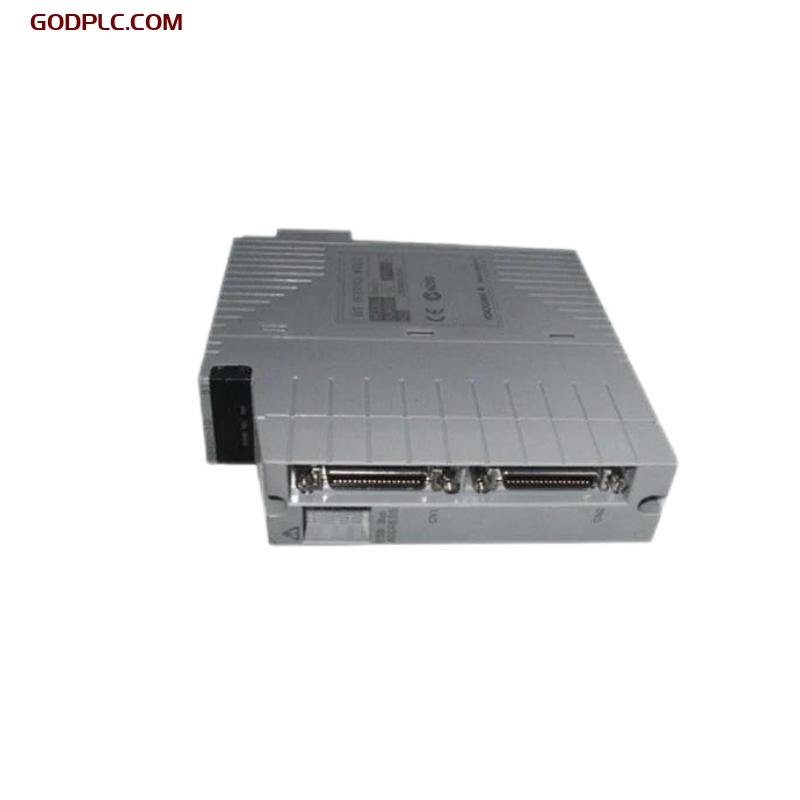

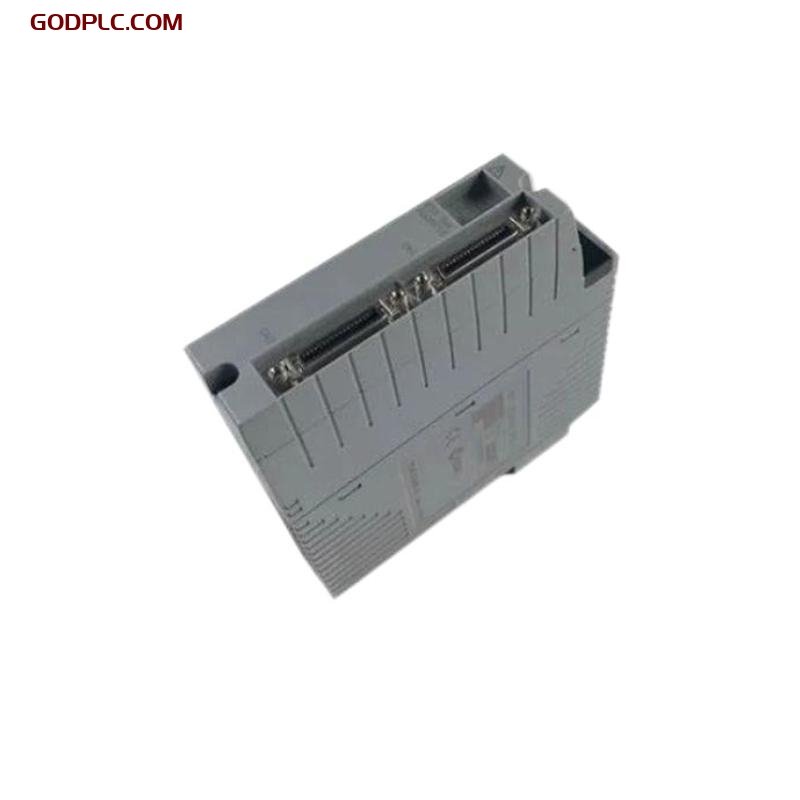

Yokogawa ANT401-5E – Fiber Optic Bus Repeater Master Module
Product Overview
The Yokogawa ANT401-5E is a fiber optic bus repeater master module designed for use in Yokogawa’s CENTUM CS 3000 and CENTUM VP distributed control systems. It enables the extension of the ESB (Enhanced System Bus) fiber optic network by regenerating and retransmitting data signals over long distances. As the master unit in a repeater pair, the ANT401-5E is critical in ensuring reliable, high-speed communication between I/O nodes and field control stations, especially in large-scale or widely distributed automation systems.
Key Features
-
Master Repeater Function – Serves as the master module in a fiber optic bus repeater pair, coordinating communication across extended networks.
-
Long-Distance Communication – Supports fiber optic transmission over extended ranges, ideal for large plant layouts.
-
Signal Integrity Assurance – Regenerates data signals to maintain high fidelity and timing accuracy across the ESB bus.
-
Noise Immunity – Immune to EMI/RFI, making it suitable for electrically noisy industrial environments.
-
Redundancy Support – Can be configured with redundant fiber paths to enhance system reliability and availability.
-
Compact DIN Rail Mounting – Designed for easy integration into control panels or system enclosures.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 x 100 x 40 mm |
| Weight | 0.4 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 VDC (from system cabinet) |
| Fiber Type | Multi-mode fiber optic cable |
| Data Interface | ESB Bus |
| Status Indicators | LEDs for link status and communication |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +50°C |
| Storage Temp | -20°C to +70°C |
| Humidity | 5%–95% non-condensing |
| Protection Rating | IP20 (when panel mounted) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Yokogawa CENTUM CS 3000, CENTUM VP DCS |
| Mounting | DIN rail or control cabinet installation |
Industry Applications
-
Oil & Gas – Supports long-distance communication between remote I/O nodes in refineries and offshore platforms.
-
Power Generation – Enables fiber-based data transfer in turbine control and distributed monitoring systems.
-
Chemical Processing – Provides reliable control communication across hazardous or EMI-prone plant zones.
-
Water & Wastewater – Facilitates distributed SCADA communication in treatment and pumping stations.
-
Industrial Manufacturing – Extends fiber networks in large factory automation systems with real-time demands.
The Yokogawa ANT401-5E Fiber Optic Bus Repeater Master Module is essential for extending and maintaining high-performance communication in Yokogawa DCS environments. Its ability to support long-distance fiber networks with redundancy and signal regeneration ensures robust control in mission-critical industrial applications.
Yokogawa ANT401-5E Fiber Optic Bus Repeater Master Module is in stock. Please contact us for a quick quote and competitive pricing.
