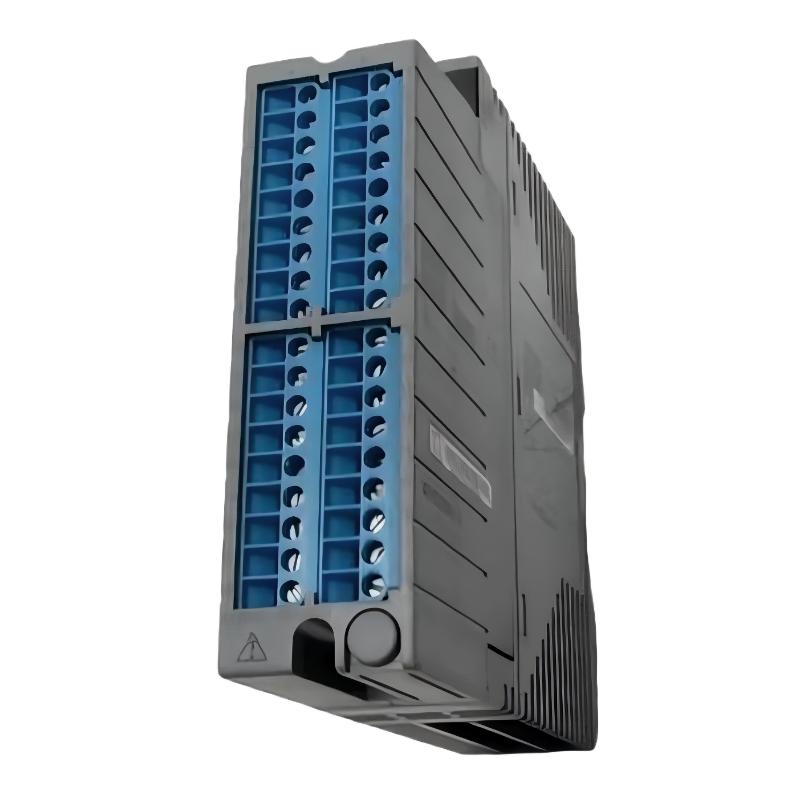

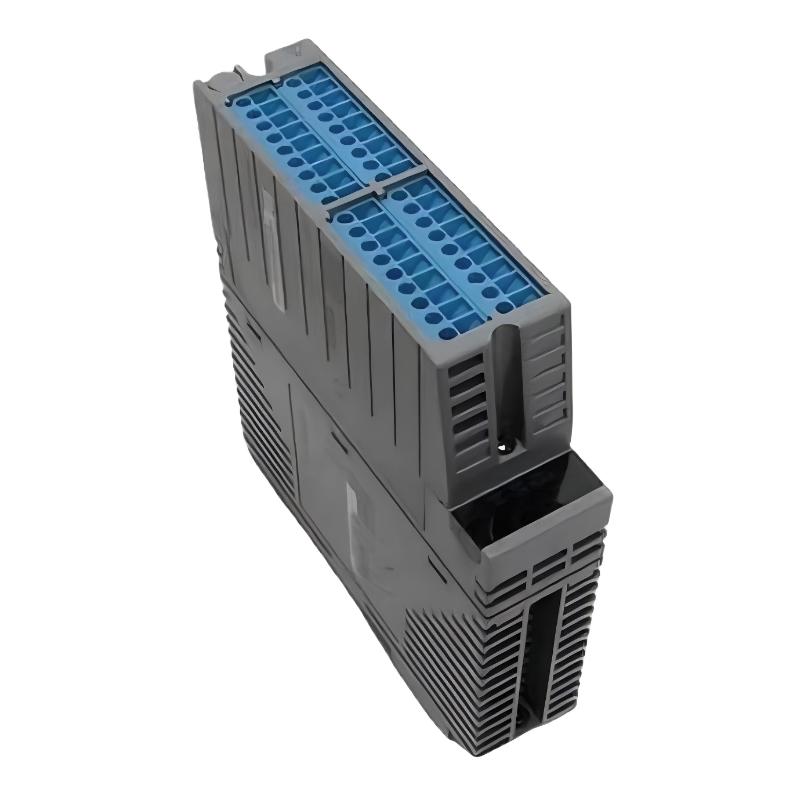

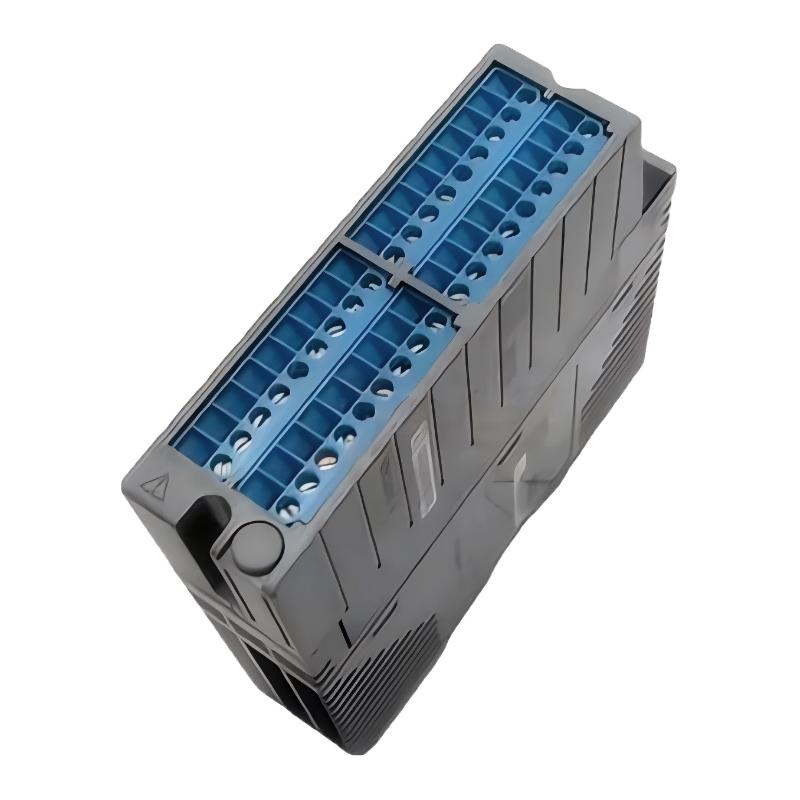

Yokogawa ASD143-P00 Numeric Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | ASD143-P00 |
| Product Type | Numeric Input Module |
| Function Position | Industrial automation signal acquisition input module |
| Main Function | Collects digital/switch signals and transmits them to the control system |
| Input Type | Digital input (ON/OFF signals) |
| System Application | DCS / PLC industrial control systems |
| Compatibility | Yokogawa control system architecture |
| Input Signal Characteristics | Dry contact or voltage-type digital signal input |
| Channel Function | Multiple independent digital input channels |
| Signal Processing | Status detection and real-time data transmission |
| Response Speed | High-speed real-time input response |
| Electrical Isolation | Electrically isolated input channel design |
| EMI Resistance | Strong electromagnetic interference resistance |
| Installation Method | DIN rail or control cabinet mounting |
| Operating Environment | Industrial control cabinet environment |
| Maintenance Method | Modular quick replacement |
| Power Supply | System backplane power supply |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
1. What is the main function of this Numeric Input Module?
This module is designed to collect digital switch signals from industrial field devices, such as equipment status signals, alarm outputs, and limit switch indications. The signals are converted into data that can be processed by DCS or PLC control systems for monitoring and logic control.
2. What types of industrial signals can this module handle?
The module supports dry contact signals and standard voltage-type digital inputs. It is suitable for a wide range of industrial applications, including relay outputs, proximity switches, and sensor-based ON/OFF status signals.
3. What role does this module play in industrial control systems?
In industrial control systems, the module acts as an interface between field devices and the control platform. It continuously monitors equipment status and transfers real-time signal information to the controller for automation logic, alarm management, and safety interlock operations.
4. How does the module ensure reliable signal acquisition?
The module features electrical isolation and strong resistance to electromagnetic interference, reducing the impact of electrical noise commonly found in industrial environments. This design helps maintain accurate and stable signal acquisition.
5. Does the module support multiple independent input channels?
Yes. The module is equipped with multiple independent digital input channels, allowing simultaneous monitoring of multiple field devices and enabling efficient parallel signal acquisition.
6. What should be considered during installation?
The module should be installed in a properly grounded industrial control cabinet or mounted on a DIN rail. Signal wiring should be separated from high-voltage power lines to minimize interference and maintain signal quality.
7. How does the module communicate with the control system?
The module exchanges data with the control system through the system backplane. Collected digital signal states are transmitted in real time to the controller, where automation logic and monitoring functions are executed.
8. Why is this module important in industrial automation systems?
This module serves as a critical signal acquisition component in industrial automation systems. It provides accurate real-time equipment status information, supporting reliable control logic, safety functions, and efficient process monitoring.
Yokogawa ASD143-P00 Numeric Input Module is in stock. Please contact us for a quick quote and competitive pricing.
