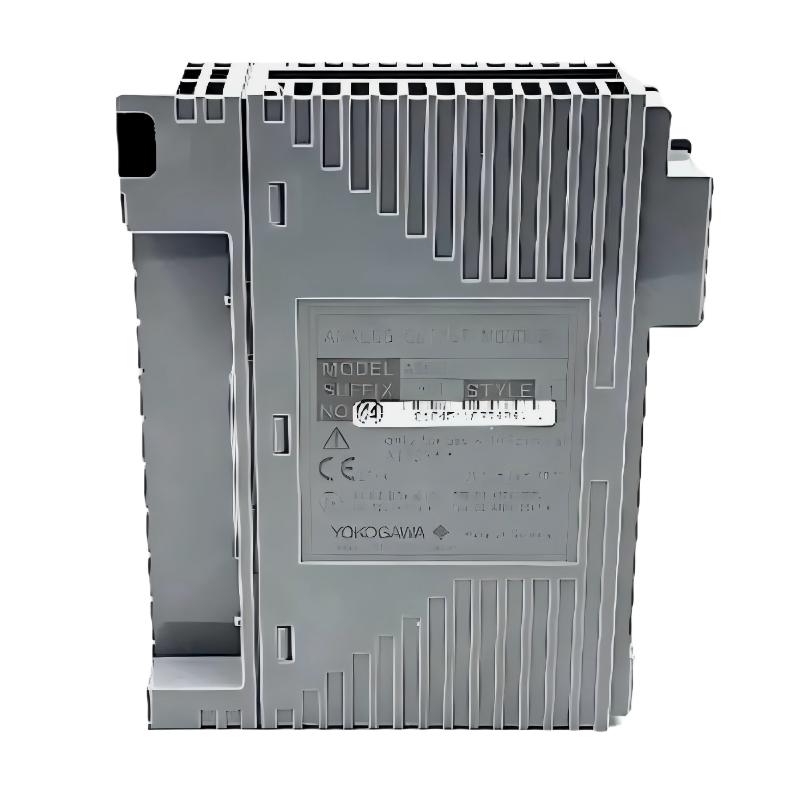

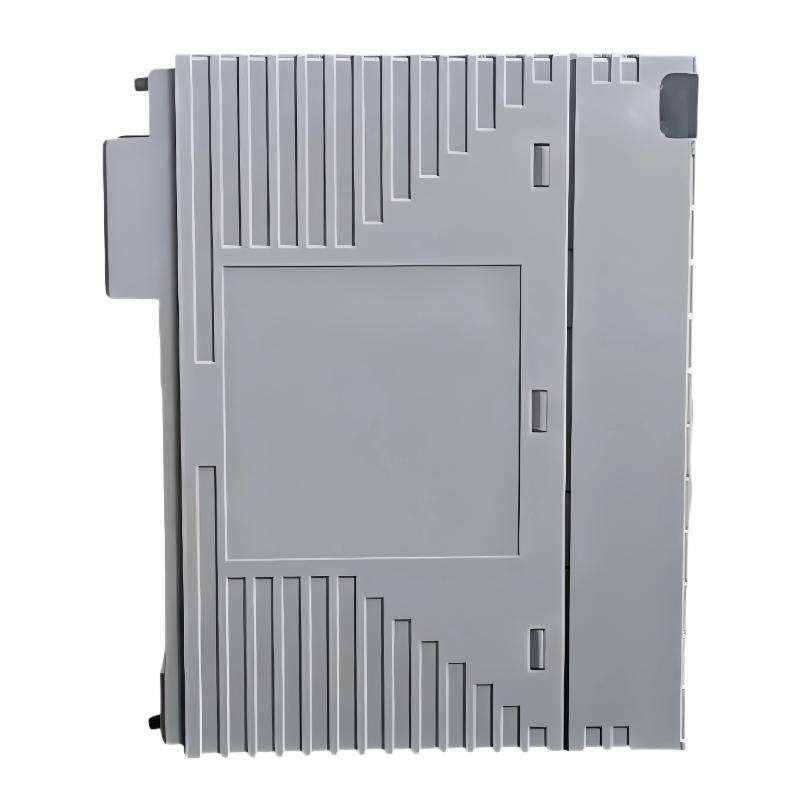

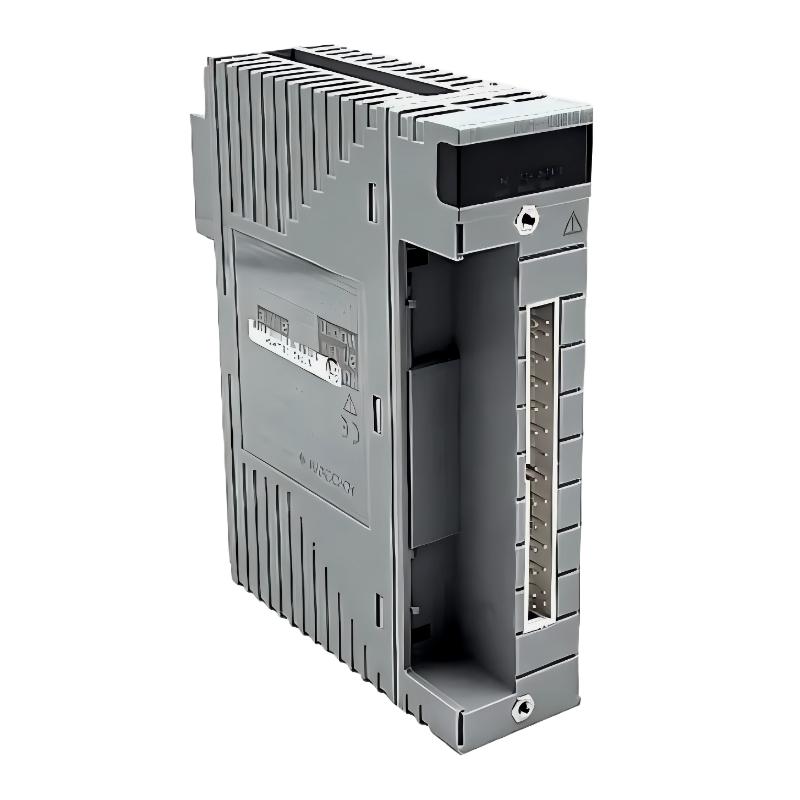

Yokogawa ASI533-S00 S1 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Model | ASI533-S00 S1 |
| Product Type | Analog Output Module |
| Brand | Yokogawa |
| Function | Converts digital control signals into analog output signals |
| Output Signal Type | Standard industrial analog signals (4–20 mA / voltage output depending on configuration) |
| Channel Type | Multi-channel analog output |
| Application System | Industrial automation control systems (DCS / PLC) |
| System Compatibility | Yokogawa control system platform |
| Installation Method | Rack-mounted module installation |
| Signal Processing | High-precision digital-to-analog conversion (DAC) |
| Isolation Method | Electrical isolation between channels |
| Response Performance | Fast response to control signal changes |
| Industrial Suitability | Designed for continuous industrial operation |
| Maintenance Type | Modular plug-in maintenance |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
1. What is the primary function of the Yokogawa ASI533-S00 S1 Analog Output Module?
The primary function of this module is to convert digital control signals from the control system into standard industrial analog output signals. These outputs are used to drive field devices such as control valves, actuators, and variable frequency drives, allowing precise regulation of industrial processes.
2. In which industries is this module commonly used?
This module is widely used in industries such as oil and gas, petrochemical processing, power generation, metallurgy, pharmaceuticals, water treatment, and manufacturing. It is especially suitable for DCS and PLC-based automation systems that require stable and accurate process control.
3. What role does an analog output module play in an automation system?
An analog output module acts as the interface between the digital controller and field equipment. It converts calculated digital control data into continuous analog signals, enabling precise adjustment of process variables such as flow, pressure, temperature, and level in closed-loop control systems.
4. What types of output signals does this module support?
The module typically supports standard industrial analog outputs, including 4–20 mA current signals and voltage output signals. The exact signal type depends on the system configuration and application requirements.
5. What should be considered during installation?
During installation, the module should be securely inserted into the correct rack slot to ensure reliable electrical connection. Installation or replacement should be performed with system power turned off to prevent equipment damage. Proper anti-static precautions should also be followed to protect sensitive electronic components.
6. What may cause abnormal output signals?
Abnormal output signals can result from incorrect wiring, load mismatch, module failure, unstable power supply, or incorrect parameter settings. Electrical interference, grounding problems, or communication faults within the control system may also affect signal stability.
7. Is this module suitable for high-reliability industrial environments?
Yes, this module is designed for industrial-grade applications and can operate reliably in environments with continuous operation, electrical noise, and demanding process conditions. It is suitable for critical automation systems that require long-term operational stability.
8. What are the advantages of using this module in automation systems?
This module offers high-precision digital-to-analog conversion and stable analog signal output, improving overall control accuracy and system response speed. Its modular structure also simplifies maintenance and replacement, helping reduce downtime and improve overall system reliability.
Yokogawa ASI533-S00 S1 Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
