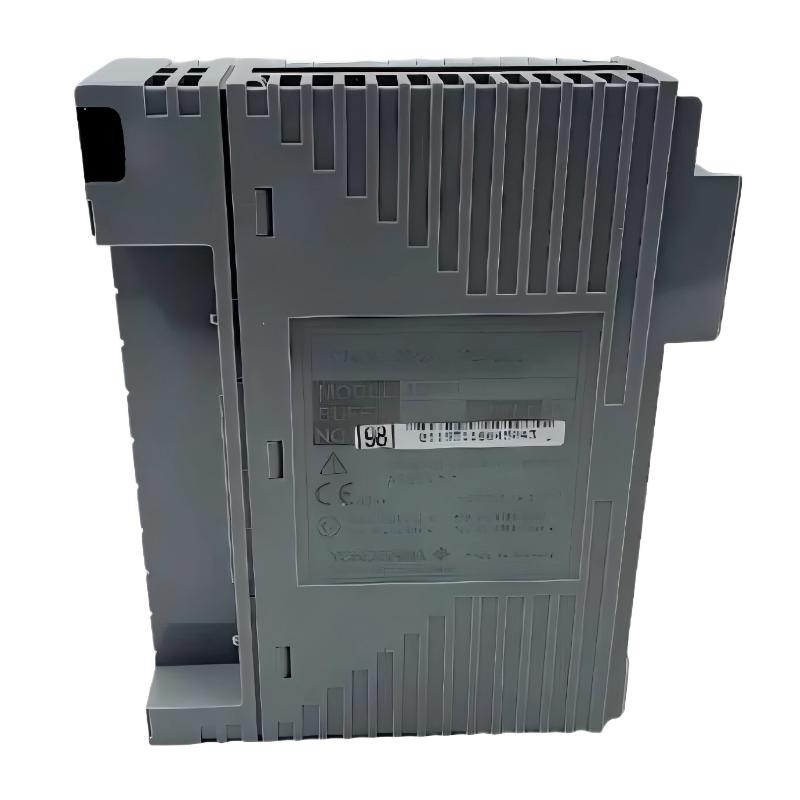

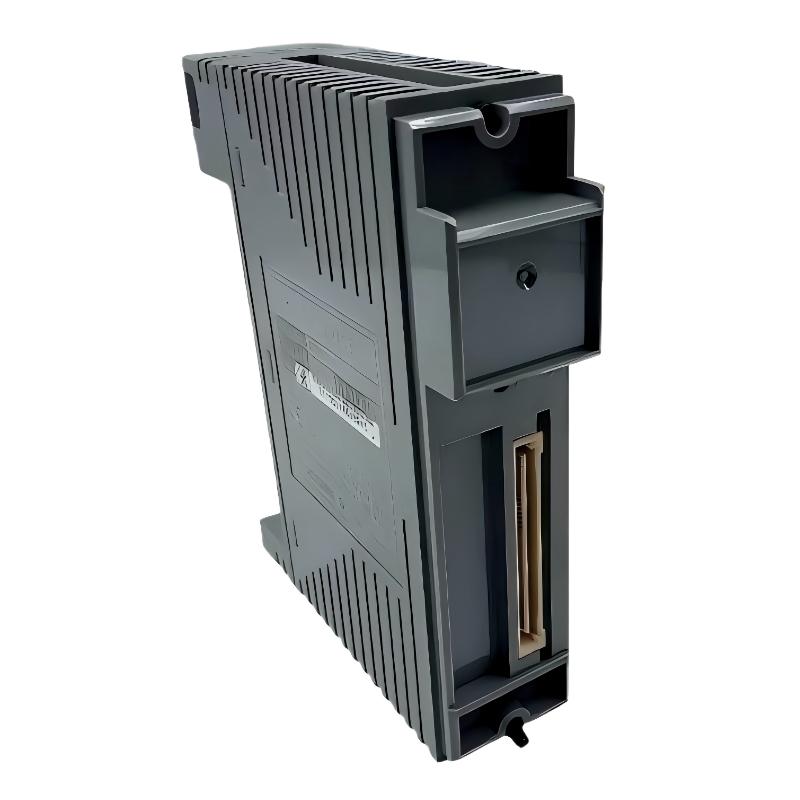

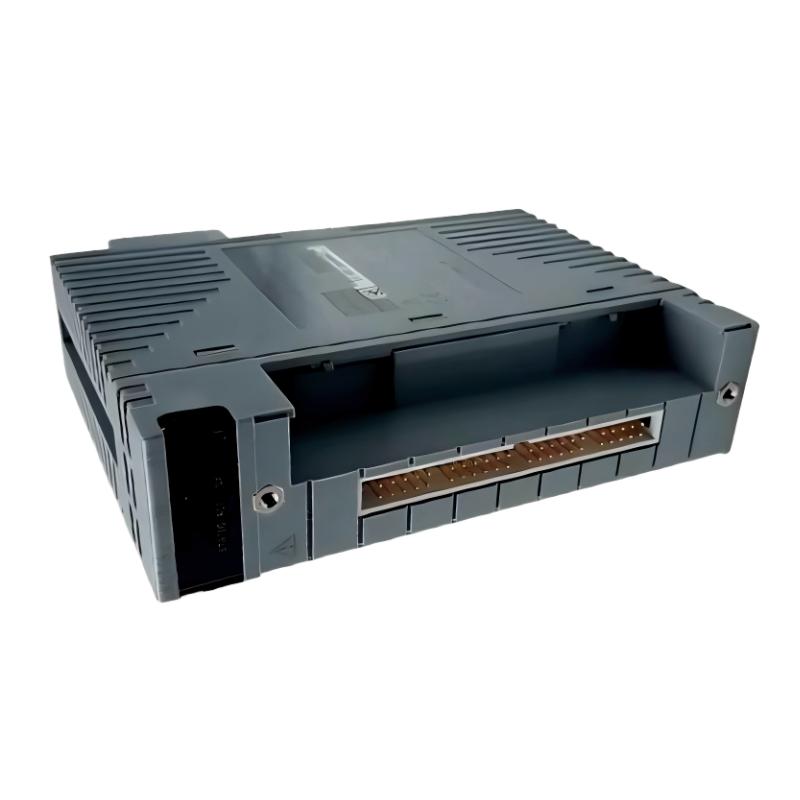

Yokogawa AST143 TC/mV Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Model | AST143 |
| Product Type | TC/mV Input Module |
| Brand | Yokogawa |
| Function | Acquires thermocouple (TC) and millivolt (mV) input signals |
| Input Signal Type | Thermocouple signals and millivolt signals |
| Application System | Industrial automation control systems (DCS / PLC) |
| System Compatibility | Yokogawa control system platform |
| Installation Method | Rack-mounted module installation |
| Signal Processing | High-precision analog signal acquisition and conversion |
| Channel Configuration | Multi-channel input design |
| Isolation Method | Electrical isolation between channels |
| Response Performance | Real-time signal acquisition and fast response |
| Industrial Suitability | Designed for continuous industrial operation environments |
| Maintenance Type | Modular plug-in maintenance |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
1. What is the primary function of the Yokogawa AST143 TC/mV Input Module?
The primary function of this module is to acquire thermocouple (TC) and millivolt (mV) input signals from field devices and convert them into data that can be processed by the control system. It is commonly used for industrial temperature monitoring and low-level voltage signal measurement in automation applications.
2. In what applications are thermocouple inputs typically used?
Thermocouple inputs are widely used for industrial temperature measurement, especially in high-temperature environments such as furnaces, boilers, turbines, heat treatment equipment, and chemical processing systems. Thermocouples are preferred because of their wide temperature measurement range and durability in harsh conditions.
3. What is the purpose of the millivolt (mV) input function?
The millivolt input function is used to measure low-level analog voltage signals generated by specialized sensors and industrial measurement devices. It enables accurate acquisition and processing of weak electrical signals used in precision monitoring and control applications.
4. What role does this module play in an automation system?
This module acts as an interface between field sensors and the control system. It converts thermocouple and millivolt signals into digital data for monitoring, analysis, and process control. Accurate signal acquisition is essential for maintaining stable operation, equipment protection, and process optimization.
5. What should be considered during installation?
During installation, the module should be properly inserted into the designated rack slot, and all wiring should follow system specifications. Installation or replacement should be performed with the system power turned off. Proper grounding and anti-static precautions are also recommended to protect electronic components.
6. What can cause abnormal input signal readings?
Abnormal readings may result from damaged thermocouples, incorrect wiring, reversed polarity, electrical interference, or incorrect system parameter settings. Poor grounding, unstable environmental conditions, and signal noise can also affect measurement accuracy and stability.
7. Is this module suitable for demanding industrial environments?
Yes, this module is designed for industrial-grade applications and can operate reliably under continuous operation, electrical noise, and harsh industrial conditions. It is suitable for applications requiring high reliability and accurate signal measurement.
8. What advantages does this module provide in automation systems?
This module provides high-precision signal acquisition and stable data processing performance, improving temperature measurement accuracy and overall process control reliability. Its modular design also simplifies maintenance and replacement, helping reduce downtime and improve operational efficiency.
Yokogawa AST143 TC/mV Input Module is in stock. Please contact us for a quick quote and competitive pricing.
