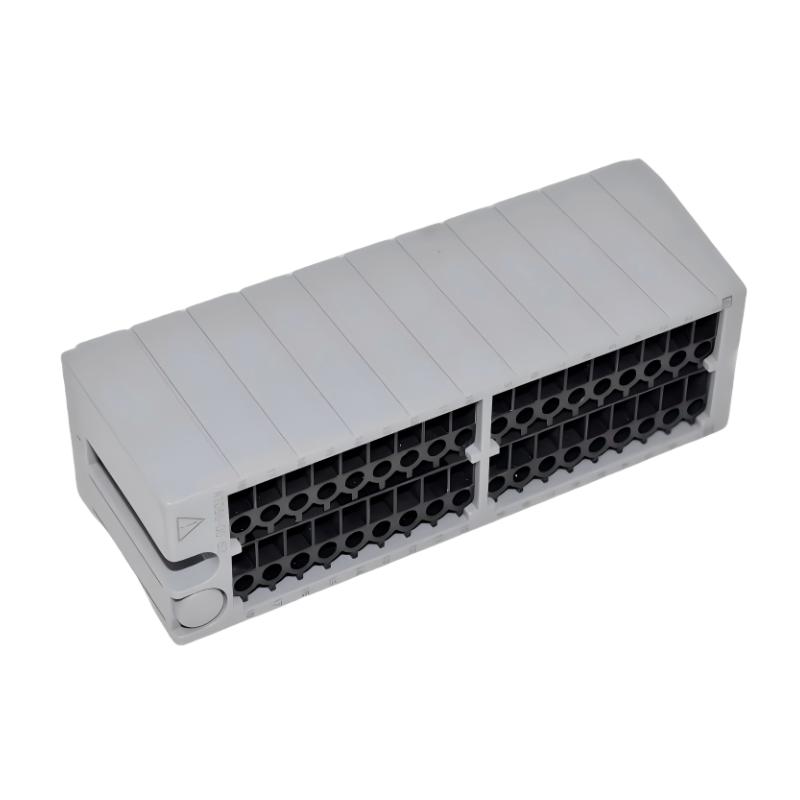

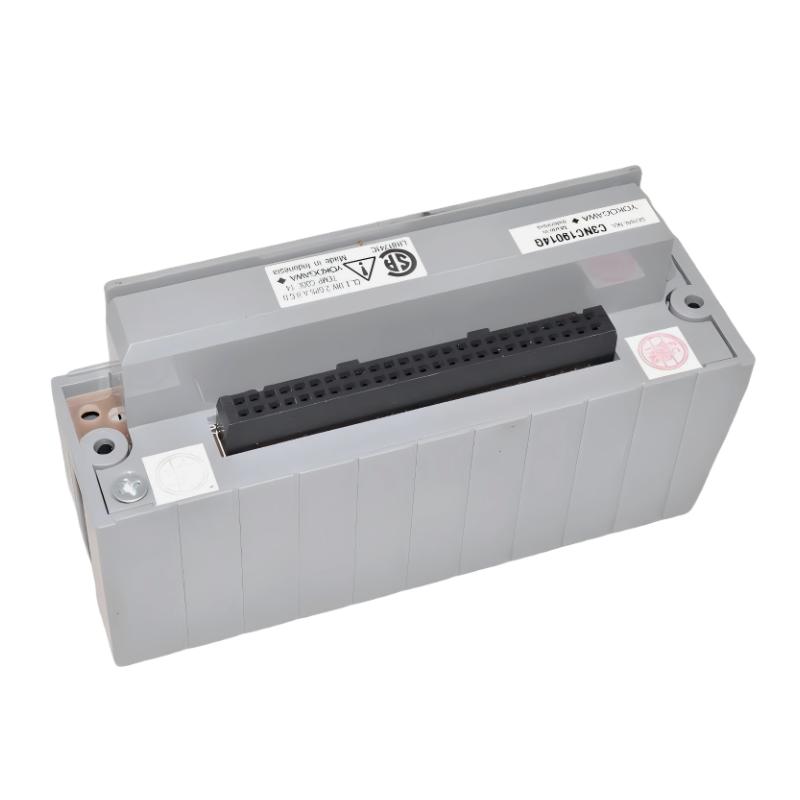

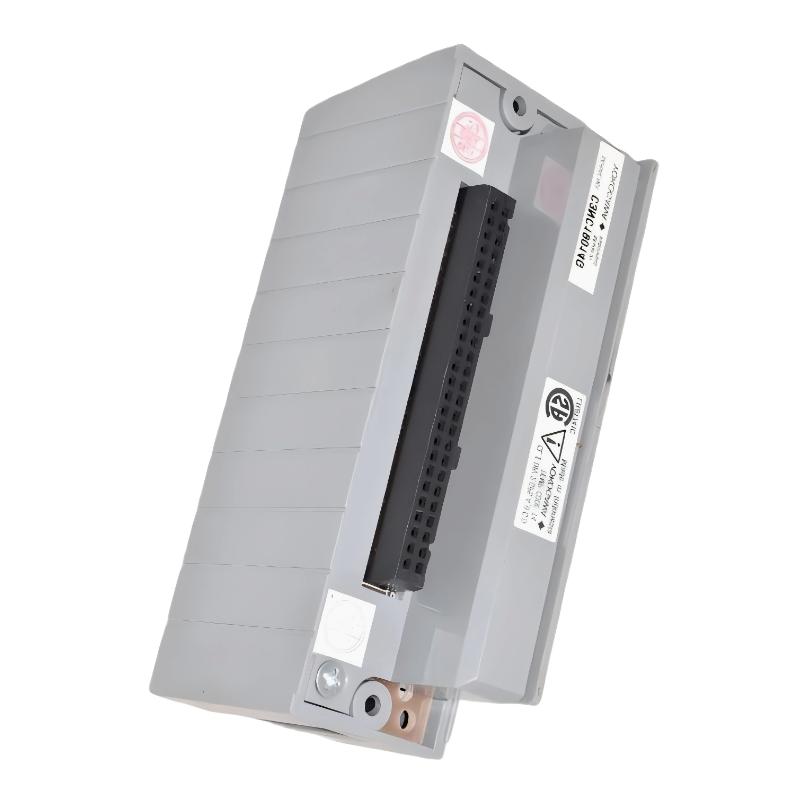

Yokogawa ATD5S-00 Pressure Clamp Terminal Blocks
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATD5S-00 |
| Product Type | Pressure Clamp Terminal Blocks |
| Brand | Yokogawa Electric Corporation |
| Connection Method | Spring pressure clamp connection |
| Wiring Method | Tool-free push-in wiring |
| Conductor Type | Solid and stranded copper conductors |
| Mounting Type | DIN rail mounting |
| Rated Voltage | Industrial control and signal circuit level |
| Rated Current | Industrial low-voltage control applications |
| Insulation Material | Flame-retardant industrial-grade polymer |
| Electrical Isolation | Industrial-grade insulation protection |
| Operating Environment | Industrial control cabinets and automation systems |
| Temperature Range | Standard industrial operating range |
| Application | Signal distribution, control wiring, and system interconnection |
| Dimensions | 114 x 32.6 x 60.5 mm |
| Weight | 0.2 kg |
FAQ
1. What is the primary function of these pressure clamp terminal blocks?
These pressure clamp terminal blocks are designed for centralized signal distribution and wiring within industrial automation systems. They provide secure electrical connections between field devices, control systems, and interface components while improving wiring efficiency and long-term operational reliability inside industrial control cabinets.
2. What industrial systems commonly use this product?
This product is commonly used in PLC systems, distributed control systems (DCS), process automation platforms, and industrial control panels. It is especially suitable for applications requiring reliable signal transmission, organized wiring layouts, and stable long-term electrical performance.
3. What advantages does the spring pressure clamp mechanism provide?
The spring pressure clamp mechanism maintains constant force on the conductor without requiring manual screw tightening. This reduces installation time, improves vibration resistance, and minimizes the risk of loose connections during long-term operation. It also helps reduce maintenance requirements compared to conventional screw terminals.
4. What conductor types are supported?
The terminal blocks support both solid and stranded copper conductors commonly used in industrial control and signal circuits. The push-in wiring structure allows flexible installation while maintaining reliable electrical conductivity and secure mechanical retention.
5. Why is this product suitable for industrial control cabinets?
Industrial control cabinets often require compact and organized wiring arrangements. This product features a space-efficient structure and DIN rail mounting capability, making it suitable for high-density cabinet layouts while simplifying installation, maintenance, and future system modifications.
6. Is this product suitable for high-vibration environments?
Yes, the spring clamp connection system is specifically designed to maintain stable electrical contact under continuous vibration. Unlike screw-type terminals, it significantly reduces the possibility of conductor loosening caused by mechanical movement or thermal expansion.
7. What maintenance is typically required during operation?
Maintenance requirements are relatively low. Routine inspections should include checking conductor integrity, verifying insulation condition, and ensuring the terminal blocks remain securely mounted. Since the spring clamp design does not require torque adjustment, periodic retightening is generally unnecessary.
8. Is this product suitable for modular automation system expansion?
Yes, the DIN rail mounting configuration makes it highly suitable for modular automation systems. The terminal blocks can be easily integrated into expandable control cabinet architectures, supporting efficient system upgrades, wiring expansion, and long-term maintenance flexibility.
Yokogawa ATD5S-00 Pressure Clamp Terminal Blocks is in stock. Please contact us for a quick quote and competitive pricing.
