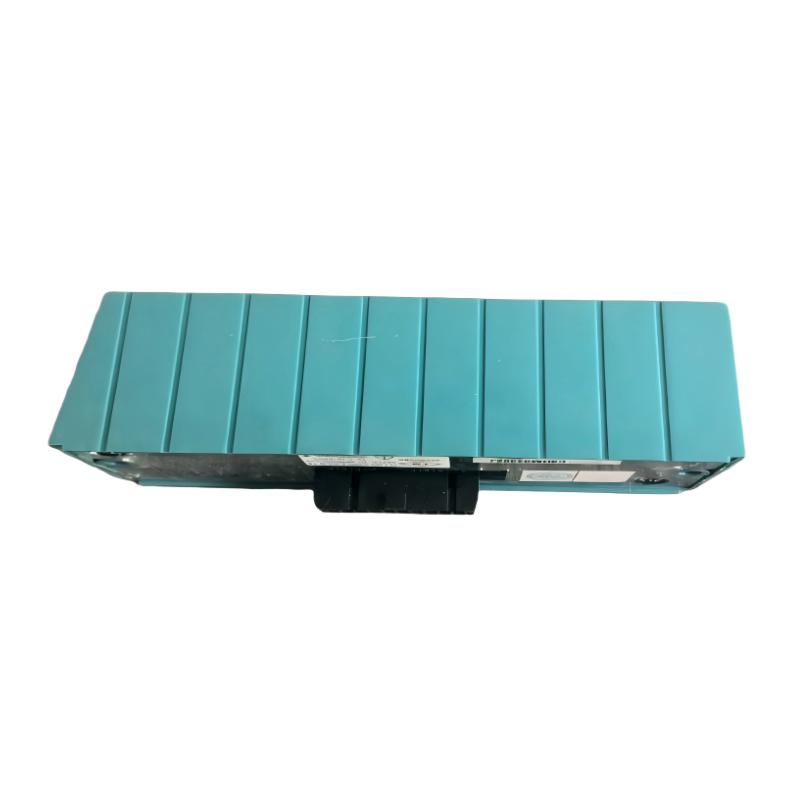

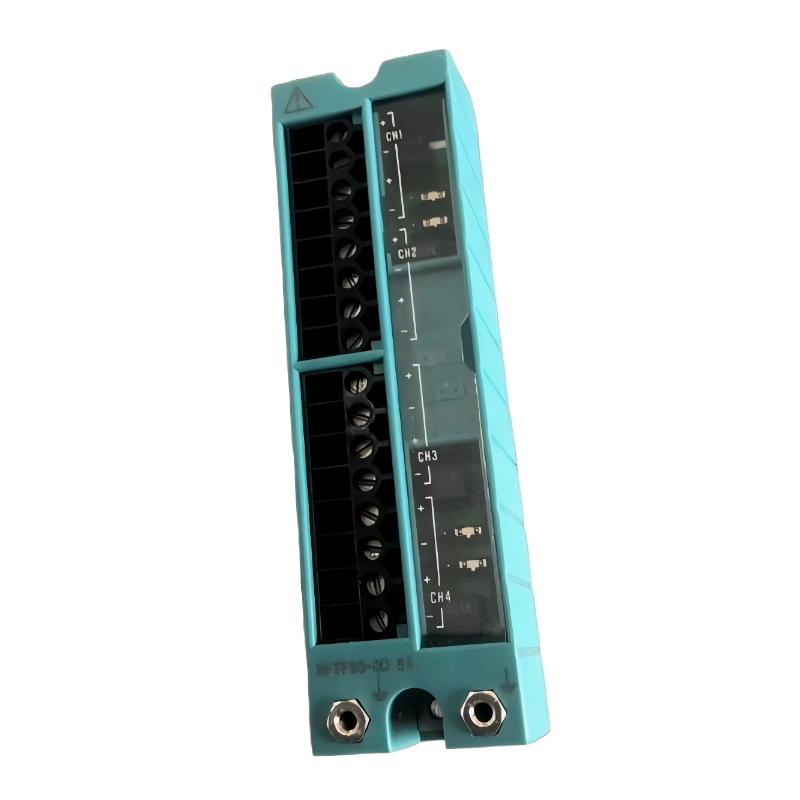

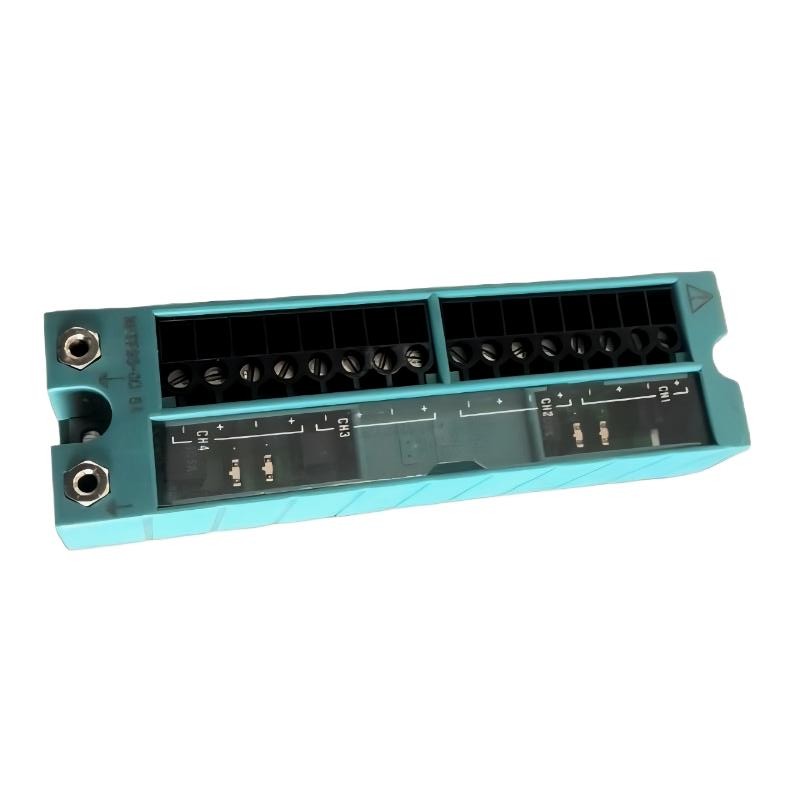

Yokogawa ATT4S-00 S2 Pressure Clamp Terminals
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATT4S-00 S2 |
| Product Type | Pressure Clamp Terminals |
| Manufacturer | Yokogawa |
| Function Type | Industrial pressure clamp terminal block |
| Application | Industrial automation signal wiring and instrumentation systems |
| Signal Compatibility | Pressure transmitters and analog process signals |
| Connection Method | Spring-loaded pressure clamp structure |
| Mounting Type | DIN rail mounting |
| Electrical Interface | Standard industrial wire termination |
| Operating Environment | Industrial control cabinet environments |
| Structural Design | Compact modular terminal design |
| Insulation Grade | Industrial-grade insulation design |
| Dimensions | 114 × 32.6 × 60.5 mm |
| Weight | 0.2 kg |
FAQ
1. What is the main function of the ATT4S-00 S2 pressure clamp terminal?
The ATT4S-00 S2 is designed for signal wiring and distribution in industrial automation systems, particularly for pressure transmitters and other field instruments. It provides a reliable interface between field devices and control systems, ensuring stable signal transmission. The pressure clamp mechanism maintains consistent contact force, which improves connection reliability and reduces the risk of signal interruption in long-term operation.
2. What improvements does the S2 version provide?
The S2 version is designed with enhanced mechanical stability and improved contact reliability for more demanding industrial environments. It offers better resistance to vibration and thermal cycling, making it more suitable for continuous operation in control cabinets where long-term connection stability is critical.
3. How does the pressure clamp mechanism work?
The pressure clamp system uses a spring-loaded mechanism that continuously applies force to the inserted conductor. This ensures a stable electrical connection without the need for screw tightening. Compared to traditional screw terminals, it reduces loosening caused by vibration and temperature changes, while also improving installation efficiency and consistency.
4. What should be checked if signal instability occurs?
If signal instability is detected, first confirm that the conductor is fully inserted and properly clamped. Then inspect for oxidation, contamination, or loose contact points. It is also important to check for nearby electromagnetic interference sources and verify that grounding and shielding practices are correctly implemented within the control cabinet.
5. What are the key installation requirements?
Installation requires secure DIN rail mounting and correct wiring practices. The stripped length of the conductor must meet specification to ensure proper clamping force. Excessive mechanical stress on the wires should be avoided, as it may affect the internal spring mechanism and long-term reliability.
6. What are common causes of connection failure?
Common causes include incomplete wire insertion, insufficient clamping force, oxidized or aged conductors, contamination of the contact area, and excessive vibration within the control cabinet. Poor wiring practices or incorrect installation can also lead to intermittent signal issues.
7. Does this terminal require regular maintenance?
Maintenance requirements are generally low, but periodic inspection is recommended. This includes checking wiring tightness, ensuring terminals are clean and free from corrosion, and confirming that no mechanical loosening has occurred. In harsh environments with vibration or high temperature, inspection frequency should be increased.
8. Is system recalibration required after replacing the terminal?
In most cases, replacing the same model terminal does not require system recalibration. However, it is recommended to perform continuity checks and signal validation tests to ensure correct wiring and stable signal transmission after installation.
Yokogawa ATT4S-00 S2 Pressure Clamp Terminals is in stock. Please contact us for a quick quote and competitive pricing.
