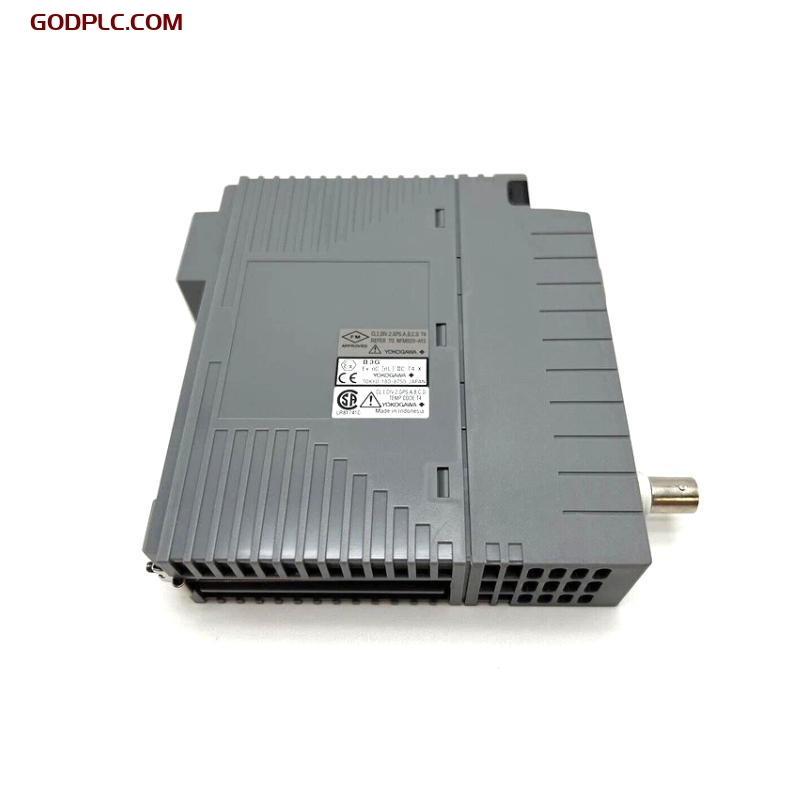

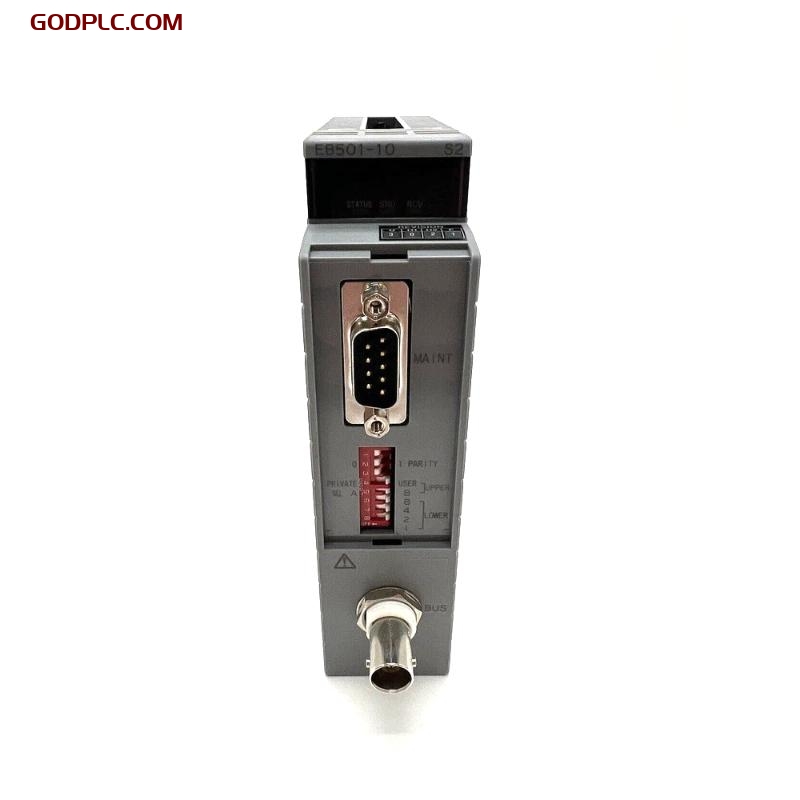

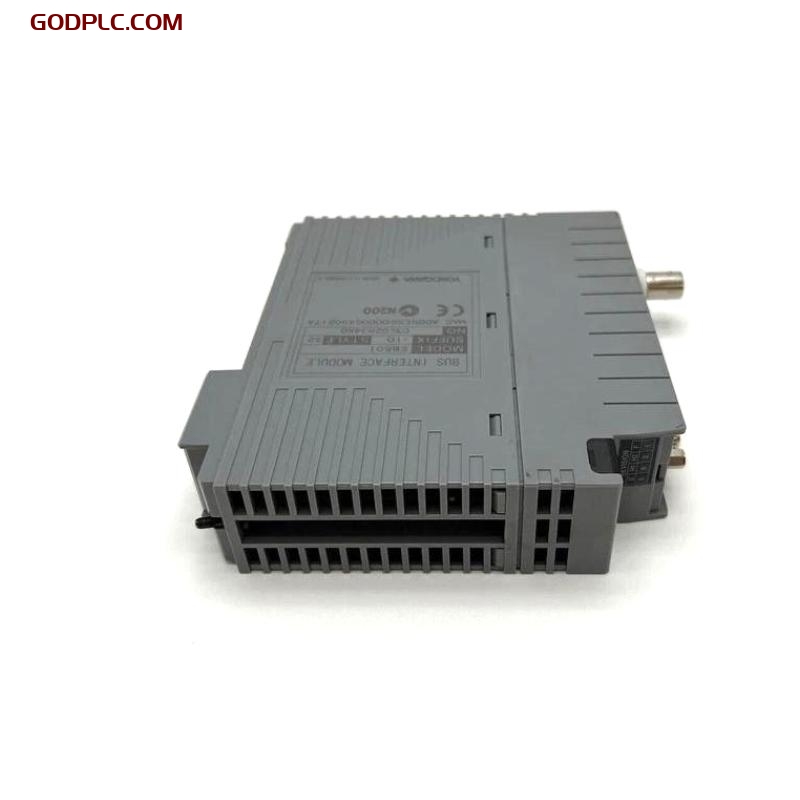

Yokogawa EB501-10 S2 Bus Interface Module
Product Overview
The Yokogawa EB501-10 S2 is a bus interface module designed for use within Yokogawa’s I/O subsystem, serving as the critical communication link between the Field Control Unit (FCU) and the remote I/O modules. As part of the CENTUM VP and ProSafe-RS platforms, this module enables high-speed, reliable, and deterministic data exchange via the Vnet/IP or other proprietary bus protocols.
With support for redundancy, diagnostics, and robust communication integrity, the EB501-10 S2 ensures consistent and fail-safe performance in demanding process control environments. It is ideal for applications that require modular expansion and real-time control communication between central processors and distributed field I/O units.
Key Features
-
Reliable Bus Communication – Enables robust data transmission between controller and remote I/O modules
-
Redundancy Support – Compatible with redundant configurations to ensure uninterrupted control system operation
-
Modular Integration – Designed for seamless connection into Yokogawa’s node-based control architectures
-
High-Speed Data Exchange – Supports fast and deterministic communication for time-critical process control
-
Diagnostic Functions – Built-in status monitoring helps identify communication and hardware issues early
-
Compact and Robust Design – Suitable for installation in space-constrained and harsh industrial environments
-
Easy Maintenance – Supports online module replacement and straightforward troubleshooting
-
Wide System Compatibility – Integrates with Yokogawa’s CENTUM VP and ProSafe-RS platforms
-
Long-Term Availability – Designed with extended product lifecycle and support for legacy systems
Technical Specifications
3.1 Mechanical Specifications
| Item | Specification |
|---|---|
| Dimensions | 144.65 x 130 x 32.8mm |
| Weight | 0.3 kg |
3.2 Electrical Specifications
| Item | Specification |
|---|---|
| Input Voltage | Supplied via base unit (5 VDC typical) |
| Communication Bus | Vnet/IP or proprietary fieldbus |
| Bus Connection Ports | 2 (for redundant or daisy-chain use) |
| Power Consumption | Approx. 2 W |
| Isolation | Bus and logic isolated |
3.3 Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +55°C |
| Storage Temp | –20°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection Rating | IP20 (when mounted in enclosure) |
| Certifications | CE, CSA, RoHS compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Control Platforms | Yokogawa CENTUM VP, ProSafe-RS |
| Supported Architecture | Node/FCU-based remote I/O systems |
| Interface Method | DIN rail plug-in via base module |
Industry Applications
-
Oil & Gas – Connects field I/O with central control in refinery, offshore, and pipeline systems
-
Chemical & Petrochemical – Ensures safe and reliable I/O communication for critical process units
-
Power Generation – Interfaces with turbine and balance-of-plant I/O for stable control and monitoring
-
Pharmaceuticals – Delivers accurate, real-time communication for GMP-compliant automation systems
-
Water Treatment – Facilitates centralized monitoring and distributed field control in treatment facilities
The Yokogawa EB501-10 S2 Bus Interface Module is a dependable and high-speed I/O communication solution tailored for modern and legacy Yokogawa control environments. Its performance, reliability, and support for redundancy make it a core component in mission-critical industrial automation applications.
Yokogawa EB501-10 S2 Bus Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
