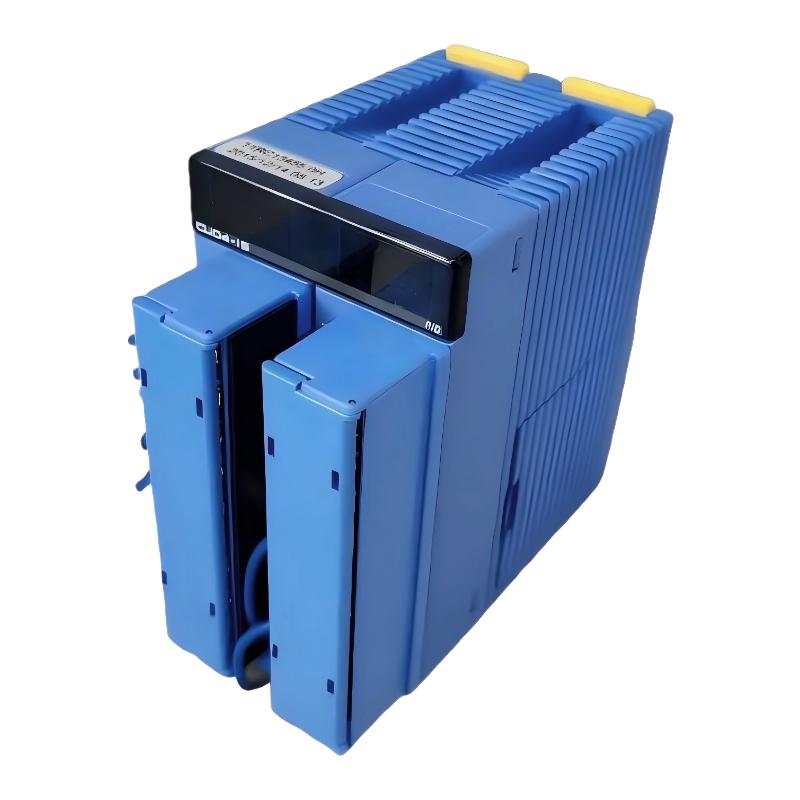

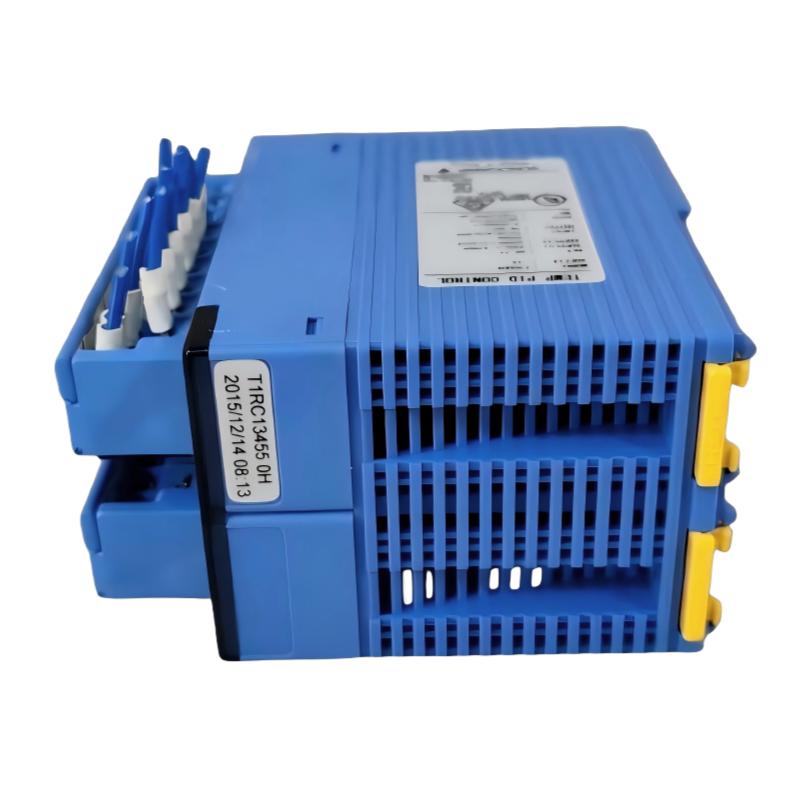

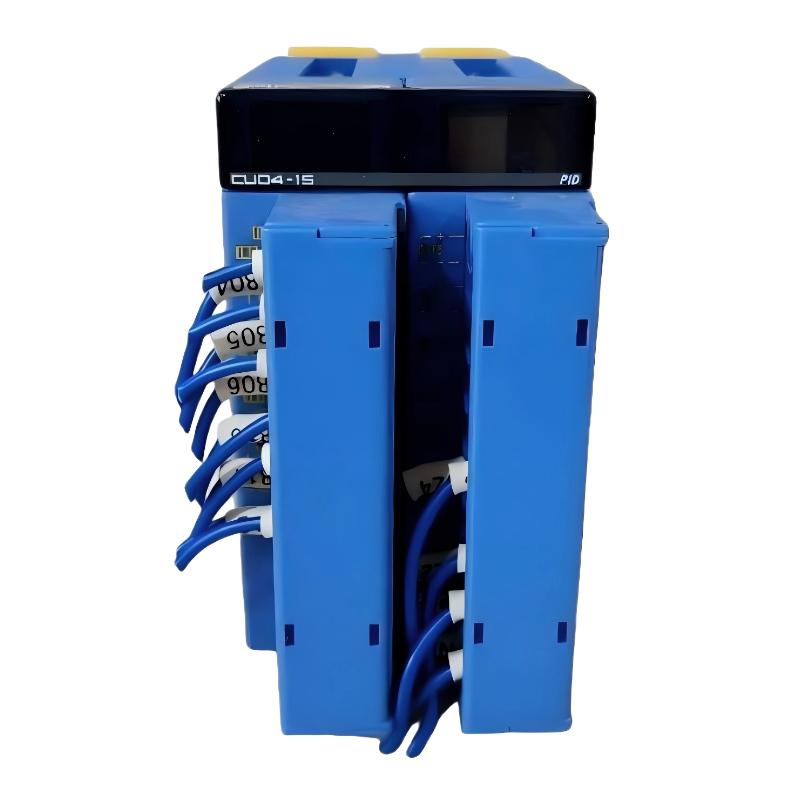

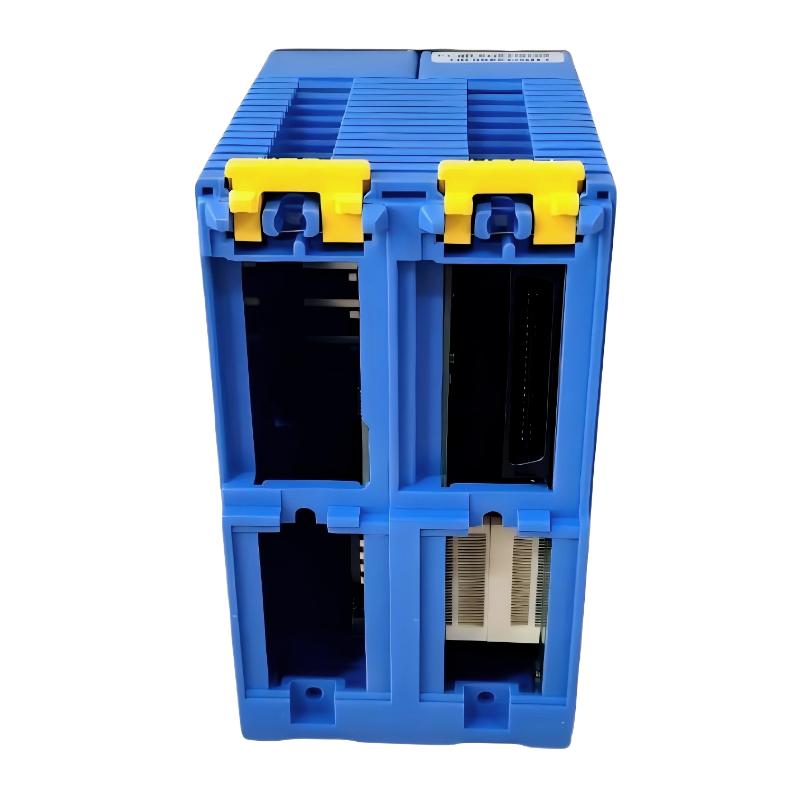

1. What is the main function of the F3CU04-1S temperature monitoring module?

The F3CU04-1S is designed to acquire and process temperature signals from industrial sensors such as thermocouples and RTDs. It converts analog temperature inputs into digital data for use in control and monitoring systems. This enables real-time temperature supervision and stable process control in industrial environments.

2. In which industries is this module commonly used?

This module is widely used in industries such as petrochemical, power generation, metallurgy, chemical processing, and manufacturing. It is particularly suitable for applications requiring multi-point temperature monitoring, such as furnace control, pipeline temperature tracking, and reactor process monitoring.

3. What types of temperature sensors are supported?

The module typically supports thermocouples (such as Type K, J, T, etc.) and RTD sensors like Pt100. This flexibility allows it to be used in a wide range of industrial temperature measurement scenarios with different accuracy and environmental requirements.

4. How does the module process temperature signals?

The module performs signal conditioning including amplification, filtering, and analog-to-digital conversion. It also applies linearization and cold junction compensation (for thermocouples) to improve measurement accuracy before transmitting the processed data to the control system.

5. What should be considered during installation?

The module should be securely installed on a DIN rail inside a control cabinet. Proper grounding and wiring practices are essential to reduce electrical noise. Signal cables should be separated from high-voltage lines to avoid electromagnetic interference and ensure stable measurement performance.

6. What factors can affect measurement accuracy?

Measurement accuracy can be influenced by incorrect sensor selection, poor wiring practices, electromagnetic interference, and improper configuration of compensation settings. Sensor aging or damage can also lead to inaccurate temperature readings over time.

7. Is the module suitable for continuous industrial operation?

Yes, the module is designed for continuous operation in demanding industrial environments. It offers stable performance, strong noise immunity, and reliable data acquisition capabilities, making it suitable for long-term process monitoring applications.

8. How can system reliability be improved when using this module?

System reliability can be improved by using high-quality sensors, ensuring proper wiring and grounding, performing periodic calibration, and maintaining a clean installation environment. Regular system checks and correct configuration also help ensure long-term stable and accurate temperature monitoring.
