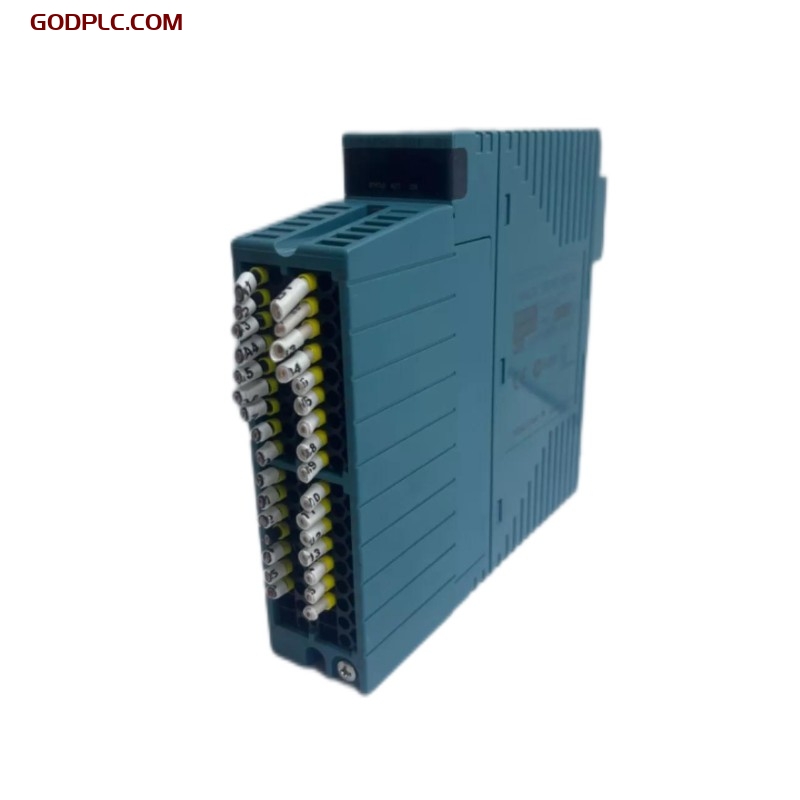

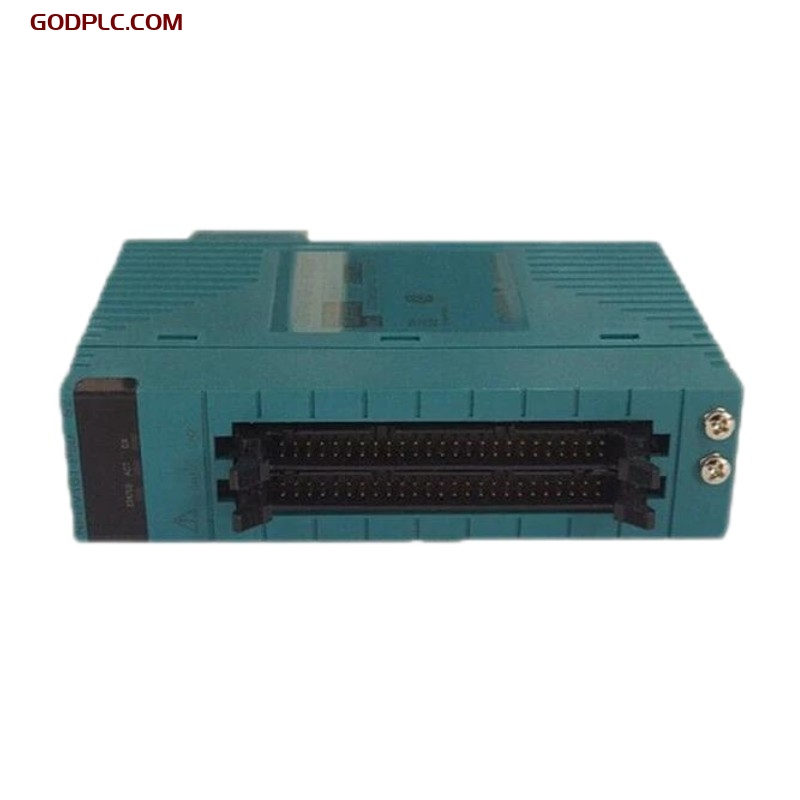

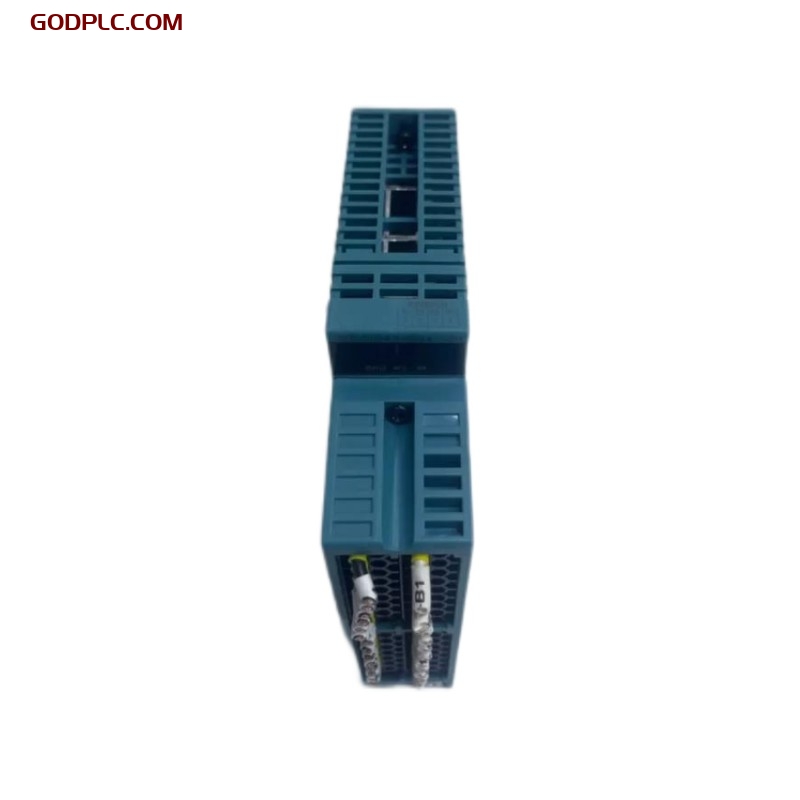

Yokogawa NFAI543 Analog Output Module
Product Overview
The Yokogawa NFAI543 Analog Output Module is a high-performance field module designed to provide reliable analog output signals in industrial automation systems. It is part of Yokogawa’s versatile modular system, offering precision control for a wide range of applications in process industries. The module is engineered to ensure seamless integration with Yokogawa’s control systems, providing accurate and stable analog outputs for controlling actuators, valves, and other field devices.
With its advanced technology, the NFAI543 ensures that process control systems achieve consistent output performance, improving overall system accuracy and reliability. It is ideal for applications that require high-quality signal processing and precise control, such as in chemical, petrochemical, and power generation plants.
Key Features
-
High Precision Output: Provides accurate 4–20 mA analog output signals, ensuring precise control over field devices
-
Wide Output Range: Supports a broad range of output signal types, allowing integration with various process equipment
-
High Reliability: Built to withstand challenging industrial environments and maintain performance in demanding applications
-
Flexible Integration: Easily integrates with Yokogawa’s DCS systems for seamless automation control
-
Compact Design: Optimized form factor allows easy installation in space-constrained environments
-
Enhanced Signal Stability: Ensures stable output with minimal drift, enhancing system performance over time
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 140 mm (H) × 100 mm (W) × 40 mm (D) |
| Weight | Approx. 0.4 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | NFAI543 |
| Part Number | 1234-5678 |
| Module Type | Analog Output Module |
| Output Channels | 4 Channels |
| Mounting | DIN Rail / Panel Mountable |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Output Signal Type | 4–20 mA, 0–10 V (configurable) |
| Load Resistance | 0–500 Ω (for 4–20 mA) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Power Supply | 24 V DC ±10% |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Yokogawa DCS, CENTUM VP, ProSafe-RS |
| Communication Protocol | Yokogawa Fieldbus, HART (optional) |
| Wiring Type | Shielded Twisted Pair (Recommended) |
| Terminal Type | Screw Terminals |
Industry Applications
-
Chemical & Petrochemical: Controls chemical reactors, mixers, and other critical process equipment
-
Oil & Gas: Manages actuator control for valves and pumps in upstream and downstream operations
-
Power Generation: Interfaces with control systems for turbine and boiler operations, ensuring stable output control
-
Pharmaceuticals: Regulates temperature, pressure, and flow parameters for precise drug manufacturing
-
Water Treatment: Supports monitoring and control of flow, pH, and other critical parameters in water treatment systems
The Yokogawa NFAI543 Analog Output Module is an essential component for achieving high-quality analog signal output in demanding process control systems. Its reliable performance, ease of integration, and advanced features make it a versatile and trusted choice for industrial automation applications across various sectors.
Yokogawa NFAI543 Analog Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
