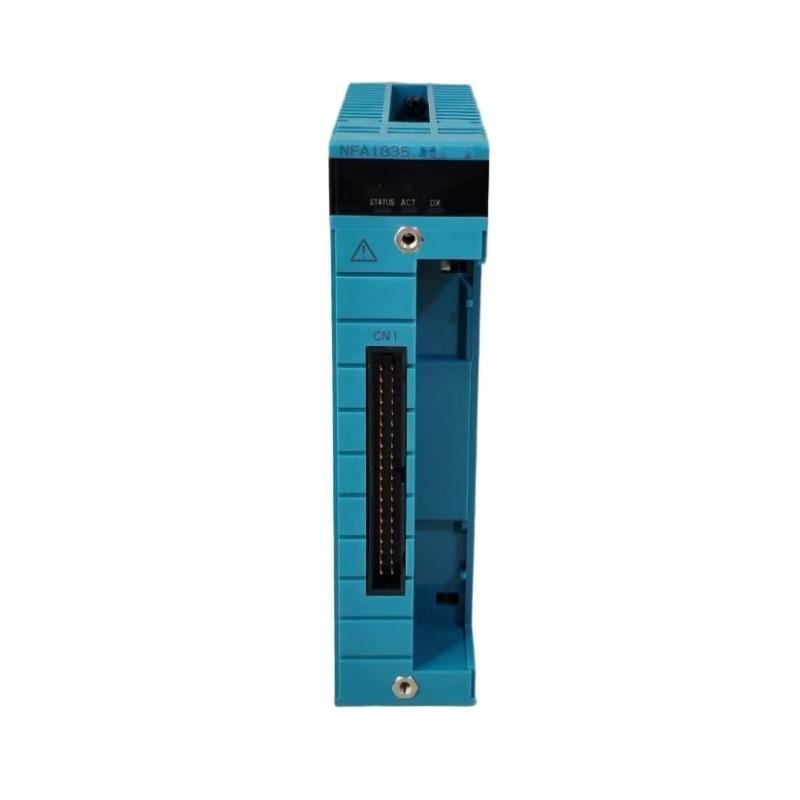

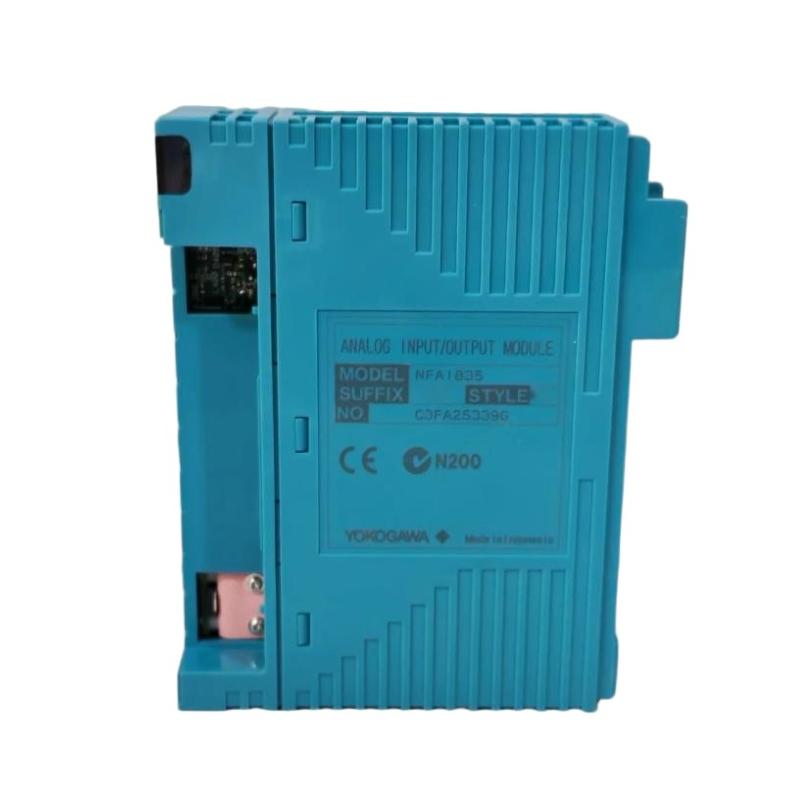

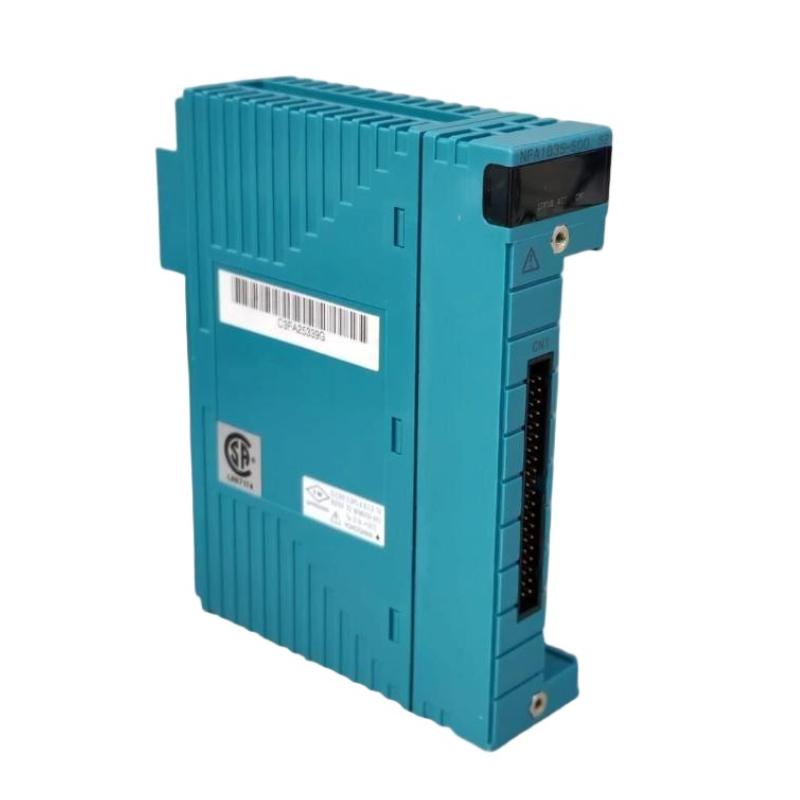

Q1: What is the primary function of the Yokogawa NFAI835 Analog Input/Output Module?

A: The NFAI835 is designed as an integrated analog signal interface module that handles both input and output functions within a Distributed Control System (DCS). It collects analog signals from field instruments, converts them into digital data for the control system, and also outputs analog control signals back to field devices. This dual-function design allows it to act as both a monitoring and control interface, reducing system complexity while maintaining high accuracy and reliability in process automation applications.

Q2: What types of signals can the NFAI835 process?

A: The module supports standard industrial analog signals, including current signals such as 4–20 mA and voltage signals used in process instrumentation. On the input side, it receives measurements from sensors like pressure transmitters, temperature transmitters, and flow meters. On the output side, it sends control signals to actuators such as control valves and drives. This flexibility makes it suitable for a wide range of industrial control scenarios.

Q3: How does the module ensure signal integrity in harsh industrial environments?

A: The NFAI835 uses electrical isolation between input/output channels and the control system to prevent noise interference and ground loop issues. In addition, it incorporates signal conditioning, filtering, and high-precision A/D and D/A conversion circuits. These design features help maintain signal stability even in environments with high electromagnetic interference, temperature variation, or electrical noise, ensuring reliable data acquisition and control output.

Q4: What role does electrical isolation play in this module?

A: Electrical isolation is a critical feature that separates field signals from the internal electronics and control system. This prevents electrical faults, voltage spikes, or noise from propagating into the system, protecting sensitive control hardware. It also eliminates ground loop problems that can distort measurement signals. As a result, isolation significantly improves system safety, stability, and long-term reliability in industrial applications.

Q5: In which industries is the NFAI835 typically used?

A: The module is widely used in process industries such as oil and gas, petrochemical refining, chemical production, power generation, water treatment, and metallurgical plants. These industries require continuous monitoring and precise control of process variables like pressure, temperature, and flow. The NFAI835 plays a key role in ensuring stable operation and accurate process regulation within these environments.

Q6: How does the module integrate into a DCS system?

A: The module is installed in a rack-based configuration and communicates with the central controller through a system bus. Input signals are converted into digital data and transmitted to the controller, while output commands from the controller are converted into analog signals for field devices. This seamless integration enables real-time data exchange and closed-loop control within the automation system.

Q7: Does the module require calibration or configuration after installation?

A: The NFAI835 is factory-calibrated to ensure baseline accuracy. However, it can be configured through the DCS engineering interface to meet specific application requirements. Parameters such as signal scaling, channel assignment, and input/output range can be adjusted. This flexibility allows the module to be adapted to different process conditions without requiring hardware modification.

Q8: What maintenance practices are recommended for long-term operation?

A: The module is designed for long-term, low-maintenance operation. Recommended practices include periodic inspection of terminal connections, ensuring proper rack installation, monitoring signal stability through system diagnostics, and verifying that the operating environment remains within acceptable temperature and cleanliness limits. Regular preventive maintenance at the system level helps ensure continued reliability and stable performance over time.
