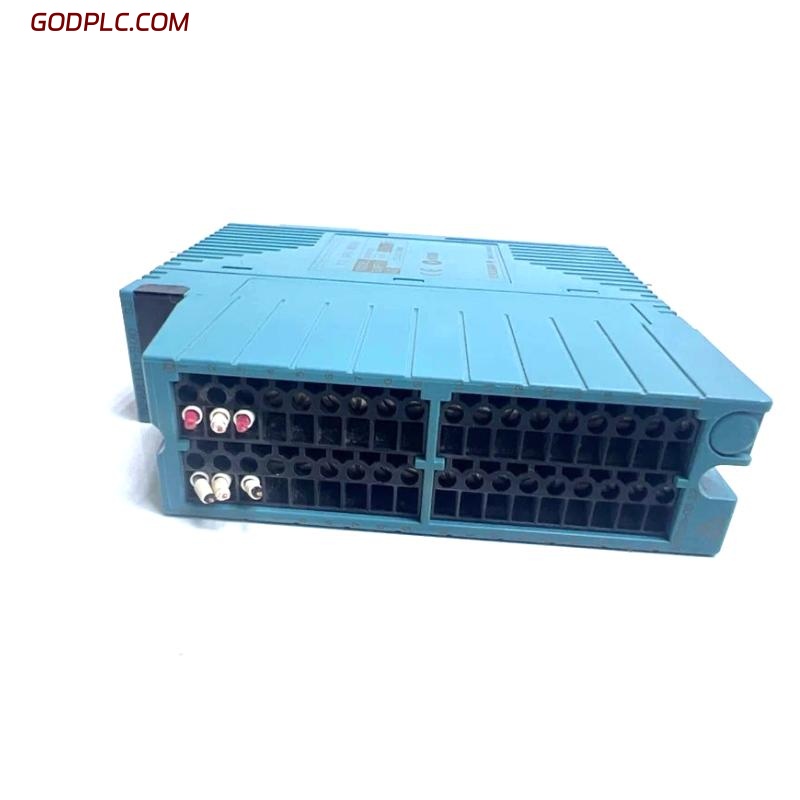

Yokogawa NFAR181-S50 Isolated RTD/TC Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NFAR181‑S50 |
| Type | Isolated RTD/TC Input Module |
| Number of Input Channels | 12 isolated channels |
| Input Signal Types | Thermocouples: Types J, K, E, B, R, S, T; Millivolts: ‑100 to 150 mV; RTD: Pt100 three‑wire |
| Accuracy | Thermocouples ±0.03% FS (‑20 to 80 mV); mV ±0.032% FS; RTD ±0.03% FS |
| Withstanding Voltage | Between input and system: 1 500 V AC for 1 minute |
| Data Refresh Cycle | 1 second |
| External Dimensions | Width ≈ 482 mm × Height ≈ 210 mm × Depth ≈ 220 mm |
| Weight | Approx. 1.0 kg |
FAQ
Q1: What does the suffix “‑S50” in NFAR181‑S50 indicate?
A1: The suffix “‑S50” indicates this is the standard type (“S”) with no explosion‑proof variant (“5”), and the base configuration (“0”) for the NFAR181 series.
Q2: What kinds of temperature sensors can this module accept?
A2: It supports thermocouples (types J, K, E, B, R, S, T), millivolt signals (‑100 to 150 mV) and RTDs (Pt100, three‑wire).
Q3: How precise is the measurement for thermocouples and RTDs?
A3: Thermocouples achieve about ±0.03% of full scale in the ‑20 to 80 mV range; RTDs similarly around ±0.03% FS.
Q4: What are the dimensions and weight of the unit?
A4: The module’s dimensions are approximately 482 mm width, 210 mm height, 220 mm depth, and the weight is about 1.0 kg.
Q5: What is the isolation level of this module?
A5: It provides an isolation withstand voltage of 1 500 V AC for 1 minute between the input signal path and system.
Q6: How many channels does this module provide and are they isolated?
A6: It provides 12 isolated input channels, giving separation between each channel and the system ground.
Q7: Is the NFAR181‑S50 suitable for high‑reliability industrial temperature control systems?
A7: Yes — with high accuracy, full isolation, support for multiple sensor types and large form‑factor dimensions, it is built for demanding industrial temperature measurement.
Q8: What installation or wiring considerations should be kept in mind?
A8: Ensure clean sensor wiring, use the correct sensor type settings channel‑by‑channel, account for the large module size (≈ 482 × 210 × 220 mm) in the rack layout, and give attention to module current draw when planning field power supplies.
Yokogawa NFAR181-S50 Isolated RTD/TC Input Module is in stock. Please contact us for a quick quote and competitive pricing.
