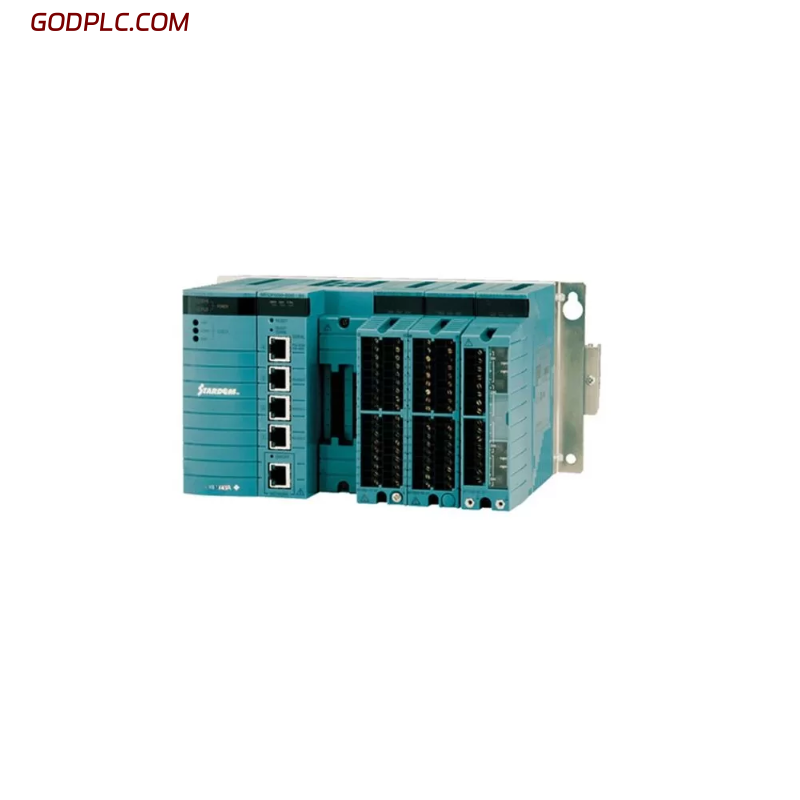

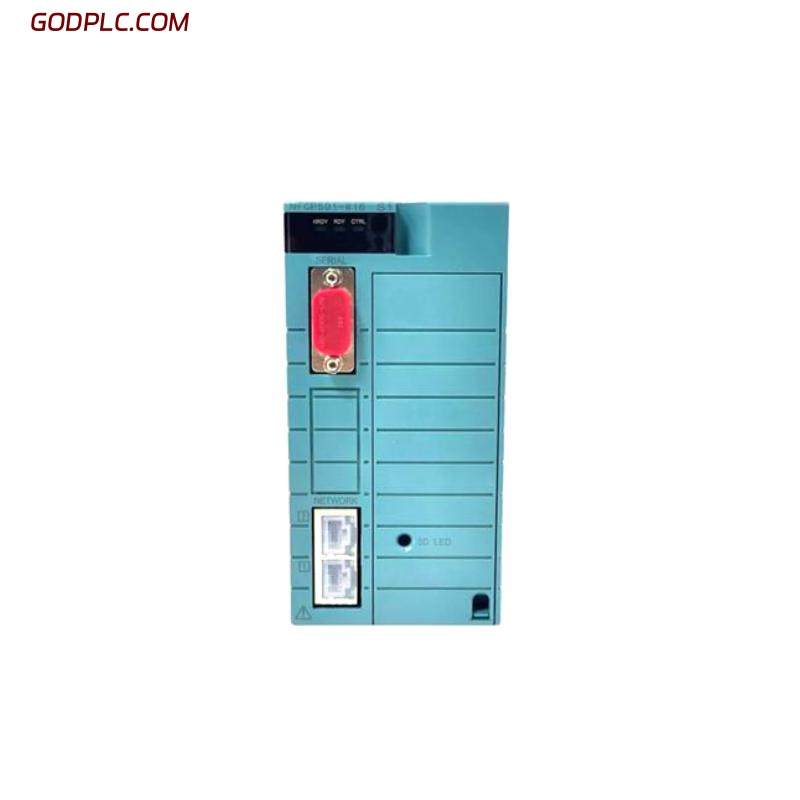

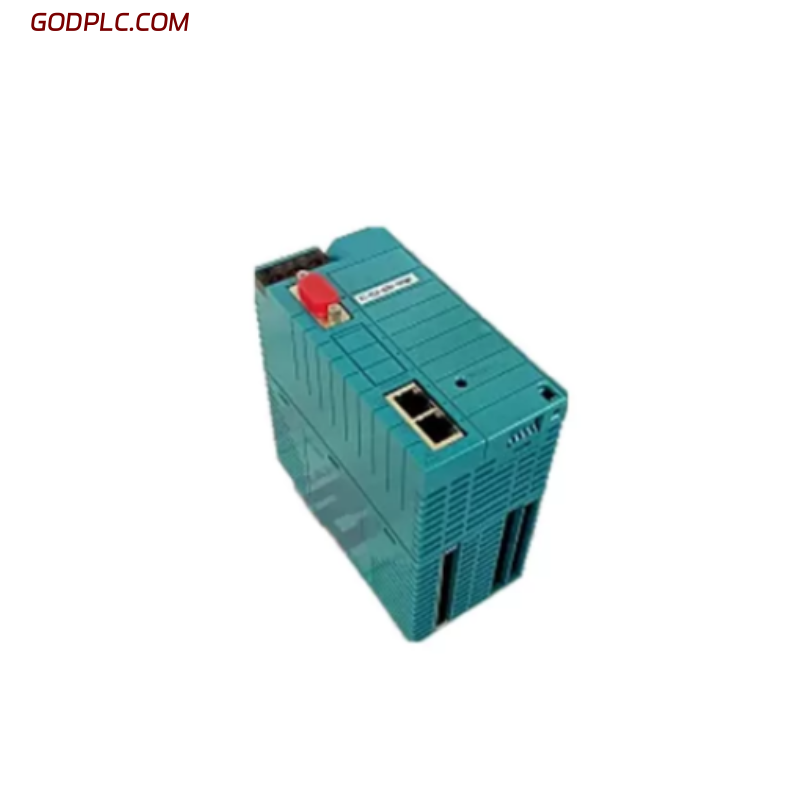

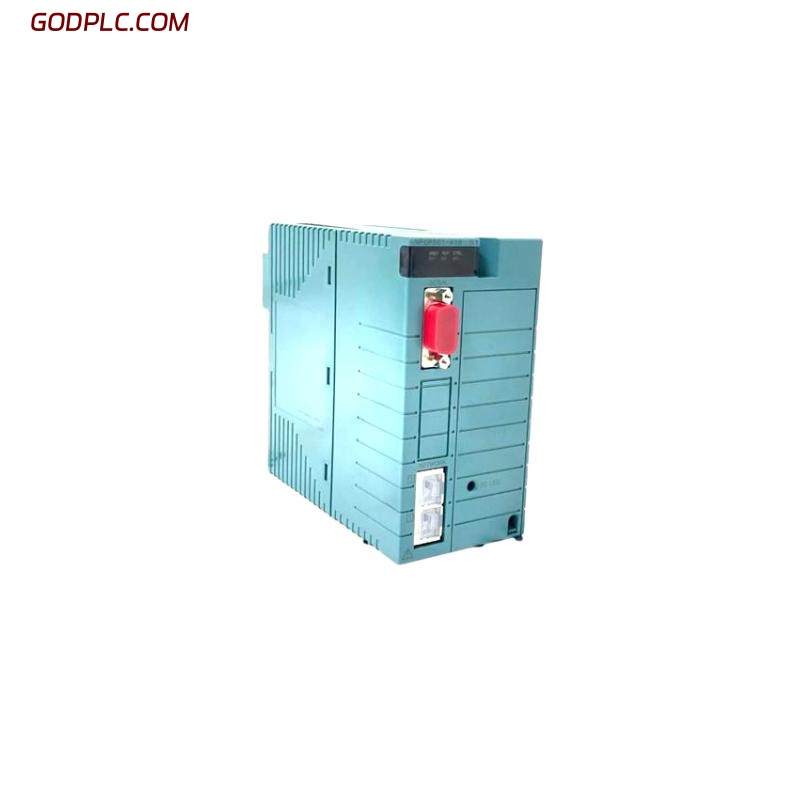

Yokogawa NFCP501-W05 CPU Module for FCN‑500 autonomous controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NFCP501‑W05 |
| Type | CPU Module for FCN‑500 autonomous controller |
| CPU | Intel Atom E3815, 1.46 GHz |
| Main Memory | 256 MB with ECC |
| Secondary Memory | 1 GB onboard flash memory |
| Ethernet Ports | 2 |
| Serial Port | 1 × RS‑232‑C |
| Power Supply | 5 V DC (±5 %) |
| Current Consumption | Max approx. 1.2 A |
| External Dimensions | Width ≈ 65.8 mm × Height ≈ 130 mm × Depth ≈ 149.3 mm |
| Weight | Approx. 0.9 kg |
FAQ
Q1: What does the suffix “‑W05” in NFCP501‑W05 indicate?
A1: The suffix “‑W” means “Extended functions,” and “05” indicates the basic, non‑explosion‑proof type as per the module’s suffix code system.
Q2: What kind of processing capability does this CPU module provide?
A2: It uses an Intel Atom E3815 1.46GHz CPU, supports IEC 61131‑3 programming, and is designed for high‑speed, high‑reliability process control in industrial environments.
Q3: What are the physical size and weight of the NFCP501‑W05 module?
A3: The module measures approximately 65.8 mm wide, 130 mm high, 149.3 mm deep, and weighs about 0.9 kg.
Q4: How many Ethernet ports and serial ports does this module include?
A4: It includes 2 Ethernet ports and 1 RS‑232‑C serial port.
Q5: What power input and current consumption characteristics does it have?
A5: The module operates on 5 V DC with ±5% tolerance and consumes up to approximately 1.2 A under maximum load.
Q6: Can this module be used in redundant (duplex) configurations?
A6: Yes — the NFCP501‑W05 supports hot‑swappable and redundant configurations (duplex CPU setup) to provide high availability in process control systems.
Q7: What memory capacities are available on this CPU module?
A7: The module features 256 MB of main memory (with ECC) and 1 GB of onboard flash secondary memory for application and data storage.
Q8: What should be considered during installation and wiring of this module?
A8: Ensure proper 5 V DC power supply, allow clearance for module depth of ~149.3 mm, consider weight (~0.9 kg) when mounting, and verify that module firmware, slot assignment and network configuration align with the system design standards.
Yokogawa NFCP501-W05 CPU Module for FCN‑500 autonomous controller is in stock. Please contact us for a quick quote and competitive pricing.
