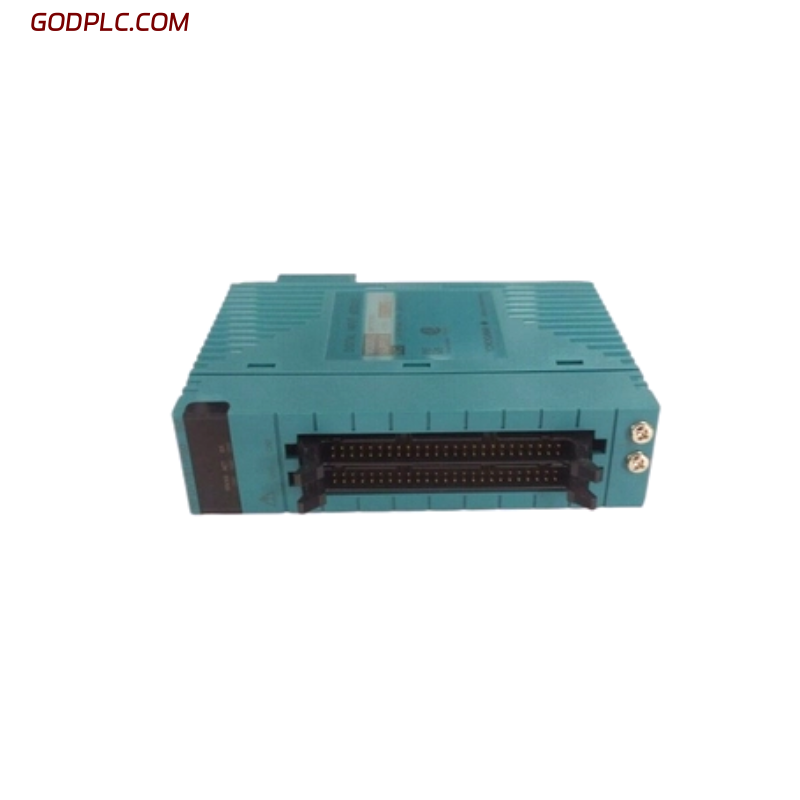

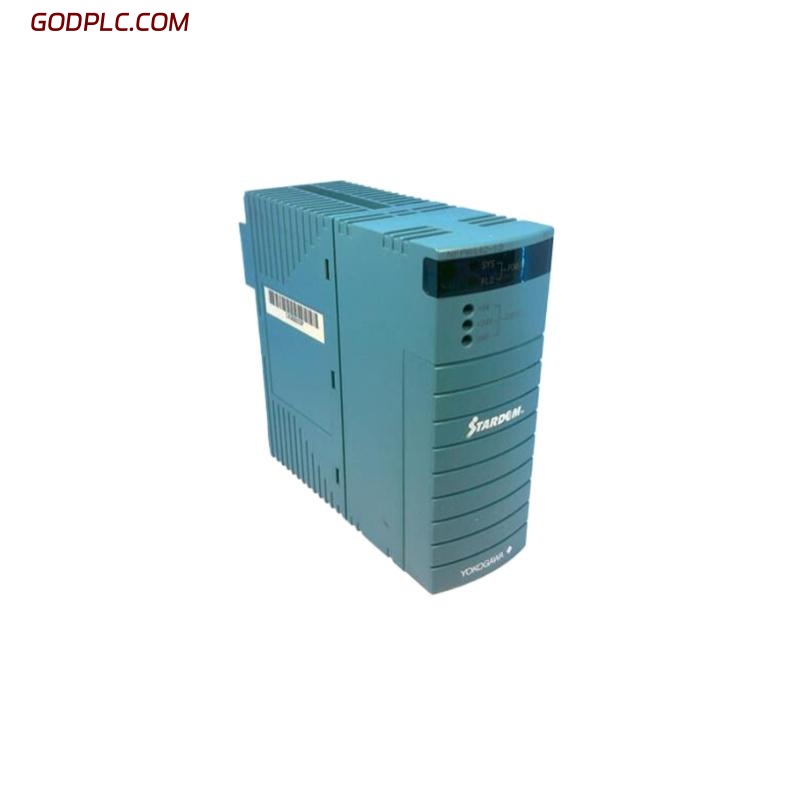

Yokogawa NFPW442-50 Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NFPW442‑50 |
| Type | Power Supply Module |
| Input Voltage | Rated 220–240 V AC; range 170–264 V AC |
| Input Frequency | 47–66 Hz |
| Maximum Input Current | Approx. 0.7 A |
| Output Voltage | +5.1 V DC (system supply) |
| Output Current | 0–7.8 A typical, peak up to ~11.8 A |
| Total Output Power | Approx. 40 W nominal (60 W peak) |
| Operating Temperature | –20 °C to +70 °C |
| External Dimensions | Width ≈ 49.7 mm × Height ≈ 130 mm × Depth ≈ 146.5 mm |
| Weight | Approx. 0.6 kg |
FAQ
Q1: What does the suffix “‑50” in NFPW442‑50 represent?
A1: The “‑50” typically indicates the standard version of the power supply module with no explosion‑proof or extended option, as defined in the product suffix‑code schema.
Q2: What is the primary input voltage range for this module?
A2: The module accepts 220–240 V AC rated input, with allowed range from 170 to 264 V AC.
Q3: What is the output capability of the module?
A3: It outputs +5.1 V DC to the system supply bus, with a current range from 0 to about 7.8 A, and can handle peaks up to roughly 11.8 A.
Q4: What are the physical dimensions and weight of the NFPW442‑50?
A4: The unit measures approximately 49.7 mm wide, 130 mm high, 146.5 mm deep, and weighs about 0.6 kg.
Q5: Is this module suitable for high‑availability applications?
A5: Yes — it supports hot‑swapping and redundant installation when used on the appropriate base module, making it suitable for high‑availability industrial control environments.
Q6: What protection features are included?
A6: The module features over‑voltage protection (from the 5.1 V supply bus), over‑current protection (shutdown when over 105 %), as well as high withstand voltage and insulation to support industrial reliability.
Q7: What range of operating temperatures is supported?
A7: The module is rated for operation from –20 °C up to +70 °C, supporting a wide temperature range for industrial use.
Q8: What installations or system contexts is this module designed for?
A8: It is designed for use with the modular autonomous controller system in industrial automation (e.g., the FCN/STARDOM platform), supplying system power to I/O and control modules within the rack or chassis architecture.
Yokogawa NFPW442-50 Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
