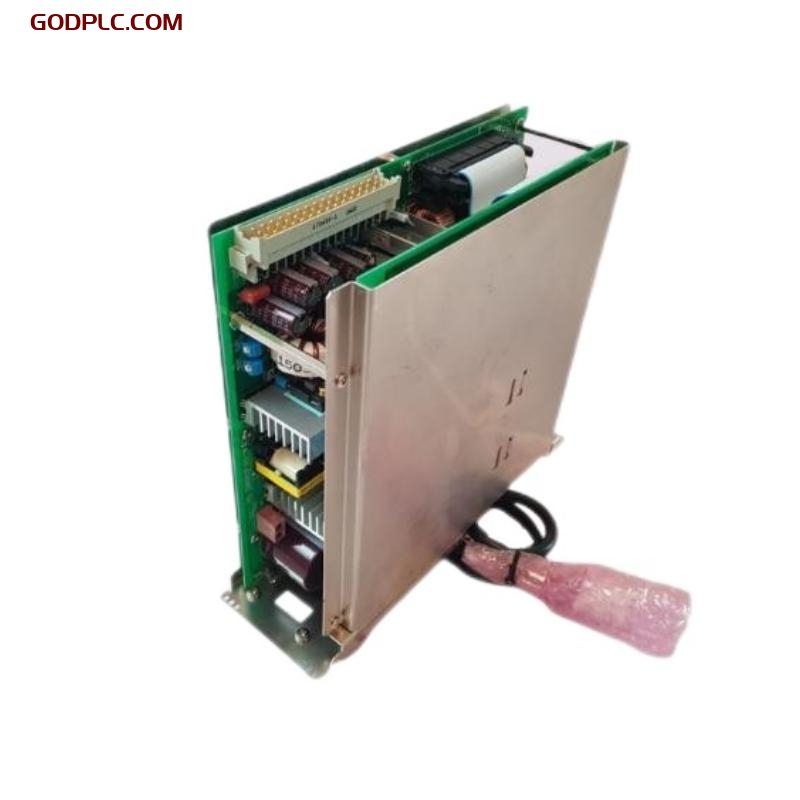

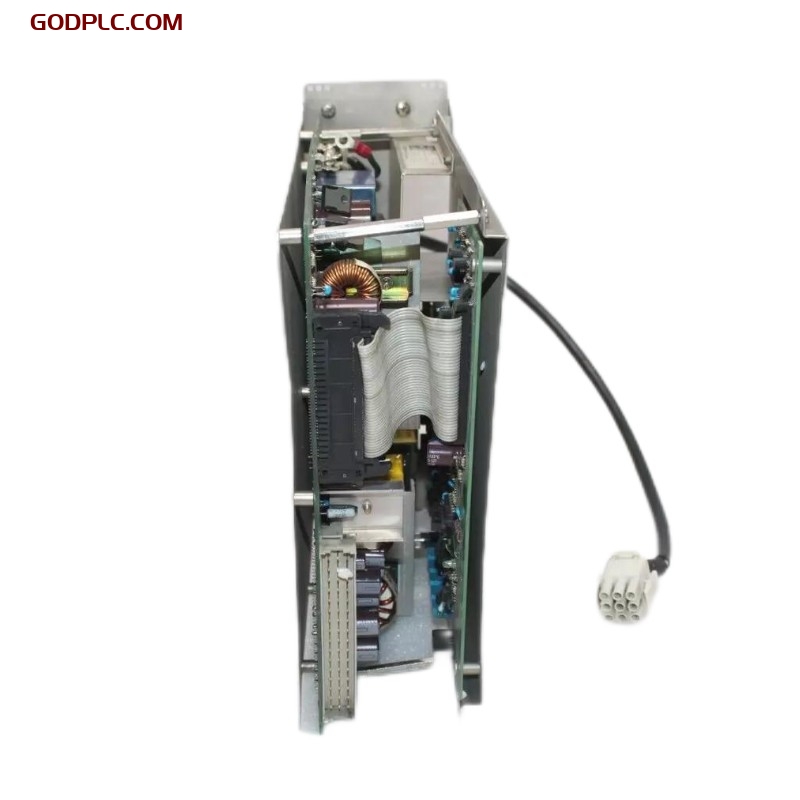

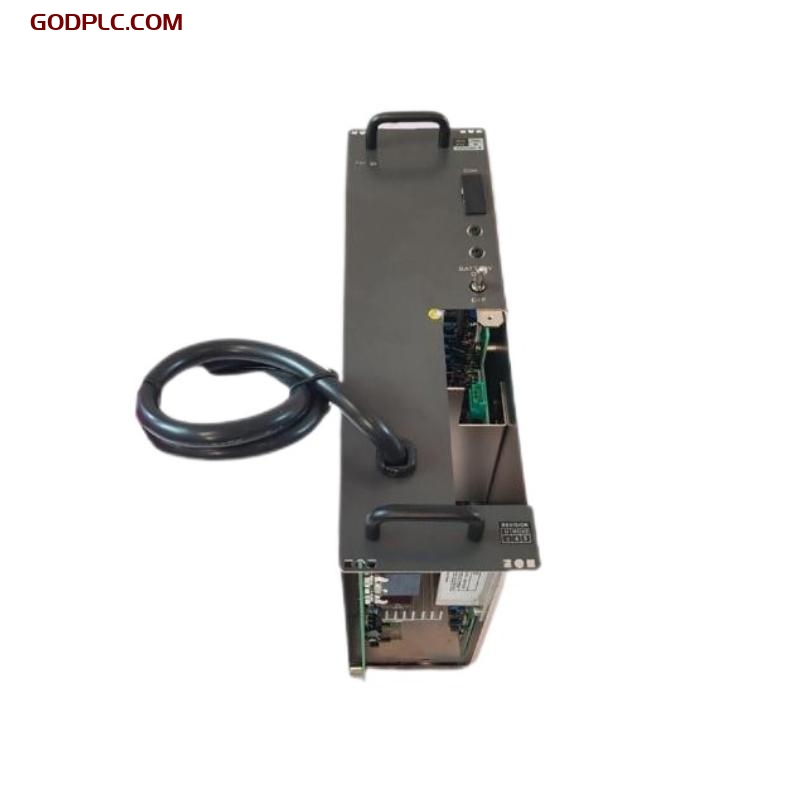

Yokogawa PW302-S4 Power Module
Product Overview
The Yokogawa PW302-S4 is a high-reliability power module designed to supply stable DC power to system components in Yokogawa’s CENTUM VP and ProSafe-RS control systems. As part of the FCS (Field Control Station) or Safety Control Station infrastructure, the PW302-S4 ensures uninterrupted operation of the control system by delivering regulated 5 VDC and 3.3 VDC to internal modules.
The module supports redundant configurations, allowing for parallel installation of two power modules to enhance system availability. In the event of a failure in one unit, the other automatically takes over, ensuring continuous operation without system downtime. Its compact form, advanced diagnostics, and hot-swap capability make it ideal for high-availability industrial applications.
Key Features
-
Stable DC Power Output – Supplies regulated 5 VDC and 3.3 VDC to control system components
-
Redundancy Support – Enables dual-module installation for uninterrupted operation in critical systems
-
Hot-Swappable Design – Allows replacement without system shutdown, minimizing operational disruption
-
Advanced Diagnostics – Built-in status LEDs and monitoring enhance maintainability and reliability
-
Compact Footprint – Fits into standard I/O racks and supports space-efficient cabinet layouts
-
Overvoltage and Overcurrent Protection – Ensures system safety in case of electrical anomalies
-
System Compatibility – Integrates seamlessly with CENTUM VP and ProSafe-RS architectures
-
Long Service Life – Designed for continuous 24/7 operation in harsh industrial environments
-
Low Power Loss – High efficiency reduces thermal output and extends component life
Technical Specifications
3.1 Mechanical Specifications
| Item | Specification |
|---|---|
| Dimensions | 280 x 100 x 280 mm |
| Weight | 3.26 kg |
3.2 Electrical Specifications
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC (nominal), range 19.2–30 VDC |
| Output Voltage | +5 VDC and +3.3 VDC |
| Output Power | 50 W (combined total) |
| Efficiency | >85% |
| Protection | Overvoltage, overcurrent, thermal shutoff |
| Redundancy | Supported (dual configuration) |
3.3 Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +55°C |
| Storage Temp | –20°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection Rating | IP20 (when installed in enclosure) |
| Certifications | CE, UL, CSA, RoHS compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Control Systems | Yokogawa CENTUM VP, ProSafe-RS |
| Rack Mounting | Compatible with standard system racks |
| Hot-Swap Support | Yes |
Industry Applications
-
Oil & Gas – Provides uninterrupted power for controllers and I/O in critical upstream and downstream operations
-
Chemical Processing – Maintains stable power for safe operation of batch and continuous processing units
-
Power Generation – Supports control system power needs in thermal, nuclear, and renewable energy plants
-
Pharmaceuticals – Ensures clean and reliable power in regulated environments requiring high system availability
-
Water Treatment – Powers distributed automation systems in filtration, pumping, and monitoring processes
The Yokogawa PW302-S4 Power Module delivers dependable, high-quality power essential for the performance and reliability of advanced control systems. Its support for redundancy, compact size, and fault-tolerant features make it an ideal power solution for mission-critical applications across diverse industries.
Yokogawa PW302-S4 Power Module is in stock. Please contact us for a quick quote and competitive pricing.
