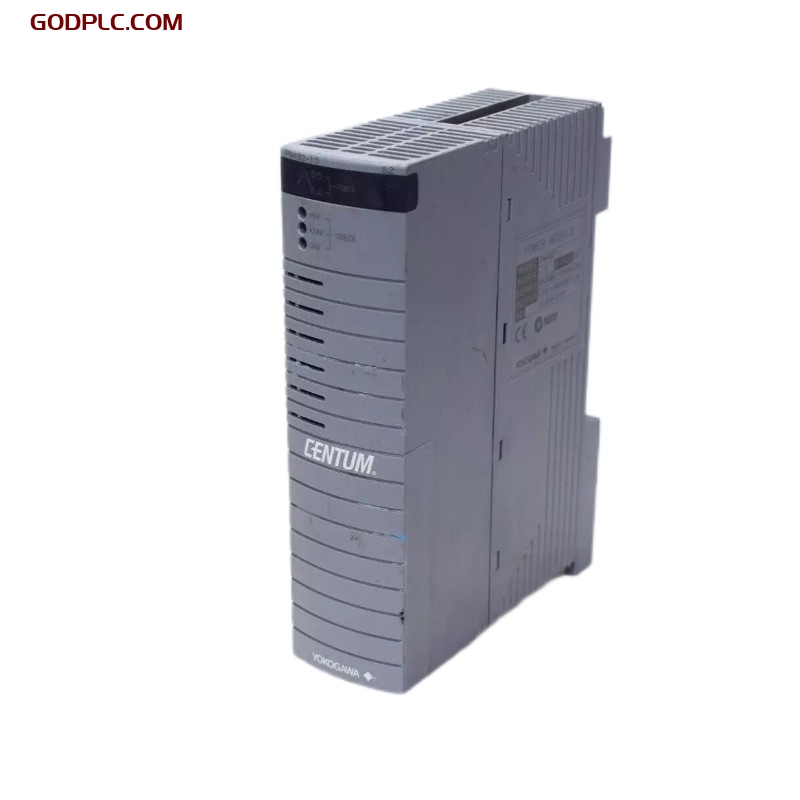

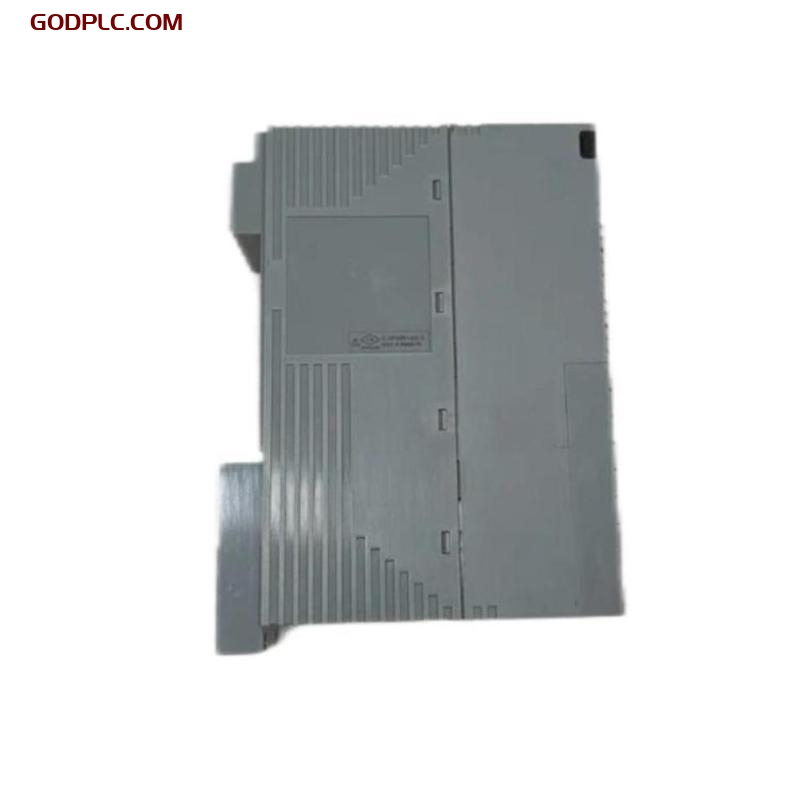

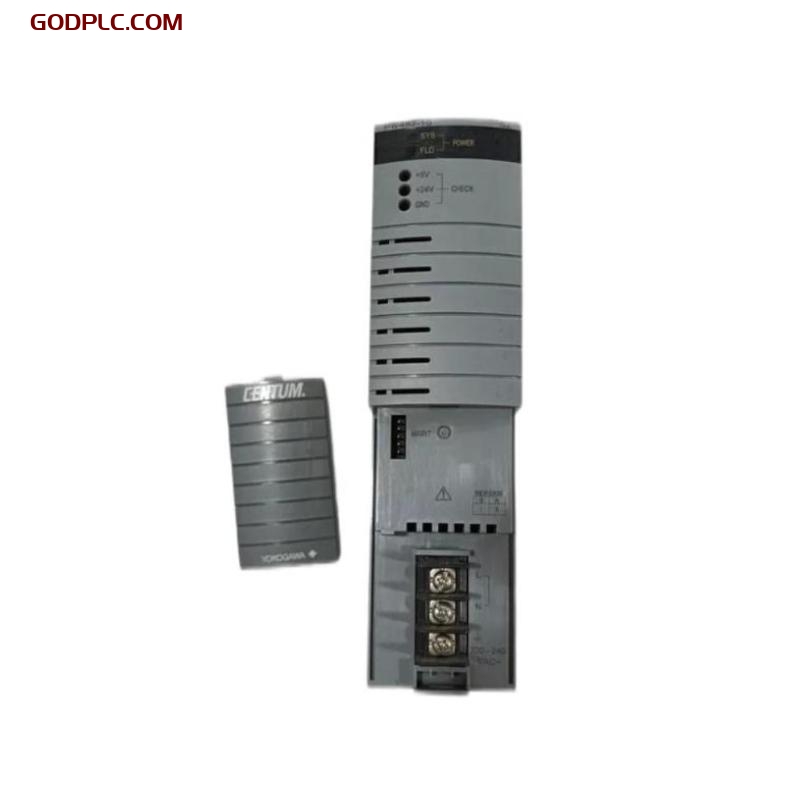

Yokogawa PW482-10 S2 Power Module

Product Overview

The Yokogawa PW482-10 S2 is an advanced power module designed to provide stable and reliable DC power to the critical components of Yokogawa’s CENTUM VP and ProSafe-RS systems. This power module is an integral part of the Field Control Station (FCU) or Safety Control Station, providing the necessary 5 VDC and 3.3 VDC outputs for the operation of system modules and I/O devices.

The PW482-10 S2 module supports redundant configurations to ensure uninterrupted operation in high-availability environments. With its hot-swappable design, system uptime is maximized, and maintenance can be performed without system shutdown. The module is equipped with comprehensive diagnostic features that provide real-time monitoring, helping to prevent failures before they affect system performance.

Key Features

• Stable Power Supply – Delivers reliable 5 VDC and 3.3 VDC outputs for powering control system modules

• Redundancy Support – Enables dual-module configurations for increased fault tolerance and system reliability

• Hot-Swappable Design – Facilitates easy module replacement without shutting down the system, reducing downtime

• Advanced Diagnostics – Equipped with status LEDs and diagnostic functions for proactive fault detection and maintenance

• Compact and Space-Saving – Designed for integration into standard I/O racks and control panels, optimizing space usage

• Safety Features – Includes overvoltage, overcurrent, and thermal shutdown protection to ensure safe operation

• High Efficiency – Minimizes power loss and heat generation, enhancing module longevity and reducing operational costs

• System Compatibility – Fully compatible with Yokogawa CENTUM VP and ProSafe-RS control platforms, supporting seamless integration

• Continuous Operation – Designed for reliable, 24/7 operation in harsh industrial environments

Technical Specifications

3.1 Mechanical Specifications

3.2 Electrical Specifications

3.3 Environmental Specifications

3.4 System Compatibility

Industry Applications

• Oil & Gas – Ensures stable and redundant power for control and safety systems in offshore platforms, refineries, and pipeline monitoring

• Chemical Processing – Powers essential process control systems in hazardous chemical production environments

• Power Generation – Supplies reliable power to turbines, generators, and critical equipment in power plants

• Pharmaceuticals – Supports continuous operation of regulated manufacturing systems in pharmaceutical production lines

• Water Treatment – Provides power for control systems in water pumping, filtration, and monitoring processes

The Yokogawa PW482-10 S2 Power Module offers a reliable, efficient, and fault-tolerant power solution for mission-critical industrial applications. With its hot-swappable design, built-in diagnostics, and support for redundant configurations, this power module ensures high system uptime and operational efficiency.
