Technical Specifications

FAQ

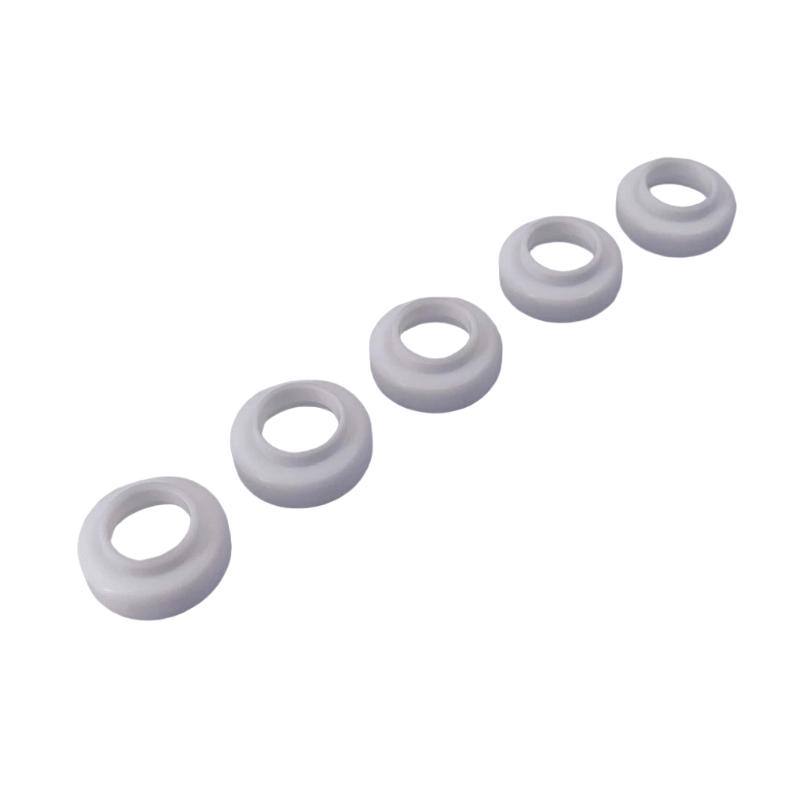

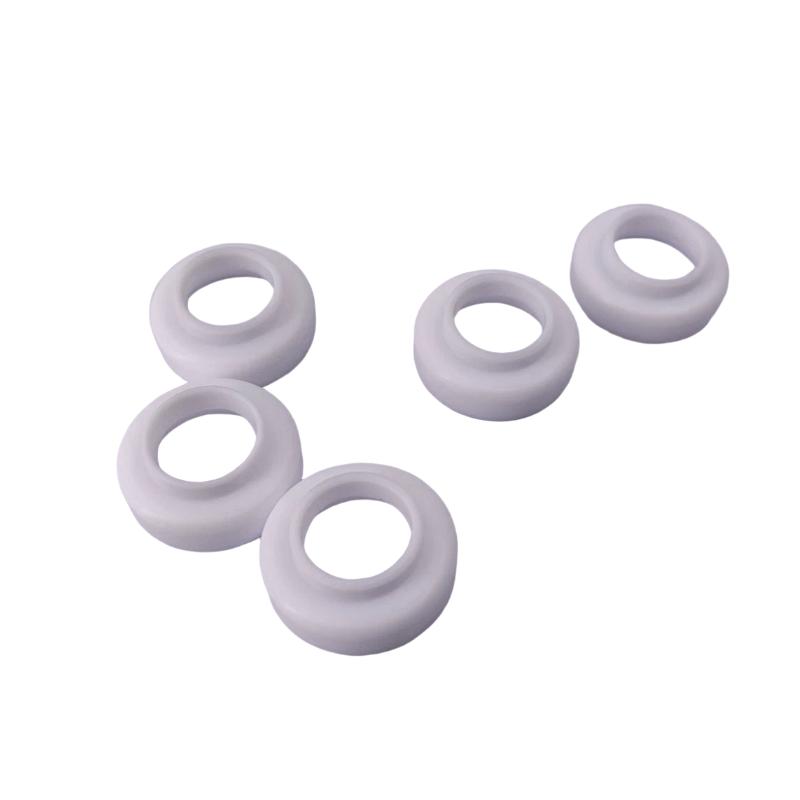

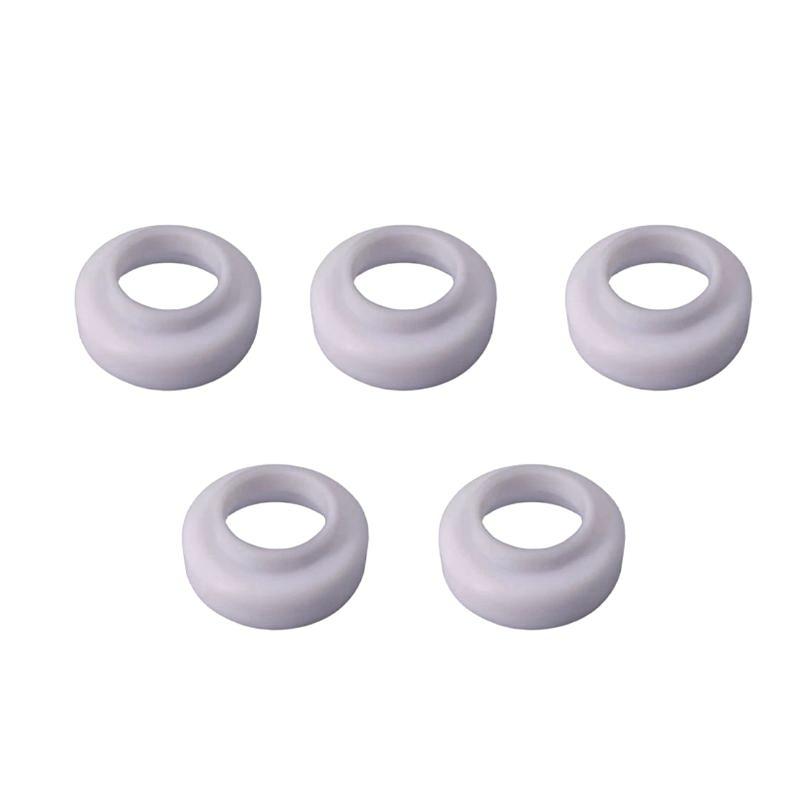

1. What is the primary function of an insulating sleeve in industrial control systems?

The primary function of an insulating sleeve is to provide electrical isolation between conductive parts within control and instrumentation systems. In industrial environments, terminals, connectors, and signal interfaces are often densely packed, increasing the risk of unintended electrical contact. The insulating sleeve acts as a physical and dielectric barrier, preventing short circuits and leakage currents. Beyond electrical isolation, it also provides mechanical support to stabilize connection points, reducing wear caused by vibration or repeated maintenance cycles. This ensures that the electrical integrity of the system is maintained over long-term operation.

2. Why is electrical insulation critical in automation and control environments?

Electrical insulation is essential because modern automation systems rely on precise low-voltage signals that are highly sensitive to interference. Without proper insulation, stray currents or unintended conductive paths can introduce noise, signal distortion, or even equipment damage. In worst cases, insufficient insulation may lead to short circuits that cause system shutdowns or safety hazards. Insulation components like sleeves ensure that each signal path remains electrically isolated, preserving signal clarity and system reliability even in electrically noisy industrial environments.

3. How does an insulating sleeve improve long-term system reliability?

An insulating sleeve improves reliability by maintaining stable physical separation between conductive elements over time. In industrial settings, constant vibration, thermal cycling, and mechanical stress can gradually loosen or degrade connections. The sleeve helps maintain consistent spacing and reduces direct metal-to-metal contact stress. This minimizes connector wear, prevents micro-arcing, and reduces the likelihood of intermittent faults. Over time, this contributes significantly to system uptime and reduces maintenance frequency.

4. Does the insulating sleeve affect electrical signal performance?

The insulating sleeve does not actively modify or process electrical signals. However, it indirectly supports signal integrity by preventing leakage currents and unintended coupling between adjacent conductors. By maintaining proper insulation barriers, it helps ensure that low-level control and measurement signals remain clean and free from external interference. This is especially important in analog and communication circuits where even small disturbances can affect system accuracy.

5. Why are insulating components important in high-vibration environments?

In high-vibration environments, connectors and terminals are subject to continuous mechanical stress. Without insulation and structural support, these components may loosen or shift, leading to unstable electrical contact or intermittent failures. The insulating sleeve provides both dielectric isolation and mechanical stabilization, helping maintain consistent alignment of electrical interfaces. This reduces the risk of signal interruptions and improves the durability of the entire connection system under dynamic operating conditions.

6. What role does material selection play in insulating performance?

Material selection is critical because the insulating material must withstand electrical stress, thermal variations, and mechanical loads. High-quality engineering polymers offer strong dielectric strength, resistance to aging, and stability under temperature fluctuations. If inferior materials are used, the sleeve may crack, deform, or lose insulation properties over time. This can compromise both electrical safety and mechanical stability, especially in continuous industrial operation.

7. Does this component require maintenance during its lifecycle?

In general, insulating sleeves are maintenance-free components because they have no active electrical or moving parts. However, periodic inspection during scheduled system maintenance is recommended. This inspection typically focuses on detecting signs of wear, cracking, contamination, or thermal degradation. Early detection of physical deterioration helps prevent insulation failure and ensures continued system safety without unexpected downtime.

8. Why is this component considered important for system safety design?

In system safety design, insulating sleeves are part of the foundational protection layer that prevents electrical faults from propagating through the system. While they are simple passive components, they play a crucial role in maintaining safe separation between conductive elements. In the event of abnormal conditions such as voltage spikes or connector faults, the insulation barrier helps contain the issue locally and prevents it from affecting adjacent circuits. This contributes significantly to the overall robustness and safety of industrial control systems.
