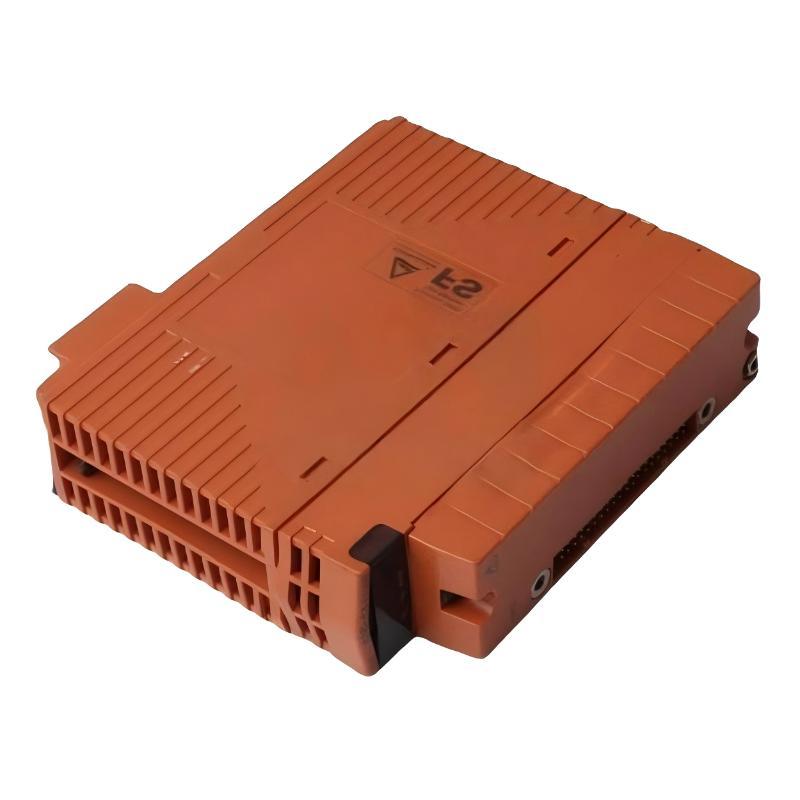

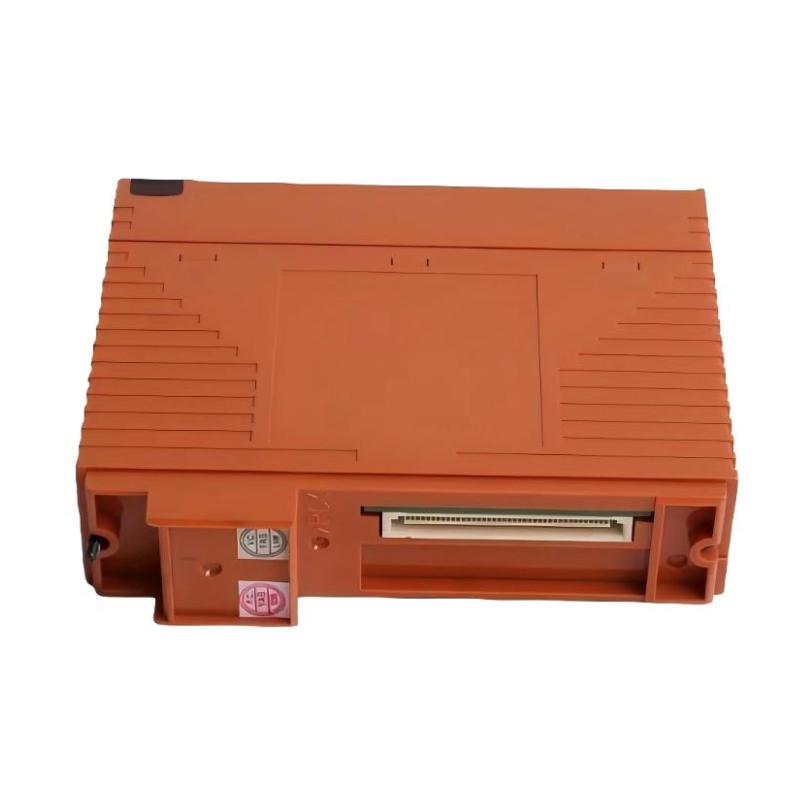

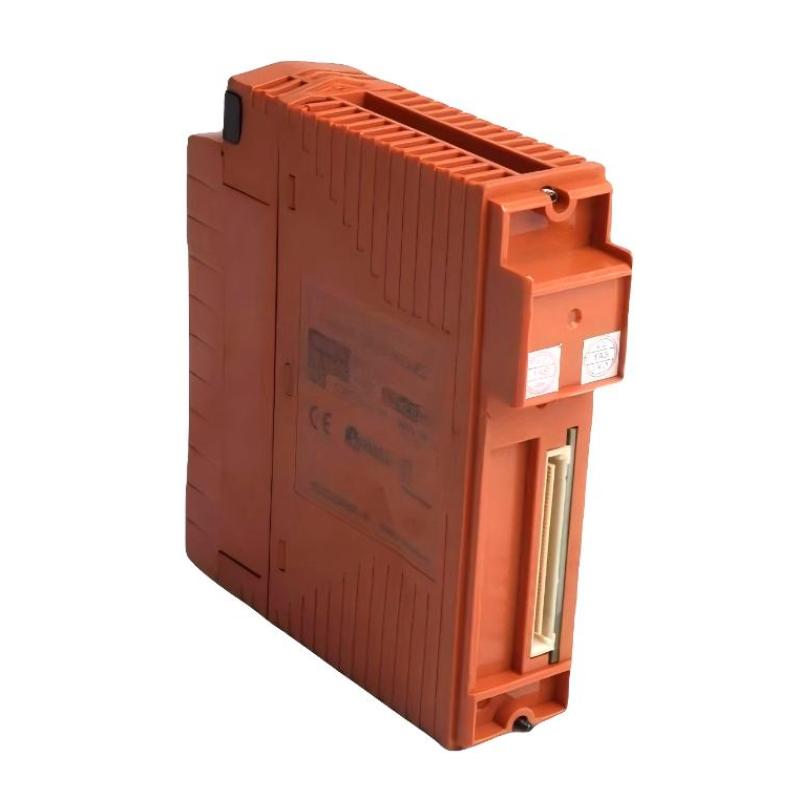

Q1: What is the primary function of the Yokogawa SAI143-S53/A4S10 Analog Input Module?

The primary function of the SAI143-S53/A4S10 analog input module is to act as a reliable interface between field instrumentation and a distributed control system (DCS). It continuously collects analog signals from process transmitters such as pressure, temperature, flow, and level instruments. These signals are typically in the form of 4–20 mA current loops or standard voltage outputs. Once received, the module performs signal conditioning, including analog-to-digital conversion, filtering, scaling support, and diagnostic checks. This ensures that only stable, accurate, and usable process data is transmitted to the control system. In industrial environments where process stability is critical, this module plays a foundational role in ensuring reliable real-time data acquisition.

Q2: What industries commonly use this module?

This module is widely deployed in continuous and batch process industries where large volumes of analog signals must be monitored and controlled in real time. Typical industries include oil and gas production, petrochemical refining, power generation (thermal, hydro, and nuclear), metallurgy, pharmaceuticals, pulp and paper, and water treatment plants. In these environments, hundreds or even thousands of field instruments generate continuous analog signals. The SAI143-S53/A4S10 aggregates these signals and provides a centralized, structured data interface for the control system, enabling safe, efficient, and optimized plant operation.

Q3: How does this module integrate into Yokogawa CENTUM systems?

The module integrates directly into Yokogawa CENTUM VP or CS distributed control systems via a backplane architecture. Field devices are wired into the module’s input terminals, where analog signals are conditioned and converted into digital values. These values are transmitted through the system backplane to the controller in real time. The controller then uses this data for process control, alarm handling, interlocking logic, and historical data logging. Engineering tools within the CENTUM environment allow configuration of scaling, filtering, and diagnostics, ensuring each channel operates according to process requirements.

Q4: What signal processing capabilities does the module provide?

The module provides multiple advanced signal processing functions designed to ensure high data integrity in harsh industrial environments. These include high-resolution analog-to-digital conversion, digital filtering to suppress electrical noise, signal linearization for accurate engineering unit representation, and built-in diagnostics for detecting abnormal conditions such as open circuits or signal drift. Additionally, channel isolation prevents interference between adjacent inputs, which is critical in high-density installations. Together, these features ensure that the control system receives clean, stable, and reliable process data even in electrically noisy environments.

Q5: What are the key installation and wiring requirements?

Proper installation is essential for ensuring long-term stability and measurement accuracy. The module must be securely mounted in a designated rack or DIN rail inside a properly grounded control cabinet. Signal wiring should use shielded twisted-pair cables to minimize electromagnetic interference. It is important to keep signal cables separated from power cables, motor feeders, and variable frequency drives to avoid noise coupling. Cable shields must be properly grounded to ensure signal stability. Each channel must be wired strictly according to system documentation to avoid miswiring, which can lead to incorrect readings or system alarms. Good installation practice directly affects overall system reliability.

Q6: What are common causes of signal abnormalities?

Signal abnormalities may originate from multiple sources across the signal chain. Field-level issues include transmitter failure, incorrect calibration, unstable loop power, or sensor degradation. Wiring issues such as loose terminals, broken conductors, or poor shielding can also significantly degrade signal quality. On the system side, incorrect configuration parameters such as scaling errors or wrong channel assignments may lead to inaccurate readings. External electromagnetic interference from heavy electrical equipment, variable frequency drives, or large motors can further introduce noise. Effective troubleshooting requires analyzing the entire loop from field instrument to DCS input to identify the root cause.

Q7: Does this module support online replacement or hot-swapping?

In many CENTUM system configurations, this module supports online replacement or hot-swapping under controlled maintenance conditions. This capability allows maintenance personnel to replace a faulty module without shutting down the entire control system, minimizing production downtime. However, strict procedures must be followed, including placing the affected module or channel into maintenance mode before removal or insertion. This ensures that no unintended control actions occur and that the process remains stable during maintenance. Proper execution of these procedures is essential for safe operation in live industrial environments.

Q8: What is the role of this module in industrial automation systems?

This module serves as a critical data acquisition interface within industrial automation systems. It converts raw analog signals from field instruments into structured digital data that can be used by the control system for monitoring, regulation, and optimization. This data supports essential automation functions such as closed-loop control, alarm management, safety interlocking, and process visualization. Without modules like the SAI143-S53/A4S10, distributed control systems would not be able to reliably obtain real-time process information, making stable and efficient operation of complex industrial plants impossible.
