Technical Specifications

FAQ

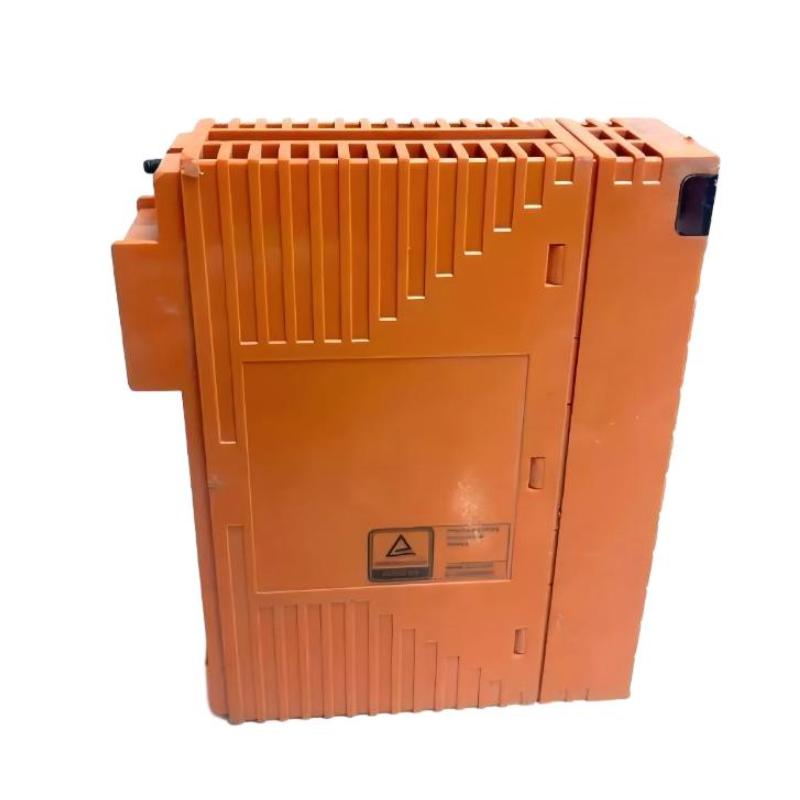

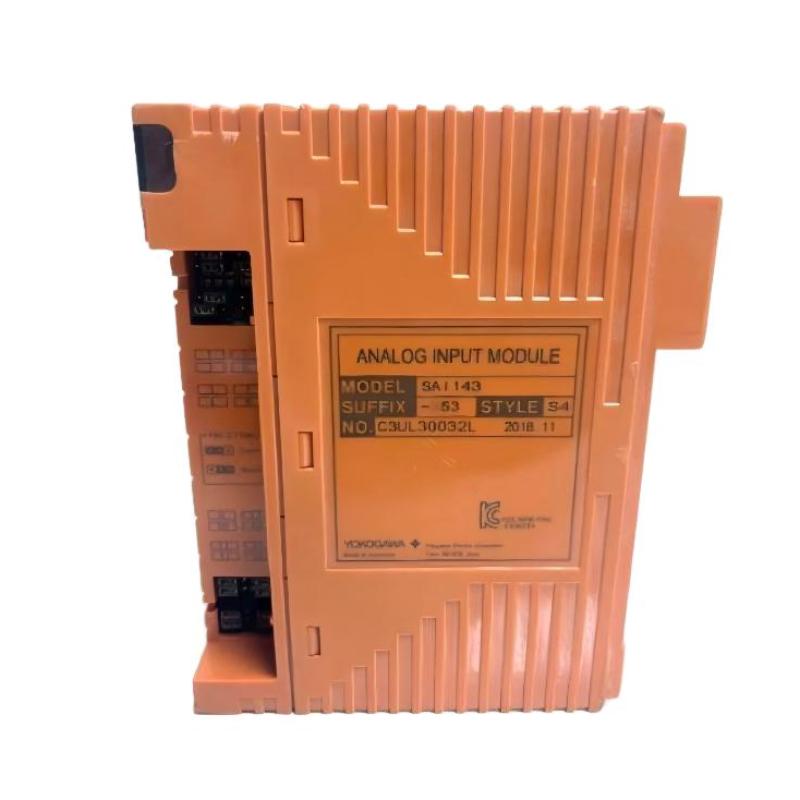

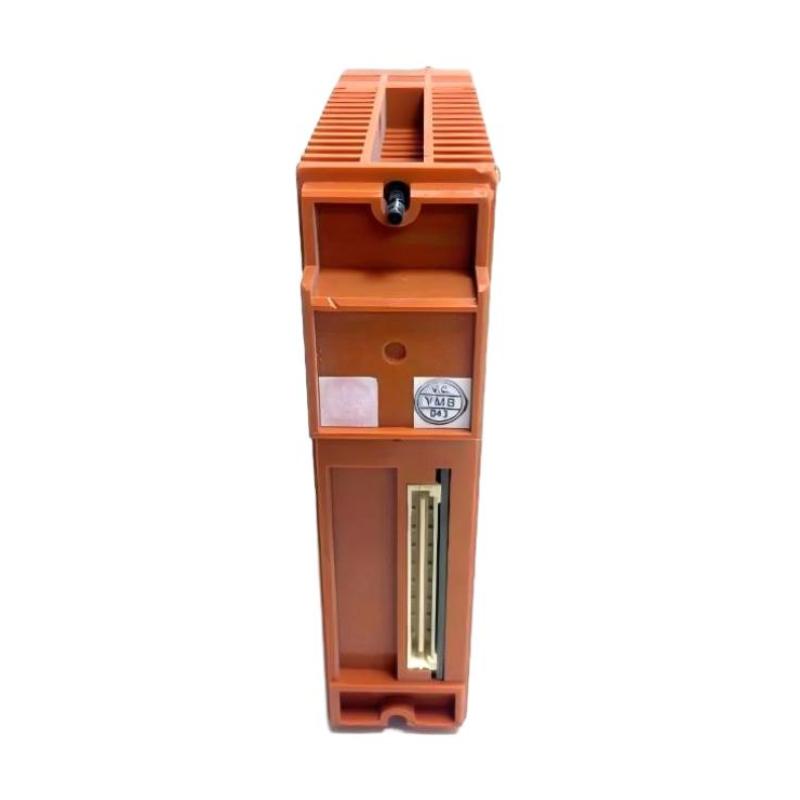

Q1: What is the primary function of the Yokogawa SAI143-S63/A4S00 Analog Input Module?

The Yokogawa SAI143-S63/A4S00 Analog Input Module is designed to collect analog signals from field instruments and convert them into digital data that can be processed by a Distributed Control System (DCS). It accepts standard industrial input signals, including 4–20 mA current loops and voltage signals generated by transmitters measuring pressure, temperature, flow, level, and other process variables. After receiving the signals, the module performs high-precision analog-to-digital conversion, digital filtering, and signal conditioning to improve measurement quality before transmitting the data to the controller. This process ensures that the control system receives stable, accurate, and reliable process information for real-time monitoring, control, and optimization.

Q2: Which industrial applications is this module best suited for?

The SAI143-S63/A4S00 is widely used in industries that depend on continuous process control and accurate analog signal acquisition. Typical applications include oil and gas production, petrochemical processing, power generation, chemical manufacturing, pharmaceutical production, pulp and paper plants, mining, metallurgy, food processing, and municipal water treatment facilities. These industries require continuous monitoring of critical process variables, and the module serves as a reliable interface between field instrumentation and the automation system. Its stable performance makes it suitable for both routine process control and safety-related monitoring applications.

Q3: How does the module communicate with the Yokogawa CENTUM control system?

The module is installed in a Yokogawa I/O node and communicates with the CENTUM VP or CENTUM CS Distributed Control System through the system backplane. Analog signals received from field devices are first conditioned and converted into digital values inside the module. These values are then transmitted through the backplane to the system controller, where they become available for process control algorithms, operator displays, alarm management, historical trending, and engineering diagnostics. Configuration parameters such as input type, scaling, filtering, and alarm limits are managed through Yokogawa engineering software, allowing the module to integrate seamlessly into the overall control architecture.

Q4: What signal processing and diagnostic capabilities does this module provide?

The SAI143-S63/A4S00 incorporates advanced signal processing features to ensure accurate and dependable data acquisition. It performs high-resolution analog-to-digital conversion, digital filtering to suppress electrical noise, and signal conditioning to improve measurement stability. The module also supports channel isolation, minimizing interference between individual input channels and enhancing overall system reliability. In addition, built-in diagnostic functions continuously monitor signal quality and operating status. If abnormal conditions such as signal loss, input overrange, wiring faults, or channel errors are detected, the module can report diagnostic information to the DCS, allowing maintenance personnel to identify and resolve problems more efficiently.

Q5: What installation and wiring practices should be followed for reliable operation?

For optimal performance, the module should be installed securely in the designated system rack inside a properly grounded control cabinet. Shielded twisted-pair cables are recommended for all analog input wiring to minimize electromagnetic interference. Signal cables should be routed separately from power cables, motor wiring, and high-voltage circuits to prevent electrical noise from affecting measurement accuracy. Proper grounding of cable shields is essential to maintain signal integrity. After installation, each input channel should be verified through system configuration software to confirm correct wiring, scaling, and communication before the module is placed into normal operation.

Q6: What are the most common causes of abnormal input signals?

Abnormal input signals can originate from several different sources throughout the measurement loop. Field devices may experience calibration drift, transmitter failure, unstable power supplies, or sensor degradation. Wiring issues such as loose terminals, damaged cables, incorrect polarity, poor grounding, or insufficient shielding can also affect signal quality. Configuration errors within the DCS, including incorrect input type selection, scaling parameters, or channel assignments, may produce inaccurate readings even when the hardware is functioning normally. In electrically noisy environments, interference from variable frequency drives, large motors, or switching equipment can further degrade analog signals. A systematic inspection of the transmitter, wiring, module configuration, and environmental conditions is usually the most effective troubleshooting approach.

Q7: Does the module support online maintenance or hot replacement?

Depending on the specific Yokogawa system architecture and project configuration, the SAI143-S63/A4S00 may support online maintenance or hot-swapping procedures. This capability allows maintenance personnel to replace a faulty module without shutting down the entire control system, significantly reducing production downtime. However, replacement should only be performed in accordance with Yokogawa maintenance procedures and plant operating standards. Before removing the module, the affected channels should be placed into an appropriate maintenance state, and all safety procedures should be observed. After installation of the replacement module, communication status, diagnostic information, and process signals should be verified to ensure the system has returned to normal operation.

Q8: Why is the SAI143-S63/A4S00 important in modern industrial automation systems?

The SAI143-S63/A4S00 serves as a critical interface between field instrumentation and the distributed control system. Its primary responsibility is to transform continuously changing analog process signals into accurate digital information that can be used for process control, equipment protection, alarm management, historical data recording, and operational analysis. High-quality input data is the foundation of every automated control strategy, including PID regulation, advanced process control, predictive maintenance, and safety interlocking. By delivering reliable, high-precision measurements under demanding industrial conditions, this module contributes directly to improved process stability, higher operational efficiency, reduced maintenance costs, and enhanced overall plant safety.
