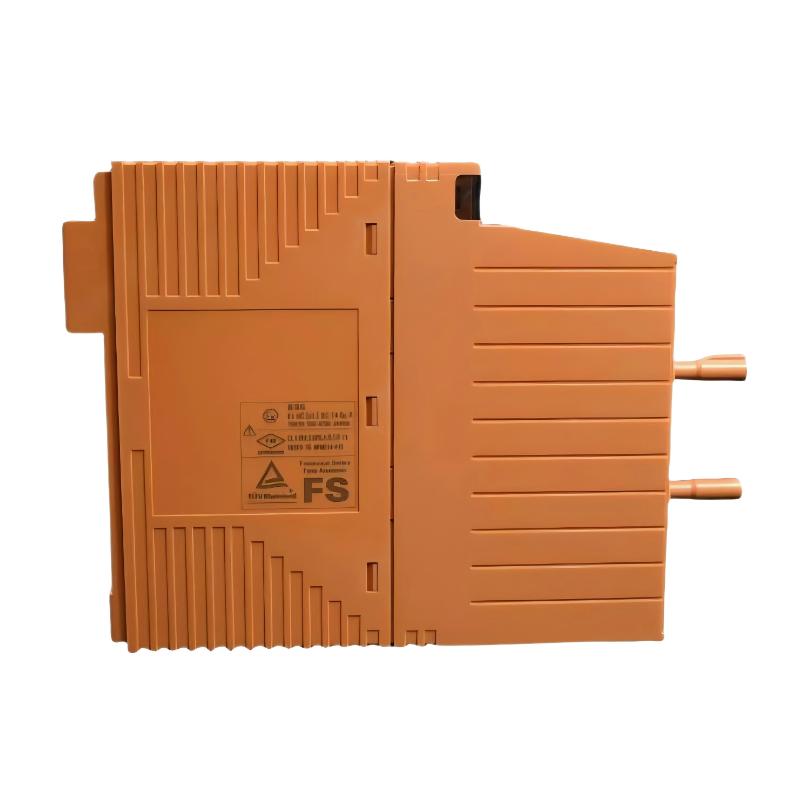

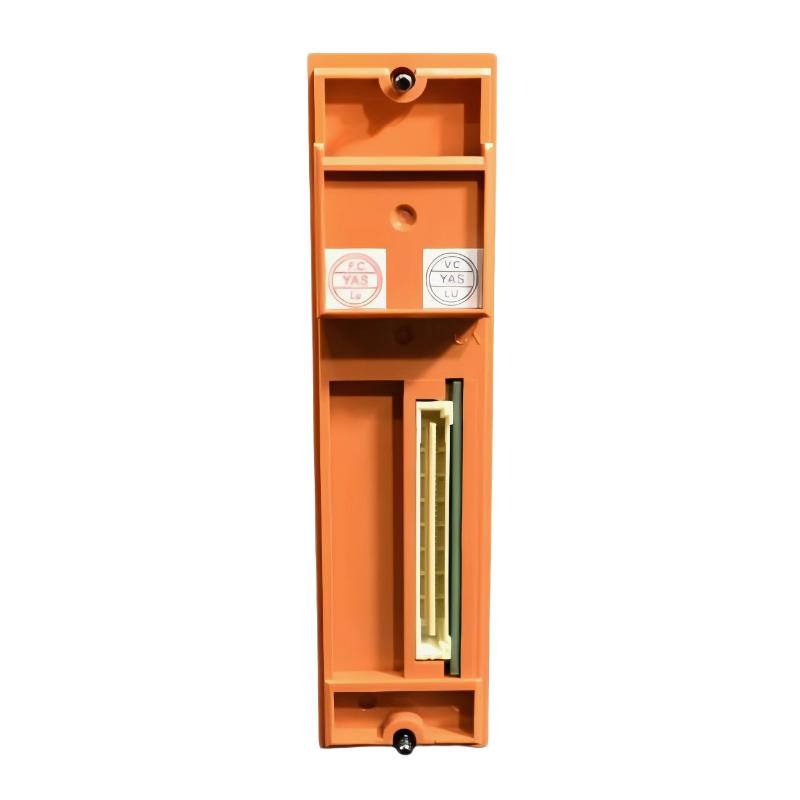

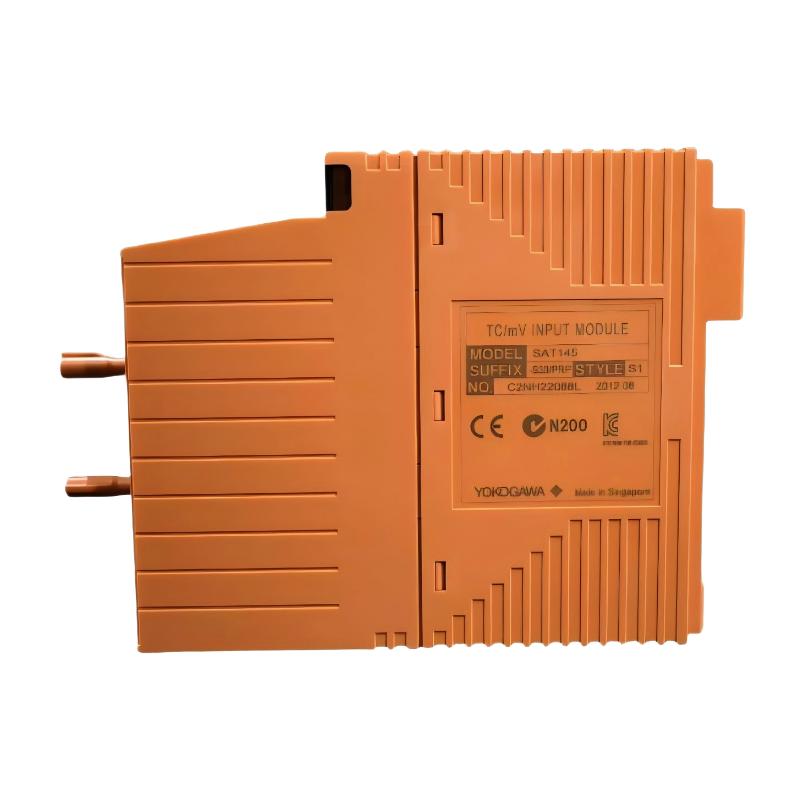

Q1: What is the primary function of the SAT145-S63/PRP S2 TC/mV input module?

The primary function of the SAT145-S63/PRP S2 module is to acquire low-level analog signals from field instruments, specifically thermocouples (TC) and millivolt (mV) sources, and convert them into digital data usable by a control system. In industrial automation, temperature is one of the most critical process variables, and this module ensures that weak and noise-sensitive signals are accurately captured, conditioned, and transmitted. It acts as the interface between field temperature sensors and the control system, enabling precise monitoring and stable process regulation.

Q2: What types of sensors are compatible with this module?

This module is compatible with a wide range of industrial thermocouples such as Type K, J, T, E, R, S, and B, depending on system configuration. It also supports millivolt-level signals from various sensors and transmitters. This flexibility allows it to be used in both high-temperature measurement applications and low-voltage signal acquisition scenarios, making it suitable for diverse industrial environments.

Q3: Why is cold junction compensation important in thermocouple measurement?

Cold junction compensation is essential because thermocouples measure temperature differences rather than absolute temperature values. The reference junction (cold junction) temperature can vary depending on ambient conditions, which would otherwise introduce measurement errors. The module automatically compensates for these variations by measuring the reference temperature internally and adjusting the output accordingly. This ensures high accuracy and stability in temperature readings even when environmental conditions fluctuate.

Q4: How does the module integrate with Yokogawa control systems?

The module integrates seamlessly with Yokogawa systems through a rack backplane architecture. Once installed, it communicates directly with the control processor via the internal system bus. The raw analog signals are conditioned, digitized, and transmitted in real time. This tight integration ensures synchronized data acquisition and reliable communication across the control system without external wiring complexity between modules and controllers.

Q5: What can cause unstable temperature readings in this module?

Unstable readings can be caused by several factors, including loose or corroded thermocouple connections, incorrect compensation wire usage, or poor grounding practices. Electromagnetic interference from nearby power cables or variable frequency drives can also introduce noise into low-level TC/mV signals. In some cases, sensor aging or thermal cycling stress can degrade measurement stability. Proper installation, shielding, and wiring practices are essential to maintain signal integrity.

Q6: What industries commonly use this module?

This module is widely used in industries where accurate temperature monitoring is critical, such as petrochemical processing, power generation, metallurgy, cement production, and chemical manufacturing. It is particularly valuable in applications like furnace temperature control, reactor monitoring, boiler systems, and heat treatment processes, where precise thermal regulation directly impacts product quality and operational safety.

Q7: What happens if one input channel fails?

If an individual input channel fails, the system typically isolates that channel while maintaining operation of the remaining channels. Diagnostic information is generated automatically, allowing maintenance personnel to quickly identify the fault. Depending on system configuration, alarms may be triggered or the affected loop may be placed into a safe state. This ensures that a single channel failure does not compromise the entire control system.

Q8: Why is this module critical in temperature measurement systems?

This module is critical because thermocouple and millivolt signals are extremely low-level and highly susceptible to noise and interference. Without proper conditioning and isolation, measurement accuracy would be significantly degraded. The module provides amplification, filtering, isolation, and digital conversion, ensuring that temperature data is accurate, stable, and reliable. This directly supports safe operation, process efficiency, and precise control in industrial automation systems.
