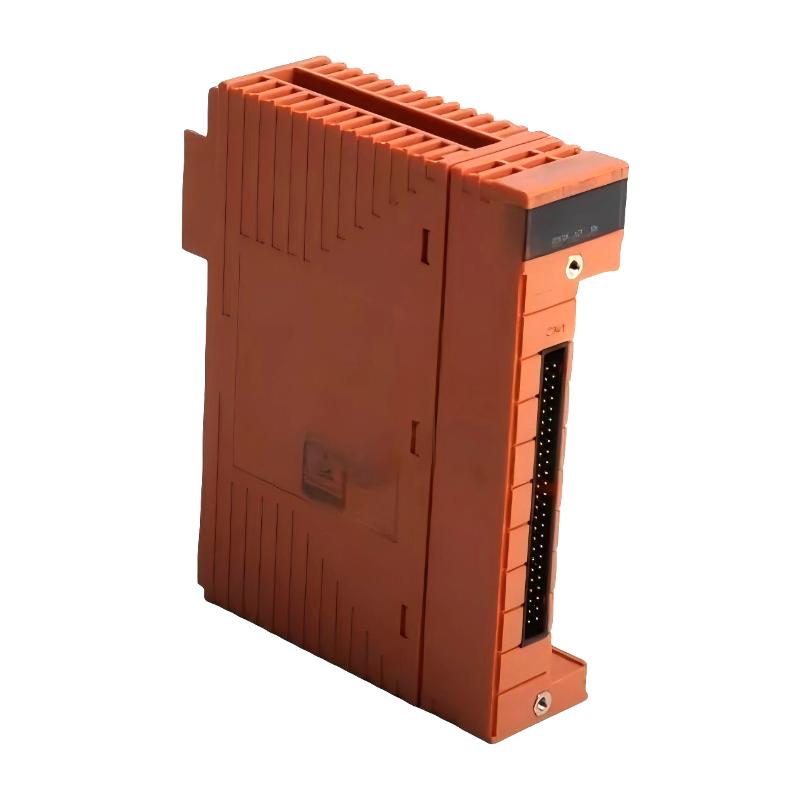

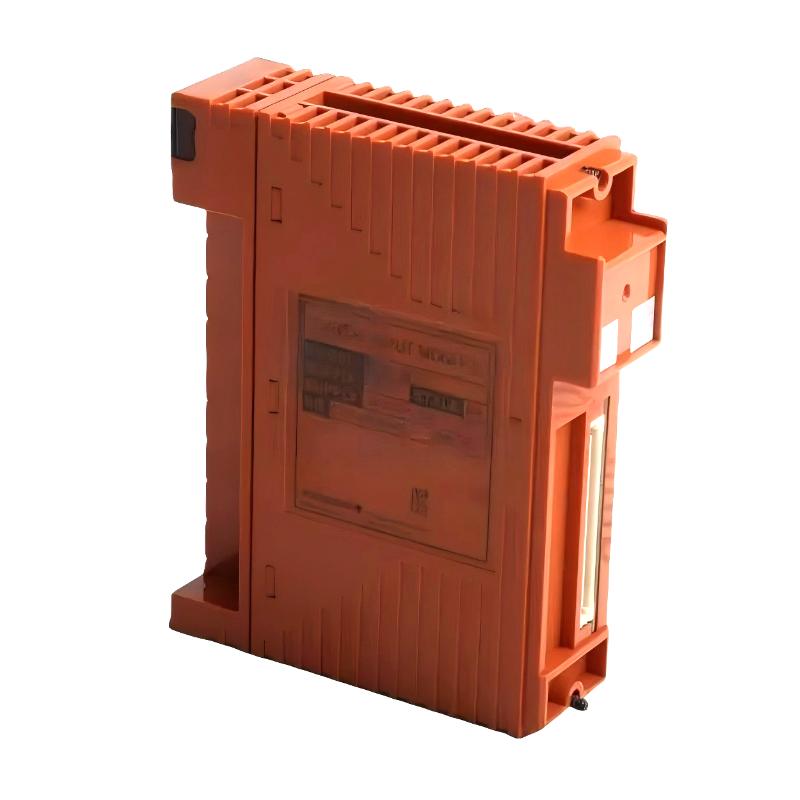

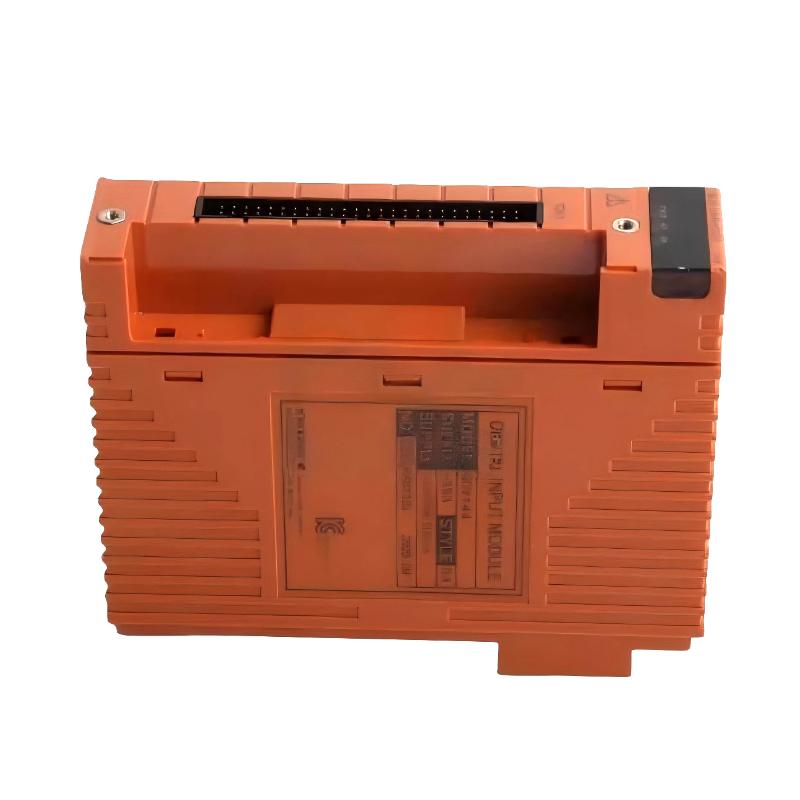

Q1: What is the primary function of the SAV144-S53 Analog Input Module?

The SAV144-S53 Analog Input Module is designed to collect analog signals from field instrumentation and convert them into digital data that can be processed by a distributed control system (DCS). It serves as the interface between sensors, transmitters, and the control system, allowing continuous monitoring of critical process variables such as pressure, flow, temperature, and liquid level. Through high-precision signal acquisition and conversion, the module provides reliable real-time data that supports process control, alarm management, historical data logging, and operational optimization. Its stable performance makes it an essential component in industrial automation systems where accurate process monitoring is required.

Q2: What types of analog input signals are supported by this module?

The SAV144-S53 module is designed to receive standard industrial analog signals, including current and voltage inputs commonly generated by field transmitters. Typical signal types include 4–20 mA current loops and standard voltage ranges, depending on the overall system configuration. These standardized signal formats enable the module to communicate with a broad range of industrial sensors and transmitters. Its high input accuracy and built-in signal conditioning ensure that even low-level analog signals are captured with excellent precision and long-term stability.

Q3: How does the module communicate with the control system?

The module is installed directly into the Yokogawa control system rack and communicates with the controller through the high-speed backplane bus. After receiving analog signals from field devices, the module performs internal amplification, filtering, and analog-to-digital conversion before transmitting the processed data to the controller. This architecture provides deterministic communication, minimizes transmission delays, and ensures that process data is synchronized across the automation system. The integrated design also simplifies installation and improves overall system reliability.

Q4: Why is electrical isolation important for analog input modules?

Electrical isolation is essential because industrial facilities often contain high levels of electrical noise, voltage transients, and ground potential differences. The channel-to-channel and system-side isolation implemented in the SAV144-S53 module prevents electrical disturbances from propagating through the system. This significantly reduces measurement errors caused by electromagnetic interference, minimizes the risk of ground loop problems, and protects both the module and the controller from electrical faults. As a result, the module delivers stable, accurate measurements even in demanding industrial environments.

Q5: What factors can affect the accuracy of analog input measurements?

Several factors can influence measurement accuracy, including loose or corroded wiring, damaged signal cables, poor grounding, inadequate shielding, and electromagnetic interference from nearby motors or variable frequency drives. Sensor calibration drift, transmitter faults, or incorrect input configuration can also introduce measurement errors. Environmental conditions such as excessive humidity, vibration, or temperature fluctuations may further affect signal quality. To maintain optimal performance, routine inspection of field wiring, sensor calibration, grounding, and module configuration is recommended.

Q6: In which industries is the SAV144-S53 module commonly used?

The SAV144-S53 module is widely used in industries that require continuous and reliable process monitoring. Typical applications include oil and gas production, petrochemical processing, power generation, pharmaceutical manufacturing, water and wastewater treatment, mining, pulp and paper production, and food and beverage processing. It is commonly connected to pressure transmitters, flowmeters, temperature transmitters, level sensors, and other analog field instruments that provide critical process information for automatic control and equipment protection.

Q7: How does this module improve overall process reliability?

The module improves process reliability by providing highly accurate and continuous measurement data to the control system. Reliable input signals enable controllers to execute precise control strategies, quickly detect abnormal operating conditions, and maintain stable production processes. Consistent analog data also supports predictive maintenance, trend analysis, energy optimization, and equipment diagnostics. By reducing signal errors and ensuring dependable communication with the controller, the module contributes to improved plant availability, reduced downtime, and enhanced operational efficiency.

Q8: What should be verified during installation and commissioning?

During installation and commissioning, technicians should verify that all field wiring is correctly connected, the selected input signal types match the connected transmitters, and proper grounding and cable shielding practices have been followed. Each input channel should be tested with calibrated reference signals to confirm measurement accuracy, scaling, and channel functionality. Communication between the module and the controller should also be verified to ensure stable data transmission. Finally, alarm settings, diagnostic functions, and system configuration parameters should be thoroughly checked before placing the module into continuous operation, ensuring long-term reliability and consistent performance in industrial process control applications.
