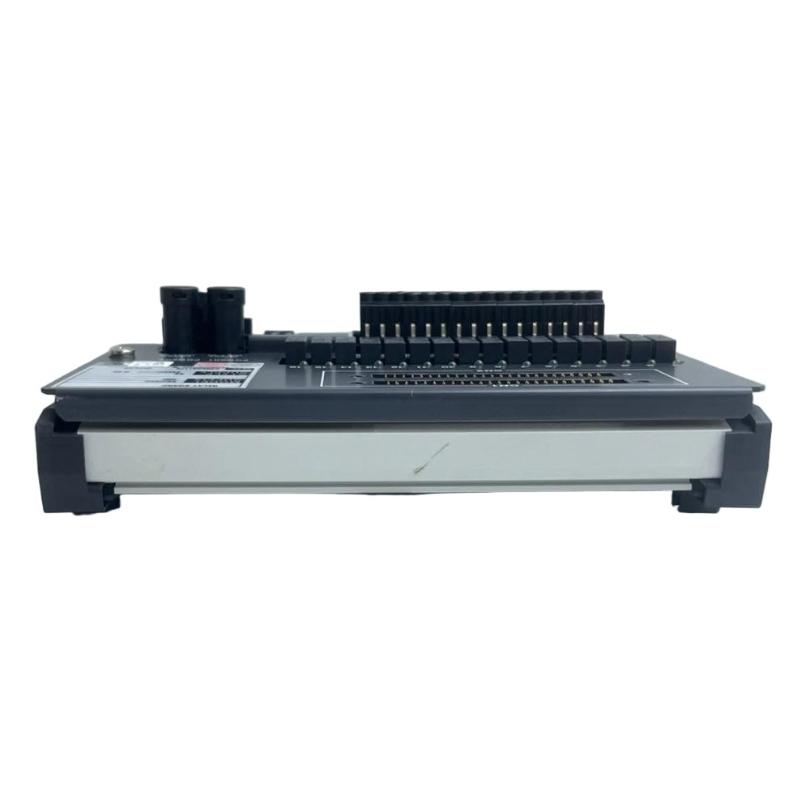

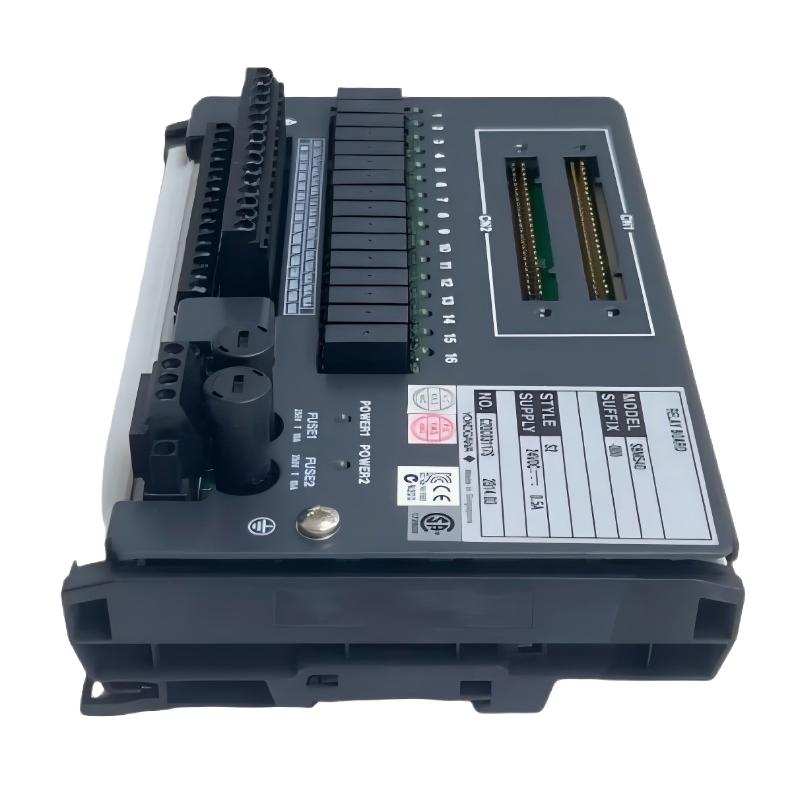

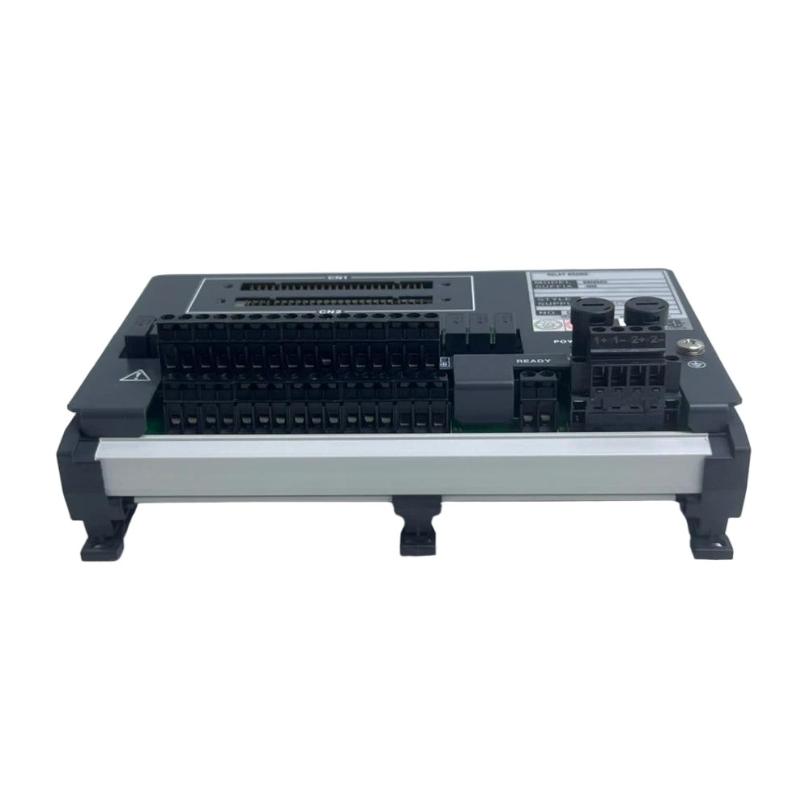

Q1: What is the main function of the Yokogawa SBM54D-000 Relay Board?
A: The SBM54D-000 Relay Board is used to provide relay-based switching functionality within industrial control systems. Its primary role is to act as an interface between control logic signals and field devices, enabling safe and reliable switching of external circuits. In distributed control systems (DCS), it is commonly used to handle on/off control actions, interlocking functions, and signal isolation between control logic and field equipment. By using relays, the system can control higher-power or electrically noisy circuits without exposing sensitive control electronics directly.

Q2: How does the relay board integrate into a Yokogawa control system?
A: The relay board integrates into the system through the backplane connection within a control rack or cabinet. Control signals from the DCS are transmitted to the board, which then activates the appropriate relay channels. These relays switch external field circuits based on logic commands from the controller. This modular design allows the relay board to operate as an intermediary layer between low-power control signals and high-power field devices, ensuring system stability and electrical protection.

Q3: What types of applications typically use this relay board?
A: The SBM54D-000 is widely used in industrial automation environments where reliable switching of electrical circuits is required. Typical applications include motor control interlocks, alarm output switching, safety shutdown systems, valve actuation control, and general process interlocking logic. It is particularly useful in industries such as power generation, oil and gas, chemical processing, and manufacturing, where reliable and isolated switching is critical for safe operation.

Q4: Why are relays used instead of direct electronic switching?
A: Relays are used because they provide galvanic isolation between control circuits and field equipment. Unlike solid-state switching, relays physically separate the control signal from the load circuit, which reduces the risk of electrical noise interference, voltage spikes, and backfeed damage. This makes relay boards particularly suitable for industrial environments where electrical disturbances are common and system reliability is critical.

Q5: What advantages does this relay board provide in system design?
A: The relay board simplifies system architecture by centralizing switching functions into a modular unit. This reduces wiring complexity, improves system organization, and enhances maintainability. It also allows engineers to standardize control logic implementation across multiple systems. In addition, the modular design makes it easier to expand or modify control functions without redesigning the entire system.

Q6: How does electrical isolation improve system reliability?
A: Electrical isolation prevents unwanted electrical interaction between control circuits and field devices. In industrial environments, voltage surges, electromagnetic interference, and grounding differences can cause serious system instability. By isolating channels through relays, the system ensures that faults or disturbances in one circuit do not propagate to others. This significantly improves overall system robustness and reduces the likelihood of control system failure.

Q7: Where is the SBM54D-000 typically installed?
A: This relay board is typically installed inside a control cabinet or rack as part of a Yokogawa distributed control system. It is positioned between the controller and field wiring, allowing it to function as an intermediate switching layer. This location provides easy access for wiring, inspection, and maintenance while protecting the board from harsh environmental conditions found in industrial plants.

Q8: What maintenance considerations are important for relay boards?
A: Maintenance mainly focuses on ensuring relay contact reliability and stable electrical connections. Over time, relay contacts may experience wear due to repeated switching, especially in high-load applications. Periodic inspection helps ensure that contacts remain clean and functional. Additionally, terminal connections should be checked for tightness, and system diagnostics can be used to verify proper relay operation. Proper maintenance ensures long-term reliability and stable switching performance in industrial applications.
