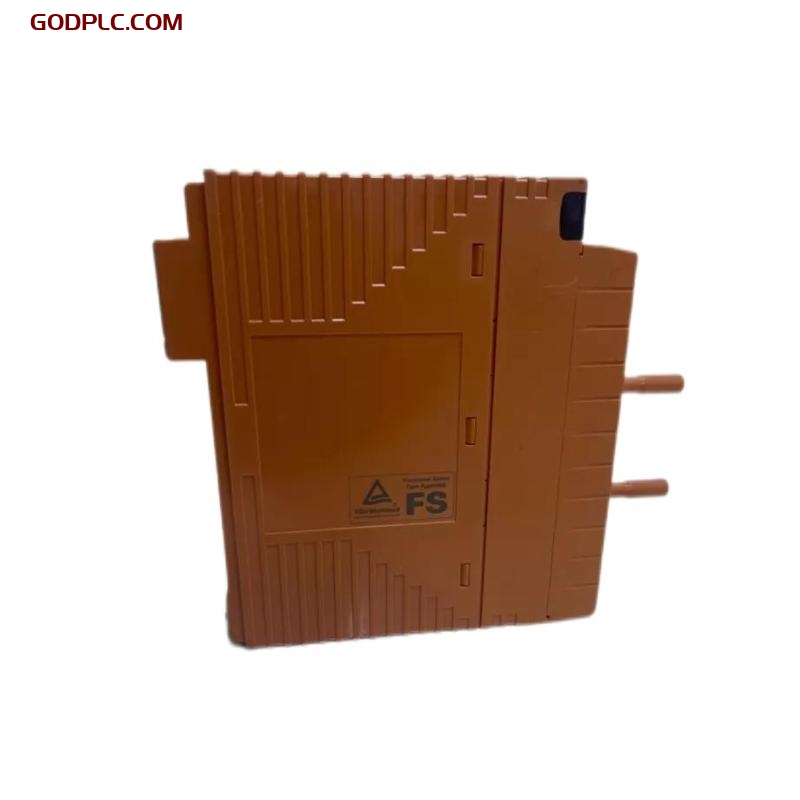

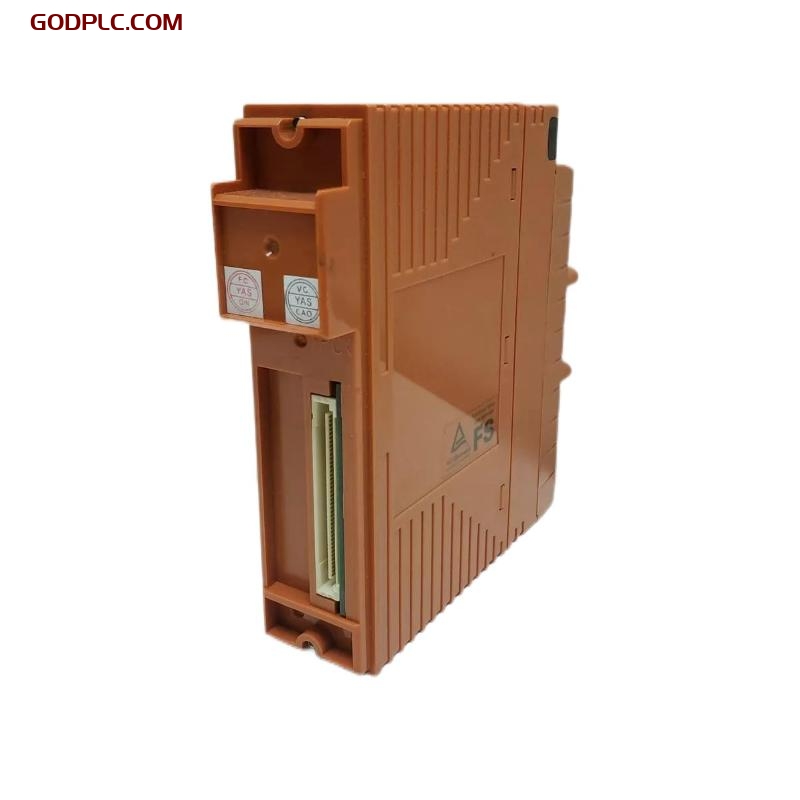

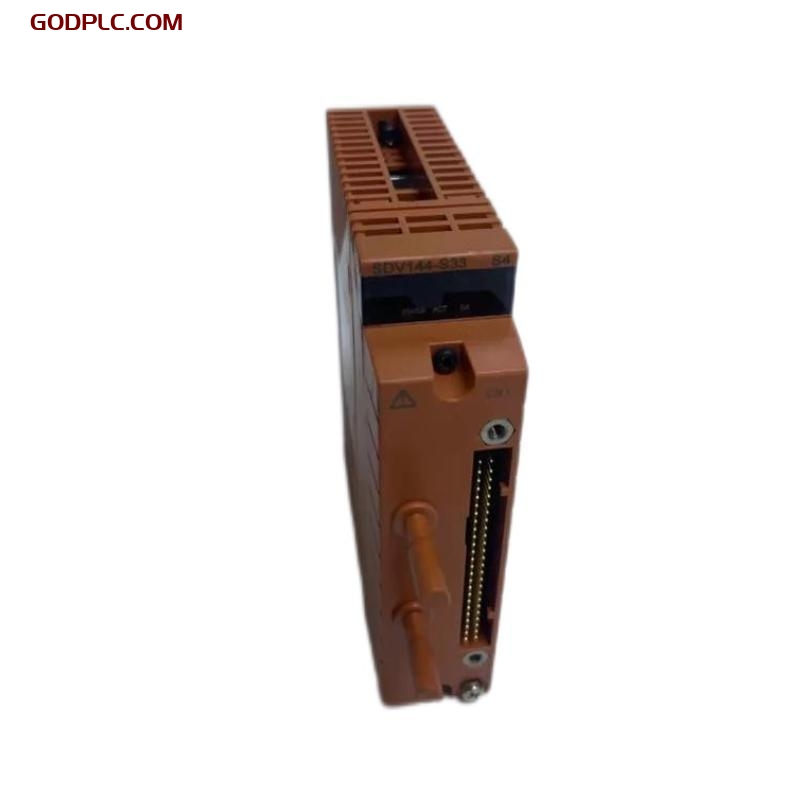

Yokogawa SDV144-S33/PRP Digital Input Module
Product Overview
The Yokogawa SDV144-S33/PRP Digital Input Module is designed to interface with digital field devices such as sensors, switches, and relays, providing accurate and reliable digital signals for process control systems. This advanced version of the SDV144-S33 module is equipped with PRP (Parallel Redundancy Protocol), which ensures high availability and system reliability by offering seamless redundancy in critical applications. It is widely used in industries requiring robust and continuous data transmission, making it suitable for process control, manufacturing, and power generation systems.
The SDV144-S33/PRP module is engineered for integration into Yokogawa’s industrial control systems, enhancing system uptime and reducing the risk of communication failures by providing redundant pathways for digital signal transmission.
Key Features
-
High Availability: Supports PRP (Parallel Redundancy Protocol), ensuring no single point of failure in redundant communication networks.
-
Redundant Data Paths: Provides dual independent network connections, allowing for continuous and reliable signal processing.
-
Wide Input Voltage Range: Compatible with a broad range of input voltages, making it adaptable to various industrial applications.
-
Digital Signal Processing: Ensures precise acquisition and transmission of digital signals for real-time process control and monitoring.
-
Compact Design: Space-efficient and easy to install in control panels or on DIN rails for flexibility in various setups.
-
Status Indicators: Equipped with LED indicators for easy monitoring of power, operational status, and fault conditions.
-
Seamless Integration: Fully integrates with Yokogawa’s control systems and other industrial automation devices.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 x 32.8 x 107.5mm |
| Weight | 0.77 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | SDV144-S33/PRP |
| Manufacturer | Yokogawa |
| Installation | DIN Rail / Panel Mount |
| Power Supply | 24 V DC |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Performance Characteristics
| Item | Specification |
|---|---|
| Number of Inputs | 16 Digital Inputs |
| Input Type | Dry contact, PNP/NPN |
| Input Voltage | 24 V DC ±10% |
| Input Current | 6-12 mA per input |
| Response Time | ≤ 10 ms |
| Redundancy | Parallel Redundancy Protocol (PRP) |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±10% |
| Power Consumption | Approx. 1.2 W |
| Operating Current | ≤ 0.1 A |
| Status Indicators | LED indicators for power, fault, and input conditions |
Industry Applications
-
Process Control: Ideal for industries like oil and gas, chemicals, and pharmaceuticals, where high availability is critical for uninterrupted monitoring and control.
-
Manufacturing: Supports automated systems where continuous and reliable signal acquisition is essential for process efficiency.
-
Energy & Power Generation: Used in power plants and energy systems, ensuring reliable input signal monitoring with redundancy for critical operations.
-
Water Treatment: Facilitates high-reliability data acquisition for water treatment systems, ensuring continuous operation and monitoring.
-
Building Automation: Ideal for use in systems such as HVAC, lighting, and security where reliability and redundancy are paramount.
The Yokogawa SDV144-S33/PRP Digital Input Module is designed for high-reliability and fault-tolerant applications, offering redundancy through PRP. Its flexible installation options, wide input voltage range, and seamless integration into Yokogawa’s control systems make it an ideal solution for industries requiring continuous and dependable digital signal processing in demanding environments.
Yokogawa SDV144-S33/PRP Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
