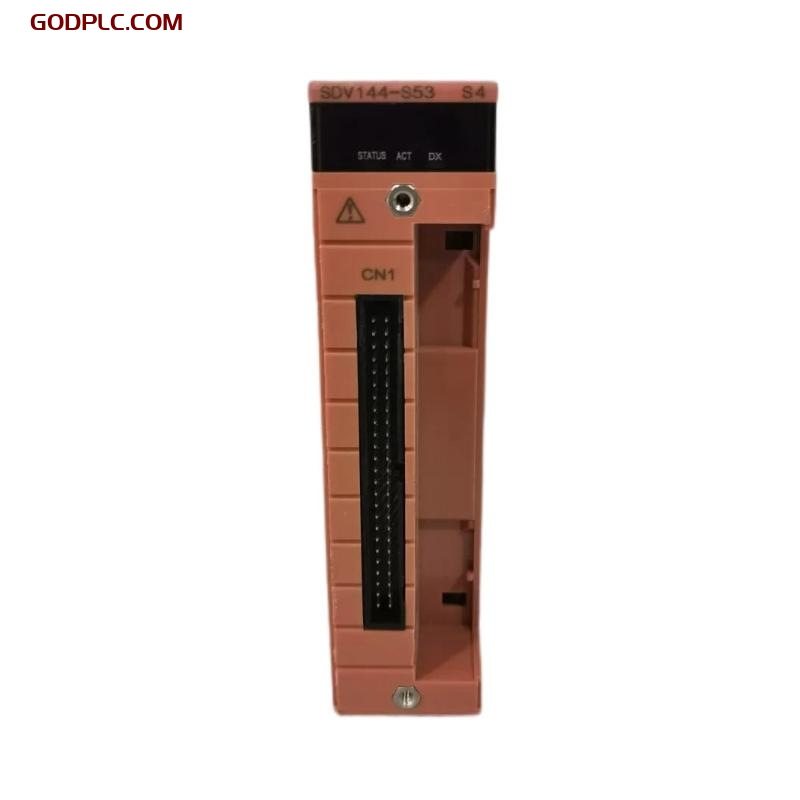

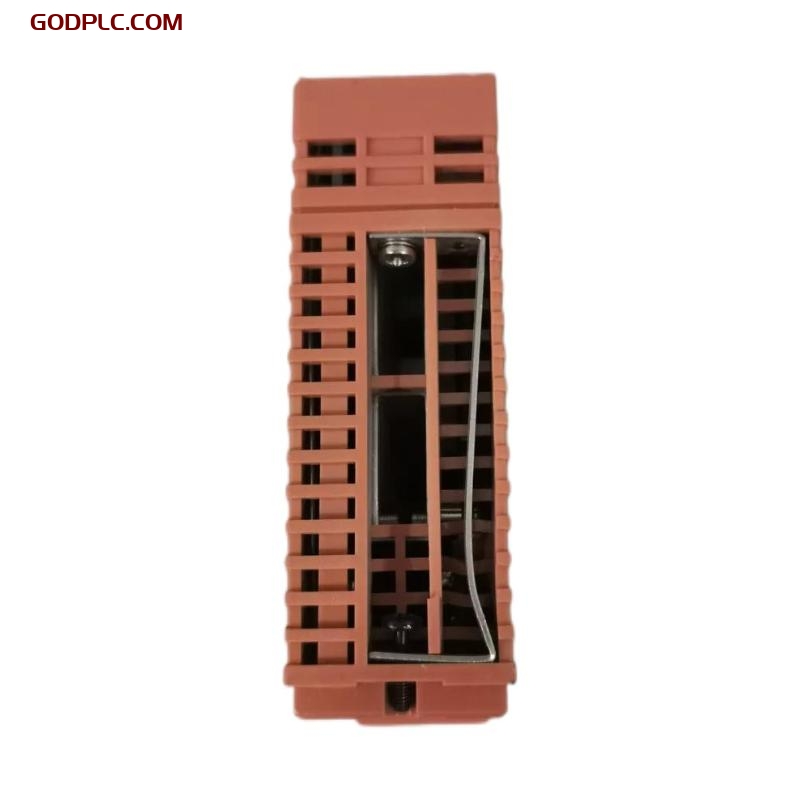

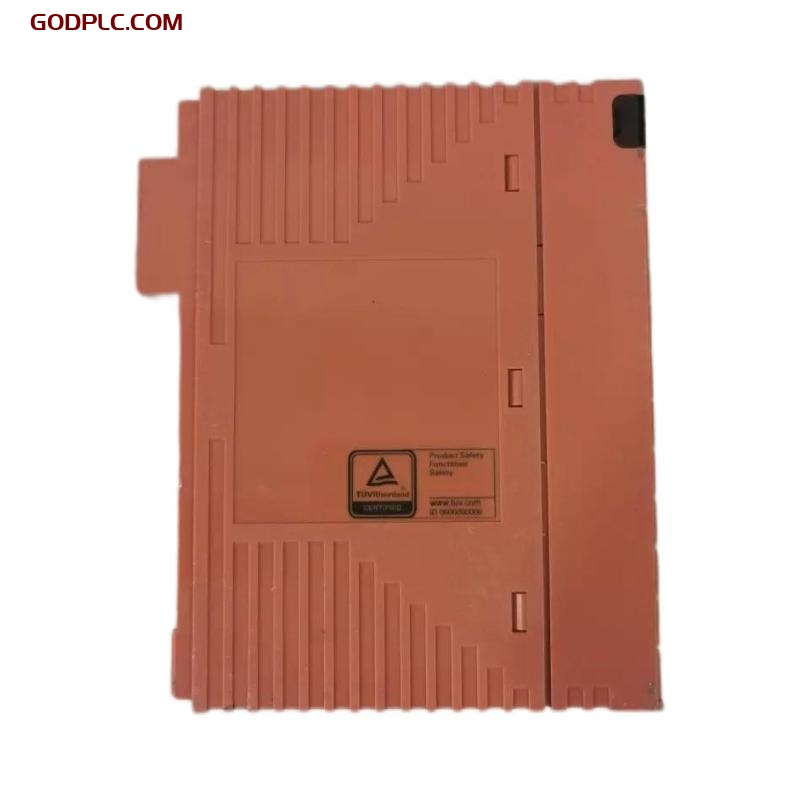

Yokogawa SDV144-S53 Digital Input Module
Product Overview
The Yokogawa SDV144-S53 Digital Input Module is designed to interface with digital field devices such as sensors, switches, and relays, offering precise digital signal processing for various industrial applications. This module is engineered to meet the rigorous demands of process control systems, providing high reliability and continuous monitoring of digital signals. With robust design and flexibility, the SDV144-S53 module ensures optimal performance across various sectors, including manufacturing, power generation, and chemical processing.
The module is compatible with Yokogawa’s industrial control systems and integrates seamlessly into plant automation, offering high signal integrity and system uptime in mission-critical operations.
Key Features
-
High Signal Integrity: Provides accurate and reliable processing of digital signals for seamless control and monitoring.
-
Wide Input Voltage Range: Accommodates a broad range of input voltages, making it adaptable to different industrial power systems.
-
Compact Design: Space-efficient and suitable for installation in control panels or DIN rail setups.
-
High-Speed Processing: Ensures fast response time for digital inputs, enhancing real-time process control.
-
Status Indicators: Equipped with LED indicators to monitor power, operational status, and fault conditions.
-
Seamless Integration: Easily integrates with Yokogawa’s control systems and other automation components.
-
Reliability: Designed for high durability and performance in harsh industrial environments.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 x 32.8 x 107.5mm |
| Weight | 0.77 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | SDV144-S53 |
| Manufacturer | Yokogawa |
| Installation | DIN Rail / Panel Mount |
| Power Supply | 24 V DC |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Performance Characteristics
| Item | Specification |
|---|---|
| Number of Inputs | 16 Digital Inputs |
| Input Type | Dry contact, PNP/NPN |
| Input Voltage | 24 V DC ±10% |
| Input Current | 6-12 mA per input |
| Response Time | ≤ 10 ms |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±10% |
| Power Consumption | Approx. 1.2 W |
| Operating Current | ≤ 0.1 A |
| Status Indicators | LED indicators for power, fault, and input conditions |
Industry Applications
-
Process Control: Ideal for industries such as oil & gas, chemicals, and pharmaceuticals where accurate and reliable signal processing is vital for continuous operation.
-
Manufacturing: Supports automation systems in manufacturing lines, ensuring precise and high-speed data processing for efficient production.
-
Energy & Power Generation: Facilitates the monitoring and control of power generation systems, ensuring stable operation and integrity of digital signals.
-
Water Treatment: Used in water treatment facilities to ensure reliable and continuous monitoring of digital signals from field devices.
-
Building Automation: Provides the reliability needed for controlling systems such as HVAC, lighting, and security in building automation.
The Yokogawa SDV144-S53 Digital Input Module is engineered for industries that demand high-reliability digital signal processing. Its compact design, wide input voltage range, and efficient integration into Yokogawa’s control systems make it an ideal solution for process control and industrial automation systems, ensuring optimal performance and uptime in demanding environments.
Yokogawa SDV144-S53 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
