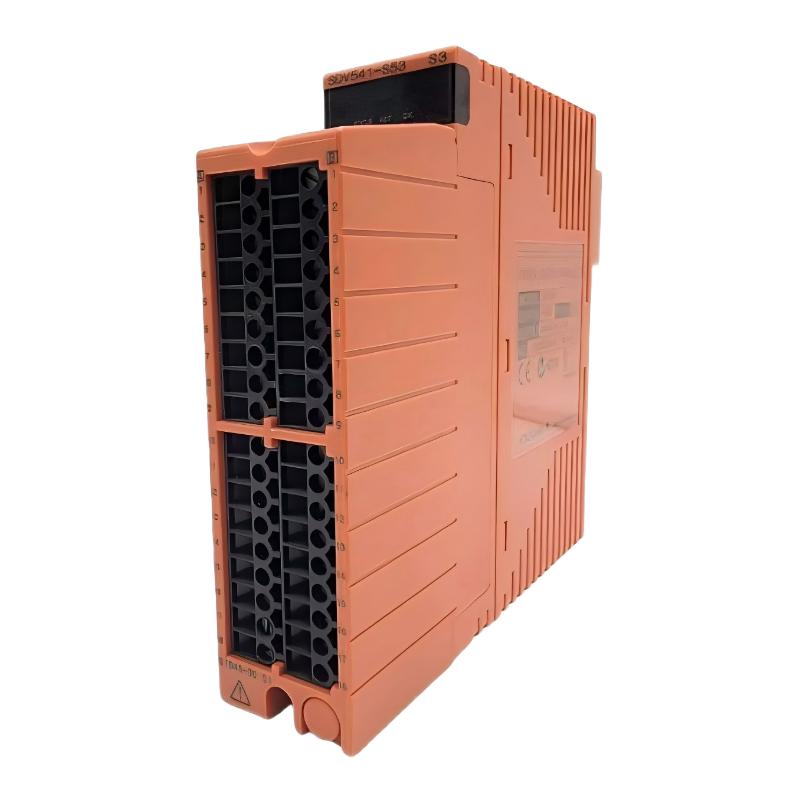

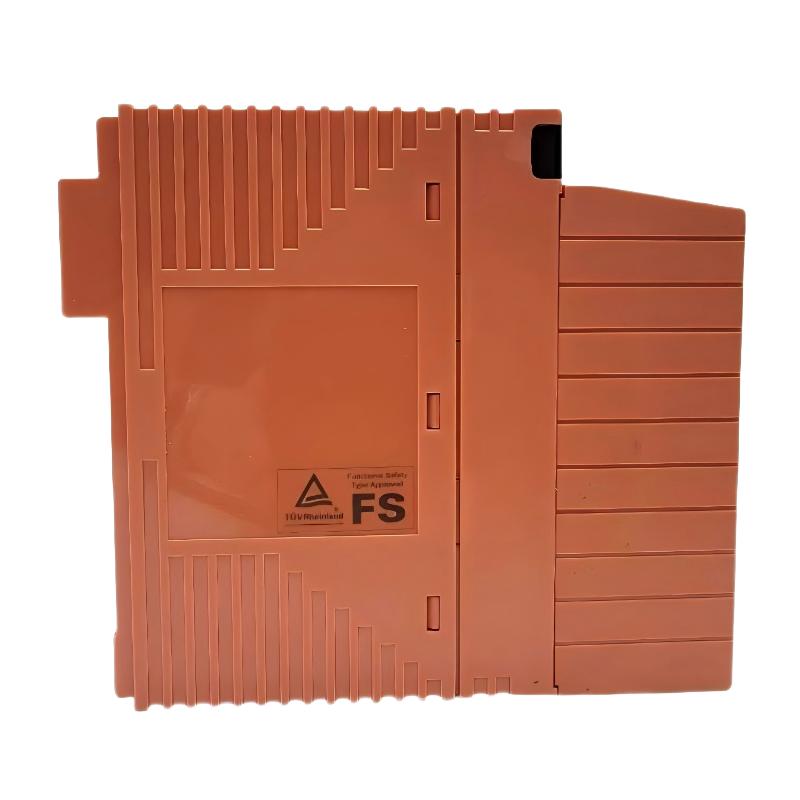

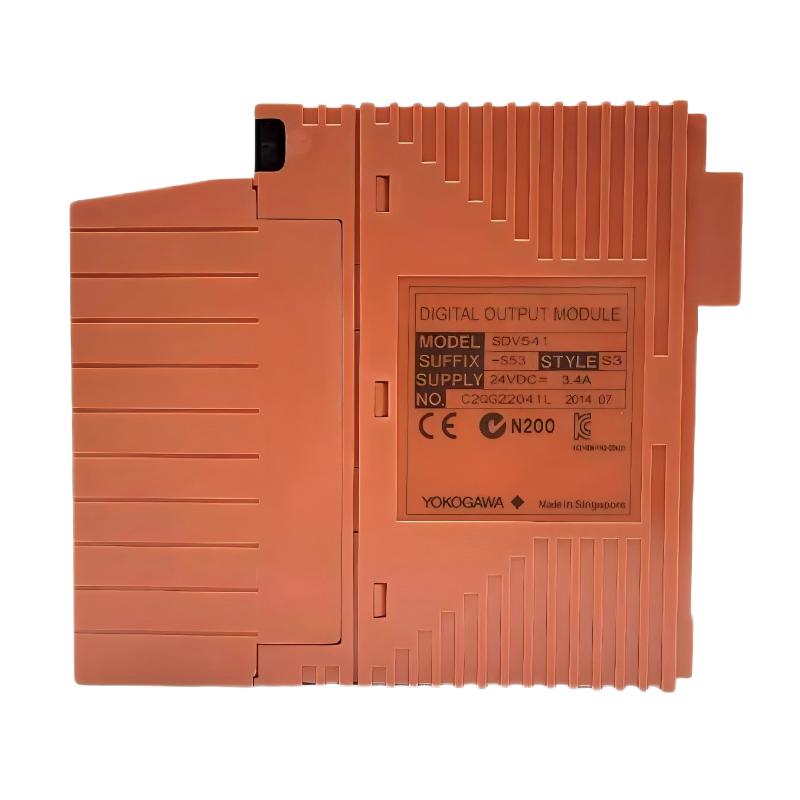

Q1: What is the main function of the Yokogawa SDV541 Digital Output Module?

A: The SDV541 Digital Output Module is designed to convert control signals from a distributed control system into physical ON/OFF electrical outputs that operate field devices. In industrial automation architecture, it serves as the final execution layer, meaning it takes logical decisions generated by the controller and turns them into real-world actions. These actions typically include opening or closing valves, starting or stopping pumps, activating alarms, and triggering safety interlocks. This function is essential because without it, the control system would only be able to compute decisions but not physically influence industrial processes.

Q2: How does the SDV541 operate within a control system?

A: The module receives digital commands from the Yokogawa S3 control system and processes them through internal switching circuits. Each channel is independently controlled, allowing multiple field devices to be operated simultaneously. When a command is received, the corresponding output channel switches ON or OFF accordingly. Electrical isolation is implemented between the control side and field side, ensuring that electrical noise, surges, or faults from field wiring do not propagate back into the control system. This architecture ensures stable and deterministic operation even in demanding industrial environments.

Q3: What types of industries use this module?

A: The SDV541 is widely used in industries where reliable discrete control is critical. These include oil and gas production, petrochemical refining, power generation plants, chemical processing facilities, water treatment plants, and metal refining operations. In these environments, it is commonly used to control pumps, valves, compressors, burner management systems, alarm systems, and safety shutdown functions. Because these processes are often continuous and safety-critical, high reliability and predictable switching behavior are essential requirements.

Q4: How does the module interface with field equipment?

A: The module connects to field devices through standard industrial terminal blocks. Each output channel provides a discrete switching signal that can directly drive low-power devices or be connected to intermediate relays for higher power applications. In most industrial installations, relays are used as an interface layer to isolate the module from high-energy loads and to extend its switching capability. This approach improves safety, reduces electrical stress on the module, and allows it to be used across a wide range of industrial control applications.

Q5: What diagnostic capabilities does the module provide?

A: The SDV541 includes built-in channel-level diagnostic functions that continuously monitor the electrical condition of each output circuit. It can detect abnormal states such as open circuits, short circuits, overload conditions, and output driver faults. When an issue is detected, the module reports diagnostic information back to the control system in real time. This allows operators and maintenance teams to quickly identify faulty wiring, failed loads, or internal module issues, significantly reducing troubleshooting time and improving overall system availability.

Q6: How is stable operation ensured in harsh industrial environments?

A: Stable operation is achieved through a combination of rugged industrial hardware design, electrical isolation, and integration with the Yokogawa S3 system architecture. The module is engineered to withstand electromagnetic interference, temperature fluctuations, vibration, and humidity commonly found in industrial plants. Its internal circuitry is designed to maintain consistent switching behavior even under unstable electrical conditions, ensuring that control commands are executed accurately and reliably over long operating periods.

Q7: Can this module be used in redundant configurations?

A: Yes, depending on system design, the SDV541 can be integrated into redundant configurations within the S3 control system. In such setups, a standby module is prepared to automatically take over output control if the primary module fails. This is especially important in critical applications such as power generation or continuous chemical processes, where even a brief interruption in control output could lead to production loss or safety risks. Redundancy significantly improves system availability and operational reliability.

Q8: What maintenance practices are recommended for long-term operation?

A: Long-term maintenance focuses on ensuring stable electrical connections, monitoring diagnostic feedback, and maintaining a controlled operating environment. Terminal connections should be inspected periodically to prevent loosening or oxidation, which could affect signal integrity. Diagnostic indicators should be reviewed regularly to detect early signs of output degradation or wiring issues. Proper ventilation inside control cabinets is also important to avoid overheating. When combined with routine inspections and system diagnostics, these practices help extend module lifespan and ensure stable long-term operation.
