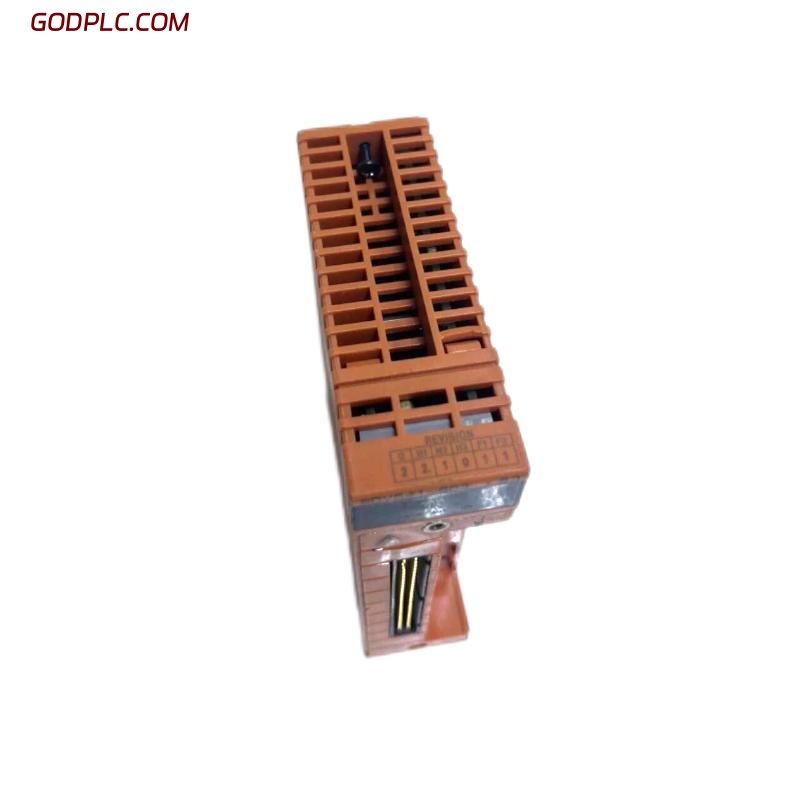

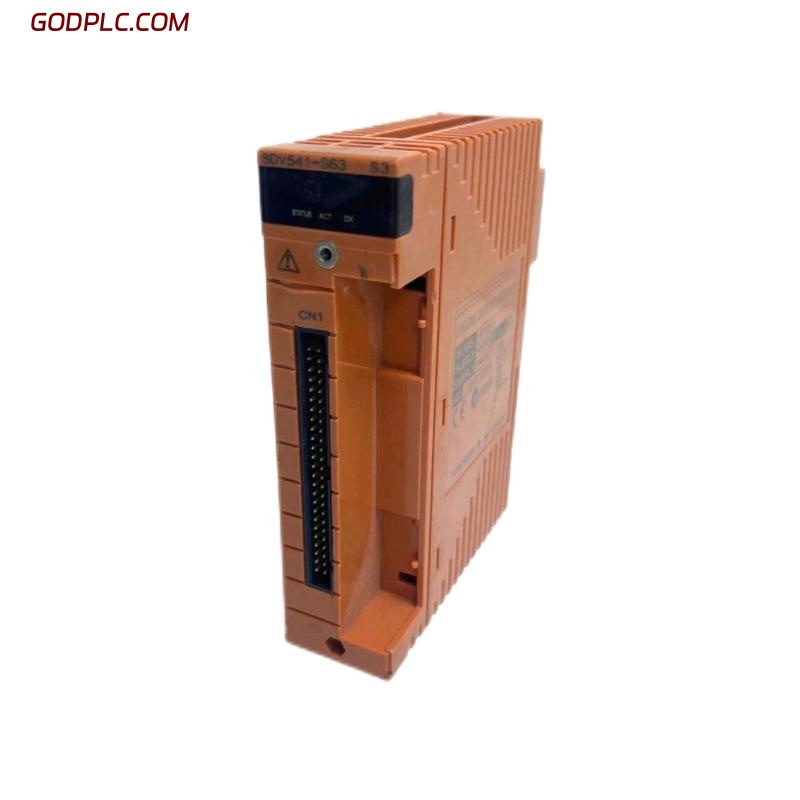

Yokogawa SDV541-S63 Digital Output Module
Product Overview
The Yokogawa SDV541-S63 Digital Output Module is designed to provide accurate and reliable digital output signals for process control applications. It converts digital commands from the control system into on/off signals that operate field devices such as valves, actuators, and relays. Compatible with Yokogawa’s CENTUM VP and ProSafe-RS distributed control systems (DCS), the SDV541-S63 ensures robust performance and seamless integration in demanding industrial environments.
Key Features
-
High-Speed Switching: Provides fast and precise digital output control signals.
-
Wide Voltage Compatibility: Supports a range of output voltages for versatile applications.
-
Robust Design: Engineered for operation in harsh industrial conditions with high reliability.
-
Diagnostic Capabilities: Built-in diagnostics for real-time monitoring and fault detection.
-
Modular and Compact: Fits standard rack systems for easy installation and maintenance.
-
Seamless System Integration: Fully compatible with Yokogawa CENTUM VP and ProSafe-RS systems.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 x 107.5 x 32.8mm |
| Weight | 0.31 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Channels | 16 channels |
| Output Type | Open collector (sink type) |
| Output Voltage Range | 24 V DC (nominal), 20.4–28.8 V DC |
| Max Output Current | 0.5 A per channel |
| Isolation Method | Optical isolation |
| Surge Withstand | Complies with IEC61000-4-5 |
| Output Response Time | ≤ 1 ms |
| Short-Circuit Protection | Built-in |
Mechanical & Environmental
| Item | Specification |
|---|---|
| Mounting | Mounted on N-IO base or terminal base |
| Cooling Method | Natural convection |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5–95% RH, non-condensing |
| Vibration Resistance | Meets IEC 60068-2-6 |
System Compatibility
| Item | Specification |
|---|---|
| Supported Systems | Yokogawa CENTUM CS 3000, ProSafe-RS |
| Application Types | Digital actuation, relay/signal control |
Industry Applications
-
Oil & Gas: Controls valves and actuators in ESD and process control systems
-
Power Generation: Interfaces with relays and turbine shutdown systems
-
Chemical & Petrochemical: Provides secure output control in hazardous zones
-
Water Treatment: Automates pumps, gates, and alarm systems
-
Pharmaceutical & Food Processing: Supports automated switching and fail-safes
The Yokogawa SDV541-S63 Digital Output Module is engineered to deliver reliable and isolated digital outputs in mission-critical automation environments. With high channel density, diagnostics, and seamless integration with Yokogawa control systems, it’s the preferred choice for dependable digital control.
Yokogawa SDV541-S63 Digital Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
