Q1. What is the primary function of the SEC401-11 S3 Bus Coupler Module?

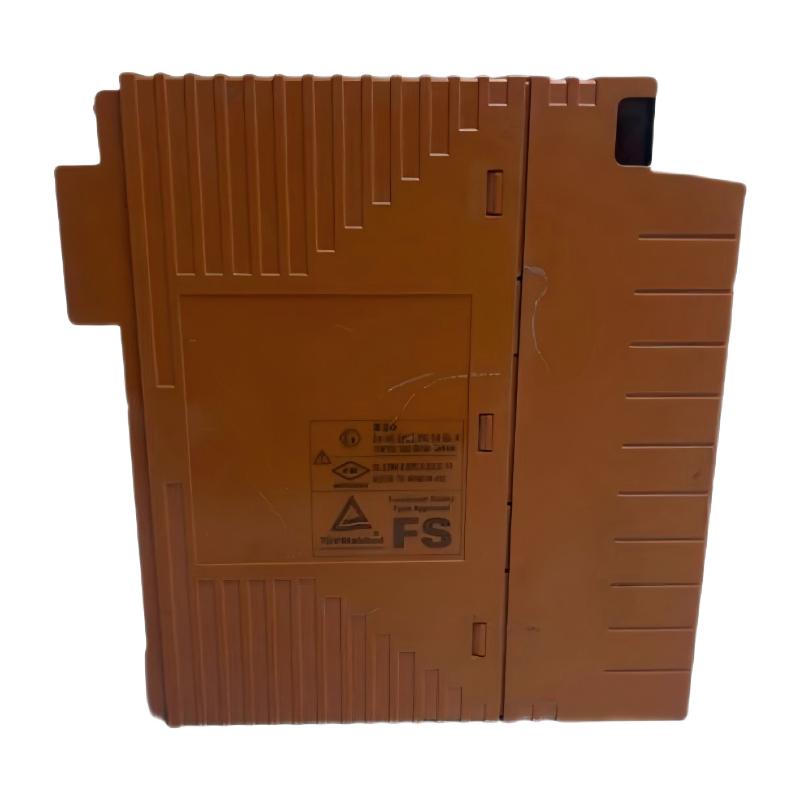

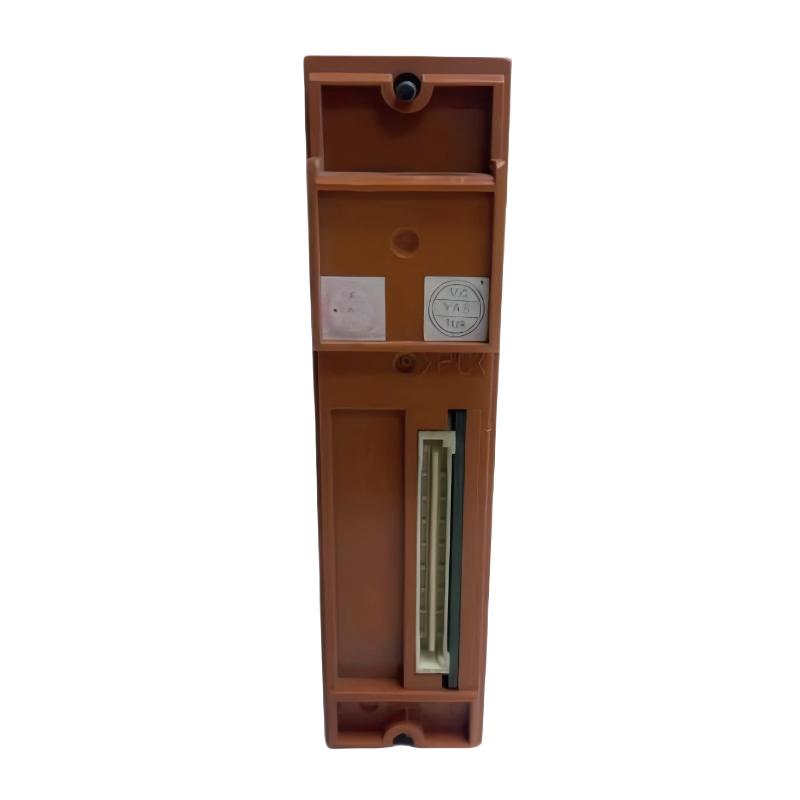

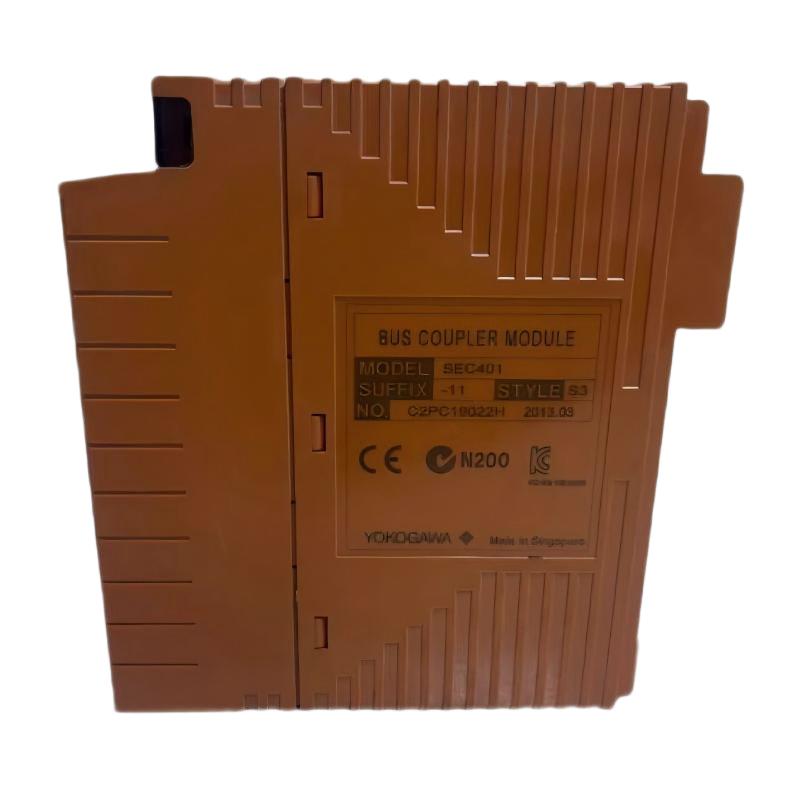

The SEC401-11 S3 Bus Coupler Module is a key communication component in Yokogawa’s ProSafe-RS Safety Instrumented System. Its primary function is to establish and maintain high-speed, deterministic communication between the central safety controller and distributed remote I/O nodes through the ESB (Embedded Safety Bus). This enables real-time acquisition of field process data and reliable transmission of control commands back to field devices. In safety-critical environments, the module ensures that all input and output signals are exchanged with high integrity and predictable timing, which is essential for maintaining safe plant operation and meeting safety integrity requirements.

Q2. What improvements does the S3 version provide over earlier implementations?
The S3 version represents an enhanced iteration of the ESB bus coupler design, focusing on improved communication robustness, system diagnostics, and operational stability in complex industrial environments. It offers better immunity to electromagnetic interference, more stable synchronization between controller and I/O nodes, and refined internal diagnostics for easier system monitoring. These improvements help reduce communication-related faults and increase overall system availability, especially in large-scale safety instrumented systems where reliability is critical.

Q3. Why is deterministic communication essential in safety instrumented systems?
Deterministic communication ensures that all data exchanges occur within fixed and predictable time intervals. In safety instrumented systems, timing is critical because safety functions such as emergency shutdown (ESD), fire & gas detection responses, or process interlocks must be executed within strict deadlines. The SEC401-11 S3 ensures that data from field devices is consistently updated at known intervals, allowing the controller to make decisions based on synchronized and current process information. Without deterministic behavior, system response could become unpredictable, which is unacceptable in safety-critical applications.

Q4. Why is the number of connected nodes limited in the ESB architecture?
The limitation of up to nine nodes is defined to maintain system determinism, bandwidth efficiency, and predictable scan cycles. Each connected I/O node requires guaranteed communication time within the ESB cycle. If too many nodes were allowed, the total communication load would increase, potentially extending scan times and introducing delays in safety-critical signal updates. By limiting node count, the system ensures that every I/O module receives timely and synchronized data exchange, preserving both performance and safety integrity.

Q5. How does redundancy work in the SEC401-11 S3 module?
In redundant configurations, the SEC401-11 S3 operates as part of a dual-channel communication architecture. Two parallel ESB communication paths are maintained, with continuous health monitoring of both channels. If a fault or degradation is detected in the primary path, the system automatically switches to the secondary path without interrupting controller-to-I/O communication. This seamless failover mechanism enhances system availability and is particularly important in high-risk industries where continuous operation and safety assurance are mandatory.

Q6. What types of industries typically use this module?
The SEC401-11 S3 is widely used in industries where functional safety and high system reliability are required. These include oil and gas production facilities, offshore platforms, petrochemical refineries, power generation plants, chemical processing facilities, and other high-risk industrial environments. In these applications, safety instrumented systems must continuously monitor and respond to hazardous conditions, and the bus coupler module plays a critical role in ensuring reliable communication between controllers and field-level I/O systems.

Q7. What installation considerations are important for this module?
Proper installation requires the module to be securely seated in its designated controller rack slot to ensure stable electrical and communication connectivity. Incorrect seating or loose connections can result in communication failures or intermittent signal loss. It is also important to follow system grounding and power supply specifications to avoid electrical noise issues. In redundant systems, correct placement of primary and secondary modules is essential to ensure proper failover functionality and system integrity.

Q8. How does the SEC401-11 S3 support system diagnostics and maintenance?
The module provides built-in diagnostic functions that monitor ESB communication status, node connectivity, and system health conditions. Maintenance engineers can use these diagnostic indicators to quickly identify issues such as node disconnection, communication errors, or bus abnormalities. This significantly reduces troubleshooting time by allowing faults to be isolated at the communication layer rather than through manual field inspection. As a result, system downtime is minimized, and maintenance efficiency is greatly improved, ensuring continuous and safe plant operation.
