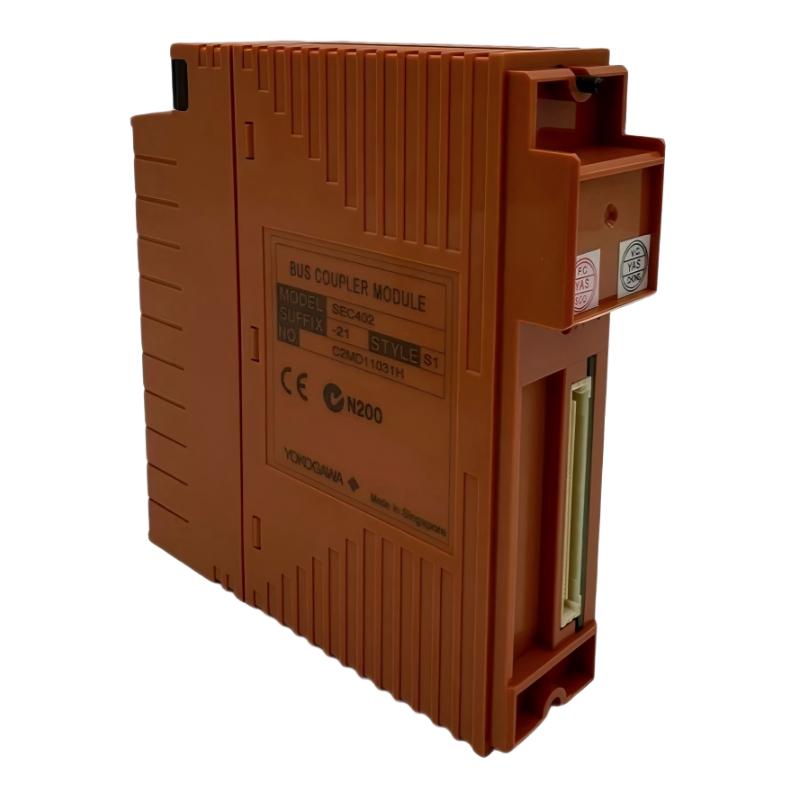

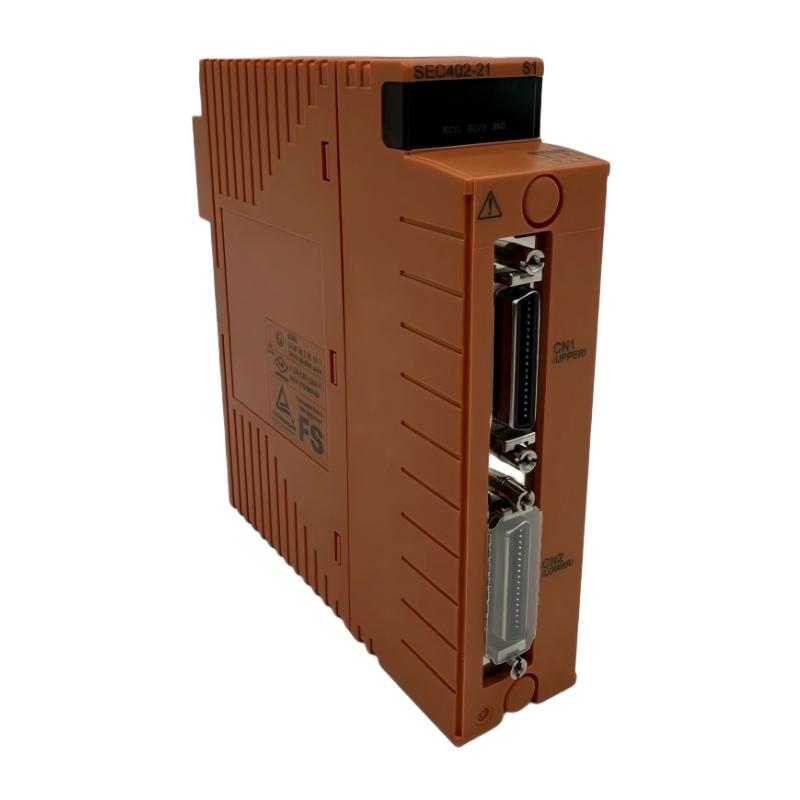

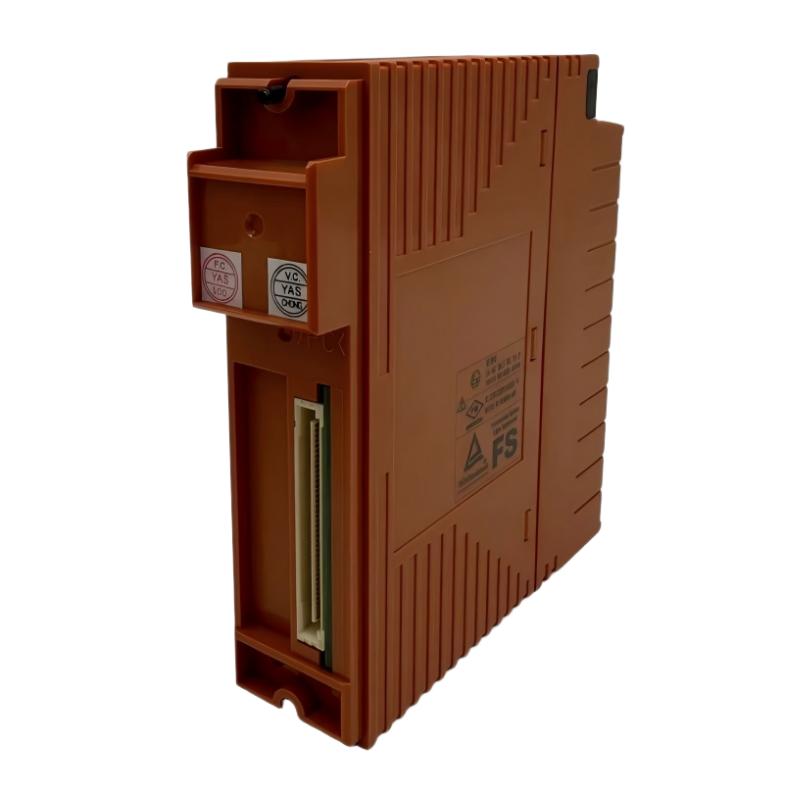

Q1. What is the primary purpose of the Yokogawa SEC402-21 Bus Coupler Module?
The Yokogawa SEC402-21 Bus Coupler Module is designed to provide a reliable communication interface between the central controller and distributed remote I/O stations within an ESB (Embedded Safety Bus) network. It transfers process data, control commands, status information, and diagnostic messages between the controller and field-level devices in real time. As a critical component of distributed control and safety instrumented systems, the module ensures that communication remains stable, synchronized, and deterministic, allowing the controller to monitor field conditions accurately and execute control strategies without communication delays or interruptions.

Q2. Why is the ESB communication architecture particularly suitable for industrial safety systems?
The ESB communication architecture is specifically engineered for applications where communication reliability and predictable timing are essential. Unlike conventional industrial Ethernet networks that may experience varying latency depending on traffic conditions, ESB operates using a deterministic communication cycle. Every connected I/O node exchanges data at predefined intervals, ensuring that the controller always receives current process information within the expected scan period. This predictable behavior is essential for executing emergency shutdown logic, process interlocks, and other safety-critical control functions where delayed communication could compromise plant safety.

Q3. Why does the SEC402-21 support a maximum of nine remote I/O nodes?
The maximum capacity of nine remote I/O nodes is established to maintain deterministic communication performance and sufficient bandwidth throughout the ESB network. Every connected node requires dedicated communication time within each scanning cycle. Allowing excessive numbers of nodes would increase bus utilization and extend communication latency, reducing the system’s ability to respond rapidly to process changes. By limiting the node count, the SEC402-21 ensures that all connected devices receive timely data updates and command transmissions while preserving the high reliability required in industrial automation and safety applications.

Q4. How does the SEC402-21 improve system availability through redundancy?
The SEC402-21 supports redundant communication architectures that significantly improve system availability. In redundant configurations, both primary and secondary communication paths operate under continuous supervision. If the primary communication channel experiences a fault due to cable failure, hardware malfunction, or other network issues, the system can automatically switch to the backup communication path with minimal interruption. This automatic failover capability helps prevent unexpected production shutdowns and ensures continuous communication between the controller and remote I/O stations, making the module particularly valuable in continuous-process industries.

Q5. What are the advantages of deterministic communication in process automation?
Deterministic communication guarantees that all process data is transmitted within fixed and predictable time intervals. This allows every control cycle to operate using synchronized information collected from all remote I/O stations. As a result, process controllers can perform calculations based on consistent system data, improving control accuracy and reducing the possibility of timing-related errors. In safety instrumented systems, deterministic communication is even more important because emergency shutdown functions and protective actions must occur within precisely defined response times to ensure personnel safety and equipment protection.

Q6. What installation practices should be followed for the SEC402-21?
Proper installation begins with securely mounting the module into its designated controller rack slot while ensuring complete engagement of all electrical connectors. A stable 24 V DC power source and proper cabinet grounding should be provided to maximize communication reliability. Communication cables should be separated from high-voltage or high-current power cables to minimize electromagnetic interference. When deploying redundant systems, both primary and backup communication paths should be configured according to Yokogawa’s system architecture guidelines to ensure automatic failover functions operate correctly during abnormal conditions.

Q7. In which industrial sectors is the SEC402-21 commonly deployed?
The SEC402-21 is widely used in industries that demand highly reliable distributed control and safety communication. Typical applications include oil and gas production, petrochemical processing, refineries, power generation facilities, chemical manufacturing plants, pharmaceutical production, pulp and paper mills, mining operations, and offshore platforms. These industries require continuous communication between controllers and field equipment under demanding environmental conditions, making the SEC402-21 an essential component for maintaining stable automation and functional safety performance.

Q8. How does the SEC402-21 simplify maintenance and system diagnostics?
The SEC402-21 incorporates comprehensive diagnostic capabilities that continuously monitor communication status, bus performance, node connectivity, and module health. When communication abnormalities such as node failures, transmission errors, cable interruptions, or network faults occur, the module provides detailed diagnostic information that enables maintenance personnel to quickly identify the root cause of the problem. This reduces troubleshooting time, minimizes unnecessary field inspections, and supports faster system recovery. By simplifying fault isolation and improving maintenance efficiency, the SEC402-21 helps reduce operational downtime while enhancing the long-term reliability and maintainability of industrial automation systems.
