1. What is the main function of the SNB10D-213/CU2T Safety Node Unit?

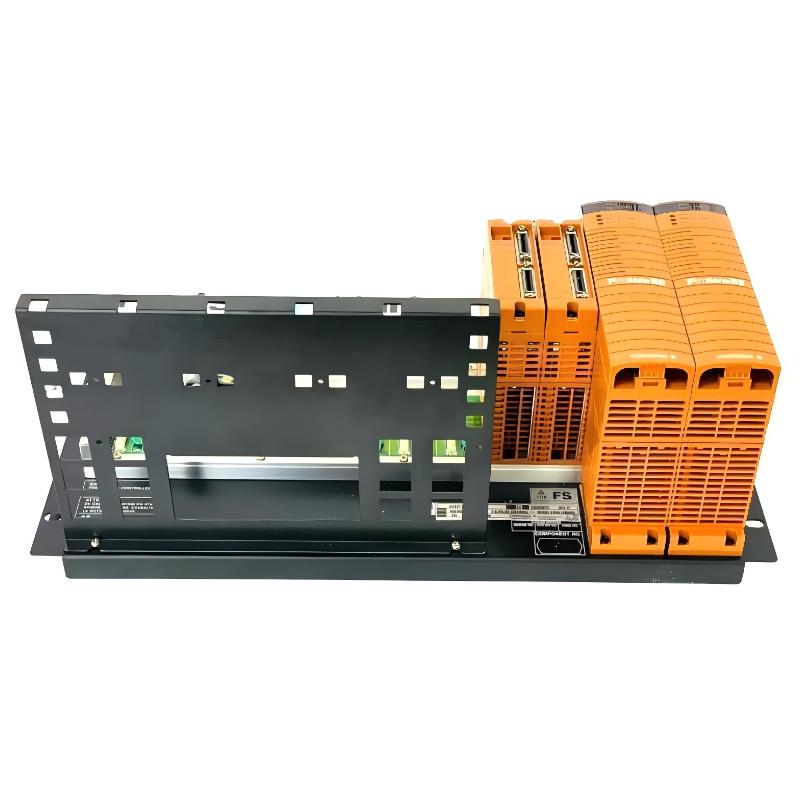

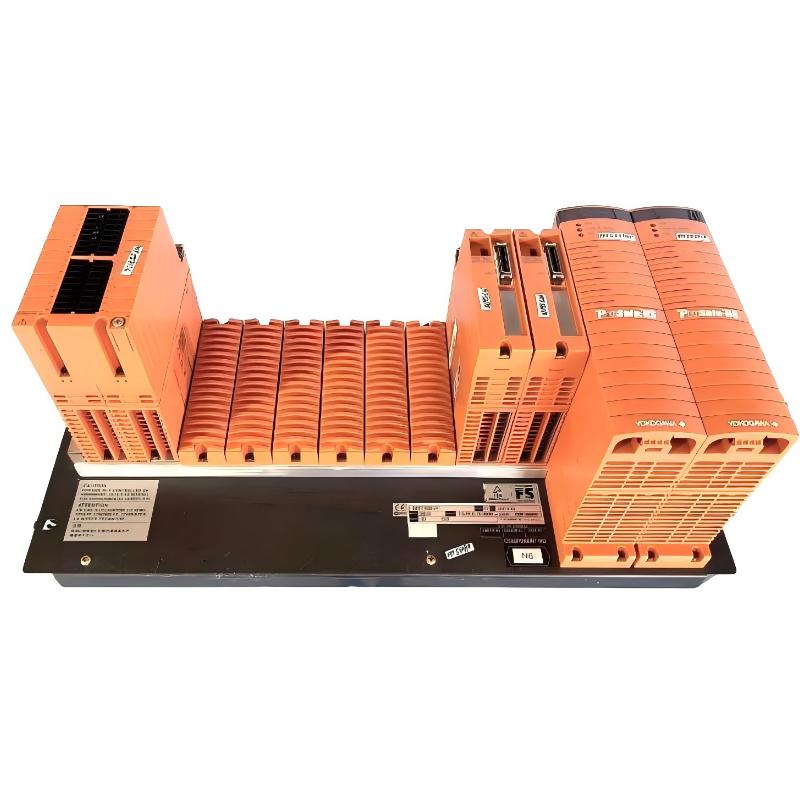

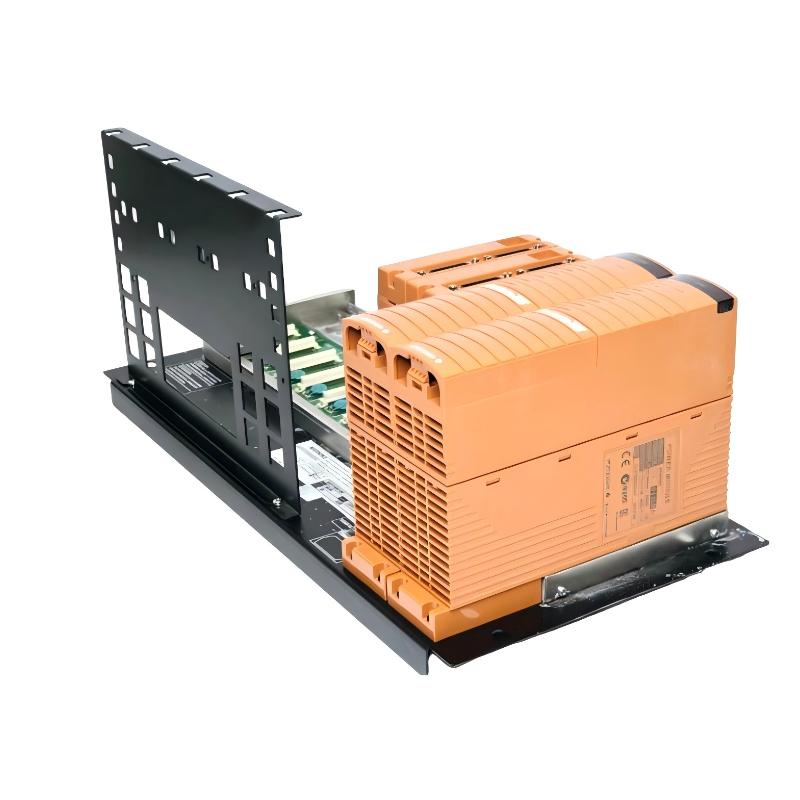

The SNB10D-213/CU2T Safety Node Unit is an important hardware component used in Yokogawa ProSafe-RS safety instrumented systems. Its main purpose is to provide a reliable connection between field safety devices and the central safety control system, allowing safe data acquisition, communication, and distributed safety control operations.

In a typical industrial safety application, many field devices such as emergency shutdown switches, pressure transmitters, temperature sensors, gas detectors, and safety valves need to exchange information with the safety controller. The Safety Node Unit works as an intermediate communication and expansion platform that connects these field devices through safety I/O modules.

The unit collects signals from field equipment, transfers the data through the ESB Bus communication network, and allows the safety control system to execute predefined safety logic. When abnormal process conditions are detected, the system can quickly perform protective actions such as emergency shutdown, alarm activation, or equipment isolation.

The distributed architecture of the SNB10D-213/CU2T allows safety I/O modules to be installed closer to field equipment. This helps reduce complex wiring, improves system layout flexibility, and enhances maintenance efficiency.

Because of its high reliability and compatibility with the ProSafe-RS platform, the unit is widely used in safety-critical industries where continuous operation and dependable protection functions are required.

2. What industrial applications are suitable for the SNB10D-213/CU2T Safety Node Unit?

The SNB10D-213/CU2T Safety Node Unit is designed for industrial environments where safety monitoring and emergency protection functions are essential.

It is commonly used in industries such as oil and gas, petrochemical processing, chemical production, power generation, and other large-scale process industries.

In oil and gas facilities, the unit can be used for safety monitoring of compressors, pumps, process units, storage systems, and production equipment. It helps collect signals from field instruments and transfer important safety information to the safety controller.

In chemical plants, the unit supports safety functions such as emergency shutdown systems, process interlocking, and abnormal condition detection. When dangerous operating conditions occur, the safety system can respond quickly according to predefined safety logic.

In power generation applications, the Safety Node Unit can support protection systems for critical equipment and auxiliary processes by providing reliable communication between field devices and the safety control system.

The SNB10D-213/CU2T is especially suitable for facilities that require high system availability, long operating periods, and strict safety requirements.

3. How does the SNB10D-213/CU2T communicate with the ProSafe-RS safety control system?

The SNB10D-213/CU2T communicates with the ProSafe-RS safety control system through the ESB Bus communication network.

Within the safety system architecture, the Safety Node Unit acts as a distributed field-level communication point. Safety I/O modules installed on the node collect signals from field devices, including analog signals, digital signals, and safety-related status information.

The collected data is transmitted through the ESB Bus to the safety control unit, where the configured safety application logic processes the information. According to the logic results, the system can send commands to field actuators or protective devices.

This communication method allows flexible system design because safety nodes can be distributed throughout different plant areas instead of concentrating all I/O modules in one control cabinet.

The distributed communication structure reduces wiring complexity, improves installation efficiency, and allows easier expansion of safety systems in large industrial facilities.

The reliable ESB Bus communication design also helps maintain stable data transmission, which is critical for safety applications requiring fast response and high availability.

4. Why does the SNB10D-213/CU2T use a redundant design structure?

The SNB10D-213/CU2T uses a redundant design concept to improve system reliability and reduce the impact of possible hardware failures.

In safety instrumented systems, reliability is one of the most important requirements because failures of safety-related components may affect plant protection functions. Redundant power and communication structures help reduce the risk of system interruption caused by a single component failure.

For example, if one power supply component experiences a problem, the redundant configuration can help maintain continuous operation of the safety node. This improves system availability and reduces unexpected downtime.

Redundancy is especially important in industries such as chemical processing, oil refining, and power generation, where production equipment often operates continuously and shutdown events may result in significant economic losses.

The redundant architecture also provides maintenance advantages because technicians can perform inspections or replace certain components with reduced impact on overall system operation.

By improving fault tolerance and operational stability, the SNB10D-213/CU2T supports reliable safety system performance in demanding industrial environments.

5. What should be considered when installing the SNB10D-213/CU2T Safety Node Unit?

Proper installation is essential to ensure stable communication and reliable operation of the SNB10D-213/CU2T Safety Node Unit.

Before installation, engineers should confirm that the hardware configuration matches the ProSafe-RS system design, including the safety controller, power supply modules, communication modules, and connected I/O modules.

During installation, the unit should be securely mounted inside the control cabinet according to the system layout requirements. Power connections, communication cables, and module connections must be correctly installed to prevent operational problems.

The ESB Bus communication wiring requires particular attention because incorrect connections or poor cable conditions may cause communication errors between the Safety Node Unit and the safety controller.

Proper grounding should also be ensured to reduce electrical interference and improve signal stability, especially in industrial environments with motors, inverters, and high-power equipment.

After completing installation, a full commissioning process should be performed. This includes checking power status, communication status, I/O signal operation, diagnostic information, and safety logic performance.

Following correct installation procedures ensures that the SNB10D-213/CU2T can operate reliably throughout the entire service period.

6. How can communication failures of the SNB10D-213/CU2T be diagnosed and resolved?

When communication problems occur with the SNB10D-213/CU2T, troubleshooting should be performed systematically to identify the actual cause.

The first step is to check the power supply condition and module status indicators. Abnormal power conditions or diagnostic alarms may indicate issues with power modules or hardware components.

Next, technicians should inspect the ESB Bus communication path, including communication cables, connectors, and interface modules. Loose connections, damaged cables, or incorrect wiring are common causes of communication interruptions.

The system configuration should also be reviewed using the engineering software. Incorrect node configuration, communication parameters, or hardware settings may prevent normal communication.

If communication hardware and configuration settings are confirmed to be correct, further checks should be performed on connected I/O modules and field devices.

Maintenance personnel should also review system diagnostic information because the ProSafe-RS platform provides useful status information that can help locate faults quickly.

A structured troubleshooting process helps reduce downtime, improves maintenance efficiency, and ensures the safety system returns to normal operation as soon as possible.

7. What modules can be installed or connected with the SNB10D-213/CU2T?

The SNB10D-213/CU2T supports a modular configuration that allows users to build flexible safety control systems according to different project requirements.

The unit can work with various ProSafe-RS modules, including power supply modules, ESB communication modules, optical ESB communication expansion modules, and safety I/O modules.

By installing different types of I/O modules, the safety node can connect with various field devices such as emergency shutdown switches, safety sensors, transmitters, detectors, and final control elements.

The modular design allows system engineers to customize the safety system according to plant size and process requirements. Additional I/O capacity can be added when the system expands.

This flexible architecture is particularly useful for large industrial facilities where different production areas require independent safety monitoring while remaining connected to the central safety control system.

The ability to expand and configure modules according to application needs makes the SNB10D-213/CU2T suitable for a wide range of safety automation projects.

8. How can the SNB10D-213/CU2T maintain long-term stable operation?

Maintaining long-term stable operation of the SNB10D-213/CU2T requires regular inspection, proper maintenance procedures, and effective system management.

First, maintenance personnel should regularly monitor system diagnostic information, including module status, communication conditions, and alarm records. Early detection of abnormal conditions helps prevent unexpected failures.

The power supply system should be checked periodically to ensure stable operation. Any abnormal voltage conditions, power module alarms, or communication interruptions should be investigated immediately.

The physical condition of wiring, connectors, and installed modules should also be inspected regularly. Industrial environments may expose equipment to vibration, temperature changes, dust, and other factors that can affect long-term reliability.

When replacing components or expanding the safety system, only compatible ProSafe-RS hardware should be used, and all configuration changes should be tested before returning the system to operation.

Regular maintenance, proper operation procedures, and timely fault diagnosis help ensure that the SNB10D-213/CU2T continues to provide reliable safety control performance for industrial applications over an extended service life.
