1. What is the main function of the Yokogawa SNB10D-243/C2UT Safety Node Unit?

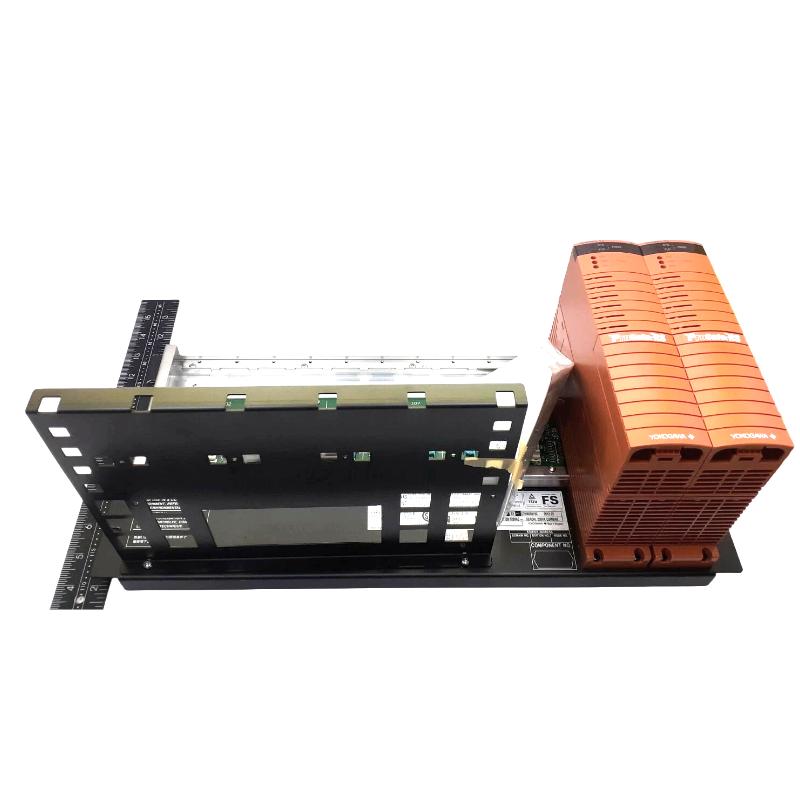

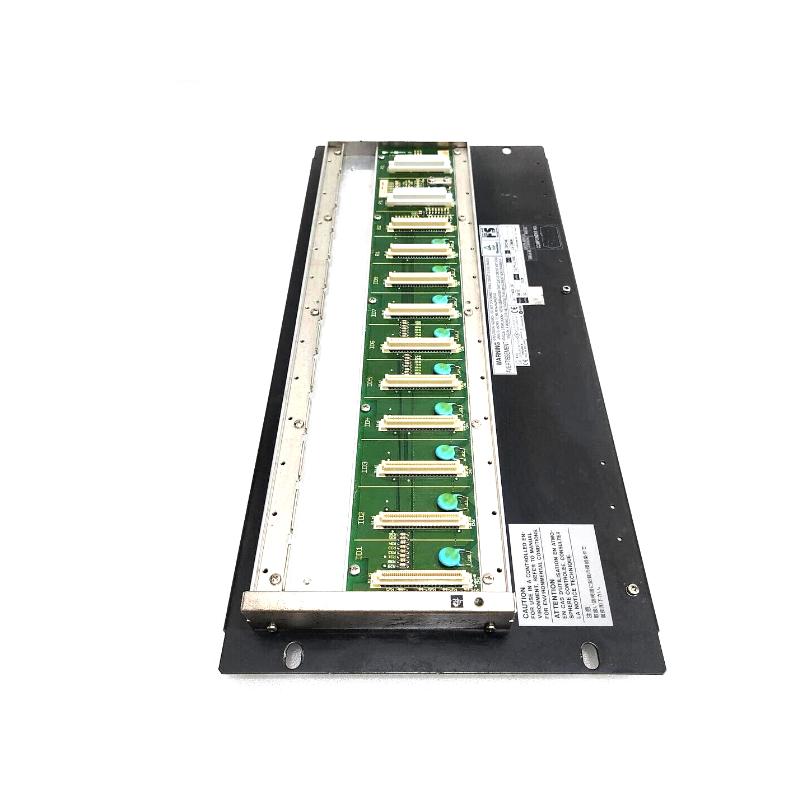

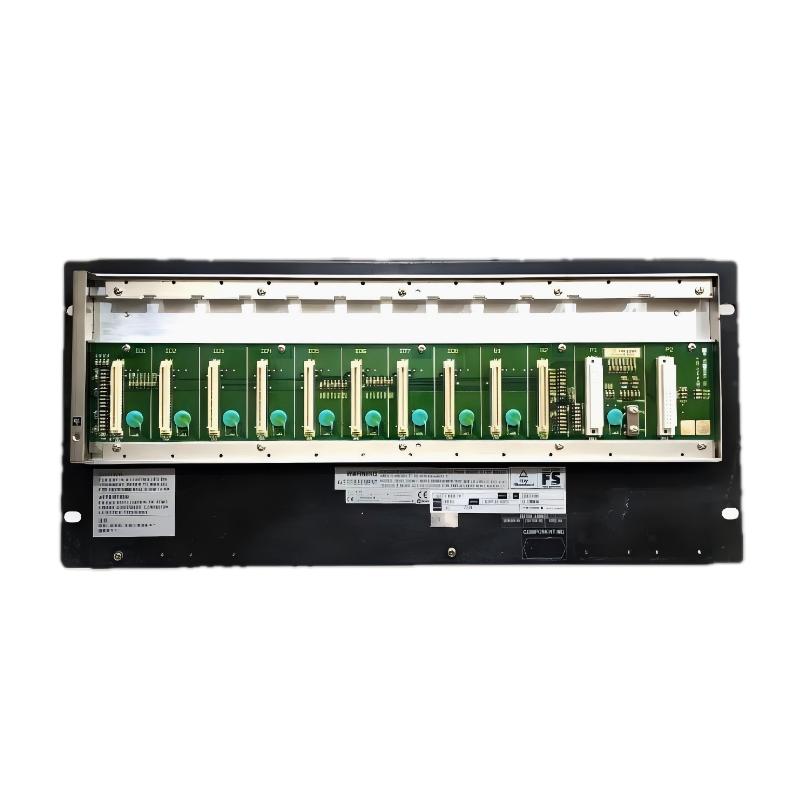

The SNB10D-243/C2UT Safety Node Unit is a key hardware component used in Yokogawa ProSafe-RS safety instrumented systems. Its main function is to provide an interface between field devices and the safety control unit.

The unit collects analog input signals and contact signals from field instruments and transfers them to the safety control unit through the ESB bus communication network. At the same time, it provides power distribution and communication support for connected I/O modules.

In industrial safety applications, the unit plays an important role in building reliable safety control architectures. It is commonly used in industries such as oil and gas, chemical processing, power generation, and other facilities where continuous safety monitoring and emergency protection functions are required.

Through redundant design and stable communication performance, the SNB10D-243/C2UT helps improve system availability and ensures reliable operation of safety-related control processes.

2. How does the SNB10D-243/C2UT communicate with the safety control unit?

The SNB10D-243/C2UT communicates with the safety control unit through the ESB bus interface. The ESB bus provides a dedicated communication path for transferring field input information and system data between safety nodes and the main safety controller.

The unit uses ESB bus interface modules to maintain stable communication with the safety control system. Depending on the system configuration, multiple safety node units can be connected to a safety control unit to expand field signal processing capacity.

The communication architecture is designed for safety applications where reliable data transmission and high system availability are essential. The ESB bus connection supports redundant configurations, helping reduce the impact of communication failures in critical processes.

3. What modules can be installed in the SNB10D-243/C2UT Safety Node Unit?

The SNB10D-243/C2UT Safety Node Unit supports installation of several types of modules required for safety system operation.

Typical module configurations include power supply modules, ESB bus interface modules, and various safety I/O modules. The power supply modules provide stable power for the installed I/O modules, while ESB bus interface modules handle communication between the node unit and the safety control unit.

The available I/O modules allow the system to process different types of field signals, including analog signals and digital contact signals from industrial instruments.

The modular structure provides flexibility for system expansion and allows users to configure the safety system according to different application requirements.

4. What should be considered when installing the SNB10D-243/C2UT?

When installing the SNB10D-243/C2UT Safety Node Unit, technicians should first confirm that the installation environment meets the requirements of the ProSafe-RS system.

The unit should be mounted securely in the rack using the recommended mounting method, and all power supply and communication connections should be checked carefully before operation.

Attention should also be paid to module installation positions, wiring quality, grounding conditions, and environmental factors such as temperature, humidity, and electromagnetic interference.

After installation, system diagnostics should be performed to confirm that the safety node unit communicates correctly with the safety control unit and that all installed I/O modules operate normally.

5. Why is redundancy important in the SNB10D-243/C2UT safety system architecture?

Redundancy is an important design feature in safety instrumented systems because it improves system reliability and availability.

The SNB10D-243/C2UT supports redundant power supply and ESB bus interface configurations. If one component experiences a fault, the redundant architecture helps maintain system operation and reduces the possibility of process interruption.

In critical industrial applications, safety systems must continue operating even when individual hardware failures occur. Redundant design allows maintenance activities to be performed with less impact on plant operation.

This makes the SNB10D-243/C2UT suitable for applications requiring high reliability and continuous safety monitoring.

6. What are common troubleshooting methods for the SNB10D-243/C2UT?

When troubleshooting the SNB10D-243/C2UT Safety Node Unit, technicians should first check system alarms and diagnostic information provided by the ProSafe-RS system.

Common inspection points include power supply status, ESB bus communication condition, module installation status, and connection quality of field wiring.

If communication problems occur, the ESB bus interface modules and related communication connections should be checked. If I/O signals are abnormal, technicians should verify the installed I/O modules and field device connections.

A systematic troubleshooting process helps identify whether the issue comes from the node unit itself, connected modules, communication networks, or external field equipment.

7. How can the operating reliability of the SNB10D-243/C2UT be improved?

To improve the operating reliability of the SNB10D-243/C2UT Safety Node Unit, regular maintenance and proper system management are essential.

The system should be operated within the specified environmental conditions, and technicians should regularly inspect power connections, communication interfaces, and installed modules.

Monitoring diagnostic information and system status helps identify potential issues before they develop into serious failures. Preventive maintenance activities such as checking wiring conditions and verifying module status can extend equipment service life.

Proper configuration management and backup of system parameters also help maintain stable operation during maintenance or system recovery procedures.

8. What industries commonly use the SNB10D-243/C2UT Safety Node Unit?

The SNB10D-243/C2UT Safety Node Unit is widely used in industries that require reliable safety instrumented systems and continuous process protection.

Typical applications include oil and gas processing plants, chemical production facilities, power generation stations, and other industrial environments with strict safety requirements.

In these applications, the unit provides communication and signal processing functions between field instruments and safety controllers. It helps monitor critical process conditions and supports emergency shutdown and safety protection functions.

Its modular design, redundant architecture, and compatibility with Yokogawa ProSafe-RS systems make it suitable for large-scale industrial automation projects requiring high reliability and long-term stable operation.
