1. What is the main function of the SNB10D-425/CU2T Safety Node Unit?

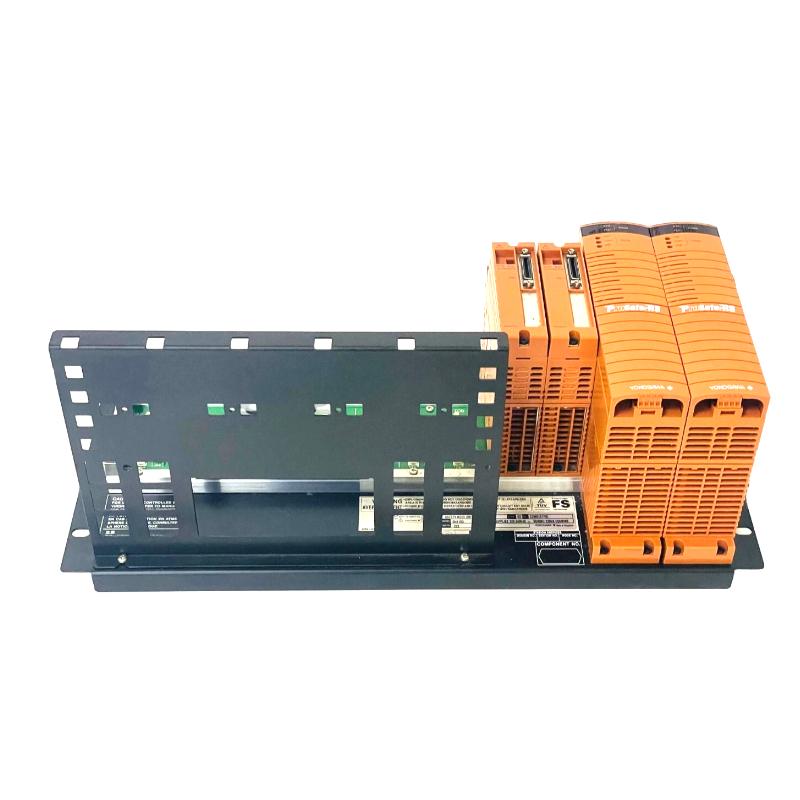

The SNB10D-425/CU2T Safety Node Unit is a field expansion component designed for Yokogawa ProSafe-RS Safety Instrumented Systems. Its primary function is to connect field safety I/O modules with the safety control unit and provide reliable signal acquisition, communication, and system expansion capabilities.

The unit collects process signals from field devices such as sensors, transmitters, switches, and monitoring instruments through connected safety I/O modules. The collected information is then transmitted to the safety controller through the ESB bus communication network for safety logic processing.

By supporting a distributed safety architecture, the SNB10D-425/CU2T allows field signals to be processed and communicated efficiently while maintaining system reliability.

It is widely applied in industries including oil and gas, chemical processing, power generation, and other industrial environments requiring continuous safety monitoring and protection functions.

2. How does the SNB10D-425/CU2T communicate with the ProSafe-RS safety system?

The SNB10D-425/CU2T communicates with the Yokogawa ProSafe-RS safety system through the ESB Bus interface, which provides a dedicated communication connection between safety nodes and the central safety controller.

During operation, safety I/O modules connected to the node acquire field signals such as analog measurements and digital status information. The SNB10D-425/CU2T transfers these signals through the ESB communication network to the safety control unit.

The safety controller analyzes the received information based on the configured safety logic and determines appropriate actions, including alarms, interlocking functions, or emergency shutdown procedures.

This communication method ensures reliable data transmission and supports distributed safety system architectures used in large industrial facilities.

3. What modules are supported by the SNB10D-425/CU2T Safety Node Unit?

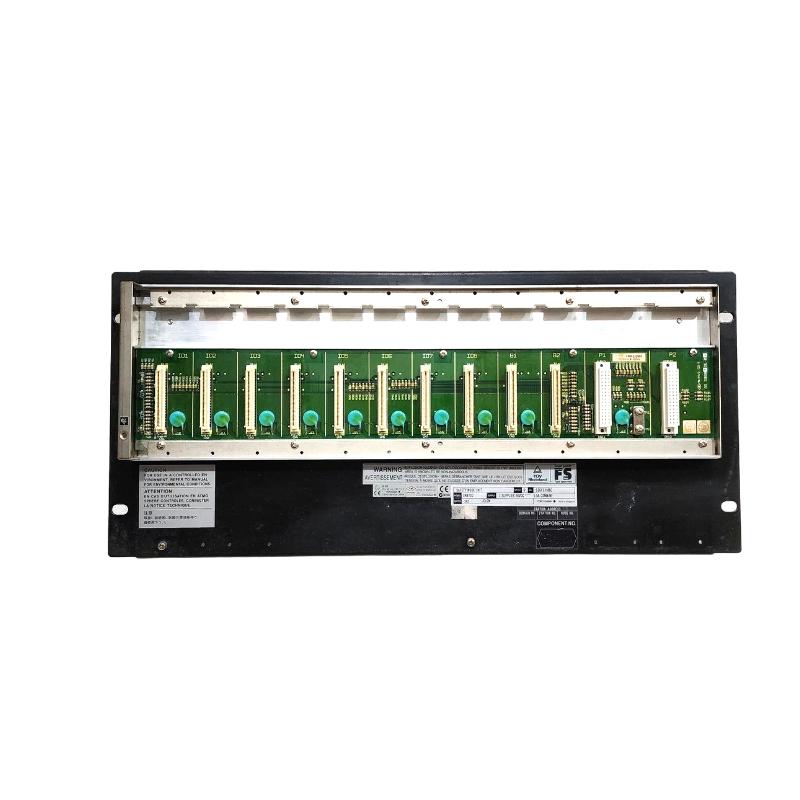

The SNB10D-425/CU2T supports various modules within the Yokogawa ProSafe-RS platform, including safety I/O modules, ESB communication modules, and power supply modules.

Safety I/O modules allow connection with field devices and provide signal acquisition functions for process monitoring. ESB communication modules handle data exchange between the safety node and the safety controller, while power supply modules provide stable operating power for connected components.

The modular design enables users to configure the safety node according to specific application requirements.

For large industrial projects, additional I/O modules can be installed to increase the number of supported field signals, improving system scalability and flexibility.

4. What should be considered when installing the SNB10D-425/CU2T?

Before installing the SNB10D-425/CU2T Safety Node Unit, the installation environment should be checked to ensure it meets the requirements of the ProSafe-RS safety system.

Technicians should verify correct rack installation, power wiring, ESB communication connections, module configuration, and grounding conditions.

Because safety systems require high reliability, communication cables should be installed properly to reduce electromagnetic interference and prevent unstable communication caused by poor connections.

After completing installation, system diagnostics should be performed to confirm that the safety node is recognized correctly and maintains stable communication with the safety controller.

Proper installation procedures help ensure long-term reliable operation and reduce future maintenance requirements.

5. How can communication faults in the SNB10D-425/CU2T be diagnosed?

When the SNB10D-425/CU2T experiences communication problems, technicians should first review system alarms and diagnostic information provided by the ProSafe-RS engineering environment.

Common causes of communication faults include ESB bus connection issues, unstable power supply, incorrect module configuration, damaged communication cables, or hardware connection problems.

The troubleshooting process should begin by checking the safety controller status, followed by inspection of ESB communication interfaces, module conditions, and wiring connections.

If the hardware is operating normally, the system configuration should be checked to confirm that the node settings match the actual installed hardware.

A structured diagnostic procedure can help identify the root cause efficiently and reduce unnecessary downtime.

6. Why is the SNB10D-425/CU2T suitable for Safety Instrumented System applications?

The SNB10D-425/CU2T is designed specifically for Yokogawa ProSafe-RS Safety Instrumented Systems and provides reliable communication and field signal management functions.

Safety Instrumented Systems are used to protect critical industrial processes and require stable operation under demanding conditions.

Through ESB bus communication and modular system design, the SNB10D-425/CU2T provides a dependable connection between field instruments and safety controllers.

It supports important safety functions such as process monitoring, safety interlocks, and emergency shutdown operations.

The unit is suitable for industrial environments where high availability, accurate signal transmission, and long-term operational stability are required.

7. How can the operating reliability of the SNB10D-425/CU2T be improved?

The reliability of the SNB10D-425/CU2T can be improved through proper installation, preventive maintenance, and continuous system monitoring.

During operation, technicians should regularly inspect power connections, ESB communication lines, and module status to ensure stable system performance.

Using the diagnostic functions of the ProSafe-RS system allows early detection of potential problems such as communication errors, module alarms, or abnormal signal conditions.

Maintaining accurate configuration records, performing regular inspections, and keeping system backups are also important for long-term operation.

A well-planned maintenance strategy helps reduce unexpected failures and improves the overall availability of the safety control system.

8. What industries commonly use the SNB10D-425/CU2T Safety Node Unit?

The SNB10D-425/CU2T Safety Node Unit is commonly used in industries that require reliable safety control and process protection systems, including oil and gas, chemical processing, power generation, pharmaceutical manufacturing, and other process industries.

In these applications, the unit functions as a distributed safety interface between field instruments and the central safety controller.

For example, in a chemical production facility, field sensors monitor important process parameters such as pressure, temperature, and flow. The collected signals are transferred through safety I/O modules and communicated by the SNB10D-425/CU2T to the safety controller.

When abnormal conditions are detected, the safety system can perform protective actions such as alarms, safety interlocks, or emergency shutdown operations.

With reliable ESB communication, flexible module configuration, and compatibility with ProSafe-RS systems, the SNB10D-425/CU2T provides stable support for industrial safety applications requiring continuous operation.
