Allen Bradley 20BC170GJANNANC0 PowerFlex 700 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 20BC170GJANNANC0 |
| Product Series | PowerFlex 700 |
| Product Type | AC Drive |
| Input Voltage | 400 VAC |
| Input Voltage Range | 380–480 VAC |
| Input Phase | 3 Phase |
| Input Frequency | 50 Hz |
| Rated Output Current | 170 A |
| Normal-Duty Power | 90 kW |
| Heavy-Duty Power | 75 kW |
| Control Method | Vector Control |
| Control I/O | 24 VDC I/O |
| Installation Type | Standalone / Wall-Mounted |
| Enclosure Rating | IP54 / NEMA Type 12 |
| Human Interface | Door-mounted IP66 / NEMA Type 12 full numeric LCD keypad |
| Communication Module | No internal communication module |
| Feedback | No feedback interface |
| Brake IGBT | No |
| Internal Brake Resistor | No |
| EMC Configuration | EMC Filter + Common-Mode Choke |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Digital Inputs | 6 |
| Digital Outputs | 3 |
| Output Phase | 3 Phase |
| Maximum Output Frequency | 420 Hz |
| PWM Carrier Frequency | 2 / 4 / 8 / 10 kHz selectable; rated at 4 kHz |
| Overload Capability | 110% rated current for 1 minute; 150% for 3 seconds |
| Nominal DC Bus Voltage | Approximately 540 VDC at 380/400 VAC input |
| DC Bus Overvoltage Trip | 810 VDC |
| AC Input Overvoltage Trip | 570 VAC |
| AC Input Undervoltage Trip | 233 VAC |
| Efficiency | Approximately 97.5% |
| Maximum Installation Altitude | 1000 m without derating |
| Operating Temperature | Up to 50°C |
| Relative Humidity | 5–95%, non-condensing |
| Cooling Method | Forced-Air Cooling |
| Motor Overload Protection | Class 10 |
| Short-Circuit Rating | Up to 200 kA symmetrical current |
| Dimensions | 1828.8 x 487.8 x 711.3 mm |
| Weight | 176.9 kg |
FAQ
1. What are the rated output current and power ratings of the Allen-Bradley 20BC170GJANNANC0?
The 20BC170GJANNANC0 PowerFlex 700 AC Drive has a rated continuous output current of 170 A. At 400 VAC three-phase operation, it provides a normal-duty power rating of 90 kW and a heavy-duty rating of 75 kW. Final drive selection should be based on the motor rated current, load torque, acceleration requirements, and actual operating duty cycle.
2. What motor control method does the 20BC170GJANNANC0 use?
The drive uses vector control with 24 VDC control I/O. Vector control provides improved speed and torque regulation, particularly during low-speed operation, acceleration, deceleration, and load changes. Correct motor nameplate data and appropriate commissioning parameters are important for obtaining stable motor control performance.
3. Does the 20BC170GJANNANC0 include an internal communication module?
This configuration does not include an internal communication module. Basic control functions can be implemented through the available analog and digital I/O, including start/stop commands, speed reference, status monitoring, and fault reset. When a fieldbus or industrial Ethernet connection is required, the appropriate communication option should be selected according to the control system architecture.
4. Does the 20BC170GJANNANC0 support encoder feedback?
This specific configuration is supplied without a feedback interface. It therefore does not provide direct closed-loop encoder feedback through the standard configuration. Applications requiring high-accuracy speed feedback or closed-loop control should use a PowerFlex 700 configuration that supports the required feedback option. Open-loop vector control performance will depend on motor parameters and load characteristics.
5. Does the 20BC170GJANNANC0 have an internal braking resistor?
No. The 20BC170GJANNANC0 does not include an internal braking resistor or internal brake IGBT. Applications involving high-inertia loads, rapid deceleration, or continuous regenerative operation may require an external braking solution. The braking system should be selected based on motor power, load inertia, deceleration time, braking frequency, and regenerative energy.
6. How should a DC bus overvoltage fault be handled on the 20BC170GJANNANC0?
At a 380/400 VAC input, the nominal DC bus voltage is approximately 540 VDC, while the DC bus overvoltage trip level is approximately 810 VDC. If an overvoltage fault occurs, check whether the deceleration time is too short, whether the load is driving the motor, and whether the braking system is suitable for the regenerative energy. Increasing the deceleration time may reduce regenerative voltage where the application permits.
7. How can an overcurrent fault on the 20BC170GJANNANC0 be diagnosed?
Check the motor power wiring, motor insulation, mechanical load, acceleration time, current-limit settings, and motor nameplate parameters. Excessive mechanical load, rapid acceleration, incorrect motor data, short circuits, or mechanical binding can cause the output current to rise rapidly. The fault code and fault history should be reviewed before repeatedly resetting the drive.
8. What operating conditions should be considered when installing the 20BC170GJANNANC0?
The drive is designed with an IP54 / NEMA Type 12 enclosure and forced-air cooling. Installation should provide adequate ventilation and sufficient clearance for heat dissipation. The surrounding environment should be controlled to limit excessive dust, conductive contamination, corrosive gases, and high humidity. Operating temperature, altitude, airflow, and cabinet conditions should also be considered to maintain reliable long-term operation.
Allen Bradley 20BC170GJANNANC0 PowerFlex 700 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13950166376 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Company Introduction
Xiamen Shengruite Trading Co., Ltd. is a company specializing in the supply of industrial PLC spare parts.
We provide high-quality PLC spare parts to customers in the global manufacturing, energy and power, chemical and other fields.
Since its establishment in 2011, after 13 years of rapid development, the cumulative global shipments have reached 223,650 pieces, with an annual output value of US$50 million.
Successfully served more than 500 customers in more than 100 countries and regions including Saudi Arabia, UAE, the United States, Europe, Africa, and Southeast Asia
Our Mission
Provide customers with the best quality PLC spare parts and the fastest delivery service to ensure that their industrial automation systems are always in the best operating condition.
We provide a 1-year warranty service, and we support returns and exchanges for any issues to ensure your rights and interests are fully protected.
We can provide detailed product images upon request, and our team can arrange warehouse photos for confirmation to ensure you have all the information you need before making a purchase.
Shipping times vary depending on your location. With the support of our 16 global warehouses, we strive to deliver orders as quickly as possible. Contact us to get an estimated delivery time for your specific location.
The minimum order quantity (MOQ) is typically one unit. However, for larger orders, please contact us for potential discounts and pricing details.
Yes, we offer competitive pricing for bulk purchases. Please reach out to our sales team with the specifics of your order to receive a custom quote.
We accept various payment methods for wholesale orders, including bank transfers (T/T), letters of credit, and other options upon agreement. For large transactions, please contact us directly for payment terms.
Yes, we offer flexible ordering options for both small and large quantities. Whether youre looking for a single unit or a large batch, we can accommodate your needs.
We occasionally offer promotional discounts for new wholesale customers. Contact us to learn more about any current offers available for first-time buyers.
If you are unsure of compatibility with your existing setup please provide your system details and our support team can verify compatibility prior to purchase.
Returns are accepted within 30 days if the product is unused, unopened, and in its original packaging. Please note that return shipping and associated costs are the buyer\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\’s responsibility.
Yes, we offer technical support for the installation and integration of our products. Our team can assist with setup, configuration, and troubleshooting to ensure a smooth installation.
Products categories
-

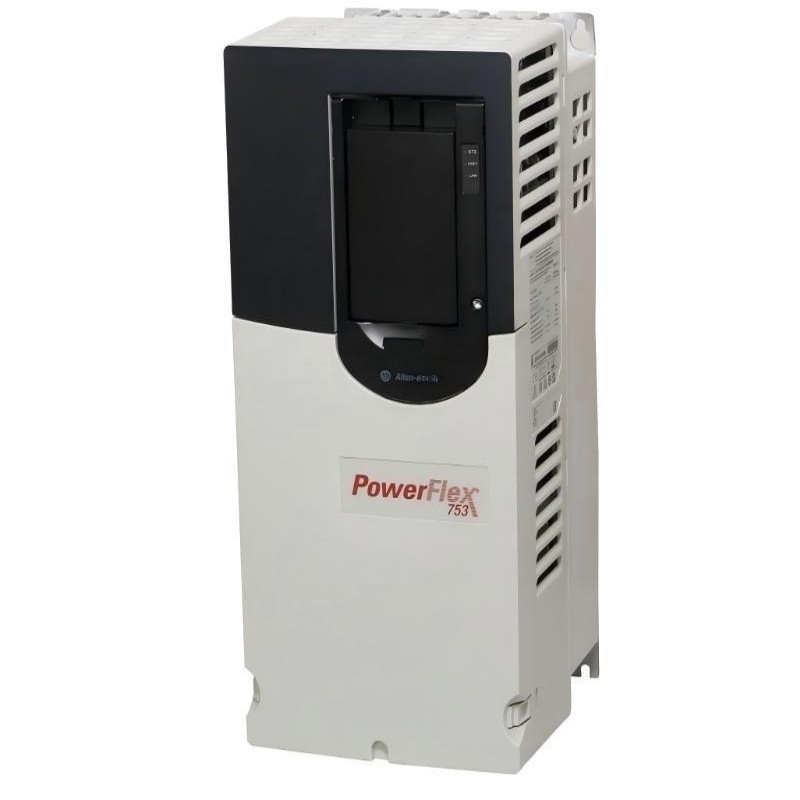

Allen-Bradley PowerFlex 753 20F14NF061JN0NNNNN AC Drive – Technical Specifications & FAQ
-
