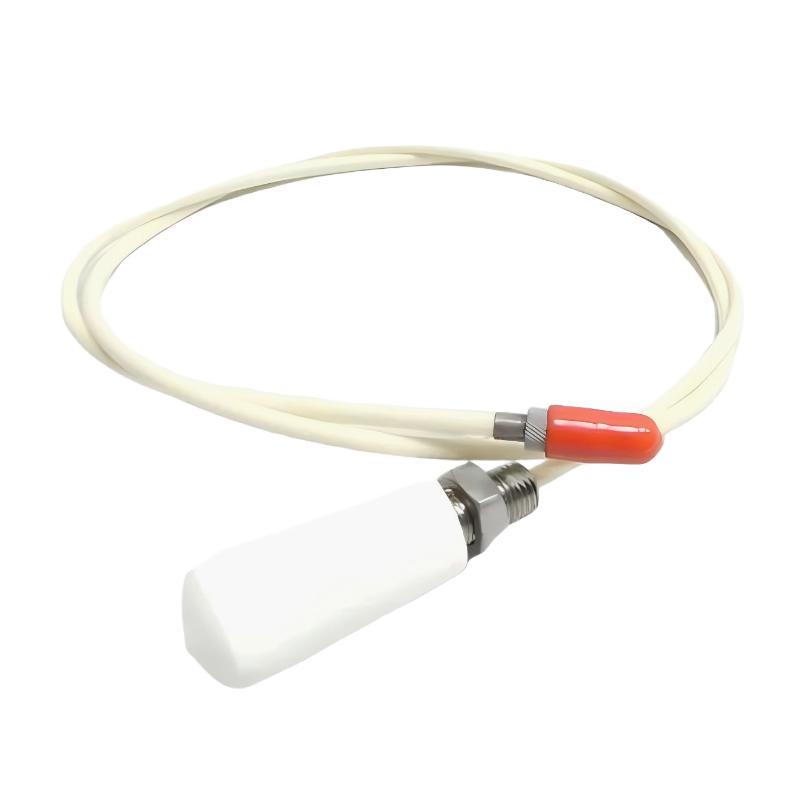

1. What is the main function of the Bently Nevada 21504-00-28-10-02 probe?

This probe is used for continuous, non-contact monitoring of rotating machinery shaft behavior. Its main function is to measure shaft vibration, radial displacement, and axial position changes in real time. By detecting minute variations in the distance between the probe tip and the conductive shaft surface, it generates an electrical signal that reflects mechanical movement. This data is essential for condition monitoring and protection systems in critical industrial equipment such as turbines, compressors, and pumps.

2. How does the eddy current measurement principle work in this probe?

The probe operates using the eddy current principle, where a high-frequency electromagnetic field is generated at the probe tip. When a conductive metal surface such as a steel shaft approaches this field, eddy currents are induced in the material. These currents alter the electromagnetic field strength, which changes the impedance of the probe coil. The system converts these changes into a stable voltage signal proportional to the gap distance, enabling precise non-contact measurement even in harsh mechanical environments.

3. What types of machinery is this probe typically used with?

This probe is widely used in high-value rotating machinery where continuous monitoring is critical. Common applications include steam turbines, gas turbines, centrifugal compressors, industrial pumps, electric motors, and large gearboxes. In these machines, even small shaft deviations can indicate early mechanical issues such as imbalance, misalignment, bearing wear, or rotor instability. The probe provides early detection capability that supports predictive maintenance strategies.

4. What type of output signal does the probe provide?

The probe provides a continuous analog voltage signal that varies proportionally with the distance between the probe tip and the shaft surface. This raw signal is interpreted by a compatible monitoring system, which converts it into engineering parameters such as vibration amplitude, displacement, or axial position. These values are then used for trend analysis, alarm thresholds, and protection system logic in industrial monitoring applications.

5. Is the probe suitable for harsh industrial environments?

Yes, the probe is designed specifically for harsh industrial conditions. It is built to operate reliably in environments with high vibration, temperature fluctuations, and electromagnetic interference. Its robust shielding and construction ensure stable signal transmission even when installed near heavy machinery, electrical equipment, or high-speed rotating systems, making it suitable for continuous long-term operation.

6. Does the probe require calibration after installation?

Yes, calibration is required after installation to ensure accurate measurement. During calibration, the system establishes a reference relationship between the output signal and the physical distance to the shaft surface. This step is critical for ensuring accurate vibration and displacement readings. Without proper calibration, measurement results may deviate from actual mechanical conditions, reducing the effectiveness of monitoring and protection functions.

7. Which systems is this probe compatible with?

This probe is designed to work with Bently Nevada 7200 series monitoring systems. It integrates with matching proximitor modules and monitoring racks to form a complete measurement chain. When properly installed, it provides reliable input signals for vibration monitoring and machine protection systems, ensuring consistent performance across industrial applications.

8. What maintenance practices are recommended for this probe?

Recommended maintenance includes regular inspection of mounting stability, cable integrity, and signal quality. Technicians should ensure that the probe remains securely positioned and that there is no mechanical loosening caused by vibration. Cable shielding should be checked to prevent signal noise or degradation. It is also important to keep the probe tip area clean and free from oil, dust, or debris, as contamination can affect measurement accuracy over time. Routine system checks help ensure long-term stability and reliable monitoring performance.
