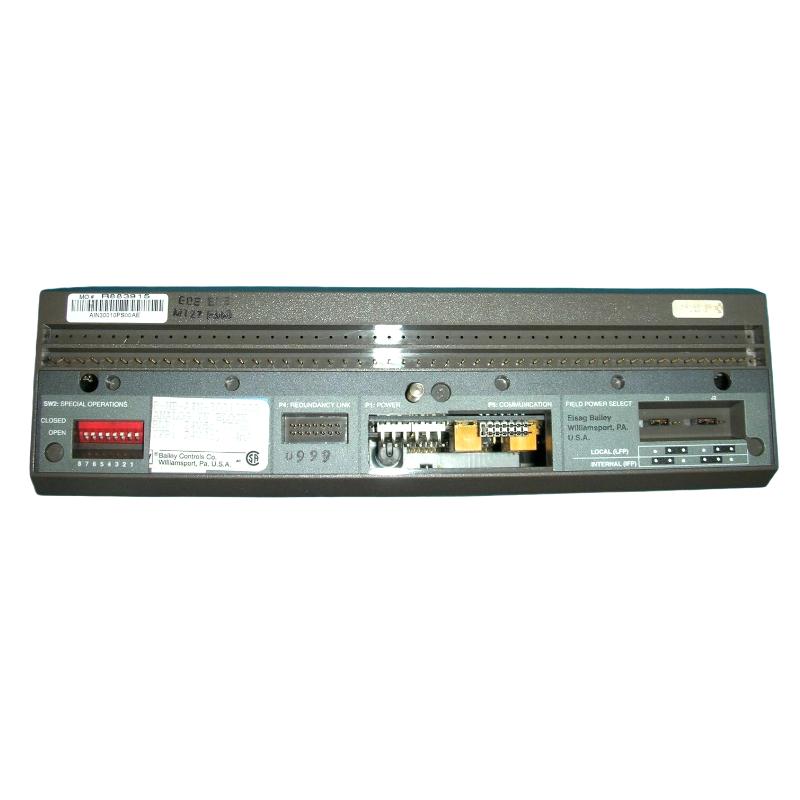

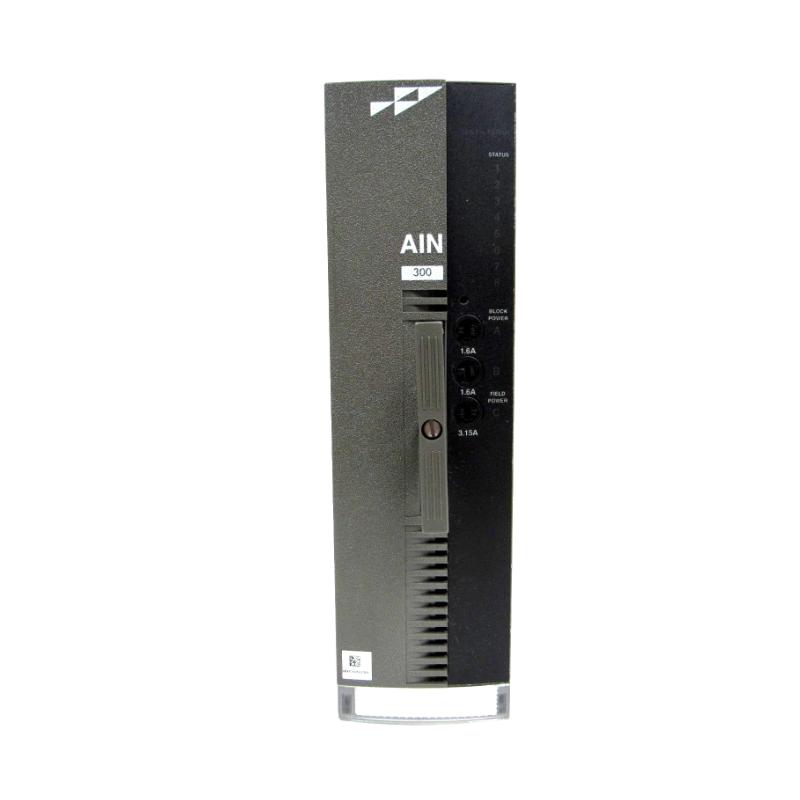

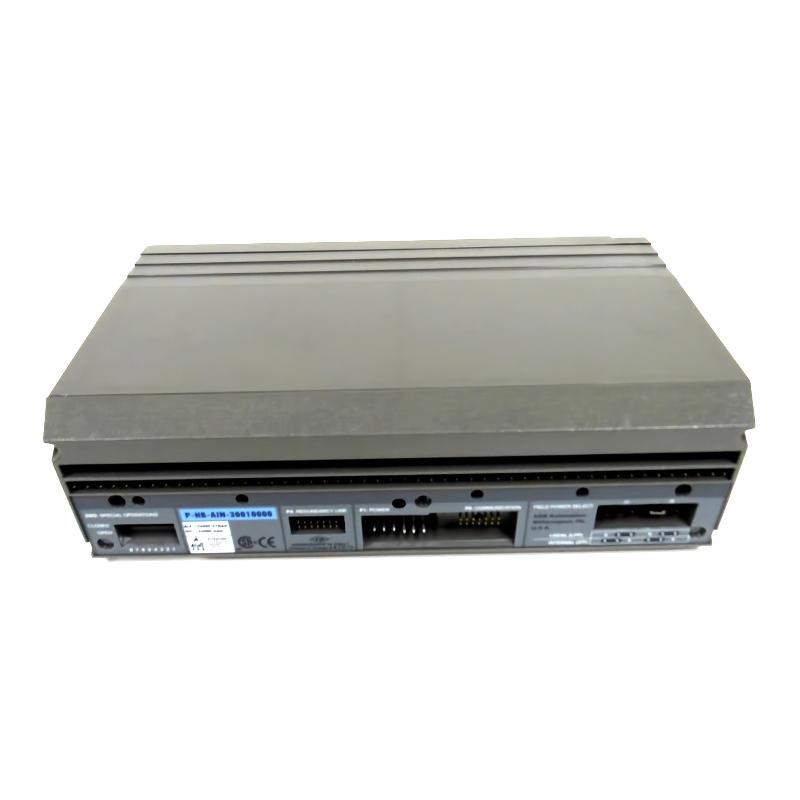

1. What is the main function of the ABB Bailey AIN300 P-HB-AIN-30010 000?
The AIN300 is an analog input termination and interface module used in ABB Bailey Harmony and INFI 90 control systems. Its primary role is to provide an organized connection point for analog field instruments and route their signals to the appropriate analog input interface modules. It is commonly used where multiple process signals need to be connected to a centralized DCS I/O architecture.

2. What types of analog signals can be connected through the AIN300?
The AIN300 can be used with analog signal applications such as 4–20 mA and 0–10 V signals, as well as RTD and thermocouple applications when the appropriate compatible IIA interface module is used. The actual signal type is determined by the associated input interface hardware and system configuration, so the field instrument and I/O module should be matched before commissioning.

3. How many analog input channels can the AIN300 support?
The AIN300 can provide termination and interface capability for up to 8 analog input channels. Each field signal is connected through the corresponding terminal position and routed to the associated analog input interface module. Channel assignment should follow the system I/O configuration to ensure that each process measurement is correctly identified by the DCS.

4. Does the AIN300 perform analog signal conditioning by itself?
The AIN300 primarily serves as a field termination and signal-routing interface. It provides the physical connection between field wiring and the associated analog input interface modules, while functions such as signal conditioning and analog-to-digital processing are handled by the appropriate input interface hardware. This separation allows the termination assembly to remain relatively straightforward while the active electronics perform the measurement processing.

5. What should I check if an analog signal connected through the AIN300 is missing?
First check the field instrument and confirm that it is producing the expected signal. Then inspect the field wiring, terminal screws, cable continuity, polarity, and associated connectors. If the signal is present at the AIN300 terminal but is not displayed correctly by the DCS, check the corresponding analog input interface module and channel configuration. System diagnostics should also be reviewed to determine whether the problem is related to the field circuit, termination, interface module, or controller configuration.

6. Why might an analog signal connected through the AIN300 fluctuate or become unstable?
Unstable readings can result from loose terminal connections, damaged field cables, poor shielding, grounding problems, electromagnetic interference, or an unstable field transmitter. The associated analog input interface module or channel configuration can also contribute to abnormal readings. A useful troubleshooting method is to compare the affected channel with a known-good channel and measure the signal directly at the termination point to determine whether the fluctuation originates in the field circuit or the control system.

7. Can the ABB Bailey AIN300 be replaced with another analog termination module?
A replacement should not be selected solely according to physical appearance or the number of channels. The AIN300 model and P-HB-AIN-30010 000 order number should be checked together with the existing Harmony or INFI 90 system configuration. Compatibility with the associated IIA analog input interface module, terminal arrangement, field signal type, and cabinet configuration should be confirmed before installing a replacement.

8. What precautions should be taken when installing or replacing the AIN300?
The associated control system should be placed in a safe maintenance condition and the applicable power isolation procedures should be followed before working on the module or field wiring. Before removing the existing unit, record the terminal assignments and cable connections to prevent wiring errors during reinstallation. Check terminal blocks and connectors for looseness, corrosion, or physical damage, and make sure shield connections are correctly handled. After installation, verify each analog channel individually and confirm that the DCS receives stable and correctly assigned process values.
