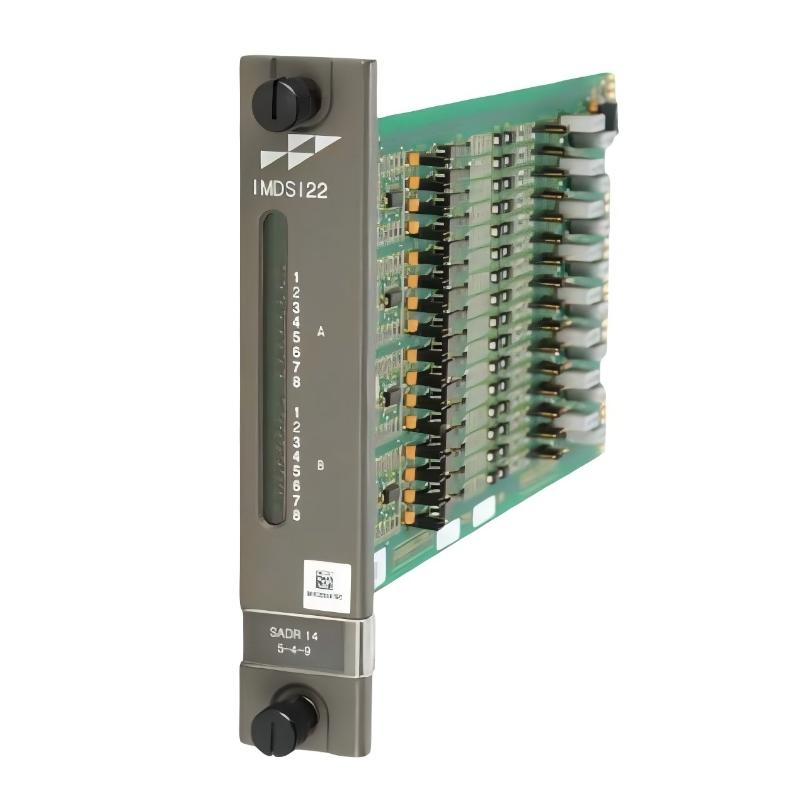

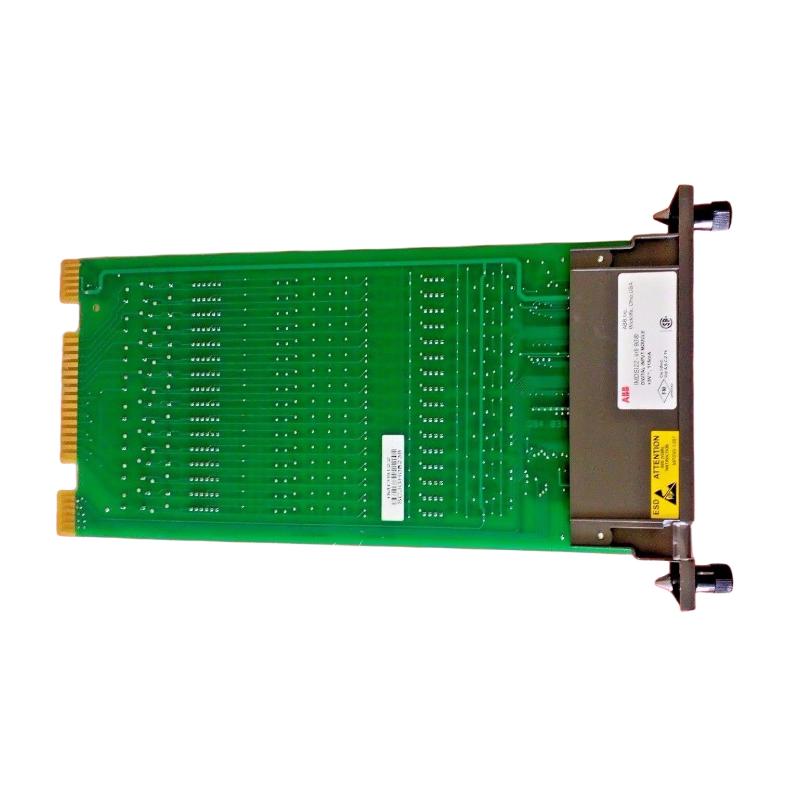

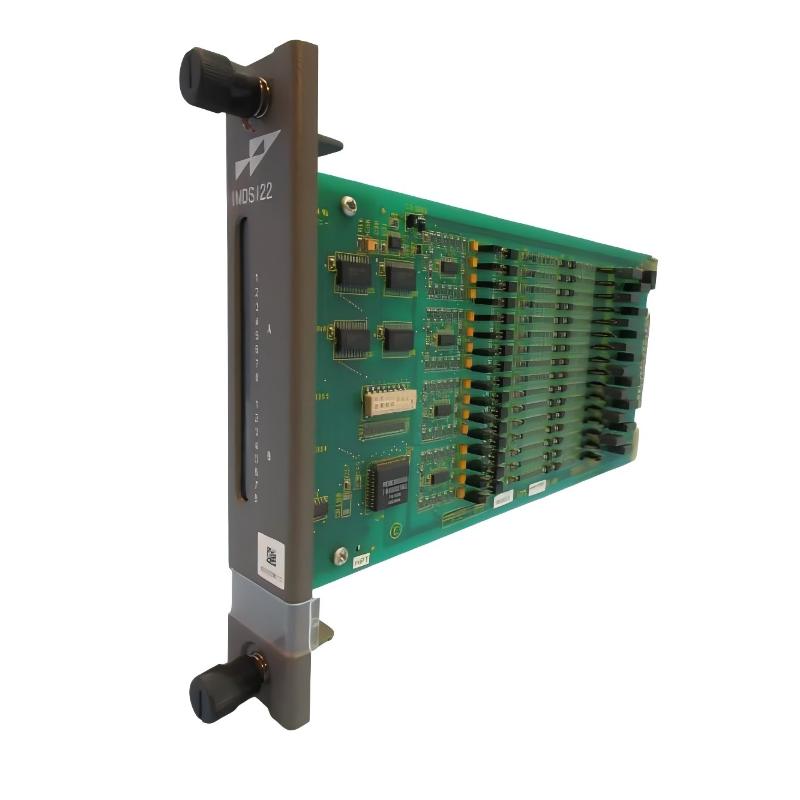

1. What is the main function of the ABB Bailey IMDS122 Digital Input Module?
The ABB Bailey IMDS122 is designed to acquire discrete field signals and provide their status to an INFI 90 control system. It can monitor the ON/OFF condition of field devices such as switches, relay contacts, limit switches, and other digital devices. The module processes the incoming discrete signals and makes the corresponding status information available to the control system for monitoring, interlocking, sequencing, and control logic.

2. How many digital input channels does the IMDS122 provide?
The IMDS122 provides 16 digital input channels. Each channel is used to monitor the state of a corresponding field signal. The 16-channel arrangement allows multiple discrete devices to be monitored through a single I/O module, making it suitable for process equipment status monitoring and control applications where a large number of ON/OFF signals must be collected.

3. What types of field devices can be connected to the IMDS122?
Typical applications include relay contacts, limit switches, selector switches, contact outputs, proximity devices, and other discrete field signals. The exact electrical characteristics of the connected signal must match the configured input requirements of the installed IMDS122 system. Before commissioning, the field wiring and input voltage should be checked against the system documentation to prevent incorrect signal interpretation or electrical stress on the input circuit.

4. How does the IMDS122 communicate digital input status to the control system?
The IMDS122 operates as an I/O module within the ABB Bailey INFI 90 architecture. Field signals are connected through the appropriate termination and interface arrangement, while the module communicates its input status to the controller through the system I/O communication structure. This allows the controller to use the digital input states in control logic, alarms, interlocks, sequencing, and operator monitoring.

5. What should be checked if an IMDS122 input channel does not change state?
First check the field device and confirm that it is actually changing between the required ON and OFF states. Then inspect the associated wiring, termination connections, connector seating, and input voltage. The corresponding front-panel LED can also provide a useful indication of whether the module is detecting the field signal. If the field signal is present but the module does not recognize it, the termination path, cable, connector, and individual input circuit should be checked systematically.

6. Why might multiple IMDS122 input channels fail simultaneously?
When several input channels fail at the same time, the problem may be associated with a common connection rather than individual field devices. Possible areas include the termination unit, cable assembly, module connector, I/O bus interface, or module power supply. Checking the common electrical path first can significantly reduce troubleshooting time. Comparing the affected channels with known-good channels is also useful for determining whether the problem is field-side or module-side.

7. What role do the front-panel LEDs play during IMDS122 troubleshooting?
The input-status LEDs provide a quick visual indication of the detected state of individual digital input channels. During commissioning and maintenance, technicians can compare the LED indication with the actual field device condition and the status displayed by the control system. If the field device is active but the corresponding LED remains inactive, the input wiring, termination, signal level, or module input circuit should be investigated.

8. What precautions should be taken when replacing an IMDS122?
Before replacement, verify the exact module model and confirm that the replacement unit is compatible with the existing INFI 90 configuration. Follow the plant’s electrical isolation and maintenance procedures before removing the module. Inspect the module connectors and mounting position before installation, and ensure that the replacement is fully seated and secured. After installation, verify all relevant input channels individually and confirm that the controller receives the correct field status before returning the system to normal operation.
