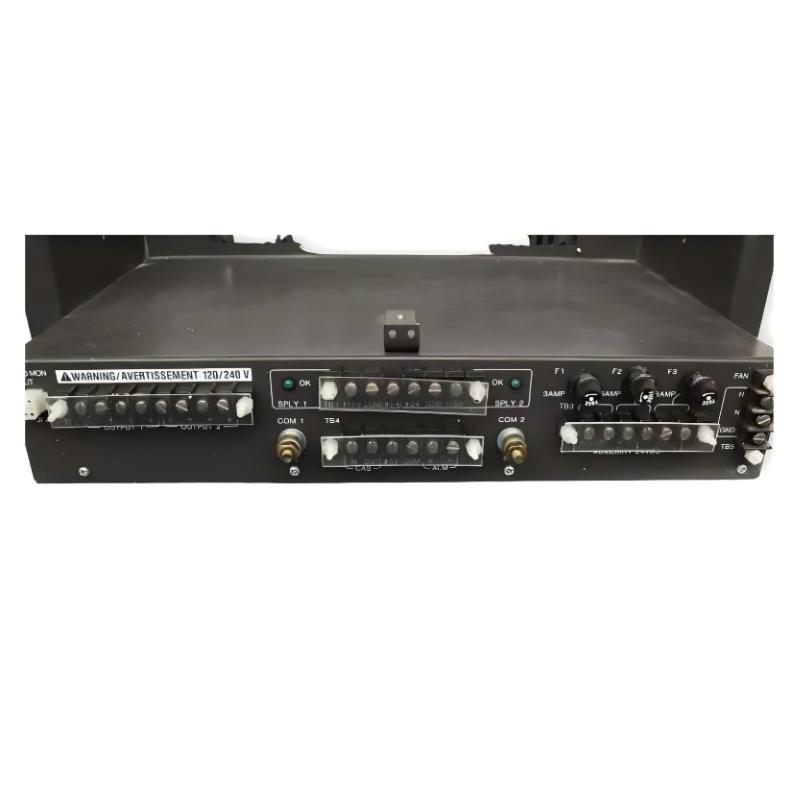

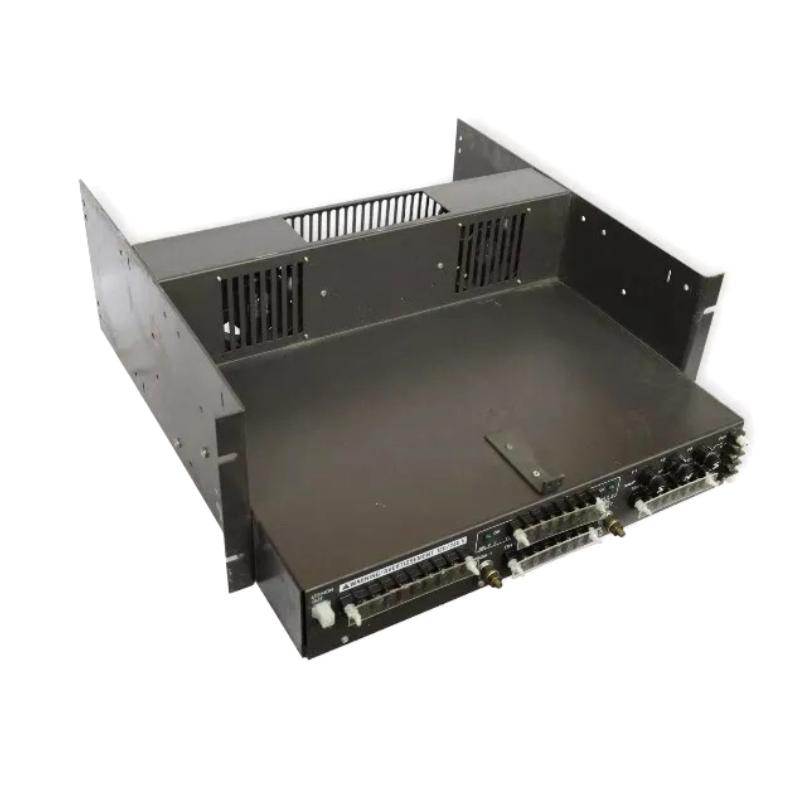

ABB Bailey NIOP04 I/O Power Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB Bailey |
| Model | NIOP04 |
| Product Type | I/O Power Panel |
| Product Series | Bailey Net 90 / INFI-90 |
| Main Function | Provides power mounting, distribution, and interface support for the I/O system |
| Rated Input Voltage | 120 VAC |
| Input Frequency | 50/60 Hz |
| Rated Power Consumption | 16 VA |
| Operating Voltage Range | 102–132 VAC |
| Power Supply Capacity | Supports installation of compatible NPSI0x I/O power supply modules |
| Compatible Power Supplies | NPSI01, NPSI02, NPSI03, NPSI04 and other compatible configurations |
| Output Power | Determined by the installed I/O power supply modules |
| I/O Power Function | Supplies and distributes power for compatible Bailey I/O equipment |
| Power Monitoring | Supports monitoring of I/O power supply voltage |
| Low-Voltage Monitoring | Provides system status monitoring for abnormal I/O supply voltage |
| Alarm Output | Up to 120 mA at 24 VDC |
| System Compatibility | Bailey Net 90 / INFI-90 control systems |
| Installation | Control cabinet or designated Bailey system mounting location |
| Typical Applications | DCS, industrial process control, automation systems, and I/O power distribution |
| Certification | CSA for applicable non-hazardous locations |
| Maintenance | Check input power, power supply modules, terminals, wiring, and alarm status |
| Replacement Requirement | Verify model, electrical configuration, and compatible NPSI power supply before replacement |
| Dimensions | 200 × 400 × 160 mm |
| Weight | 6 kg |
FAQ
1. What is the main function of the ABB Bailey NIOP04 I/O Power Panel?
The NIOP04 is an I/O Power Panel designed to provide mounting, power distribution, and interface support for compatible Bailey I/O power supply configurations in Net 90 and INFI-90 systems.
2. What input power does the NIOP04 require?
The NIOP04 is designed for a nominal 120 VAC input with a 50/60 Hz frequency. The input should remain within the specified operating range to ensure stable operation of the connected I/O power system.
3. Which I/O power supply modules can be used with the NIOP04?
The NIOP04 can be used with compatible NPSI0x I/O power supply configurations, including NPSI01, NPSI02, NPSI03, and NPSI04 where applicable. The exact module should be selected according to the original system design.
4. How does the NIOP04 support I/O power distribution?
The panel provides the required mounting and electrical interface for compatible I/O power supplies, allowing power to be distributed to the associated I/O equipment through the system wiring.
5. What should be checked if the I/O system experiences a low-voltage alarm?
Check the incoming AC voltage first, followed by the installed NPSI power supply, output voltage, terminals, and wiring. The connected I/O load should also be checked for excessive current demand or a possible short circuit.
6. Can the NIOP04 detect an abnormal I/O power condition?
Yes. The I/O power arrangement supports voltage monitoring and status indication. An abnormal supply condition can therefore be identified through the corresponding system monitoring or alarm signal.
7. What precautions should be taken when replacing an NIOP04?
Disconnect the relevant power sources before servicing. Confirm the replacement panel has the same model and compatible electrical configuration, and verify all power supply modules and wiring before restoring system power.
8. What are common causes of NIOP04 power-related faults?
Common causes include unstable input voltage, defective I/O power supply modules, loose terminals, damaged wiring, excessive load, poor electrical connections, or abnormal voltage-monitoring signals. Troubleshooting should proceed systematically from the incoming power to the power supply and connected I/O load.
ABB Bailey NIOP04 I/O Power Panel is in stock. Please contact us for a quick quote and competitive pricing.
