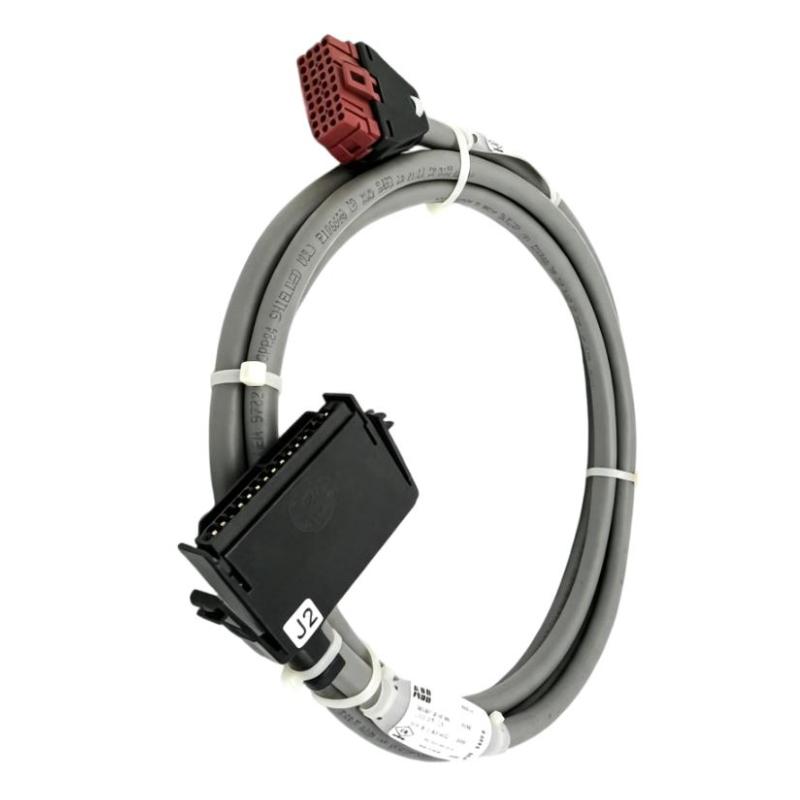

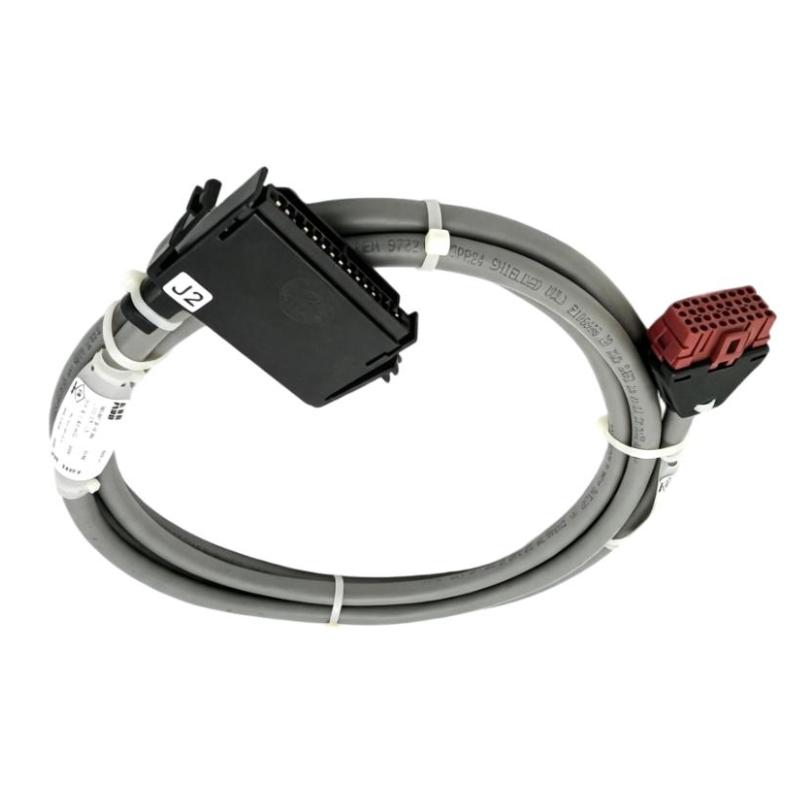

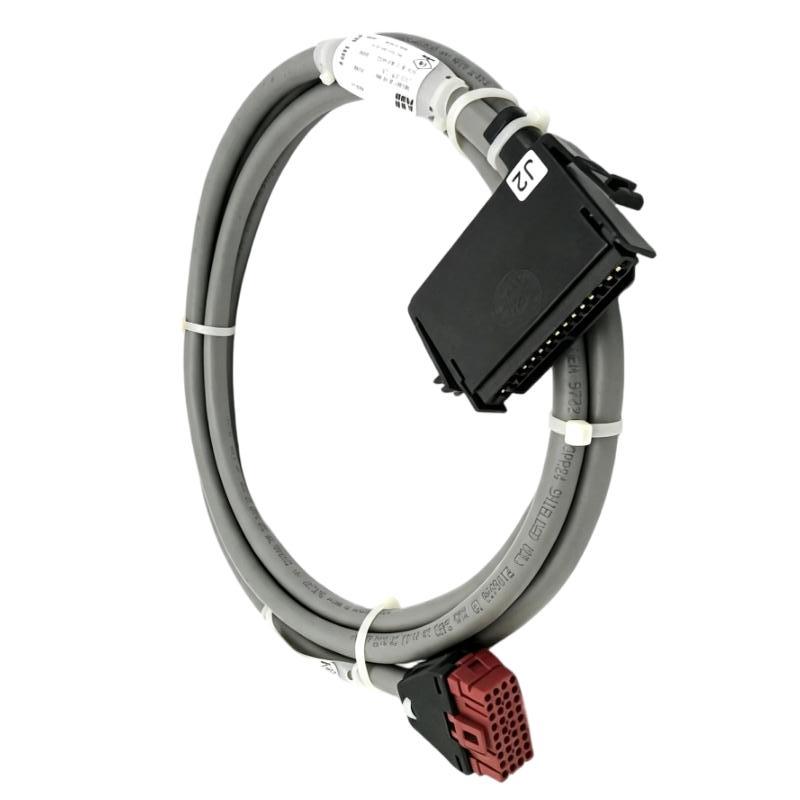

ABB Bailey NKST01 Cable Assemblies
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Product Type | Cable Assemblies |
| Model | NKST01 |
| Product Family | Bailey INFI 90 / Network 90 |
| Cable Type | PVC-insulated cable assembly |
| Main Application | SOE time synchronization |
| Primary Function | Connects the SPSET SOE module to the NTST01 termination unit |
| Compatible Module | SPSET |
| Compatible Termination Unit | NTST01 |
| Communication Function | Time synchronization signal transmission |
| Typical Connection | SPSET ↔ NTST01 |
| Cable Series | NKST01 / NKST11 |
| Insulation Type | PVC |
| Installation | Industrial control cabinet and INFI 90 system wiring |
| Cable Length | Optional |
| Shipping Weight | 3 kg |
FAQ
1. What is the ABB Bailey NKST01 Cable Assembly used for?
The ABB Bailey NKST01 is a PVC-insulated cable used for the time synchronization connection in ABB Bailey INFI 90 control systems. Its primary purpose is to connect the SPSET SOE module with the NTST01 termination unit, allowing synchronization timing information to be transferred through the dedicated time-synchronization circuit.
2. Which ABB Bailey modules are connected by the NKST01?
The NKST01 is designed to connect the SPSET SOE module to the NTST01 termination unit. In applicable time synchronization configurations, the cable provides the physical signal path between the module and termination hardware.
3. What is the difference between NKST01 and NKST11?
NKST01 and NKST11 serve the same general time-synchronization connection function, but they differ in cable insulation. NKST01 uses PVC insulation, while NKST11 is the non-PVC alternative. The correct version should be selected according to the installation environment and project requirements.
4. What type of signals are transmitted through the NKST01?
The NKST01 carries time synchronization signals associated with the SOE system. Accurate synchronization is important for sequence-of-events applications because event timestamps from different system components need a common timing reference.
5. Can the NKST01 be used with the NTST01 termination unit for long-distance connections?
Yes. The ABB Bailey documentation specifies NKST01 for connections between the SPSET/related synchronization equipment and NTST01, with configurations supporting cable runs up to 61 m (200 ft). The actual installed length should follow the requirements of the specific system configuration.
6. What should be checked before installing an NKST01 cable assembly?
Verify that the cable is the correct NKST01 configuration and that the connected equipment is compatible with the cable. Inspect the cable and connectors for damage, confirm the connection points on the SPSET and NTST01, and route the cable so that it is protected from excessive mechanical stress and strong electrical interference.
7. What symptoms may indicate a problem with an NKST01 cable?
A faulty or incorrectly connected NKST01 can cause loss of synchronization between the SOE module and time-synchronization system, incorrect event timestamps, unstable synchronization status, or failure of the associated time-synchronization function. Intermittent faults may be related to loose connections, damaged conductors, or poor connector contact.
8. How can an NKST01 Cable Assembly be tested during troubleshooting?
Start by placing the control system in a safe maintenance condition and checking both cable ends for secure connections. Inspect the PVC insulation and connector areas for physical damage. A suitable electrical test can then be used to verify conductor continuity and detect open or short circuits. If the cable passes these checks, continue troubleshooting the SPSET, NTST01 termination unit, synchronization source, jumper settings, and other components of the time-synchronization circuit.
ABB Bailey NKST01 Cable Assemblies is in stock. Please contact us for a quick quote and competitive pricing.
