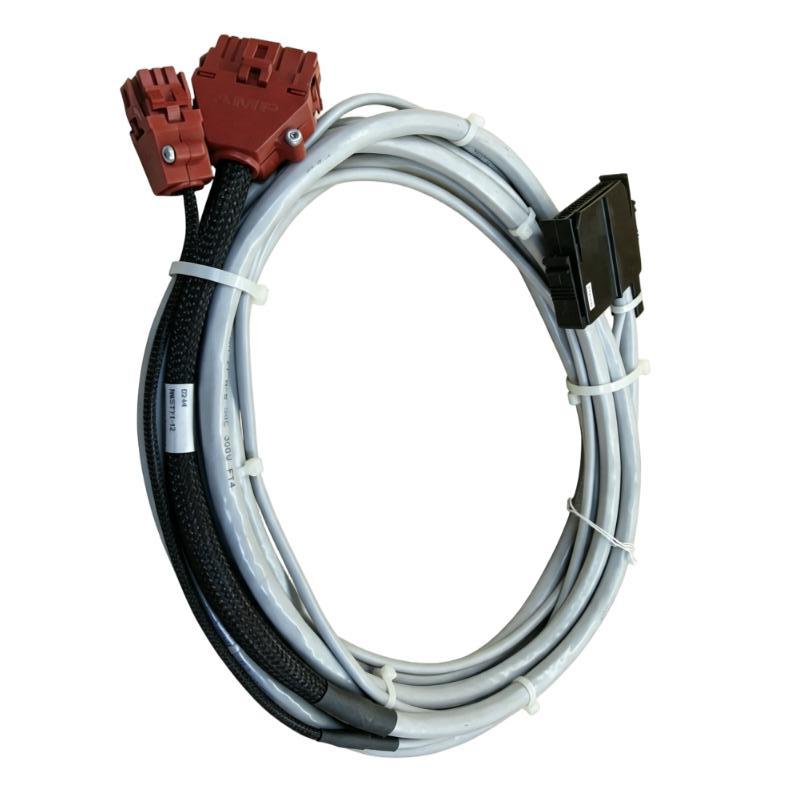

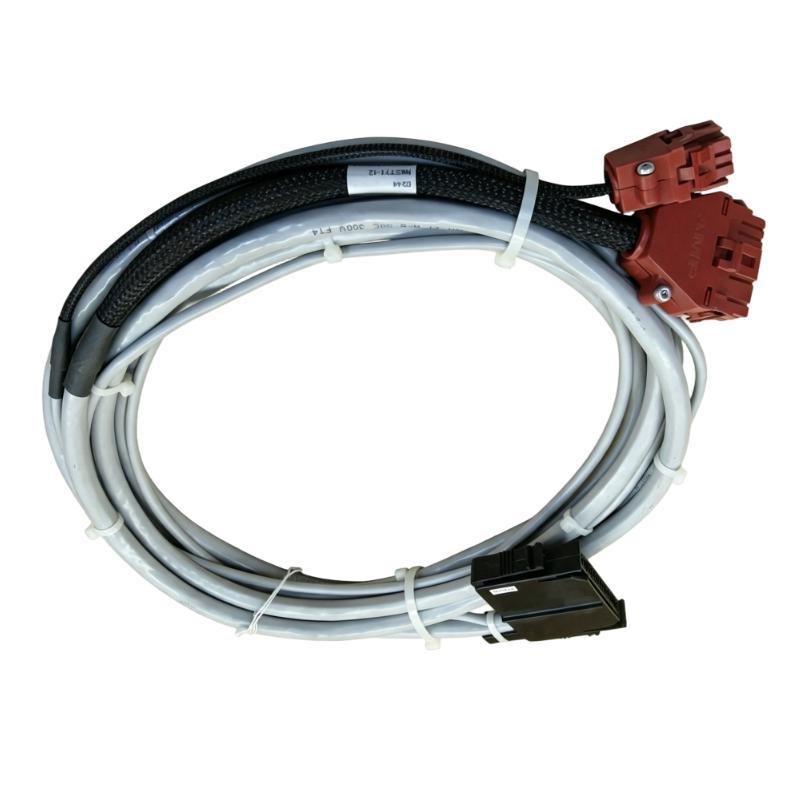

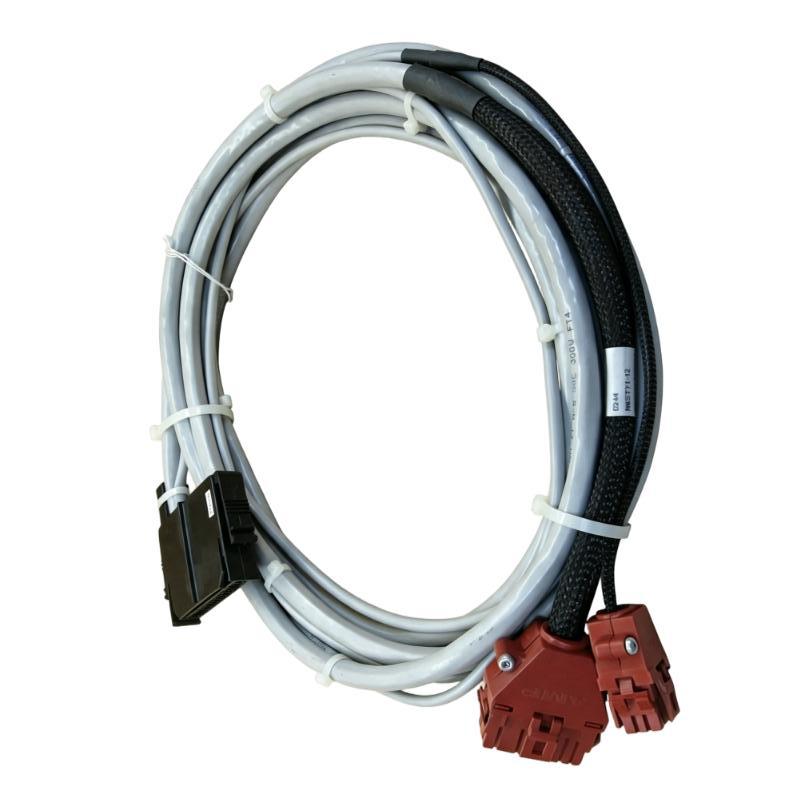

ABB Bailey NKST11 SOE Time Synchronization Cable
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Product Type | SOE Time Synchronization Cable |
| Model | NKST11 |
| Product Family | Bailey INFI 90 / Symphony Plus |
| Cable Type | Non-PVC Insulated Cable |
| Main Application | Sequence of Events (SOE) time synchronization |
| Main Function | Connects the SPSET SOE module to the NTST01 termination unit |
| Compatible SOE Module | SPSET |
| Compatible Termination Unit | NTST01 |
| Typical Connection | SPSET ↔ NTST01 |
| Insulation | Non-PVC |
| Cable Variant | NKST11 non-PVC version of the NKST01 family |
| Typical Installation | Industrial control cabinets and SOE timing systems |
| Cable Length | Optional |
| Shipping Weight | 3 kg |
FAQ
1. What is the ABB Bailey NKST11 SOE Time Synchronization Cable used for?
The ABB Bailey NKST11 is a non-PVC insulated cable designed for the SOE (Sequence of Events) time synchronization system. It is used to connect the SPSET SOE module to the NTST01 termination unit, providing the physical signal path required for time synchronization within the applicable ABB Bailey control-system architecture.
2. Which ABB Bailey devices are connected by the NKST11?
The NKST11 is specifically associated with the SPSET SOE module and NTST01 termination unit. The cable connects these two components and supports the timing-related communication required by the SOE system.
3. What is the difference between NKST11 and NKST01?
The main difference is the insulation material. NKST01 uses PVC insulation, while NKST11 uses non-PVC insulation. Both cable types are used to connect the SPSET SOE module to the NTST01 termination unit, but the non-PVC version may be selected where the installation has specific cable-material or environmental requirements.
4. Why is time synchronization important in an SOE system?
Time synchronization provides a common timing reference for events recorded by different control-system components. This is important when analyzing alarms, trips, interlocks and process disturbances because accurate timestamps allow engineers to determine the actual sequence and timing of events across the system.
5. Can the NKST11 be used as a general-purpose control cable?
The NKST11 should be used for its intended SOE time synchronization application rather than as a generic replacement cable. The cable is part of a defined connection between SPSET and NTST01 equipment, so conductor assignment, interfaces and system compatibility should all be verified before considering any replacement.
6. What should be checked before installing an NKST11?
Before installation, confirm that the system uses an SPSET module and NTST01 termination unit requiring the NKST11 connection. Check the complete cable assembly for damage, verify the connectors and connection points, and route the cable so that it is protected from excessive mechanical stress and unnecessary exposure to high electrical noise.
7. What symptoms can indicate a faulty NKST11 cable?
A faulty NKST11 can cause loss or instability of the SOE time synchronization function. Possible symptoms include synchronization errors, missing or incorrect event timestamps, intermittent timing problems, or abnormal status indications from the associated SOE equipment. Loose connectors or damaged conductors can produce intermittent faults that are difficult to reproduce.
8. How should an NKST11 cable fault be diagnosed?
Begin by placing the control system in an appropriate safe maintenance state. Inspect the NKST11 and both connector ends for physical damage, loose connections, contamination or excessive bending. Perform suitable continuity and insulation checks to identify open circuits or unintended electrical connections. If the cable tests correctly, continue troubleshooting the SPSET module, NTST01 termination unit, synchronization source and related SOE timing circuitry to isolate the actual cause of the problem.
ABB Bailey NKST11 SOE Time Synchronization Cable is in stock. Please contact us for a quick quote and competitive pricing.
