1. What is the primary function of the ABB Bailey NTCF03?

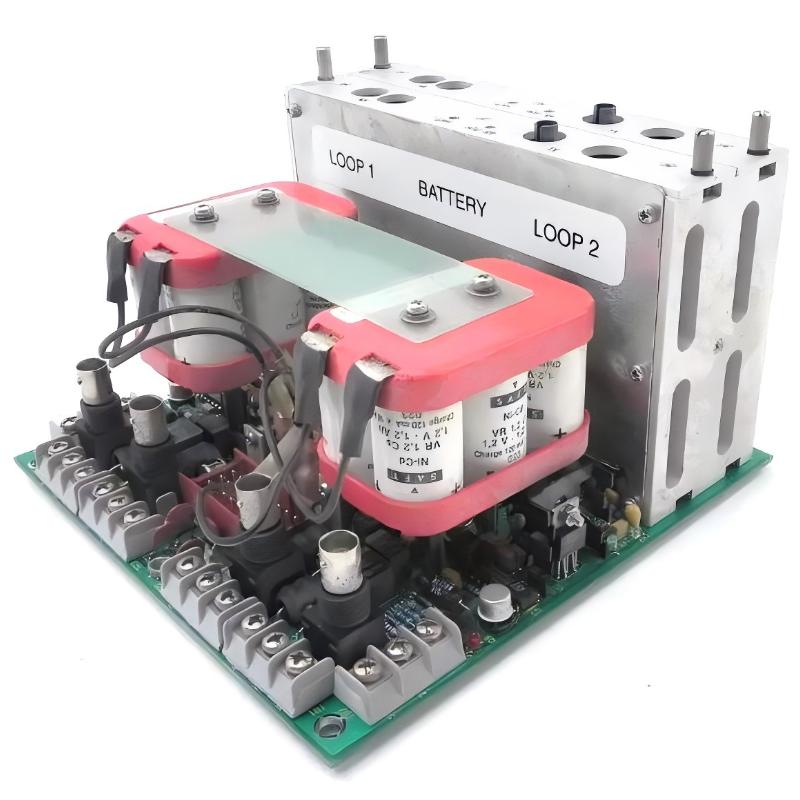

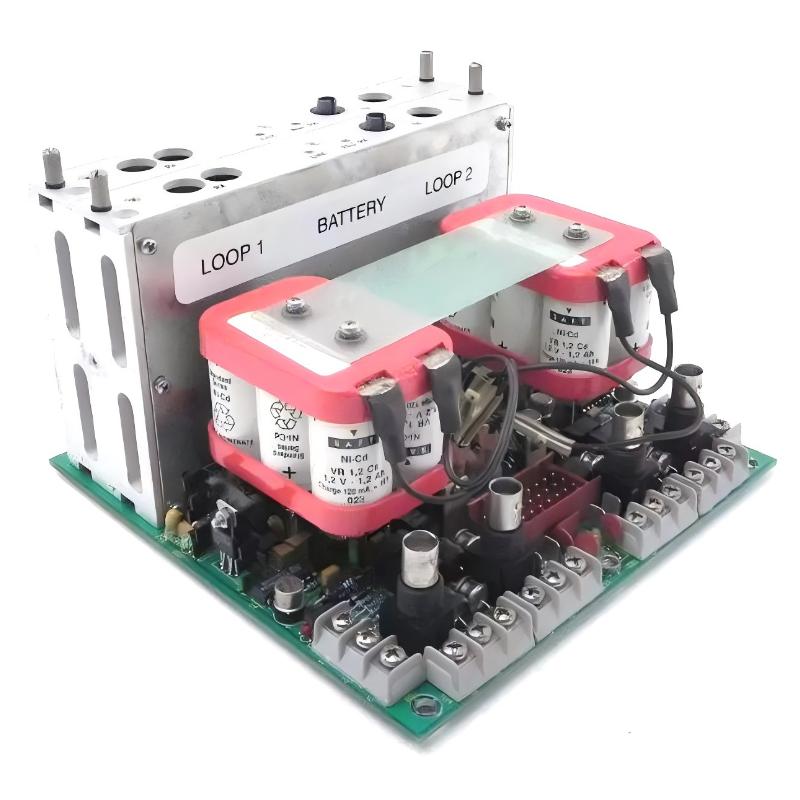

The NTCF03 is a fiber-to-fiber termination unit used in Bailey INFI 90 systems. Its primary purpose is to provide the interface required for fiber-optic communication between compatible system nodes. It converts communication signals between the electrical and optical domains, allowing data to travel over fiber-optic links with improved immunity to electromagnetic interference.

2. Is the NTCF03 a standard Ethernet fiber media converter?
No. The NTCF03 should not be treated as a generic Ethernet media converter. It is a dedicated communication termination unit designed for the Bailey INFI 90 architecture. Its interfaces and communication functions are intended to work with the associated INFI 90 system hardware, so a standard industrial Ethernet fiber converter should not be used as a direct replacement without confirming system compatibility.

3. How does the NTCF03 support fiber-optic communication?
The NTCF03 receives communication signals from the compatible INFI 90 system interface and converts them into optical signals for transmission through a fiber-optic link. At the receiving end, the corresponding communication hardware converts the optical information back into the required electrical communication format. This architecture is useful for extending communication between physically separated control-system nodes.

4. Where is the NTCF03 typically used in an INFI 90 system?
The NTCF03 can be used where an INFI 90 communication path needs to be extended through a fiber-optic connection. Typical applications include DCS communication between control cabinets, remote system nodes, and other parts of an industrial process-control installation. Fiber communication is particularly useful where long cable runs or high electromagnetic interference make conventional copper communication less suitable.

5. What should be checked if communication through the NTCF03 is lost?
Start by checking the power supply and the physical connections at the termination unit. Inspect the electrical communication connections, fiber connectors, and associated termination-panel connections. The transmit and receive fiber paths should also be verified. If the installation permits, optical power and fiber continuity should be tested with appropriate fiber-optic test equipment to determine whether the problem is in the NTCF03 or elsewhere in the communication path.

6. What can cause intermittent communication through the NTCF03?
Intermittent communication can result from loose connectors, contaminated fiber ends, excessive fiber attenuation, damaged fiber, excessive bending, or unstable electrical connections. Environmental factors and aging components can also contribute to communication instability. Troubleshooting should cover the complete communication path rather than immediately assuming that the NTCF03 itself has failed.

7. What should be considered when replacing an NTCF03?
Before replacement, verify the complete model designation NTCF03 and confirm that it is compatible with the existing Bailey INFI 90 configuration. Follow the site’s electrical and DCS maintenance procedures before disconnecting the unit. Check the electrical connections and fiber connections carefully during installation, and make sure the transmit and receive paths are correctly connected. After replacement, verify communication between the associated INFI 90 nodes before returning the system to normal operation.

8. How can an NTCF03 hardware fault be distinguished from a fiber-link fault?
A systematic isolation test is the most reliable approach. First verify system power, electrical connections, fiber continuity, connector condition, and the associated communication equipment. If the external communication path is confirmed to be healthy but the link remains unavailable, the NTCF03 becomes a stronger candidate for further investigation. Where maintenance conditions allow, replacing it temporarily with a known-good compatible unit can provide an effective cross-check before declaring the original unit defective.
