1. What is the primary function of the ABB Bailey NTCS01?

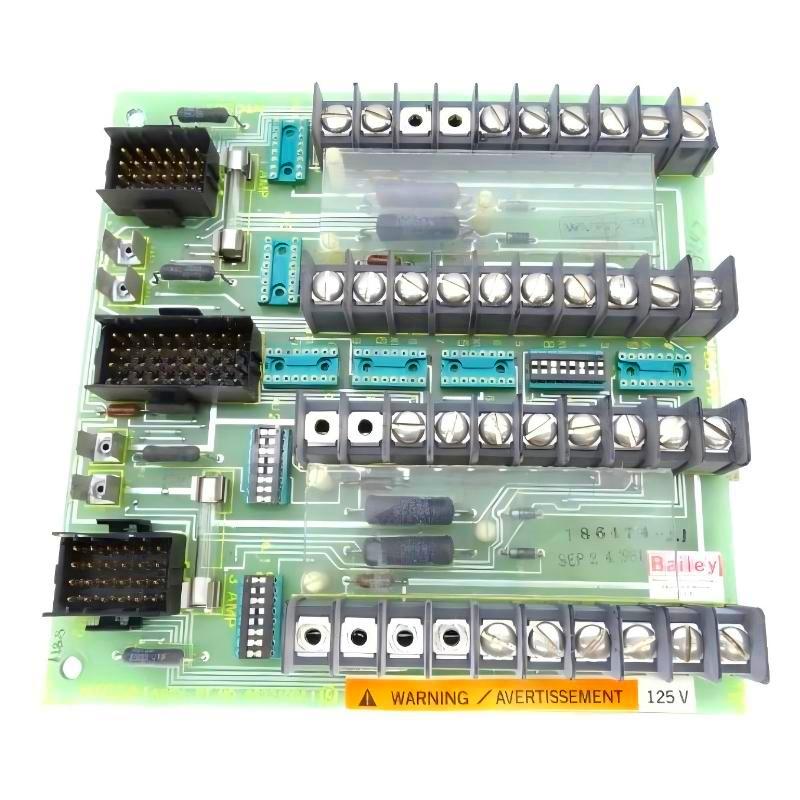

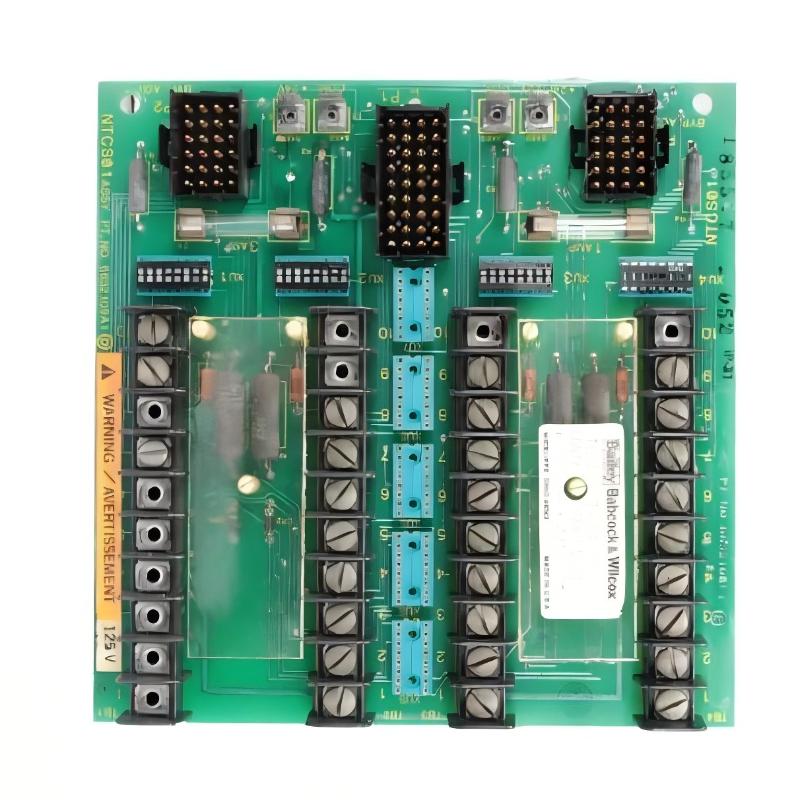

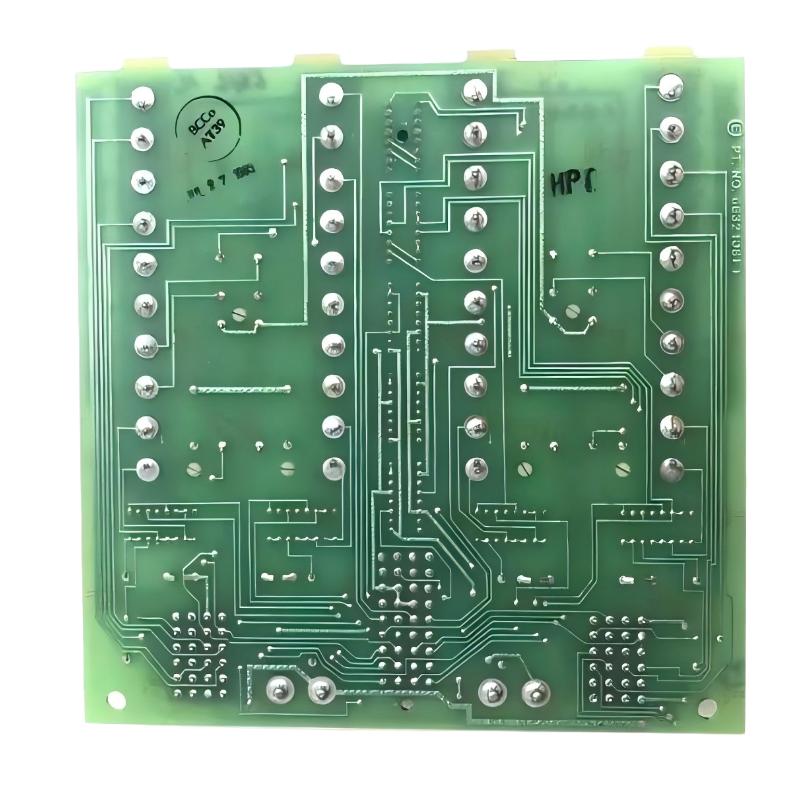

The NTCS01 is a Control I/O Termination Unit used in Bailey INFI 90 and related control-system architectures. Its primary purpose is to provide a structured termination point between field wiring and the associated control I/O hardware. It helps organize field input and output circuits and provides the physical interface required for connecting field devices to the DCS I/O system. The NTCS01 should therefore be regarded as an I/O termination component rather than as a standalone controller or signal-processing CPU.

2. Is the NTCS01 a digital input or digital output module?
The NTCS01 is classified as a Control I/O Termination Unit rather than as a dedicated digital input or digital output module. Its actual signal application depends on the Bailey I/O hardware connected to the termination unit and the particular system configuration. This distinction is important when selecting a replacement because an NTCS01 provides the field termination interface, while the associated I/O module performs the applicable signal processing and control functions.

3. What type of Bailey systems can use the NTCS01?
The NTCS01 is associated with the Bailey INFI 90 / Net 90 family of industrial control hardware. It is intended for use within compatible DCS control cabinets and I/O architectures where field control signals need to be terminated and connected to the appropriate control-system modules. Before installation, the existing cabinet arrangement, I/O module type, termination wiring, and system documentation should be checked to ensure that the replacement is appropriate for the particular configuration.

4. What should be checked when wiring an NTCS01?
Field wiring should be checked carefully against the approved system drawings and terminal assignments before the system is energized. Technicians should verify each signal wire, common connection, return circuit, shield or grounding connection where applicable, and the relationship between the termination unit and the associated I/O module. Incorrect wiring can result in incorrect field status, loss of control signals, unexpected output behavior, or faults affecting multiple channels. For an existing installation, recording the original wiring before replacement is strongly recommended.

5. How should an NTCS01-related I/O fault be diagnosed?
A systematic approach should be used rather than immediately replacing the termination unit. First verify the associated I/O module and system status, then check the field wiring and terminal connections at the NTCS01. Measure the relevant field signal and compare it with the expected condition shown in the control-system documentation. If the field signal is correct but the DCS does not recognize it correctly, the investigation should continue toward the I/O module, interconnecting cable, termination path, or system-side interface. If several channels fail simultaneously, common wiring, power, common terminals, and upstream I/O hardware should be checked first.

6. What can cause intermittent problems around an NTCS01 installation?
Intermittent I/O problems are often associated with loose terminals, damaged field cables, oxidation or contamination at connection points, poor cable termination, unstable field devices, or problems affecting a common circuit. Mechanical vibration and long-term thermal cycling can also contribute to connection problems in older control cabinets. When a signal repeatedly changes between normal and faulty states, technicians should inspect the terminal connections and wiring while monitoring the actual field signal. Replacing the NTCS01 without checking the external wiring may not resolve an intermittent fault.

7. What should be considered when replacing an ABB Bailey NTCS01?
The replacement should have the correct NTCS01 model identification and should be confirmed against the existing Bailey system configuration. Before removing the old unit, technicians should document the terminal wiring and any configuration details associated with the installation. After mounting the replacement, every field connection should be checked against the original wiring documentation. The associated I/O module should then be tested channel by channel, including normal field states, alarm conditions, control commands, and any interlocks that depend on the affected signals.

8. How can you determine whether an NTCS01 fault is caused by the termination unit or another component?
Fault isolation should be performed from the field toward the control system. Start by confirming that the field device is producing the expected signal, then verify cable continuity and the signal at the NTCS01 terminals. If the signal is present at the termination point but is not correctly recognized by the control system, the associated I/O module, interconnecting cable, or system-side interface should be investigated. If the signal is already incorrect at the NTCS01 terminal, attention should be directed toward the field device, field wiring, terminal connection, or common circuit. Comparing a faulty channel with a known-good channel under the same operating conditions can also help identify whether the problem is localized or system-wide.
