Technical Specifications

FAQ

1. What is the main function of the ABB Bailey NTCS02?

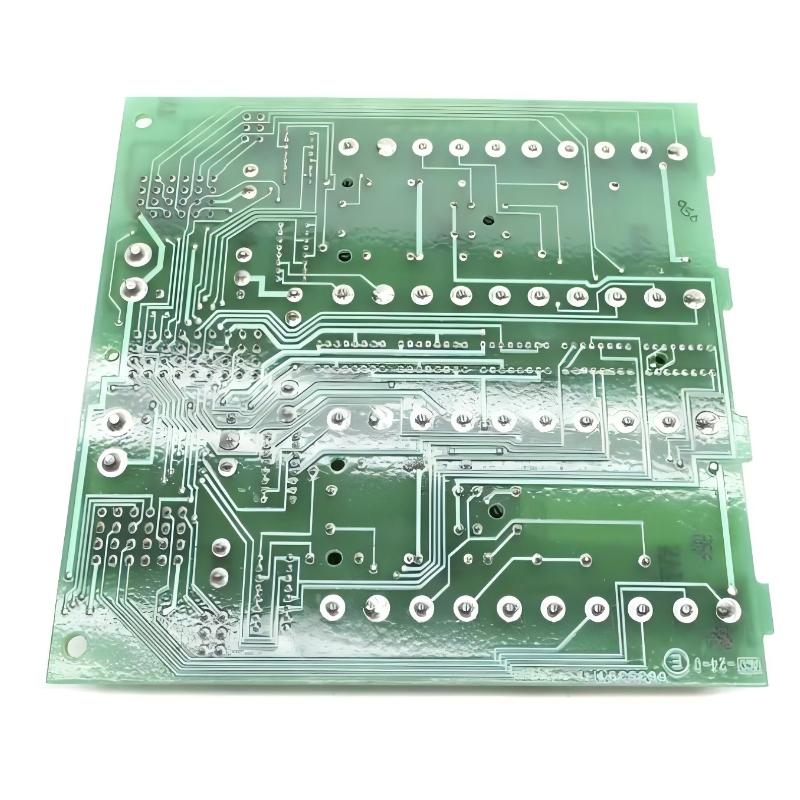

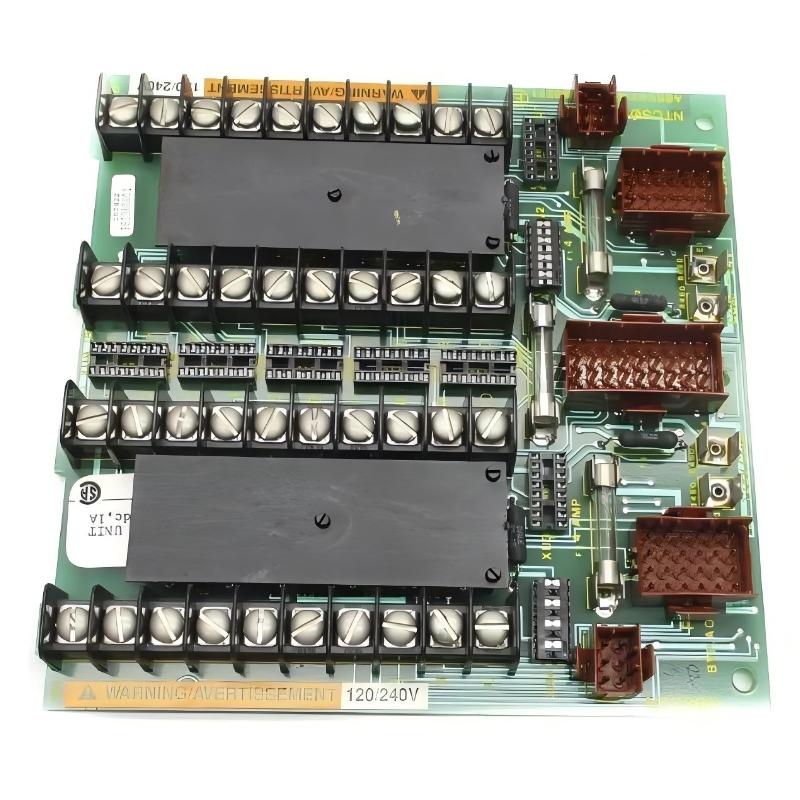

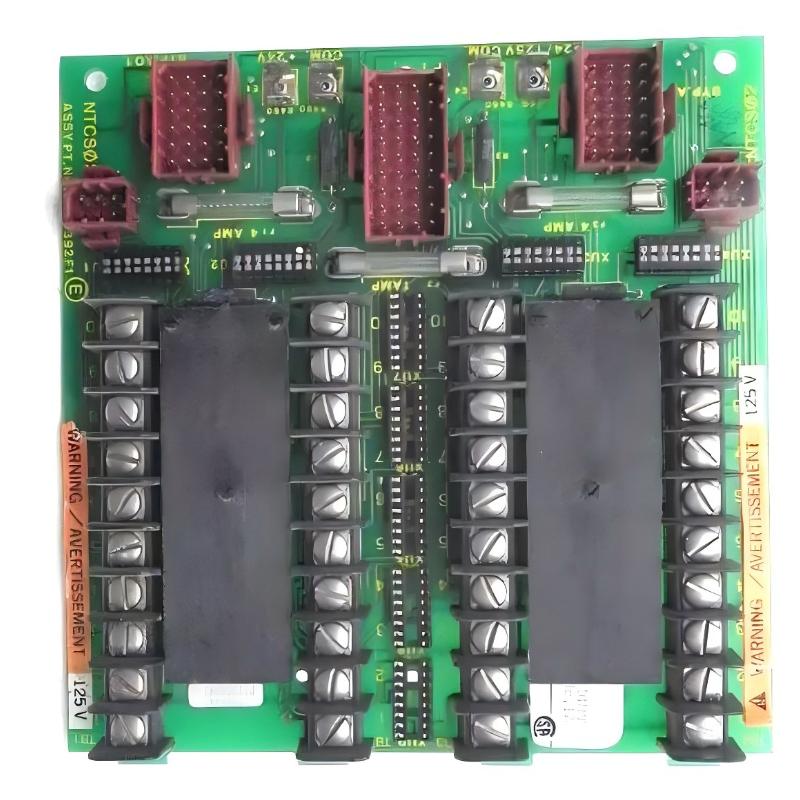

The NTCS02 is a Control I/O Termination Unit used in Bailey INFI 90 and Network 90 control systems. It provides the physical termination and signal interface between compatible control I/O modules and field devices. The termination unit handles multiple analog and digital signal paths and provides the field wiring connections required by the associated I/O module. It is therefore an interface and termination component rather than an independent CPU or controller.

2. Which Bailey I/O modules are commonly used with the NTCS02?
The NTCS02 is used with compatible Bailey control I/O modules such as the IMCIS02 Control I/O Slave Module and IMQRS02 Quick Response Slave Module. These combinations use the NTCS02 to terminate field signals and connect them to the corresponding I/O electronics. Before replacing an NTCS02, the installed I/O module should be identified because the required dipshunt configuration and signal arrangement depend on the associated module.

3. What types of I/O signals can the NTCS02 handle?
The NTCS02 supports a combination of analog and digital I/O functions. A typical configuration provides four analog inputs, two analog outputs, three digital inputs and four digital outputs. Analog inputs can be configured for applications such as powered or unpowered 4–20 mA and compatible voltage signals, while analog outputs can be configured for current or voltage operation depending on the associated I/O module. Digital channels are used for discrete field status and control signals.

4. How are the NTCS02 analog input and output channels configured?
Signal characteristics are configured using dipshunts on the termination unit. The dipshunts determine how the termination circuitry interfaces with the particular field signal and the associated Bailey I/O module. For example, analog input configurations can be selected for different 4–20 mA or voltage applications, while analog outputs can be configured for current or voltage operation. The dipshunt settings must match the actual field device and I/O module configuration; an incorrect setting can produce inaccurate readings or abnormal output behavior.

5. What should be checked if an NTCS02 analog input is reading incorrectly?
The troubleshooting process should begin with the field instrument and wiring. Verify that the transmitter is producing the expected signal and check the signal directly at the NTCS02 terminal points. Then inspect the relevant dipshunt configuration and confirm that it matches the intended input type, such as powered 4–20 mA, unpowered 4–20 mA, or voltage input. If the field signal and termination configuration are correct, the associated I/O module, termination cable and system-side diagnostics should be checked. Comparing the faulty channel with a known-good channel can help identify whether the problem is in the field circuit or the termination hardware.

6. What are common causes of NTCS02 digital input or output problems?
Digital I/O problems can result from incorrect field wiring, loose terminal connections, missing field power, defective contacts, incorrect common connections, or faults in the associated I/O module. For a digital input that remains permanently ON or OFF, the field contact and wiring should first be tested independently of the control logic. For an output that does not operate the field device, check whether the control system is actually commanding the output and then verify the signal at the NTCS02 terminal. Multiple channels failing together may indicate a common power, cable, or I/O module problem rather than individual field-device failures.

7. What should be considered when replacing an NTCS02?
The replacement must be confirmed as the correct NTCS02 model and should be matched with the existing Bailey I/O module and system configuration. Before removing the original unit, document the field wiring and all dipshunt positions. The replacement should be wired exactly according to the approved system drawings, and the dipshunts should be configured for the same signal types and field devices. After installation, analog inputs, analog outputs, digital inputs and digital outputs should be tested individually before the equipment is returned to normal operation.

8. How can you determine whether an NTCS02 fault is caused by the termination unit, field wiring, or the I/O module?
A step-by-step signal trace is the most effective method. Start by confirming that the field device is generating the correct signal, then measure that signal at the NTCS02 terminals. If the correct signal reaches the termination unit but the control system displays an incorrect value, check the dipshunt configuration, termination cable and associated I/O module. If the signal is already incorrect at the terminal, investigate the field device and field wiring. For output faults, compare the commanded output from the control system with the actual electrical signal at the NTCS02 terminal and then follow the circuit toward the field device. This approach helps isolate the defective component without unnecessarily replacing the entire I/O assembly.
