1. What is the main function of the ABB Bailey NTRL02B?

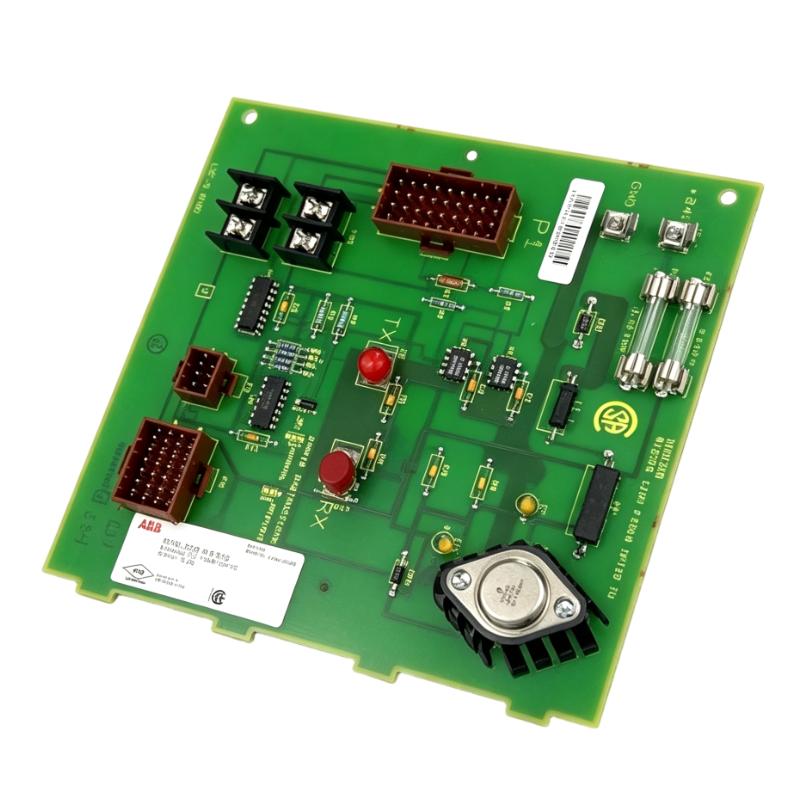

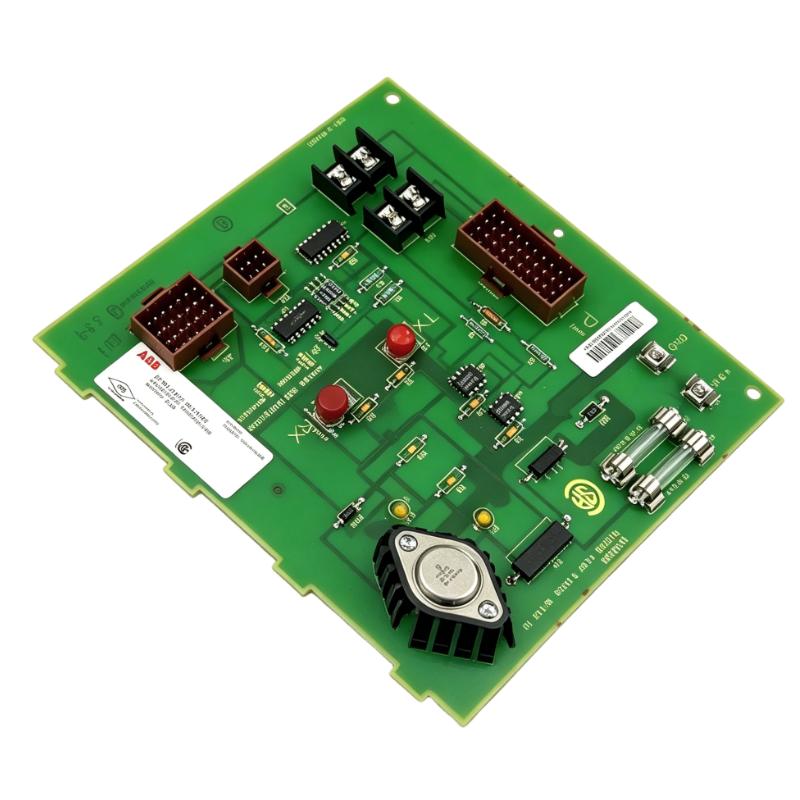

The NTRL02B is a Fiber-Optic Remote I/O Termination Unit used in ABB Bailey INFI 90 / Net 90 systems. It provides the termination and interface between the remote I/O equipment and the fiber-optic communication link. It is primarily responsible for the communication interface rather than field signal processing.

2. Which remote I/O module is associated with the NTRL02B?
The NTRL02B is associated with the IMRIO02 Remote I/O module. The termination unit provides the required connection between the remote I/O equipment and the fiber-optic remote communication path. The specific module cable and connection arrangement should follow the installed Bailey system configuration.

3. What type of fiber is used with the NTRL02B?
The documented NTRL02 family configuration uses 62.5/125 μm graded-index multimode optical fiber operating at 850 nm. When replacing or installing the unit, the fiber type, connector configuration, attenuation, and overall optical budget should be checked to ensure that the remote I/O link operates reliably.

4. What is the maximum fiber-optic communication distance?
The documented NTRL02 configuration supports a maximum fiber link distance of up to 3 km (10,000 ft) when the recommended cable and optical budget requirements are satisfied. Actual performance depends on fiber attenuation, connector losses, cable condition, splices, and the overall optical path.

5. What should be checked if the remote I/O station goes offline?
First verify the +24 VDC supply and the status of the NTRL02B. Then inspect the TX/RX fiber connections, optical connectors, fiber continuity, and signs of excessive attenuation or contamination. The connection between the NTRL02B and IMRIO02 should also be checked. If a redundant or repeater arrangement is used, the associated jumper configuration and station-link wiring should be verified.

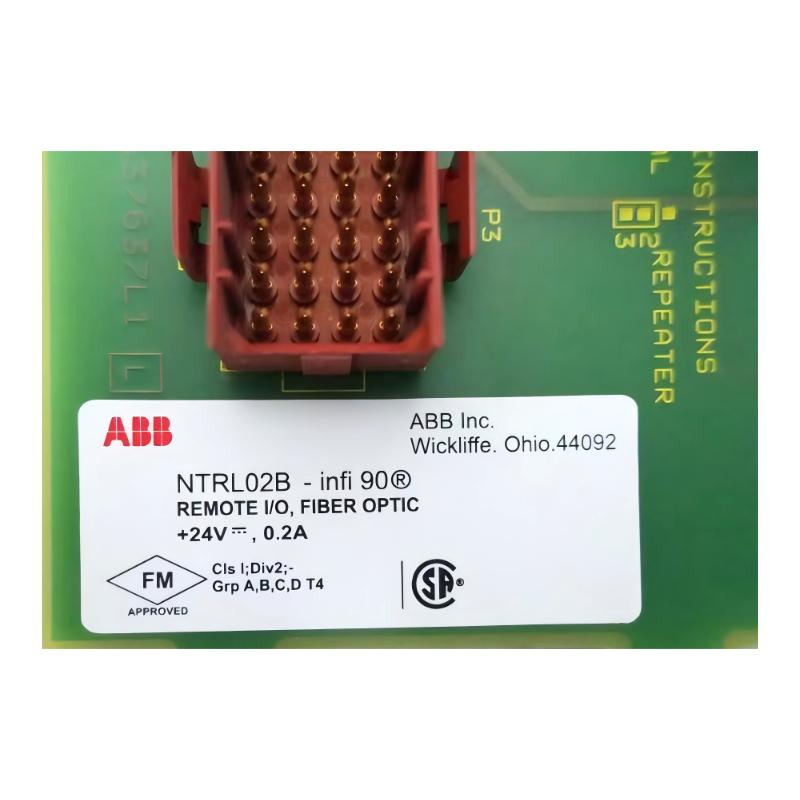

6. What is the purpose of the NTRL02B jumper configuration?
The applicable jumper configuration determines the operating arrangement of the termination unit, including normal or repeater operation. The jumper position must match the system topology. An incorrect setting can prevent the remote I/O communication link from operating correctly, so the installed configuration should be checked against the system documentation before commissioning.

7. What are common causes of intermittent fiber-optic communication?
Common causes include contaminated optical connectors, damaged or excessively bent fiber, excessive optical attenuation, incorrect TX/RX connections, unstable 24 VDC power, and incorrect termination-unit configuration. Fiber problems should be checked carefully because an optical link can remain partially operational while still producing intermittent communication failures.

8. How should the NTRL02B be maintained and replaced?
Routine maintenance should include checking the power supply, fiber connectors, optical signal path, module cable, and termination connections. Optical connectors should be kept clean and protected from contamination. Before replacing the NTRL02B, record the existing wiring, fiber connections, and jumper settings. After replacement, verify the optical link, remote I/O communication, and all affected station signals before returning the system to normal operation.
