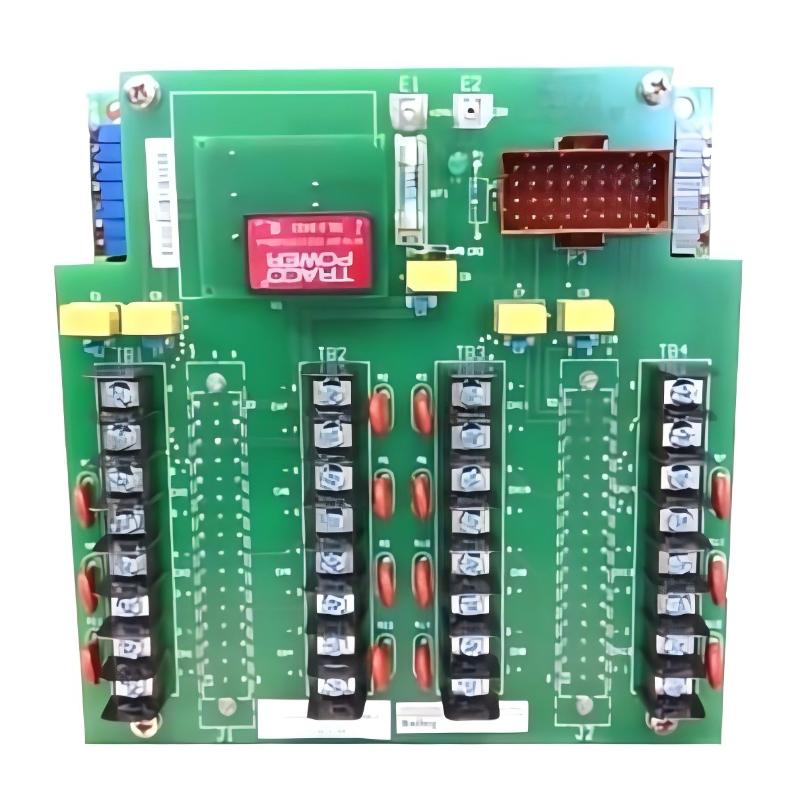

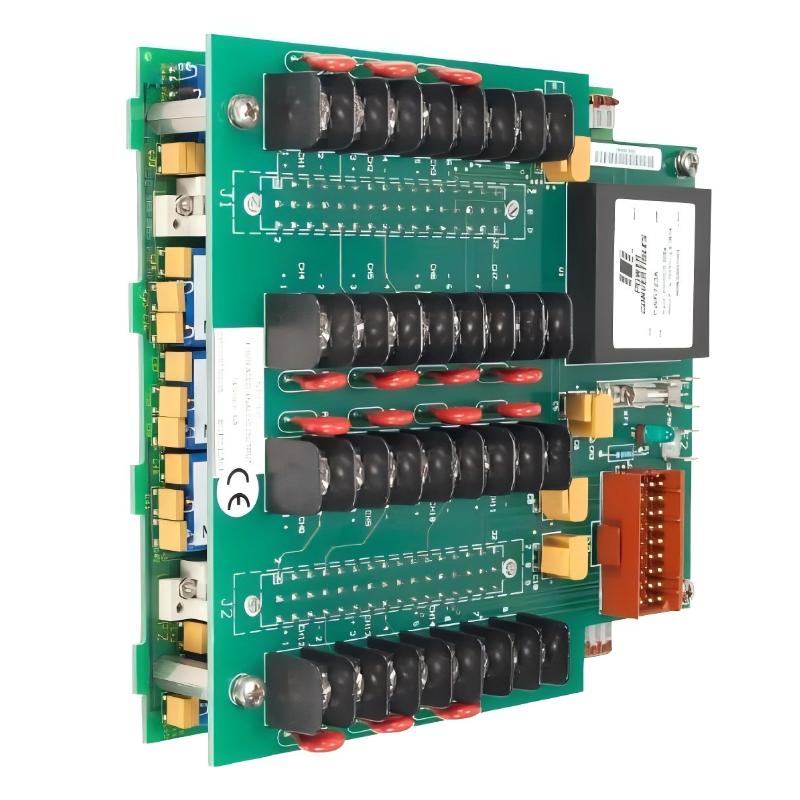

1. What is the main function of the ABB Bailey NTU-7U0?
The NTU-7U0 is identified as a digital input terminal unit used to provide the field-side termination and interface for digital signals in an ABB Bailey control system. It provides an organized connection between field devices and the associated I/O electronics, allowing discrete equipment states, alarms, contacts, and interlock signals to be transferred into the control system.

2. What types of field signals can be connected to the NTU-7U0?
Typical applications involve discrete ON/OFF signals from switches, auxiliary contacts, equipment status contacts, alarm circuits, interlocks, and other binary field devices. The actual signal type and wiring arrangement depend on the associated I/O module and the specific INFI 90 system configuration, so the site wiring documentation should be checked before commissioning or replacement.

3. What role does the NTU-7U0 play in an ABB Bailey I/O system?
The NTU-7U0 serves as the termination and field-wiring interface rather than replacing the control processor or I/O processing electronics. Field signals are connected through the termination unit and transferred to the associated I/O hardware. This arrangement separates permanent field wiring from active electronic components and simplifies maintenance and signal tracing.

4. What should be checked if a digital input is not detected by the control system?
First verify that the field device is operating and that its contact or digital signal actually changes state. Then inspect the field cable, terminal connections, connectors, and the corresponding NTU-7U0 channel. If the physical signal is present, check the associated I/O module, channel configuration, and system diagnostics. Comparing the field signal with the control-system indication helps determine whether the fault is in the field circuit, termination path, I/O electronics, or configuration.

5. Why might a digital input remain permanently ON or OFF?
A permanently ON or OFF input can be caused by a failed field contact, open or shorted wiring, loose terminals, incorrect channel assignment, or a fault in the associated I/O electronics. Start by measuring or verifying the actual field-device state, then compare it with the input status shown by the control system. If the field state changes correctly but the software indication does not, the termination path, I/O channel, or configuration should be investigated.

6. Can loose wiring at the NTU-7U0 cause intermittent input signals?
Yes. Loose terminal connections, damaged conductors, poor connector contact, vibration, or corrosion can produce intermittent digital input signals. These faults may be difficult to detect because the input can appear normal during a static inspection. When an intermittent problem occurs, inspect the terminal connections and cable condition and compare the event or diagnostic history with the actual field-device operation.

7. What precautions should be taken when replacing the NTU-7U0?
Before replacement, place the affected control circuit into the appropriate maintenance condition and follow the site’s electrical isolation procedures. Confirm the replacement model is NTU-7U0, document the existing wiring before disconnecting it, and verify each terminal position carefully. Connectors and terminals should be inspected for damage or contamination, and appropriate ESD precautions should be followed when working near associated electronic I/O equipment.

8. How should the NTU-7U0 be verified after installation?
After installation, confirm that all field wires and connectors are connected to their correct positions and that the associated I/O hardware is properly seated and recognized by the control system. Check system diagnostics for new alarms, then operate representative field devices and verify that their ON/OFF states are correctly displayed. For critical inputs, also verify alarm, interlock, permissive, and equipment-status functions before returning the affected control loop to normal operation.
