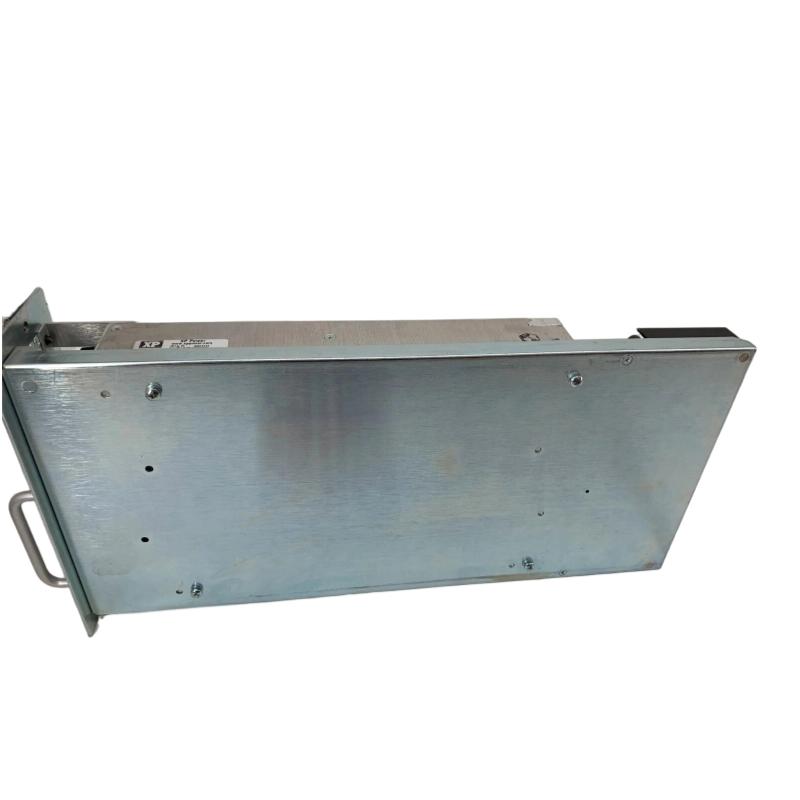

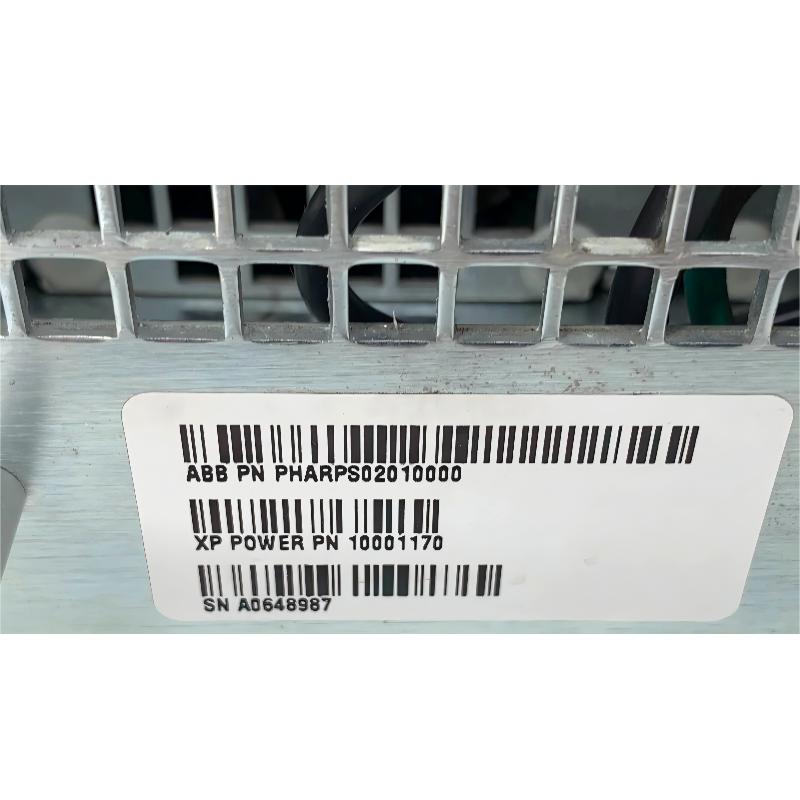

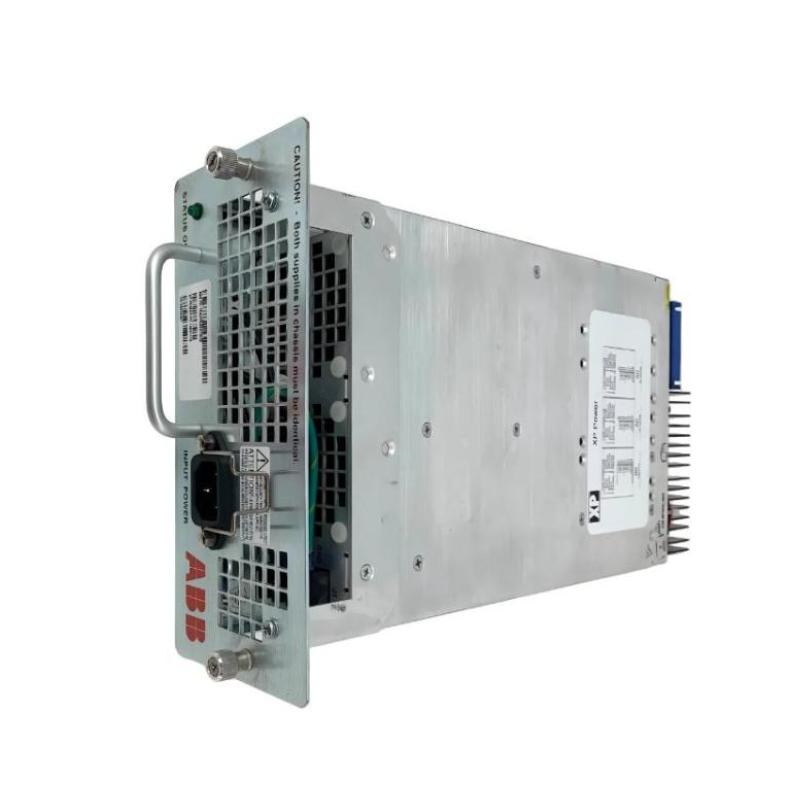

ABB Bailey PHARPS02010000 Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PHARPS02010000 |
| Product Type | Power Supply Module |
| Manufacturer | ABB Bailey |
| Product Series | Bailey INFI 90 / Harmony |
| Power System | Modular Power System III (MPS III) |
| Module Function | Provides DC power for ABB Bailey control-system hardware |
| Main Application | DCS, Process Control, Industrial Automation, and Power Generation |
| Output Voltage 1 | 24 V DC |
| Output Current 1 | 17 A |
| Output Voltage 2 | 125 V DC |
| Output Current 2 | 2.3 A |
| Output Type | Multi-output regulated DC power supply |
| Power System Architecture | MPS III Modular Power System |
| System Integration | ABB Bailey INFI 90 / Harmony control-system power architecture |
| Installation | Dedicated Bailey MPS III power chassis / power tray |
| Mounting Type | Rack-mounted power supply module |
| Typical Loads | Controllers, I/O systems, field interfaces, and compatible control-system equipment |
| Power Function | Provides simultaneous 24 V DC and 125 V DC system power |
| System Connection | Internal MPS III power-system connection |
| Maintenance | Module-level replacement and power-connection inspection |
| Operating Environment | Industrial Control Cabinet |
| Typical Applications | DCS Control, Process Monitoring, Industrial Automation, and Power Systems |
| Product Status | Limited Life Cycle / Legacy System Component |
| Dimensions | 231.14 × 106.68 × 337.82 mm |
| Weight | 1 kg |
FAQ
1. What is the main function of the ABB Bailey PHARPS02010000?
The PHARPS02010000 is a multi-output power supply module used within the ABB Bailey Modular Power System III (MPS III). It provides 24 V DC and 125 V DC outputs for compatible Bailey INFI 90 / Harmony control-system equipment. Its multi-output configuration allows different parts of the control system to receive the DC voltage required by their respective circuits.
2. What is the 24 V DC output capability of the PHARPS02010000?
The PHARPS02010000 provides a 24 V DC output rated at 17 A. This output can supply compatible controllers, I/O equipment, interface circuits, and other DC loads within the Bailey control-system architecture. The actual available capacity should be evaluated against the total connected load and the configuration of the MPS III power system.
3. What is the purpose of the 125 V DC output?
The module also provides a 125 V DC output rated at 2.3 A. This output is intended for compatible equipment and power circuits within the Bailey control-system architecture that require a higher DC voltage. When replacing the module, both output requirements should be checked to ensure that the replacement is suitable for the existing system configuration.
4. Which ABB Bailey systems are compatible with the PHARPS02010000?
The PHARPS02010000 is associated with the ABB Bailey Modular Power System III (MPS III) and is used in INFI 90 / Harmony control-system power architectures. It is normally installed in a dedicated power chassis or power tray and works together with the associated power-entry and distribution components. Complete system compatibility should be confirmed before replacement.
5. How should I troubleshoot an abnormal 24 V DC output from the PHARPS02010000?
First verify that the MPS III power system is receiving the correct input power. Then inspect the module installation, connectors, power distribution wiring, and connected load. Measure the 24 V DC output under normal operating conditions and check whether the voltage changes when the load is connected. If the input supply is stable but the 24 V DC output remains low or absent, check for overload conditions, wiring problems, and possible internal module failure.
6. What could cause both the 24 V DC and 125 V DC outputs to fail at the same time?
When both outputs become abnormal simultaneously, the common power path should be investigated first. Possible causes include an input power problem, a power-entry fault, poor module contact, a problem within the MPS III power tray, or an internal failure of the power supply module. Checking the common input and distribution path can help distinguish a system-level power problem from an individual output fault.
7. What precautions should be taken when replacing the PHARPS02010000?
Before replacement, place the control system in the appropriate maintenance condition and isolate the relevant power sources according to site procedures. Confirm that the replacement module is PHARPS02010000 and compatible with the existing MPS III configuration. Inspect connectors and mounting interfaces for contamination, looseness, or damage, and use suitable ESD protection when handling the module. Because the module provides multiple DC outputs, all relevant connections and polarities should be verified before energizing the system.
8. How should the PHARPS02010000 be tested after replacement?
After installation, verify that the module is fully seated and that all power connections are secure. Following the approved startup procedure, check both 24 V DC / 17 A and 125 V DC / 2.3 A outputs under normal system conditions. Monitor the connected controllers and I/O equipment for stable operation, and review system diagnostics and alarms for power-related faults. The replacement should be considered verified only after the control system and connected equipment operate normally without recurring power-supply alarms.
ABB Bailey PHARPS02010000 Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
