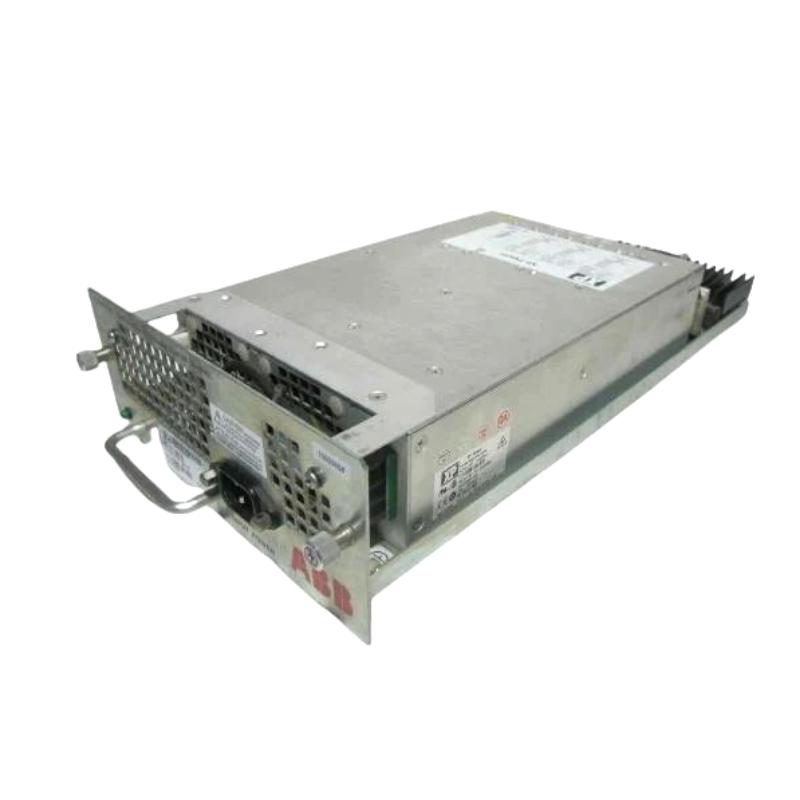

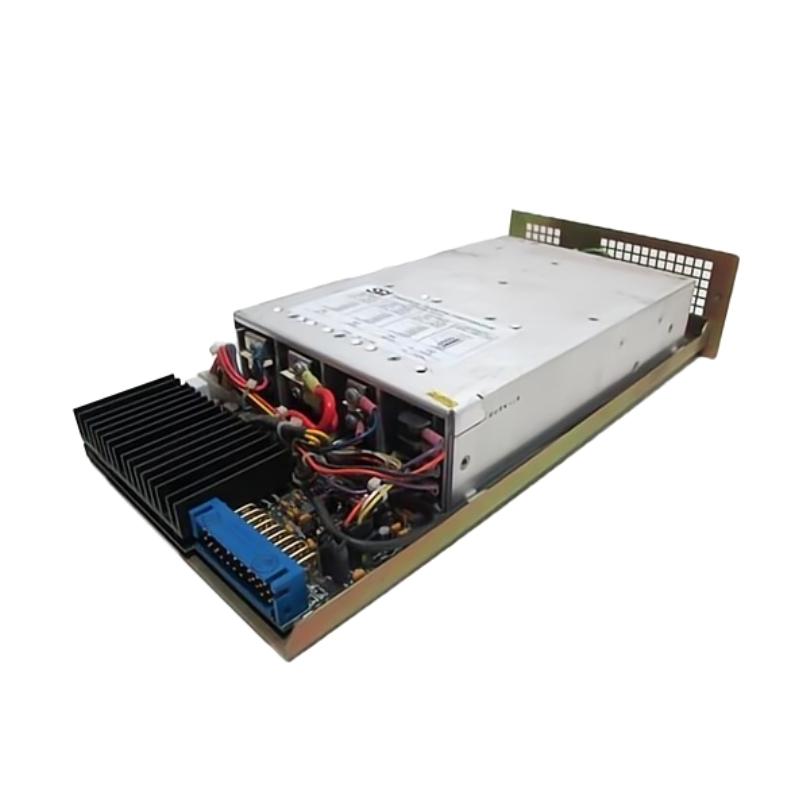

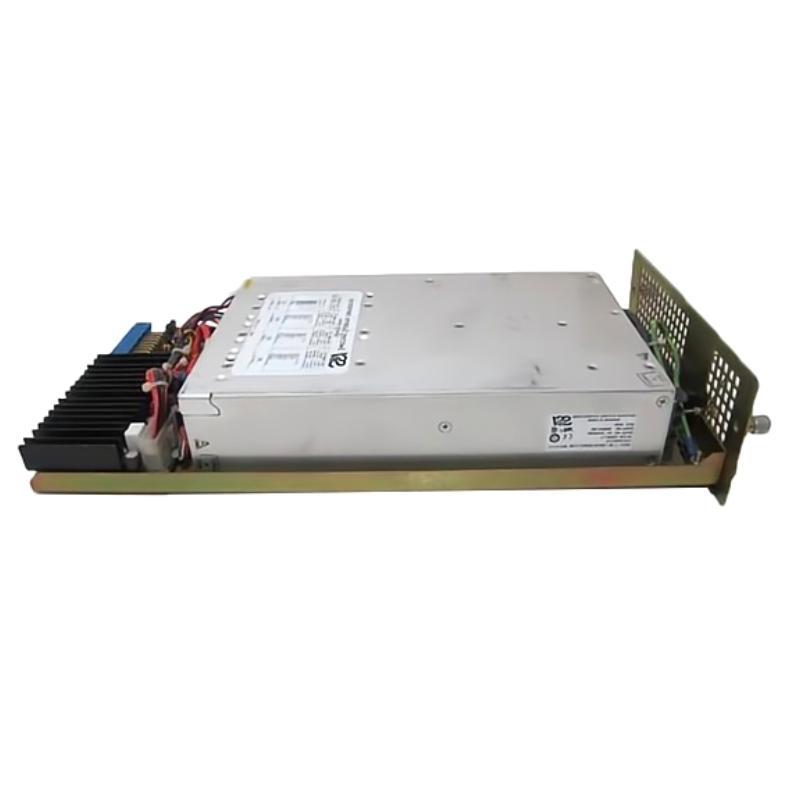

ABB Bailey PHARPS3220000 Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Product Name | Power Supply Module |
| Order Number | PHARPS3220000 |
| Product Type | MPS III Power Supply |
| System Platform | ABB Bailey Symphony Harmony / INFI 90 |
| Power System | Modular Power System III (MPS III) |
| Main Function | Provides multiple DC power rails for DCS control and I/O system components |
| Input Voltage | 100–240 VAC |
| 5 VDC Output | 60 A |
| +15 VDC Output | 3 A |
| -15 VDC Output | 3 A |
| 24 VDC Output | 17 A |
| 48 VDC Output | 8.5 A |
| Output Configuration | 5 VDC, +15 VDC, -15 VDC, 24 VDC and 48 VDC |
| Installation | Dedicated MPS III power supply chassis / power tray |
| Application | ABB Bailey DCS control systems, controllers and I/O equipment |
| Dimensions | 127 × 508 × 254 mm |
| Weight | 1 kg |
FAQ
1. What is the main function of the ABB Bailey PHARPS3220000?
The PHARPS3220000 is an MPS III modular power supply designed for ABB Bailey DCS systems. It converts the incoming AC supply into multiple regulated DC voltage rails for control electronics, I/O assemblies and other system components.
2. What DC outputs are provided by the PHARPS3220000?
The power supply provides five DC outputs: 5 VDC at 60 A, +15 VDC at 3 A, -15 VDC at 3 A, 24 VDC at 17 A, and 48 VDC at 8.5 A. These different voltage levels allow the module to supply digital, analog and other control-system circuits.
3. What is the purpose of the 5 VDC output?
The 5 VDC output is mainly used to supply digital logic and electronic circuitry within the DCS architecture. With a rated current of 60 A, it provides a high-capacity logic supply for compatible system modules.
4. Why does the module provide both +15 VDC and -15 VDC?
The bipolar +15 VDC and -15 VDC outputs are intended for electronic circuits requiring positive and negative supply rails. They are particularly useful for compatible analog signal-processing and conditioning circuits. An abnormal voltage on either rail can affect the operation of connected analog equipment.
5. What are the 24 VDC and 48 VDC outputs used for?
The 24 VDC output provides up to 17 A for compatible control-system and field-related loads. The 48 VDC output provides up to 8.5 A for equipment designed for the higher DC voltage. Actual load distribution should follow the system power-design documentation.
6. Where is the PHARPS3220000 installed?
The module is installed in the dedicated MPS III power-supply chassis or power tray used by the ABB Bailey control-system architecture. Correct seating, power connections and chassis interfaces are required for reliable operation.
7. How should an abnormal output voltage be diagnosed?
Check the incoming AC supply and the connection between the power supply and its chassis first. Measure each DC output and compare the readings with the specified values. If only one output is abnormal, inspect its connected load for excessive current or short circuits. If several outputs are abnormal, check the input supply, chassis connections and power module.
8. What should be checked when replacing the PHARPS3220000?
Confirm that the replacement unit has the same order number and output configuration. Before replacement, follow the site’s electrical isolation procedure and inspect the power chassis and connectors. After installation, verify the 5 VDC, ±15 VDC, 24 VDC and 48 VDC outputs and confirm that the connected controllers and I/O modules operate normally.
ABB Bailey PHARPS3220000 Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
