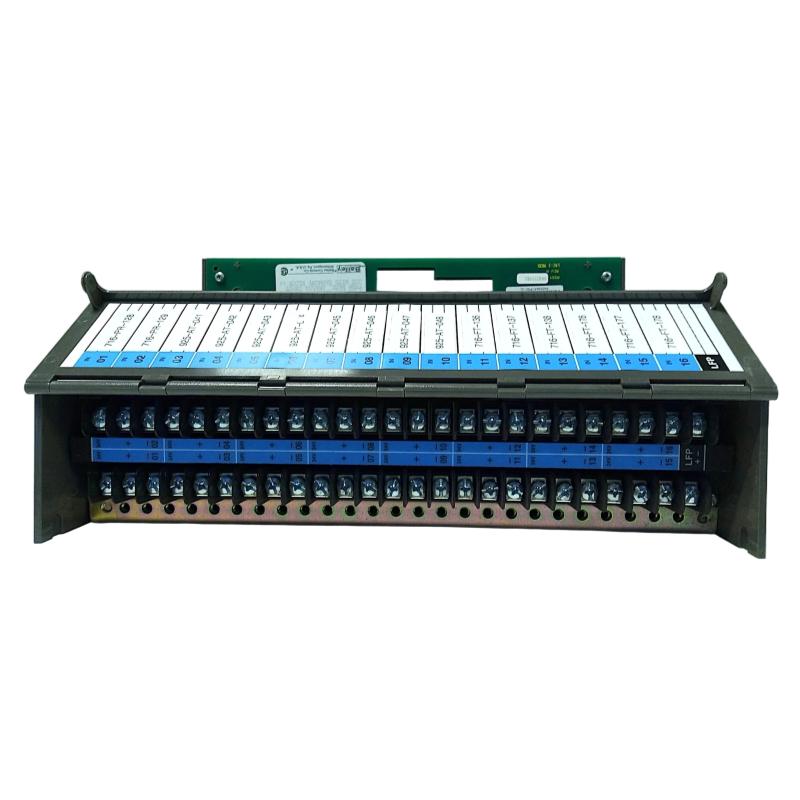

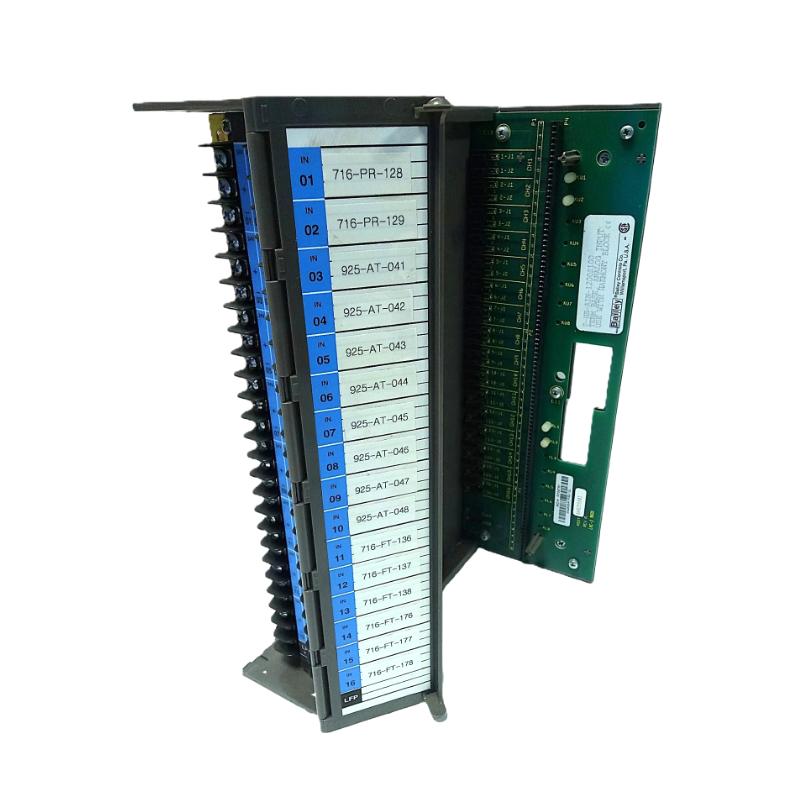

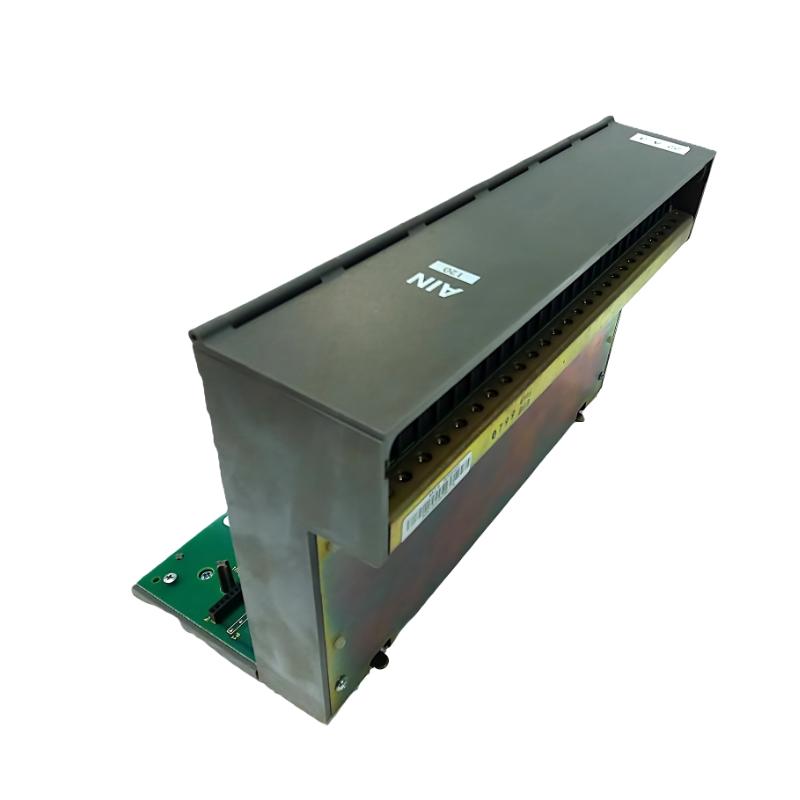

ABB Bailey PHBAIN1200S200 Analog Input Base
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB Bailey |
| Model | PHBAIN1200S200 |
| Product Name | Analog Input Base |
| Product Type | Analog Input Base |
| Product Family | Harmony Block I/O |
| System Compatibility | ABB Bailey Infi 90 and Net 90 |
| Module Type | AIN-120 Analog Input Base |
| Main Function | Provides the mounting and electrical interface for analog input modules |
| Input Application | Analog signal acquisition from field devices such as sensors and transmitters |
| Channel Configuration | Supports analog input module configurations |
| Installation Application | ABB Bailey industrial process control systems |
| Typical Applications | Process measurement, monitoring and industrial automation |
| Signal Interface | Field analog signal connection through the associated input module |
| Mounting Function | Provides physical and electrical support for the installed analog input module |
| Maintenance Function | Facilitates module installation, replacement and system maintenance |
| Dimensions | 280 × 100 × 75 mm |
| Weight | 1.8 kg |
FAQ
1. What is the ABB Bailey PHBAIN1200S200 used for?
The PHBAIN1200S200 is an Analog Input Base designed for ABB Bailey Harmony Block I/O systems. It provides the physical mounting and electrical interface required for the associated analog input module, allowing field analog signals to be integrated into the control system.
2. Which ABB Bailey systems are compatible with PHBAIN1200S200?
The PHBAIN1200S200 is associated with ABB Bailey Infi 90 and Net 90 automation platforms and the Harmony Block I/O product family. Before replacement, the installed system configuration and associated analog input module should be checked to confirm compatibility.
3. What is the difference between an analog input base and an analog input module?
The analog input base provides the physical and electrical mounting interface, while the analog input module performs the actual signal acquisition and processing. The base therefore works together with the appropriate analog input electronics rather than replacing the signal-processing module itself.
4. What types of field devices can be connected through the PHBAIN1200S200 system?
The associated analog input module can be used with suitable field devices such as process transmitters and sensors. Depending on the installed module and configuration, applications can include measurement of process variables such as pressure, temperature, flow and level. The exact supported signal range must be verified for the installed input module.
5. What should be checked before installing PHBAIN1200S200?
Before installation, verify the complete model number, the Harmony Block I/O configuration, the compatible analog input module and the existing cabinet wiring. The base should be checked for damaged terminals, connectors, mounting hardware and signs of mechanical or electrical damage before being placed into service.
6. What are common problems associated with an analog input base?
Potential problems include loose connections, damaged terminals, poor contact between the base and module, wiring faults or intermittent field signals. Symptoms may include unstable analog readings, loss of input signals or channel-related diagnostic alarms. Troubleshooting should distinguish between base wiring problems and faults originating from the analog input module or field device.
7. How should PHBAIN1200S200 be maintained?
Maintenance should include inspection of terminals, connectors, mounting points and associated wiring. The base should be kept free from excessive dust, moisture and contamination, while connections should remain secure. If intermittent signal problems occur, inspect both the base interface and the installed analog input module before replacing components.
8. What should be verified after replacing PHBAIN1200S200?
After replacement, verify that the base is securely mounted and that all field and system connections are correctly restored. Confirm that the associated analog input module is properly seated, then check channel status and input values through the control system. A controlled signal test can be performed to confirm stable signal transmission and correct system operation.
ABB Bailey PHBAIN1200S200 Analog Input Base is in stock. Please contact us for a quick quote and competitive pricing.
