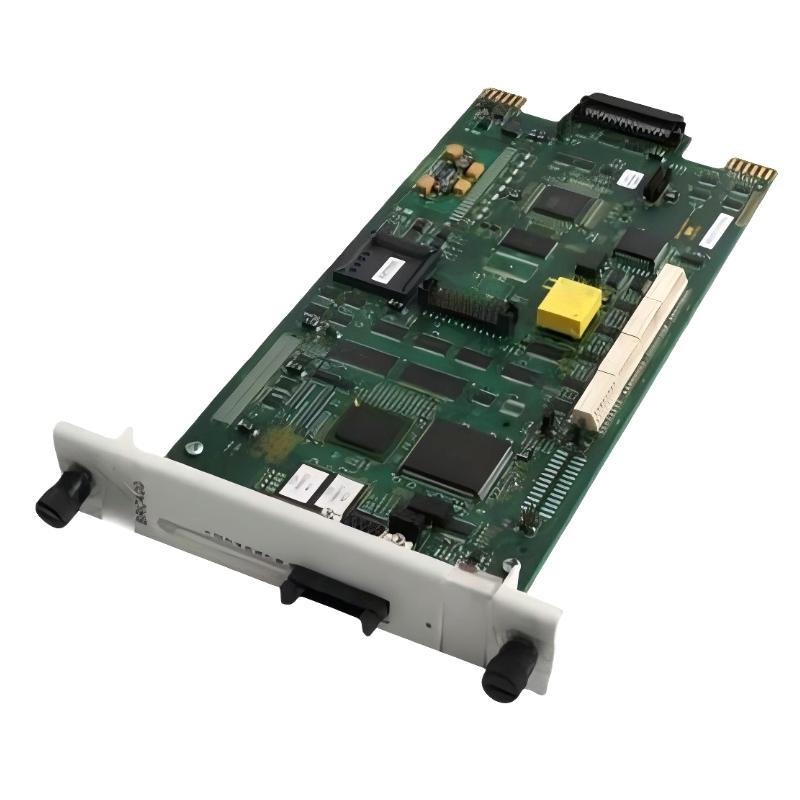

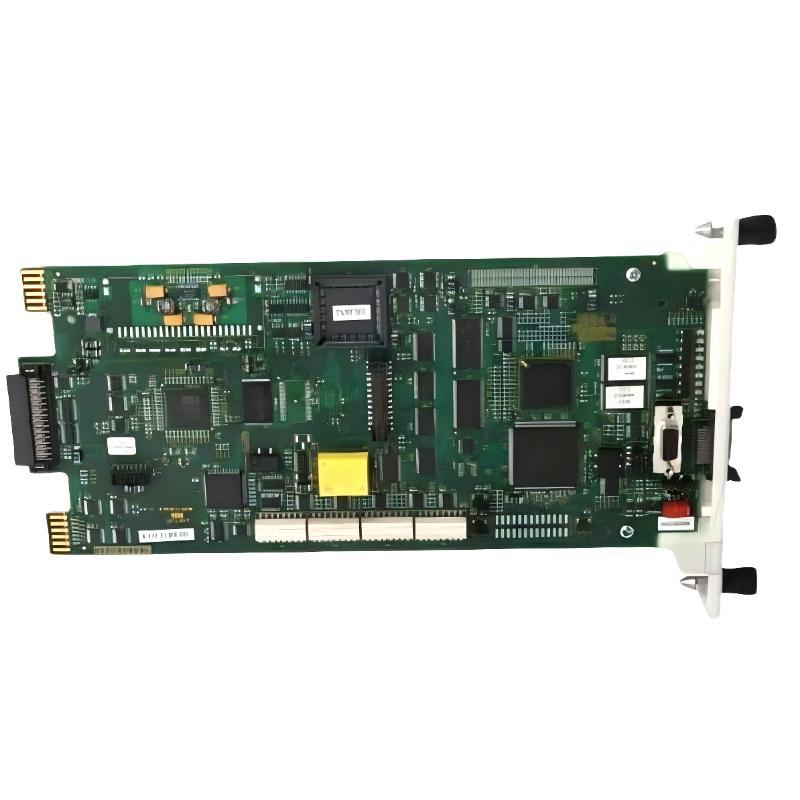

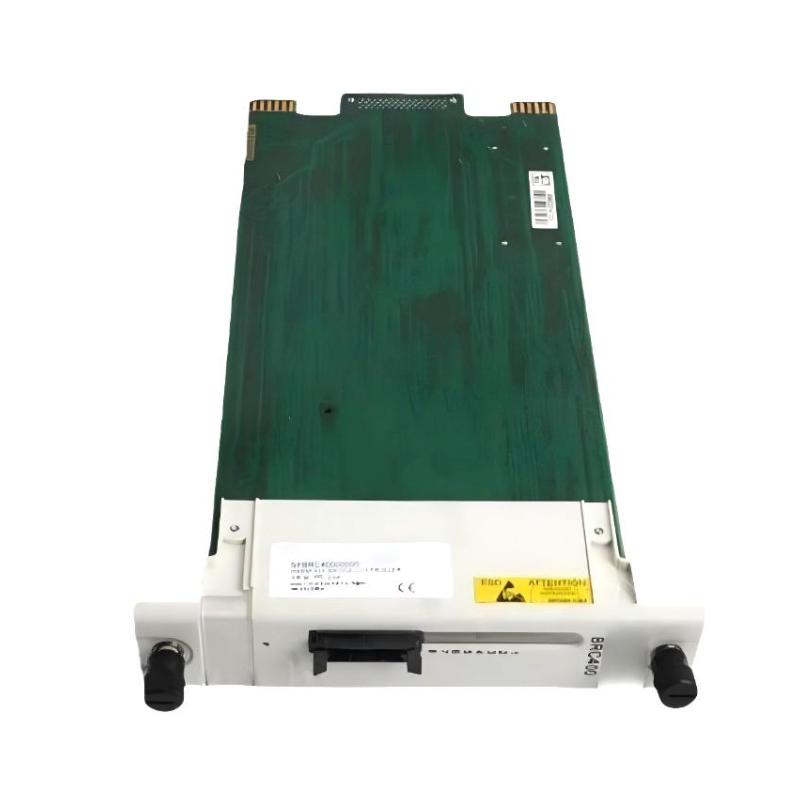

ABB Bailey SPBRC400 Bridge Ccontroller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | SPBRC400 |
| Product Type | Bridge Controller |
| Product Name | Harmony Bridge Controller |
| Product Description | Controller with Expanded Memory |
| Product Series | Symphony Plus / Harmony |
| System Compatibility | Symphony Plus, Harmony and INFI 90 OPEN |
| Controller Architecture | High-performance, high-capacity process controller |
| Processor | 32-bit Motorola ColdFire microprocessor |
| Memory | Expanded memory with 2 MB NVRAM |
| Function Block Capacity | Up to 30,000 function blocks |
| I/O Support | Harmony block I/O and Harmony rack I/O |
| Control Function | Process data acquisition, control algorithm execution and control signal output |
| Communication | Harmony Hnet and system control network communication |
| System Integration | Supports integration with existing INFI 90 OPEN control architectures |
| Redundancy | Supports redundant controller configurations |
| Firmware | Downloadable firmware |
| Installation | Rack-mounted controller |
| Typical Applications | Process automation, power generation, industrial DCS and plant control |
| Maintenance | Monitor controller status, communication links, memory, diagnostics and system configuration |
| Battery | Lithium button-cell battery |
| Dimensions | 71.12 × 358.14 × 271.78 mm |
| Weight | 0.499 kg |
FAQ
1. What is the ABB Bailey SPBRC400 used for?
The SPBRC400 is a high-performance Harmony Bridge Controller used in ABB Symphony Plus and INFI 90 OPEN distributed control systems. It collects process data, executes control strategies and sends control signals to process-level devices.
2. What type of I/O systems can the SPBRC400 interface with?
The SPBRC400 is designed to interface with both Harmony block I/O and Harmony rack I/O. This allows the controller to manage different I/O configurations within the same control architecture.
3. Does the SPBRC400 support INFI 90 OPEN systems?
Yes. The SPBRC400 is designed to maintain compatibility with the INFI 90 OPEN control architecture, making it suitable for system upgrades and replacement applications where existing Bailey hardware and software need to be retained.
4. How much control logic can the SPBRC400 handle?
The BRC-400 platform supports up to approximately 30,000 function blocks. The actual usable capacity depends on the configured control strategy, firmware version and overall system architecture.
5. Does the SPBRC400 support redundant operation?
Yes. The BRC controller architecture supports redundant configurations using two controllers. Redundancy can improve control-system availability by providing an alternate controller when the primary controller becomes unavailable.
6. What is the function of the expanded memory in the SPBRC400?
The expanded memory provides additional storage for control-system configuration and processing requirements. The BRC-400 includes 2 MB of NVRAM, which supports retention of important controller data when normal power is unavailable.
7. What should be checked when replacing an SPBRC400?
Before replacement, verify the controller model, firmware compatibility, rack configuration, I/O architecture, controller redundancy arrangement and existing control strategy. The replacement should match the original system design to avoid communication or configuration problems.
8. What are common troubleshooting steps for an SPBRC400 communication fault?
Check the controller status indicators and system diagnostics first. Then inspect the rack/backplane connections, Hnet communication path, controller configuration and firmware status. If redundant controllers are installed, check the operating status of both controllers and verify that the redundancy connection is functioning correctly.
ABB Bailey SPBRC400 Bridge Ccontroller is in stock. Please contact us for a quick quote and competitive pricing.
